Summary of Contents for RCA VR651HF

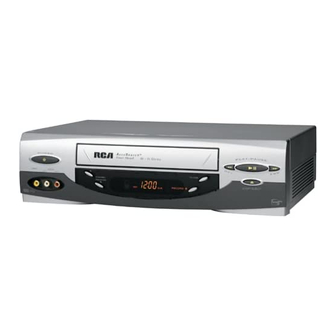

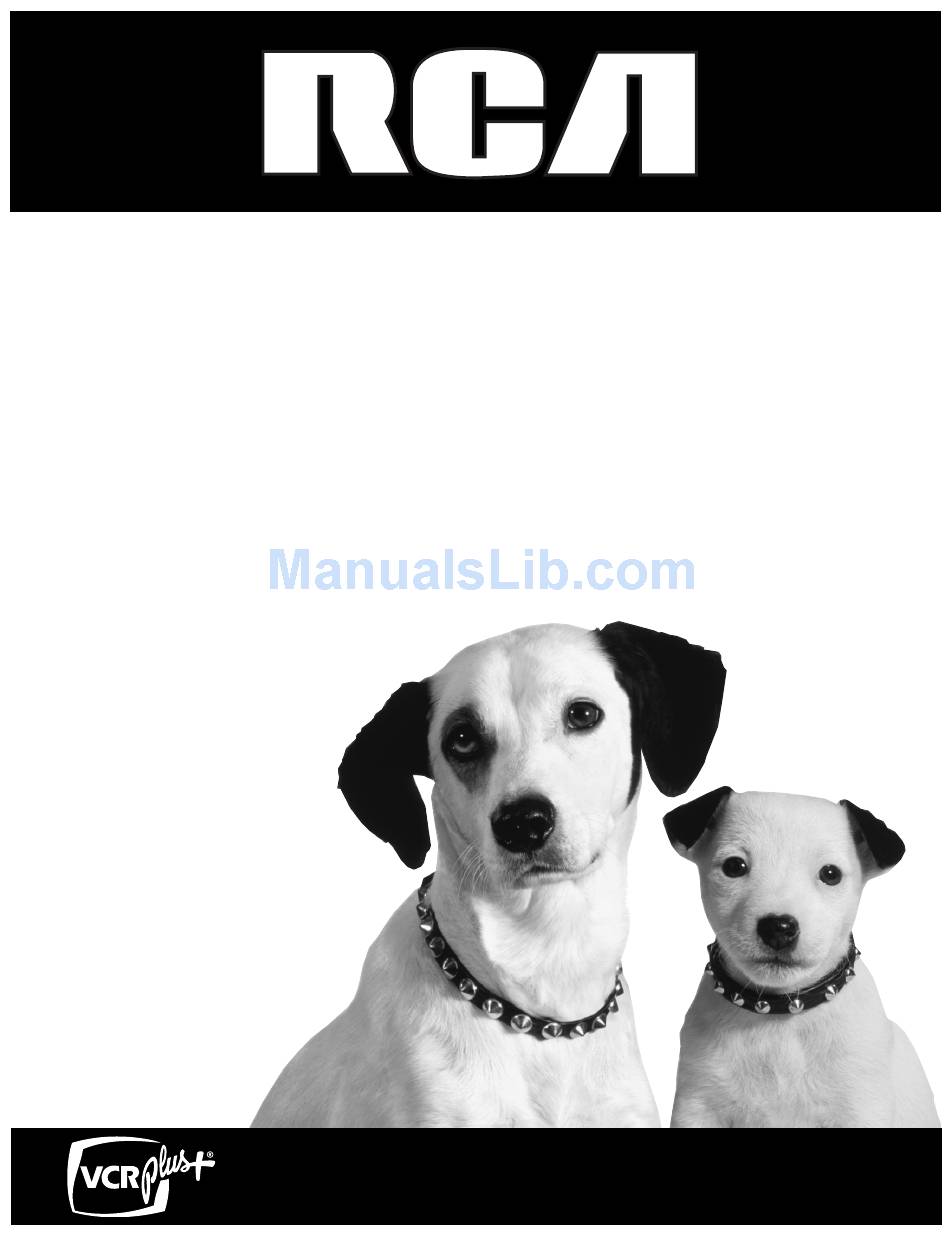

- Page 1 User’s Guide Changing Entertainment. Again. VR651HF...
-
Page 2: Important Information
Keep your sales receipt to obtain warranty parts and service and for proof of purchase. Attach it here and record the serial and model numbers in case you need them. The numbers are located on the back of the VCR. -
Page 3: Key Features Overview
Requirements: Make sure that VCR Plus+ system is active, that Auto Channel Search and time set features are correct. Unified Remote Control Description: The VCR’s remote control can operate most RCA, GE, and Proscan TVs with no additional steps. Requirements: Point the remote control at the active component and press the ON•OFF button to see if it can be operated. -
Page 4: Commercial Scan
Hi-Fi Quality Sound Description: When using the VCR’s A/V jacks, you can feed stereo quality sound from your VCR to your TV or stereo. Stereo quality sound allows for two separate channels of sound (Left and Right) to be heard. -
Page 5: Table Of Contents
Cable Considerations ... 6 Choose Your Connection ... 7 TV + VCR ... 8 TV + VCR + Satellite Receiver ... 9 TV + VCR + Cable Box ... 10 Set the VCR’s CH 3/4 Switch ... 11 Plug in the VCR ... 11 Put Batteries in the Remote Control ... - Page 6 Front Panel ... 48 Display Panel ... 49 Back Panel ... 50 RCA VCR Limited Warranty ... 51 How to Find Your TV’s Video Input Channel ... 52 Advanced Connection ... 53 TV + VCR + Satellite Receiver ... 53 Glossary ...
-
Page 7: Connections & Setup
Chapter 1 Connections & Setup Chapter Overview: • Things to Consider Before Connecting • Choosing Your Connection • Making Connections • Why You Should Connect with Audio/Video Jacks • Navigating On-Screen Menus • Completing the QuickSet™ Guide • Basic Recording Changing Entertainment. -
Page 8: Things To Consider Before Connecting Components
If your TV has A/V input jacks, you should use A/V cables (not supplied) to connect the VCR to the TV. A/V cables provide better picture and sound quality than an RF coaxial cable. If you would like to hook up your VCR using A/V cables, refer to the Advanced Connection information on page 53 in the Other Information chapter of the manual. -
Page 9: Choose Your Connection
For details about using this advanced setup, see the instructions on page 53. Using A/V jacks to connect the VCR to the TV requires tuning to the TV’s Video Line Input to see the VCR’s picture. For more information about finding your TV’s Video Line Input, see page 52. -
Page 10: Tv + Vcr
Connect the cable or antenna RF coaxial cable to the ANT. IN jack on your VCR. Note: Flip the CH 3/4 switch on the back of the VCR to the channel that is not used in your area. This will be the channel that the TV must be tuned to in order to see the VCR’s picture. -
Page 11: Tv + Vcr + Satellite Receiver
1. Connect the VCR to the TV Connect one end of the supplied RF coaxial cable to the RF OUT jack on the back of the VCR and the other end to the TV’s Antenna IN jack. 2. Connect satellite receiver to the VCR Connect an RF coaxial cable to the RF OUT jack on the cable box and to the CABLE/ANTENNA input jack on the TV. -
Page 12: Tv + Vcr + Cable Box
1. Connect the VCR to the TV Connect one end of the supplied RF coaxial cable to the RF OUT jack on the back of the VCR and the other end to the TV’s Antenna IN jack. 2. Connect the cable box to the VCR Connect one end of a second RF coaxial cable (not included) to the cable box’s TV output jack and the other end to the antenna input jack on the... -
Page 13: Set The Vcr's Ch 3/4 Switch
Set the VCR’s CH 3/4 Switch The CH 3/4 switch on back of the VCR determines what channel the TV must be tuned to see the VCR’s image. Choose whichever channel is not used locally in your area. Note: If you connected components using A/V jacks and cables, the VCR’s signal must be viewed using the TV’s Video Line Input. -
Page 14: Using The Remote Control To Navigate On-Screen Menus
The menu system in your VCR allows you to customize your preferences as well as use all the VCR’s features. To help you use the VCR as quickly as possible, there is an initial QuickSet Guide that walks you through several important setup steps at one time. -
Page 15: Vcr Basics
VCR Basics Once your initial settings are complete, you can begin using your VCR. In order to begin, you must first understand some basic concepts. Automatic Tracking The VCR has automatic tracking which adjusts the picture when playing back a tape recorded on another VCR. - Page 16 This page left blank intentionally...
-
Page 17: Using The Vcr's Menu System
Chapter 2 Using the VCR’s Menu System Chapter Overview: • Setting Up the VCR’s Preferences • Using On-Screen Menus • Cable Box Setup • Setting Time and Date • Setting VCR Preferences Changing Entertainment. Again. -
Page 18: Using On-Screen Menus To Set Up Features
Using On-Screen Menus to Set Up Features You set up many of the VCR’s features by using the menu system as discussed in the previous chapter. Each feature that appears in the QuickSet Guide is explained in this section as well as a few other features you should set up to get the most out of your VCR. -
Page 19: Vcr Channels List
VCR Channels List Your VCR may come with a list of channels preset at the factory. Even though it may come with such a list, you might want to add or delete certain channels. Note: If you use a cable box to view all channels, this step is not necessary. -
Page 20: Changing The Signal Type
Once the desired channel is displayed, the on-screen menu will tell you if the channel is currently in the VCR’s viewing list. Press the CLEAR button to remove a channel from the available channels list or press the INFO button to add it. -
Page 21: Time And Date
Time and Date Your VCR gives you two ways to set the time and date; manually or by using the Auto Clock Set feature. Using Auto Clock Set enables the time to be updated each time the VCR is turned off by using time and date information carried in certain broadcast signals. -
Page 22: Setting Daylight-Saving Time
3. Press 4 to choose SET DAYLIGHT SAVING. 4. Select the appropriate option. Notes: DST stands for Daylight–Saving Time. If you choose Automatic for the time zone, the VCR sets the clock using any DST information broadcast in the channel’s signal. Setting Time and Date Manually If Auto Clock Set was unsuccessful, set the time and date manually in the TIME menu. -
Page 23: Additional Set Up Features In The Preferences Menu
VCRs. If you have a universal remote control with this ability, your RCA VCR can be controlled with either the VCR1 or VCR2 button. See the documentation that came with your universal remote control for details about programming it to operate your RCA VCR. -
Page 24: Auto Tv/Vcr
Select OFF and the VCR will stay on until you shut it off. • Select 1:00, 2:00, or 3:00 and the VCR will turn off after one, two, or three hours of inactivity. Thirty seconds before automatically shutting off, the VCR displays an on-screen message reading, The VCR will turn off in 30 seconds. -
Page 25: Tape Speed
Press the SPEED button on the remote control. • Set the tape speed in the timer or VCR Plus+ system recording menus. When you turn off the VCR, the tape speed reverts to the one selected as the default. Set Auto Repeat A tape can be set to play the same segment over and over in a repeating loop with the Set Auto Repeat feature. - Page 26 This page left blank intentionally...
-
Page 27: Using The Remote Control
Chapter 3 Using the Remote Control Chapter Overview: • Buttons on the Remote Control • Programming the Remote to Operate Other Components • How To Use the Remote After You’ve Programmed It Changing Entertainment. Again. -
Page 28: Using The Remote Control
The remote control is capable of controlling more than just your VCR. If you have compatible RCA, GE, or Proscan TV, you may be able to control it without having to program the remote. If you have another brand of TV, your VCR’s remote control may be able to operate it once it has been programmed. -
Page 29: Using The Input Button
Operating a TV with the VCR’s Remote Control The remote control that came with your VCR can be programmed to operate most brands of remote-controllable TVs and should already control most RCA, GE, and Proscan models without programming. Chapter 3... -
Page 30: Do You Need To Program The Remote
TV on, point the remote control at it, then press the remote control’s TV button (this puts the remote control into TV-operating mode and should automatically turn on most RCA, GE, and Proscan TVs). Press the remote control’s ON•OFF button to see if the TV responds to the command. - Page 31 Portland ... 06, 12 Proscan ... 01 Proton ... 06 Quasar ... 11 Radio Shack ... 01, 05, 13 RCA ... 01, 06, 12 Realistic ... 05 Sampo ... 06 Samsung ... 06, 09, 12 Sanyo ... 05, 08 Sears ... 01, 05, 06, 07, 08, 10, 12 Sharp ...
- Page 32 This page left blank intentionally...
-
Page 33: Using The Vcr's Features
Chapter 4 Using the VCR’s Features Chapter Overview: • Recording • Express Recording (XPR) • Timer Recordings • Using the VCR Plus+ System • Copying and Editing Tapes Changing Entertainment. Again. -
Page 34: Recording Features
Press REC to set length To Activate XPR: 1. If necessary, turn on the VCR and tune it to the channel with the desired programming. 2. If necessary, insert a tape with its safety tab in place into the VCR. Make sure it is cued to record at the proper starting point. -
Page 35: Timer Recording
Insert a tape with its safety tab in place and enough tape to record the program. • if you’ve set up the VCR for a cable box for all channels, the output of your cable box appears in the channel item of the Timer Recording menu. -
Page 36: Vcr Plus+ System
VCR Features VCR Plus+ System You can use the VCR Plus+ system to simplify programming timer recordings if you have cable TV and don’t receive all channels through a cable box or if you receive your TV signal off-air. Mapping VCR Plus+ Channels Using the VCR Plus+ system can make taping timer recordings for cable or off-air antenna easier. -
Page 37: Vcr Features
43 ... WTBS Atlanta 60 ... WWOR-New York Note: Refer to your local TV program listings for a complete VCR Plus+ channel list for your viewing area or contact your cable company. Using the list may save you some time. -
Page 38: Vcr Plus+ System Worksheet
Cable-TV Station Name ESPN *Check your local or cable listings for the channel number you receive this station on. **Check your local listings for broadcast or VCR Plus+ channel number assigned. Channel Number VCR Plus+ System You Receive the Channel Number**... -
Page 39: Recording Broadcast Stereo Tv Or Sap (Second Audio Program)
(Second Audio Program) Some TV programs are broadcast with stereo audio or SAP (Second Audio Program). 1. Turn on the TV and tune it to the VCR viewing channel (either 03, 04, or the TV’s Video Line Input). 2. Insert a tape with its safety tab in place. -
Page 40: Picture Search Options
VCR Features Picture Search Options The basic way to search during playback is using the remote control’s FORWARD or REVERSE buttons (FWD and REV on the VCR). This section contains several other options available for searching a tape. Insert Tape: Don’t forget to insert a recorded... -
Page 41: Index Search
4. Press the FORWARD button to search forward or the REVERSE button to search in reverse. The VCR will locate your index mark and begin playback. If you did not enter a specific index number, the VCR will locate the next index mark and begin playback. -
Page 42: Pro-Tect Plus™ Locking Feature
Pro-Tect Plus ™ Locking Feature To disable VCR usage or to protect set timer recordings, the unit can be locked so that the buttons on the VCR or remote control don’t work. • To Lock: Press and hold either the remote control’s ON•OFF or VCR button until SAFE appears in the display to indicate Pro-Tect Plus is active. -
Page 43: On-Screen Displays
Chapter 4 On-Screen Displays Pressing the INFO button displays the status of the VCR (Stop, Play Record, etc.) as well as the channel number, time counter position, date, time, and tape speed on the TV screen. Note: The date and time must be set before they can be displayed. -
Page 44: Audio Set-Up Features
Hi-Fi and linear tracks. Tape Playback The VCR records the same audio on both the Hi-Fi stereo and linear tracks on the tape. Hi-Fi sound is recorded on separate left and right stereo channels. Monaural sound is recorded on the linear track. In the AUDIO menu, press the 2 button repeatedly to switch between Tape Playback: Hi-Fi, LINEAR, and MIX. -
Page 45: Other Information
Chapter 5 Other Information Chapter Overview: • Troubleshooting • Specifications • Care and Cleaning • Front, Rear, and Display Panel Diagram • Warranty Information • Finding the TV’s Video Line Input • Advanced Connection Diagram • Glossary • Index Changing Entertainment. Again. -
Page 46: Troubleshooting Tips
TIMER flashes on the VCR front panel display • The clock is not set. • Check to make sure there is a cassette in the VCR when a timer recording is set ad the power is turned off. On-screen menus appear in English, French, or Spanish •... -
Page 47: Recording Problems
• Check to make sure the TV’s fine tuning is correct for the channel selected. • If you use A/V cables and jacks to connect the VCR to the TV, check all connections for snug and correct connections. • Check to make sure the TV monitor is set to Video Line Input (see How to Find Your TV’s Video Line Input in this section of the manual for detailed information). - Page 48 Make sure the Tape Playback feature is set to Hi-Fi to hear stereo sound during playback. • You must use A/V cables (not provided) and jacks to connect the VCR to the TV (or stereo) to hear true stereo sound during playback.
-
Page 49: Specifications
*Check your cable company‘s compatibility requirements. Cleaning the VCR Use a soft cloth or dusting attachment of your vacuum cleaner to dust your VCR. Remove dust from the ventilation holes on the top, back, sides, and bottom of the VCR and all connected components. -
Page 50: Front Panel
AUDIO (LEFT and RIGHT) and VIDEO In Jacks Receives signals from another component (like another VCR or camcorder) when connected to the VCR using A/V jacks. Use the INPUT button to select L2 to record from these jacks (L1 indicates the rear panel A/V jacks being active). -
Page 51: Display Panel
TIMER indicator Displayed when an Express Recording (XPR) or timer recording is under way or when the VCR is set for a timer recording and the power is turned OFF. TIMER flashes on the VCR front panel when a timer recording is set and no tape is inserted in the VCR. -
Page 52: Back Panel
VCR or camcorder, when connected to these jacks. Use the INPUT button on the VCR or remote control to select the rear video line input A/V jacks (L1) to record from these jacks. AUDIO (Right and Left) and VIDEO OUT jacks Sends signals from the VCR to another component, like a TV or another VCR, when the other component is connected to these jacks. -
Page 53: Rca Vcr Limited Warranty
Pay any Authorized RCA VCR Service Center the labor charges to repair your VCR. • Pay any Authorized RCA VCR Service Center for the new or, at our option, refurbished replacement parts required to repair your VCR. How you get service: •... -
Page 54: How To Find Your Tv's Video Input Channel
The video line input for TVs varies by brand and model. Below are some steps to try to find your TV’s video line input: • If your TV brand is RCA, GE, or Proscan, press the TV button on the VCR’s remote control, then press the INPUT button. •... -
Page 55: Advanced Connection
1. Connect the VCR to the TV A. Connect one end of the supplied RF coaxial cable to the RF OUT jack on the back of the VCR and the other end to the TV’s antenna input jack. B. Connect the A/V cables. Connect audio cables to the VCR’s R and L Audio OUT... -
Page 56: Glossary
SAP (Second Audio Program) A second sound track that may be included with a stereo broadcast. Usually used for foreign language dubs of programs. VCR Channels List The active list of channels available to the VCR using the CHANNEL +/- buttons. XPR See Express Recording above. -
Page 57: Index
AUDIO menu 42 Audio/Video (A/V) jacks 17, 48, 50 Auto channel search 17 Auto clock feature 19 Auto play feature 13, 21 Auto TV/VCR feature 22 Automatic rewind 13 Automatic tracking 13, 40 Back panel jacks 50 Basic recording 13... - Page 58 Troubleshooting 44 TV button 27, 52 TV•VCR button 22, 37 connecting 8 VCR indicator 37, 49 VCR MAIN MENU 16, 19, 42 VCR Plus+ 34 channel lists 35 channel worksheet 36 VCR viewing channel 11, 13 Video Input Channel 52...
- Page 59 This page intentionally left blank...
- Page 60 Please do not send any products to the Indianapolis address listed in this manual or on the carton. This will only add delays in service for your product. Thomson multimedia Inc. 10330 North Meridian Street Indianapolis, IN 46290 ©2001 Thomson Consumer Electronics, Inc. Trademark(s)®...
