Jacks
PC/HDMI
PC MONITOR
AUDIO
COMPONENT
VIDEO
Y S-VIDEO
Pb L(MONO)
AUDIO
Pr R
COMPONENT VIDEO
Y
S-VIDEO
Pb L(MONO)
AUDIO
Pr R
COMPONENT VIDEO
Y S-VIDEO
Pb L(MONO)
AUDIO
Pr R
Cable
(wall outlet)
OR
ANT
Television
fig.1
OR
52D0207A_QS.indd 1 52D0207A_QS.indd 1

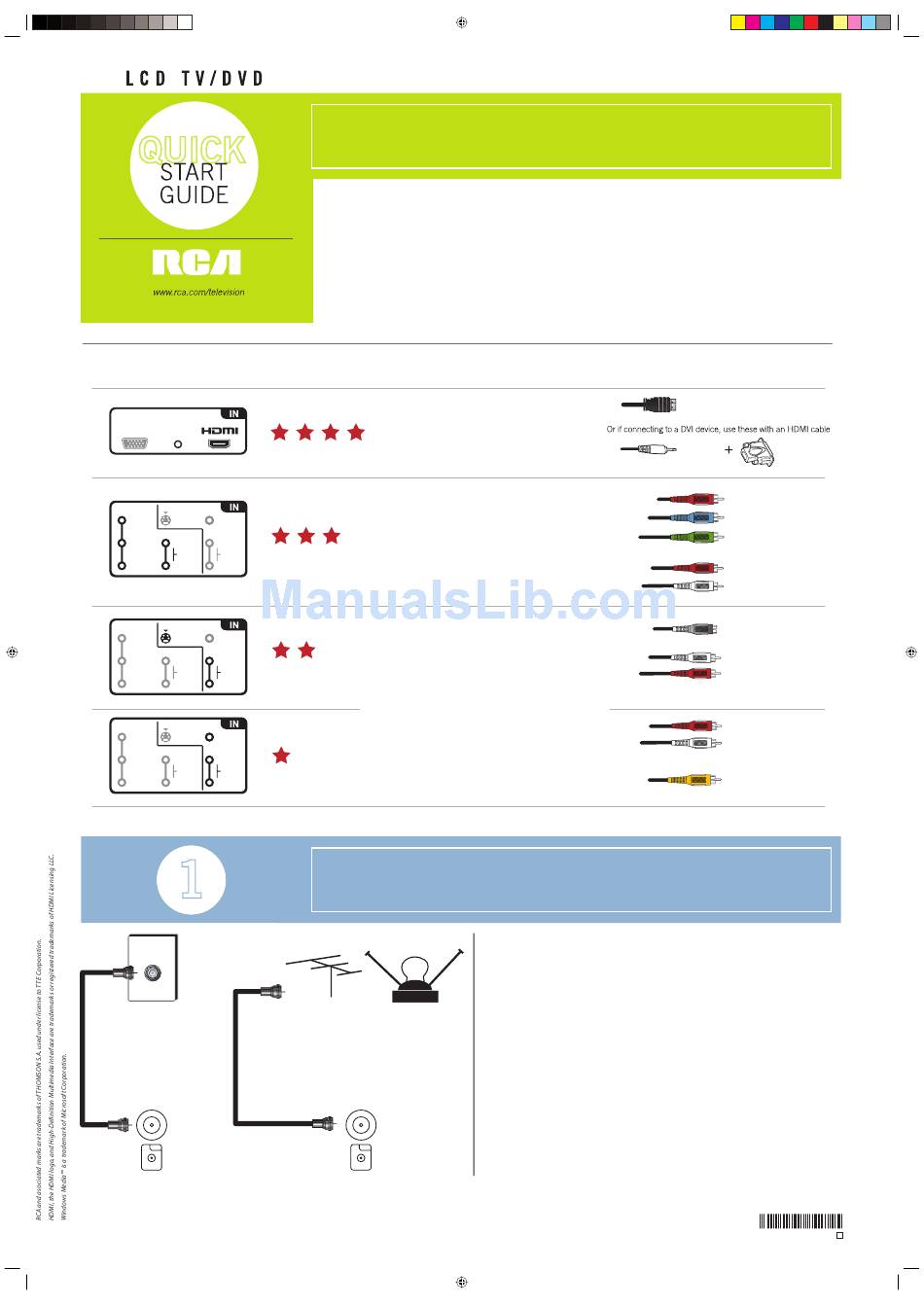

Choose Your Connections

Make your connection decision easier by taking a few minutes to review the jacks on your new
TV/DVD. Compare the jacks on the device you want to connect and see if the same jacks are
available on your TV/DVD. Then refer to the chart below to determine the best connection to
make.
For more information about connecting your TV/DVD to other devices, refer to OWNER'S
MANUAL. Make sure you read the provided safety information before you connect and
Operate Your Tv/Dvd.
Quality Connects to ...
Devices with an HDMI™ or a DVI
output, such as Satellite
Receivers and Cable Boxes.
Devices with Y Pb Pr
VIDEO
(component) outputs, such as
L(MONO)
Satellite Receivers, Cable Boxes,
AUDIO
PVRs, and DVD Players
R
VIDEO
L(MONO)
AUDIO
Devices with S-Video or Video
R
(composite) outputs, such as
DVD Players, VCRs, Satellite
Receivers, and Cable Boxes
VIDEO
L(MONO)
AUDIO
R

Connect a Signal Source

or
Antenna
ANT
Television
fig.2
Cable needed
Connect your TV/DVD to cable or an antenna in order to receive
TV channels. Connect the cables as shown in fig.1 or fig.2.
Note: If you have regular cable, your TV is able to receive some digital
channels because it has a capability called QAM. QAM is a tuner that
enables reception of unscrambled digital cable content. Check with
your cable provider for information about content availability in your
area. Refer to Step 2, Operate Your TV/DVD, for information on viewing
digital channels.
If you're connecting a cable box or satellite receiver use the chart
above to help determine which jacks to use for the best
connection. Your cable box or satellite receiver needs to be high
definition if you want to receive high definition programming.
Check with your cable provider for more information.
Continue to Step 2, Set Up Your TV/DVD, on the back page.
(not included)
HDMI
DVI
Audio
Adapter
Component
Video
Audio
S-Video
Audio
Audio
Video
