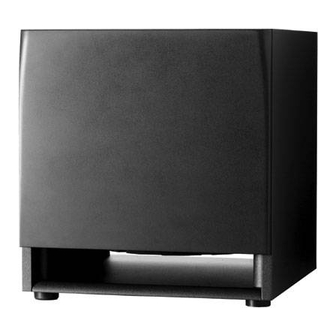

- Page 1 YSS2 ACTIVE STUDIO S U B W O O F E R OWNER'S MANUAL MANUEL DE L'UTILISATEUR MODEL TYPE: YS1052 Manual-Owners-yss2-00-1v3.pdf...
-
Page 2: Important Safety Instructions
This lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. Ce symbole d’éclair avec tête de flèche dans un triangle équilatéral est prévu pour alerter l’utilisateur de la présence d’un «... -
Page 3: Getting Connected
YSS2 using the spring terminals labeled Input / From Amplifier. Run the main Left (L) and Right (R) speaker cables to the YSS2 Left (L) and Right (R) spring termi- nals labeled Input / From Amplifier. Be sure to double-check the polarity (+/-) on the amplifier (or receiver) and make sure it matches the polarity on the YSS2. - Page 4 These RCA jacks provide a connection for external audio sources that provide line level signal. 6. RCA Line Output Jacks The RCA jacks labeled Output are used to pass-through the audio signal from the Input to another amplifier. 7. Input / From Amplifier Terminals These spring-loaded terminals on the YSS2 are used for direct connection from a power amplifier’s speaker output.
- Page 5 YSM2p YSM2p RCA Input RCA Input PHASE SUBWOOFER CROSSOVER INPUT OUTPUT ° (Norm) ° LEVEL FREQUENCY POWER AUTO YSS2 YSS2 YSS2 A C T I V E S T U D I O S U B W O O F E R...
- Page 6 équipés d’une sortie pour subwoofer/LFE. Si vous décidez d’utiliser une prise de sortie subwoofer/LFE (mono) pour brancher à la YSS2, connectez un câble avec prises RCA à partir de la sortie subwoofer/LFE jusqu’à la prise d’entrée RCA du canal gauche ou du canal droit de la YSS2.
- Page 7 6. Prises de Sortie Ligne de Type RCA Ces prises de type RCA identifié “Output” sont utilisées pour ré acheminer le signal audio présent aux prises d’entrée à un autre amplificateur. 7. Entrée / À Partir des Terminaux d’un Amplificateur Ces terminaux à...
- Page 8 OUTPUT INPUT TO SPEAKER FROM AMPLIFIER YSS2 Entrée Amplificateur Sortie Enceinte Active Satellite YSS 2 YSM1i YSM1i Series 2 Series 2 Amplificateur Entrée RCA PHASE SUBWOOFER CROSSOVER INPUT OUTPUT ° (Norm) ° LEVEL FREQUENCY POWER AUTO YSS2 YSS2 A C T I V E S T U D I O S U B W O O F E R Entrée...
- Page 9 45 Hz à 300 Hz 105dB +/- 3 dB 2 x RCA (G&D) / 2 x Terminaux poussoirs pour Haut-parleur (G&D) 2 x RCA (G&D) / 2 x Terminaux poussoirs pour Haut-parleur (G&D) Niveau, Fréquence du Filtre Passe-haut, Phase, Auto On 50 - 200 Hz 0.05%...
- Page 10 YSS 2...
- Page 11 Two & Ten Year Warranty & Unlimited Warranty Yorkville's two and ten-year unlimited warranty on this product is transferable and does not require registration with Yorkville Sound or your dealer. If this product should fail for any reason within two years of the original purchase date (ten years for the wooden enclosure), simply return it to your Yorkville dealer with original proof of purchase and it will be repaired free of charge.
- Page 12 WORLD HEADQUARTERS CANADA U.S.A. Yorkville Sound Yorkville Sound Inc. 550 Granite Court 4625 Witmer Industrial Estate Pickering, Ontario Niagara Falls, New York L1W-3Y8 CANADA 14305 USA Voice: (905) 837-8481 Voice: (716) 297-2920 Fax: (905) 837-8746 Fax: (716) 297-3689 Printed in China...
