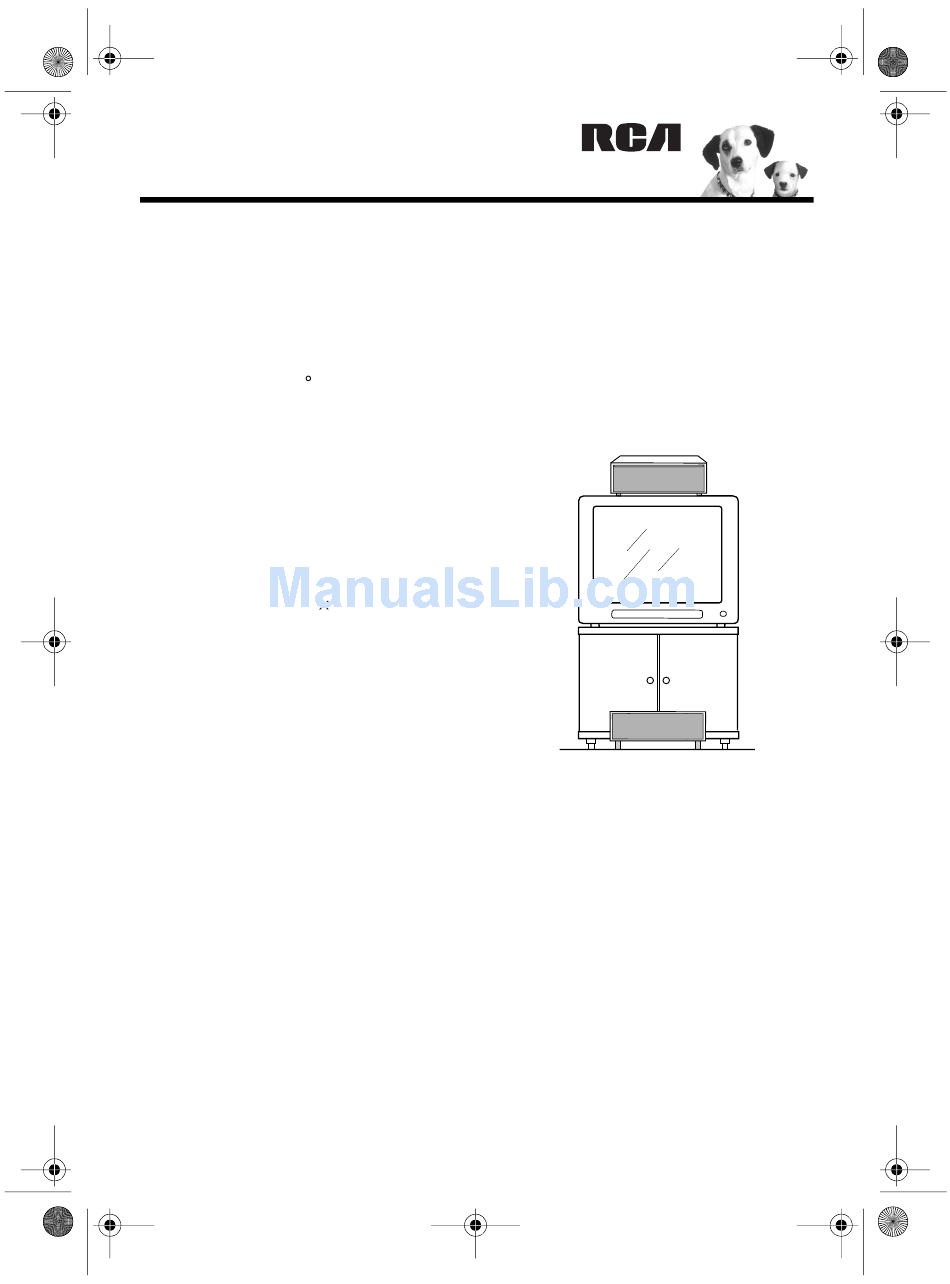

40-5011.fm Page 1 Friday, April 14, 2000 10:05 AM
PRO-CS5II 2-WAY CENTER CHANNEL SPEAKER SYSTEM
Your RCA PRO-CS5 II 2-Way Center
Channel Speaker System is designed for
use as a center speaker in your surround-
sound audio/video system. It gives you
wide-angle (about 180 ) sound
distribution with clear movie dialogue and
vivid sound effects. It is magnetically
shielded, so you can place it directly on
top of your television for the most efficient
center-channel effect.
The speaker's two 5-inch woofers are
designed to produce the lower
frequency bass sounds (55 Hz to 2.5
kHz), while the single 3
tweeter's pliable diaphragm is designed to
produce the high-frequency treble sounds
(2–25 kHz). The tweeter's unique design
virtually eliminates all physical limitations
to high-frequency sound production.
The speaker's acoustics have been
carefully designed to match the speaker
elements to the enclosure and its damping
materials. The result is an amazingly
smooth and broad frequency response
that allows the system to accurately
produce both bass and treble sounds with
extraordinarily low distortion.
While your PRO-CS5 II can work with
most speaker systems, it is designed to
give the best results with RCA PRO-
X88AV (Cat. Nos. 40-5005 and 40-5006)
or PRO-LX5 II (Cat. No. 40-5007)
speakers.

SPEAKER PLACEMENT

Correct speaker positioning is vital for the
best performance. Since your PRO-CS5 II
speaker is designed to reproduce the
dialogue, its best position is directly above
or below your TV's screen.
1
3
/
-inch
2
Note: To avoid possible TV picture
distortion, position the PRO-CS5 II
speaker above your TV so its front edge is
behind the TV's front edge (the speaker's
front is farther away from you than the
TV's front).
©
1999 Tandy Corporation.
All Rights Reserved.

Advertisement

   Related Manuals for RCA PRO-CS5II

   Summary of Contents for RCA PRO-CS5II

  • Page 1: Speaker Placement

    40-5011.fm Page 1 Friday, April 14, 2000 10:05 AM PRO-CS5II 2-WAY CENTER CHANNEL SPEAKER SYSTEM Your RCA PRO-CS5 II 2-Way Center Channel Speaker System is designed for use as a center speaker in your surround- sound audio/video system. It gives you...

  • Page 2

    40-5011.fm Page 2 Friday, April 14, 2000 10:05 AM CONNECTING TO YOUR AMPLIFIER For maximum bass response and the best overall performance, it is essential that you keep your speakers in proper phase (connected + to +, and – to –). We recommend you use color-coded or marked wires to help you correctly connect the speaker to your sound system.

  • Page 3

    TV set, apply the thinner pads toward the back and the thicker pads near the front of the speaker. MAINTENANCE Your RCA PRO-CS5 II 2-Way Center- Channel Speaker System is an example of superior design and craftsmanship. The following suggestions will help you care for the PRO-CS5 II speaker so you can enjoy it for years.

  • Page 4: Specifications

    40-5011.fm Page 4 Friday, April 14, 2000 10:05 AM SPECIFICATIONS Frequency Response ... 55 Hz–25 kHz Power Handling ... 100 Watts (RMS) Maximum Power ... 200 Watts Impedance ... 8 Ohms, Nominal Sensitivity ... 87 dB @ 1W-1m Speaker Complement ... Two 5-Inch High-Compliance Polypropylene Woofers Enclosure Dimensions (HWD) ...
