I

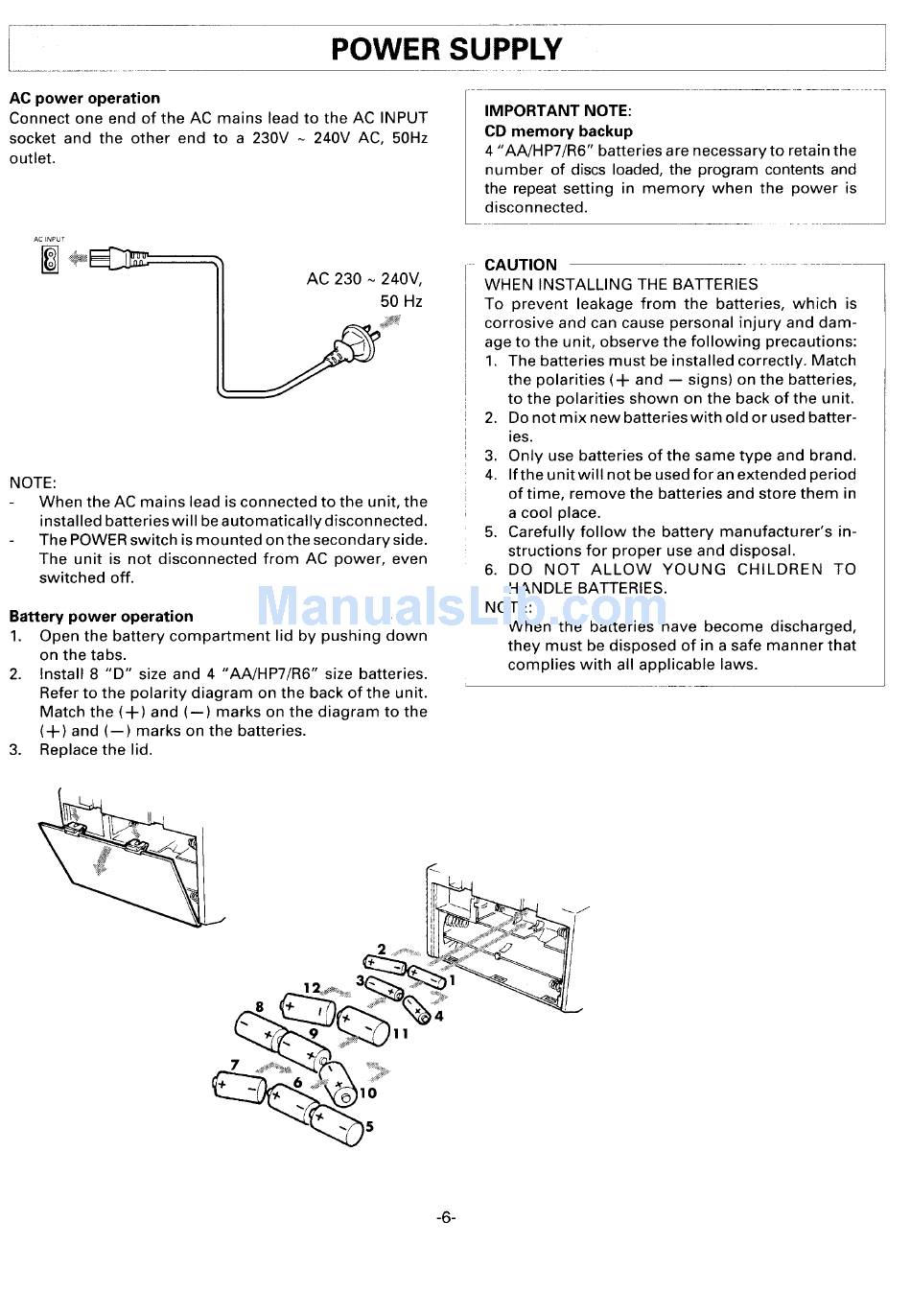

POWER SUPPLY
L------------
.-. ..-.
AC power
operation
Connect one end of the AC mains lead to the AC INPUT
socket and the other
end to a 230V
- 240V
AC, 50Hz
outlet.
AC INPUT
"'7
AC 230-
240V,
50 Hz
NOTE:
When the AC mains lead is connected
to the unit, the
installed batteries will beautomatically
disconnected.
The POWER switch is mounted
on the secondary
side.
The unit is not disconnected
from AC power,
even
switched
off.
Battery
power
operation
1.
Open the battery compartment
lid by pushing
down
on the tabs.
2.
Install 8 "D" size and 4 "AA/HP7/R6"
size batteries.
Refer to the polarity
diagram
on the back of the unit.
Match the (+)
and (–)
marks on the diagram
to the
(+)
and (–)
marks on the batteries.
3.
Replace the lid.
.—
IMPORTANT
NOTE:
CD memory
backup
4 "AA/HP7/R6"
batteries are necessary to retain the
number
of discs loaded, the program contents and
the repeat setting
in memory
when
the power
is
disconnected.
CAUTION
WHEN
INSTALLING
THE BATTERIES
To prevent
leakage
from
the batteries,
which
is
corrosive
and can cause personal
injury and dam-
age to the unit, observe the following
precautions:
1.
2.
3.
4.
5.
6.
The batteries
must be installed correctly.
Match
the polarities
(+
and — signs) on the batteries,
to the polarities
shown on the back of the unit.
Do not mix new batteries with old or used batter-
ies.
Only use batteries
of the same type and brand.
If the unit will not be used for an extended
period
of time, remove the batteries
and store them in
a cool place,
Carefully
follow
the battery
manufacturer's
in-
structions
for proper use and disposal.
DO
NOT
ALLOW
YOUNG
CHILDREN
TO
HANDLE
BATTERIES.
NOTE:
When
the batteries
have become
discharged,
they must be disposed
of in a safe manner
that
complies
with all applicable
laws.
ikL.J
-6-
