Summary of Contents for Dual XDVD181

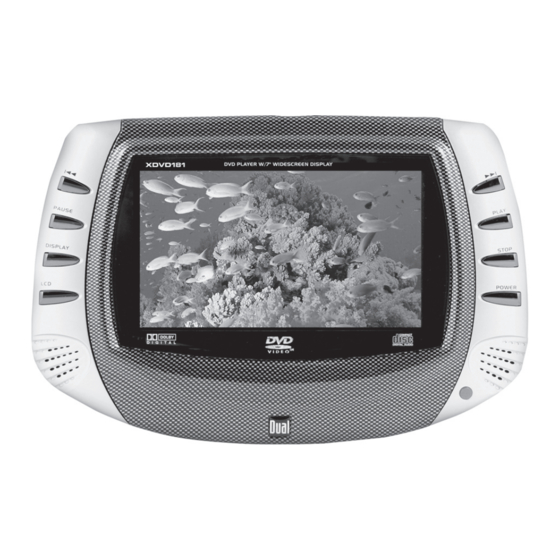

- Page 1 OWNER’S MANUAL Portable DVD Player with 7" TFT LCD Display The XDVD181 includes an AC adapter and a DC adapter for use in the home and car environment. Optional universal batteries are available for use with the XDVD181. Contact our consumer hotline @ 1-866-382-5476 for more details.
-
Page 2: Table Of Contents
It cannot play back the DVD software encoded for other region areas than the region areas for which it has been designed. The XDVD181 will play discs labeled “region 1” or “all”. DVD region codes are:... -
Page 3: Package Contents
XDVD181 PREPARATION Package Contents Please carefully unpack the unit and inspect all contents. The XDVD181 includes the following items: XDVD181 DVD Player with 7" TFT LCD Remote Control x 1 AC Adapter x 1 DC Adapter x 1 Coin Battery x 1... -
Page 4: Safety Information/Precautions
XDVD181 Safety Information CAUTION: Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. 1. Read All Instructions - All safety and operating instructions should be read before attempting to operate this product. -
Page 5: Safety Precautions
This device complies with part 15 of the FCC rules and regulations. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) This device must accept any interference received, including interference that may cause undesired operation. XDVD181 PREPARATION Safety Precautions... -
Page 6: Control Locations - Dvd Player
XDVD181 OPERATION Control Locations - DVD Player... -
Page 7: Control Locations - Remote
Display Title Zoom Search Slow Audio 4-Way - Up Menu Enter 4-Way - Left 4-Way - Down Cancel XDVD181 Control Locations - Remote Key #2 Key #1 Key #6 Key #5 Key #9 Key #0 Angle Subtitle Play Pause Stop... -
Page 8: Connections
The video cable is identified by having a 3.5 mm mono (2 section) connector on one end and a yellow RCA connector on the other end. Connect the yellow RCA connector to a video input on your TV. -
Page 9: Quick-Start Guide
Power Off Automatic Power Off Using the Remote Control XDVD181 Slide the OPEN button to the left and gently lift the lid. The lid opens to a maximum 90 degrees. Do not open it any further - as severe damage may occur. -
Page 10: Dvd Setup Menu
XDVD181 OPERATION General Operation - DVD Setup Menu Access DVD Setup Menu Exit Setup Menu General Setup Page TV Display Angle Mark OSD Lang (On Screen Display) Language Captions (Closed Caption) Screen Saver Using the remote, press SETUP to access DVD setup menu. - Page 11 XDVD181 OPERATION General Operation - DVD Setup Menu Audio Setup Page Press or to select Audio Setup Page and ENTER to select. Press or to select Speaker Setup Page and ENTER to Speaker Setup select. Downmix Press ...
- Page 12 XDVD181 General Operation - DVD Setup Menu Preference Page Audio (DVD Title) Subtitle (Language) Disc Menu (Language) Parental (Control) Default (Restore Factory Settings) Password Setup Page Change Password OPERATION Press or to select Preference Page and ENTER to select.
-
Page 13: Dvd Operation
XDVD181 OPERATION General Operation - DVD Inserting a disc Open lid; insert disc making sure it snaps securely on the spindle mount. Close lid. Power On Press POWER on the main unit for more than 2 seconds to turn the unit on. - Page 14 XDVD181 General Operation - DVD Fast Forward and Reverse Step (frame-by-frame) Slow Zoom Repeat Repeat A-B Main Menu (Root) Title Menu OPERATION Press I or I from the main unit for more than 2 seconds to fast forward or fast reverse in 2x; 4x; 8x; 16x; 32x modes.
- Page 15 Direct Chapter Access Direct Search Mode Program Mode Cancel Program Play Display Status DVD Compatibility XDVD181 General Operation - DVD Press AUDIO while playing to switch between available languages. Press SUBTITLE while playing to switch between available subtitle languages. Press ANGLE while playing to switch between available viewing angles.
-
Page 16: Cd Operation
XDVD181 General Operation - CD Play Stop Full Stop Pause Track Select Fast Forward and Reverse Track Repeat Repeat A-B Display Status CD-R/RW Compatibility OPERATION In general, audio discs will play automatically when inserted or the power is turned on. -
Page 17: Using The Car Mount
The XDVD181 car mount (included) provides the convenience of mounting the unit to the back of a vehicle’s headrest without expensive, permanent modifications. Note: Power off the XDVD181 and disconnect any external connections before using the car mount. Slip XDVD181 into either side of the car mount. -
Page 18: Warranty
XDVD181 Limited 30 Day Warranty This warranty gives you specific legal rights. You may also have other rights which vary from state to state. Dual Electronics Corp. warrants this product to the original purchaser to be free from defects in material and workmanship for a period of 30 days from the date of the original purchase. -
Page 19: Troubleshooting
Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories. Confidential unpublished works. ©1992-1997 Dolby Laboratories, Inc. All rights reserved. XDVD181 Connect the AC adapter into the wall outlet securely. Connect the DC adapter into the vehicle cigarette outlet securely. -
Page 20: Specifications
XDVD181 Specifications DVD Player Monitor General OPERATION Signal-to-noise: >94db Dynamic range: >95db Harmonic distortion: Frequency response: Channel separation @1kHz: D/A converter: 24 Bit Sampling frequencies: Electronic Shock Protection: Panel size: 7” (177.8 mm) diagonal measurement Format: Widescreen 16:9 Display system:...
