v2.0 (EN/FR/E)
user manual
manual de usuario
EN/FR/E
It is important to read this instruction prior to using your new product for the first time.
Es importante leer este manual antes de usar por vez primera su equipo.
Technical information
For your records
In the event that service should be required,

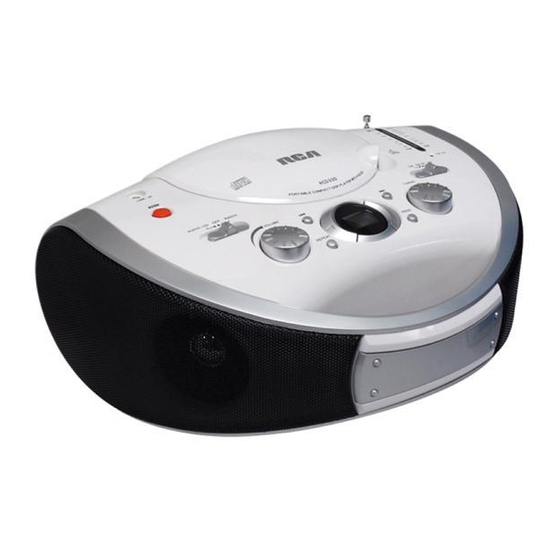

Product: Portable CD Player with
you may need the model number. In the space
analog Tuner
below, record the date and place of purchase:
Brand: RCA
Model No.
Model: RCD330
Date of Purchase
Power Supply: 120V ~ 60Hz
Place of Purchase
Power Consumption: 15 Watts
Service information
Unit Size (H x W x D mm):
This product should be serviced only by those
139 x 310 x 247
specially trained in appropriate servicing
Weight: 2.1kg
techniques. For instructions on how to obtain
CD player: Response curve (+/- 2dB):
service, refer to the warranty included in this
60Hz to 20 kHz
Guide.
Rating Plate: Look for it at the
bottom of the set.
CLASS 1 LASER PRODUCT
LASER KLASSE 1
APPAREIL A LASER DE CLASSE 1
LUOKAN 1 LASERLAITE
KLASS 1 LASERAPP ARAT
344A2555-0001
Class II equipment
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
THE LIGHTNING
THE EXCLAMATION
CAUTION: TO REDUCE THE
FLASH AND
POINT WITHIN THE
RISK OF ELECTRIC SHOCK,
ARROWHEAD WITHIN
TRIANGLE IS A
THE TRIANGLE IS A
DO NOT REMOVE COVER (OR
WARNING SIGN
WARNING SIGN
BACK). NO USER-
ALERTING YOU OF
SERVICEABLE PARTS INSIDE.
ALERTING YOU OF
IMPORTANT
REFER SERVICING TO
"DANGEROUS
INSTRUCTIONS
VOLTAGE" INSIDE THE
QUALIFIED SERVICE
ACCOMPANYING
PERSONNEL.
PRODUCT.
THE PRODUCT.
SEE MARKING ON BOTTOM / BACK OF PRODUCT
WA R N I N G :
TO P R E V E N T F I R E O R E L E C T R I C A L S H O C K
HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.
Function of controls
1. LINE IN Jack
10. Prog.
To connect an audio cable for external
To enter the program mode and
audio input.
confirm the program settings. You can
program a playlist of up to 20 tracks.
2. DBBS
To switch on or off the bass boost.
11. CD skip
To go to the next track or search
3. Function selector
forward.
To select among the LINE IN / CD,
off, radio.
12. Tuning control
To adjust the tuning frequency.
4. Volume control
To adjust the volume.
13. Band selector
To select FM, stereo or AM band.
5. CD skip
To go to the previous track or search
14. FM stereo indicator
backward.
Lights whenever FM stereo broadcast
being received.
6. Repeat
To select among the repeat current
15. Dial pointer
track, repeat all tracks playback
Indicate the frequency being tuned.
modes.
16. Antena FM
7. Stop
Extend the antenna for better FM
To stop the playback.
reception.
8. CD display
The CD display show your various
playing modes, track numbers.
9. Play / Pause
To start and pause the playback.

Limited Warranty

AVC MULTIMEDIA ("AVC") makes the following limited warranty. This limited warranty extend to the
original consumer purchaser and is limited to non-commercial use of the product.
One Year Parts & Labor Warranty
According to UL1492,
AVC products purchased in the United States are warranted to be free from defects in materials or
workmanship for a period of one year from the date of their original retail purchase. If the unit fails to
letter size of
conform to this warranty, we will service the product using new or refurbished parts and products, at
AVC's sole discretion.
WARNING should be
During a period of one year from the effective warranty date, AVC will provide, when needed,
2.8 and 1.6
service labor to repair a manufacturing defect at its designated Service Center. To obtain
warranty service in the Untied States, you must first contact our Customer Support Center at
www.1800customersupport.com/RCA, during the hours listed in the box below. The determination
of service will be made by AVC Customer Support.
6/11/01
PLEASE DO NOT RETURN YOUR UNIT TO AVC WITHOUT PRIOR AUTHORIZATION. New or
remanufactured replacements for defective parts or products will be used for repairs by AVC at its
designated Service Center for one year from the effective warranty date. Such replacement parts
or products are warranted for an additional one year from the date of repair or replacement. The
Customer will be required to ship the unit to the Service Center indicated at the time Customer
Support is contacted to make the necessary repairs. The customer is responsible for all
transportation charges to the service facility.
Packaging and Shipping InstructionWhen you send the product to the AVC service facility you must
use the original carton box and packing material or an equivalent as designated by AVC
Your Responsibility
(1) You must retain the original sale receipt to provide proof of purchase.
(2) These warranties are effective only if the product is purchased and operated in the U.S.A.
or Canada.
(3) Warranties extend only to defects in material or workmanship, and do not extend to any
product or parts which have been lost or discarded, or damage to product or parts caused
by misuse, accident, improper operation or maintenance, or use in violation of instructions
provided with the product, or to product which has been altered or modified without authori-
zation of AVC, or to products or parts thereof which have had the serial number removed or
changed.
Out of Warranty
In the event your product requires repair after the limited warranty period has expired, please
contact our Customer Support Center at
www.1800customersupport.com/RCA
Hours: Monday–Thursday: 9am–7pm, Friday: 9am–5pm, Saturday: 9am–NOON Eastern time.
Important:
You are responsible for any transportation, shipping or insurance relative to the return of product
to our Product Returns Center.
Antes de empezar
Consejos útiles
Note que el cable AC debe desconectarse del
jack de la parte posterior del equipo para que
• No use el equipo inmediatamente después de
funcionen las baterías.
transportarlo desde un lugar frío a uno caliente
puesto que la condensación puede generar
malfuncionamiento. Si existe humedad en el
Información importante sobre las baterías
equipo, puede malfuncionar. Para corregir el
• Retire las baterías para evitar que presenten
problema, interrumpa el suministro eléctrico y
fugas si no va a usar el sistema durante más de
espere durante 30 minutos hasta que la
1 mes.
humedad se evapore.
• Descarte inmediatamente las baterías con fugas
• Este sistema tiene láser.
porque pueden causar quemaduras u otras
• Nunca deje la puerta del compartimiento del CD
lesiones personales. Deseche las baterías de
abierta puesto que el polvo puede cubrir los
manera correcta, de acuerdo a las regulaciones
lentes láser y/o la puerta puede golpearse
locales y provinciales.
accidentalmente.
• Cualquier batería puede derramar electrolito
• No deje el equipo cerca áreas mojadas tales
bajo las siguientes circunstancias:
como baños o piscinas. Evite almacenar el
- Si se mezclan diferentes tipos de baterías,
sistema en lugares húmedos o cerca de áreas
- Si se insertan incorrectamente.
anormalmente calientes.
- Si todas las baterías no se reemplazan al
• La energía se suministra continuamente al
sistema. Para interrumpir el suministro eléctrico
mismo tiempo.
completamente, desconecte el cable eléctrico de
- Si se desechan al fuego
la toma.
- Si se intenta cargar baterías no recargables
• Asegure la distancia mínima alrededor del
• Verifique de retirar las baterías cuando guarde el
aparato para obtener suficiente ventilación. No
equipo durante más de 30 días. Las baterías
impida la ventilación cubriendo las aberturas de
con fugas pueden dañar el sistema. Deseche
ventilación con elementos como periódicos, etc.
apropiadamente las baterías con fugas, débiles
• No ponga llamas vivas, como velas encendidas,
o agotadas, de acuerdo con las regulaciones
cerca del aparato.
locales, federales o estatales. Para evitar
lesiones o daños, no invierta las baterías ni
• El aparato no debe exponerse a goteos ni
mezcle diferentes tipos.
salpicaduras como tampoco deben ponerse
objetos llenos de líquidos como floreros.
No infrinja
Este producto debe usarse solamente para los
Potencia de Corriente Alterna
propósitos planeados, es decir entretenimiento,
Conecte el cable de alimentación eléctrica en el
sin violar los derechos de propiedad intelectual.
jack de potencia de corriente alterna ubicada atrás
Cualquier intento de usar este producto para
del equipo y en una toma de potencia de corriente
propósitos no planeados es ilegal y no tolerado por
alterna que acepte el enchufe que viene con el
el fabricante.
equipo.
Las descripciones y características de este manual
son solamente para propósitos de referencia
Potencia de la batería
general y no como garantía. nos reservamos
Puede insertar 8 baterías alcalinas tamaño D
(no suministradas) y puede llevar su estéreo a
el derecho de hacer cambios sin previo aviso.
La versión en inglés sirve como referencia final
cualquier parte.
del producto y detalles operativos en caso de
• Abra la puerta del compartimiento de las
baterías en la base del equipo, presionando la
discrepancias en otros idiomas.
pestaña y halando la tapa.
• Antes de insertar las baterías verifique las
polaridades (+ y -) de la batería, luego haga
coincidir las polaridades con el diagrama
ubicado dentro del compartimiento. Inserte las
baterías en el compartimiento de las baterías.
FCC information
WARNING: Changes or modifications
to this unit not expressly approved by
This device complies with part 15 of the
the party responsible for compliance
FCC Rules. Operation is subject to the
could void the user's authority to
following two conditions: (1) This device
operate the equipment.
may not cause harmful interference,
and (2) this device must accept any
This product complies with DHHS Rules
interference received, including
21 CFR Subchapter J. Applicable at the
interference that may cause undesired
date of manufacture.
operation.
For your safety
This equipment has been tested and
RCD330
found to comply with the limits for a
The AC power plug is
Class B digital device, pursuant to
polarized (one blade is
part 15 of the FCC Rules. These limits
wider than the other) and
are designed to provide reasonable
only fits into AC power
protection against harmful interference in
outlets one way. If the
a residential installation. This equipment
plug won't go into the outlet completely,
generates, uses and can radiate radio
turn the plug over and try to insert it
frequency energy and, if not installed and
the other way. If it still won't fit, contact
used in accordance with the instructions,
a qualified electrician to change the
may cause harmful interference to radio
outlet, or use a different one. Do not
communications.
attempt to bypass this safety feature.
However, there is no guarantee that
CAUTION: TO PREVENT ELECTRIC
interference will not occur in a particular
SHOCK, MATCH WIDE BLADE
installation. If this equipment does cause
OF PLUG TO WIDE SLOT, FULLY
harmful interference to radio or television
INSERT.
reception, which can be determined
WARNING: MAINS PLUG IS USED
by turning the equipment off and on,
A S D I S C O N N ECT D E V I C E A N D
the user is encouraged to try to correct
I T S H O U L D R E M A I N R E A D I LY
the interference by one or more of the
O PER A B LE DU RING INTEN DED
following measures:
USE. IN ORDER TO DISCONNECT
• Reorient or relocate the receiving
THE MAINS PLUG FROM MAINS
antenna.
COMPLETELY, THE MAINS PLUG
• Increase the separation between the
SHOULD BE DISCONNECTED FROM
equipment and receiver.
T H E M A I N S S O C K E T O U T L E T
• Connect the equipment into an outlet
COMPLETELY.
on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced
radio/TV technician for help.

Before you begin

Useful advice
• Do not use your system
• No naked flame source, such as
immediately after transporting it
from a cold place to a warm place,
as condensation may cause the
• The apparatus shall not be
system to malfunction. If moisture
forms inside this system, it may
not operate properly. To correct the
problem, turn off the power and
wait about 30 minutes for moisture
to evaporate.
AC power
• This system is fitted with a laser.
Plug the power supply cord into the
To avoid accidents, it is to be
AC power jack on the back of the unit,
opened by qualified
and into an AC power supply outlet
technicians only.
that accepts the plug supplied with
• Never leave the CD compartment
your unit.
door open as dust could cover
the laser lens and/or the CD
Battery power
compartment door could be
You can insert 8 D-sized alkaline
bumped into accidentally.
batteries (not supplied) and you can
• Do not place the system near wet
take your stereo just about anywhere.
areas such as bathrooms and pool
• Open the battery compartment
side. Avoid storing the system at
humid places or near abnormally
heated areas.
• Power is continuously supplied to
• Before inserting the batteries,
the system. To disconnect power
completely, unplug the power cord
from the power outlet.
• Ensure minimum distance around
the apparatus for sufficient
ventilation. The ventilation should
not be impeded by covering the
ventilation openings with items,
LINE-IN
1. Slide the function selector to LINE-IN/CD position.
2. Connect the external player to the LINE-IN jack with an audio
cable (not provided).
3. Adjust the external player to mid-range volume and adjust the
master volume by rotating the Volume control on the unit.
• Do not turn the volume of the external player too high as this
may affect the sound quality.
• For other playback operations, control them on your external
player.
Radio
1. Slide the function selector to RADIO position.
2. Slide the Band selector to select FM, FM stereo or AM band.
Extend the FM antenna for better FM reception.
Rotate the unit for better AM reception.
3. Rotate the tuning control to tune down or up the radio
frequency. Tuned frequency can be read via the Dial pointer.
When the reception is good at FM Stereo mode, FM stereo
indicator will light on.
All warranties implied by state law, including the implied warranties of merchantability and fitness for
a particular purpose, are expressly limited to the duration of the limited warranties set forth above.
With the exception of any warranties implied by state law as hereby limited, the foregoing warranty
is exclusive and in lieu of all other warranties, guarantees, agreements and similar obligations of
manufacturer or seller with respect to the repair or replacement of any parts. In no event shall AVC be
liable for consequential or incidental damages.
No person, agent, distributor, dealer or company is authorized to change, modify or extend the terms
of these warranties in any manner whatsoever. The time within action must be commenced to enforce
any obligation of AVC arising under the warranty or under any statute, or law of the United States or any
state thereof, is hereby limited to one year from the date of purchase. This limitation does not apply to
implied warranties arising under state law.
This warranty gives you specific legal rights and you may also have other rights, which may vary, from
state to state. Some states do not allow limitation on how long an implied warranty lasts, when an action
may be brought, or the exclusion or limitation of incidental or consequential damages, so the above
provisions may not apply to you.
For more information on other products and services, please visit our web site at
www.1800customersupport.com/RCA
IMPORTER
AVC Multimedia,
Markham, Ontario, L3R 1E3
© 2008 AVC Multimedia
http: //www.1800customersupport.com/RCA
http: //www.rcaaudiovideo.com
Es importante leer estas instrucciones antes de usar su producto por primera vez
Información técnica.
Producto: Reproductor de CD portátil con sintonizador análogo
Marca: RCA
Modelo: RCD330
Alimentación eléctrica: 120V ~ 60Hz
Consumo de energía: 15 Watts
Dimensiones del equipo (A x A x L mm): 139 x 310 x 247
Peso: 2,1kg
Reproductor de CD: Curva de respuesta (+/- 2dB): 60Hz a 20 Khz.
Placa de datos de servicio: Búsquela en la parte inferior del equipo.
CLASS 1 LASER PRODUCT
LASER KLASSE 1
APPAREIL A LASER DE CLASSE 1
LUOKAN 1 LASERLAITE
KLASS 1 LASERAPP ARAT
344A2555-0001
ADVERTENCIA: PARA PREVENIR INCENDIOS O DESCARGAS
ELÉCTRICAS, NO EXPONGA ESTE PRODUCTO A LA LLUVIA NI
HUMEDAD.
Some of the following information
may not apply to your particular
product; however, as with any
electronic product, precautions
should be observed during handling
and use.
• Read these instructions.
• Keep these instructions.
• Heed all warnings.
• Follow all instructions.
• Do not use this apparatus near
water.
• Clean only with dry cloth.
• Do not block any ventilation
openings. Install in accordance
with the manufacturer's
instructions.
• Do not install near any heat
sources such as radiators,
heat registers, stoves, or other
apparatus (including amplifiers)
that produce heat.
• Do not defeat the safety purpose
of the polarized or grounding-
type plug. A polarized plug
has two blades with one wider
than the other. A grounding
type plug has two blades and
a third grounding prong. The
wide blade or the third prong is
provided for your safety. If the
provided plug does not fit into
such as newspaper, etc.
Note that the AC line cord must
be unplugged from the jack on
lighted candles, should be placed
the back of the unit to operate on
on the apparatus.
batteries.
exposed to dripping or splashing
Important battery information
and that no objects filled with
• Remove the batteries to avoid
liquids, such as vases, shall be
leakage if you do not use your
placed on the apparatus.
system for more than one month.
• Discard leaky batteries immediately
as leaking batteries may cause
skin burns or other personal
injuries. Dispose of batteries in
the proper manner, according to
provincial and local regulations.
• Any battery may leak electrolyte
under the following circumstances:
- if mixed with a different battery
type,
- if inserted incorrectly,
- if all batteries are not replaced at
the same time,
- if disposed of in fire, or
door on the bottom of the unit
- if an attempt is made to charge
by pressing down on the tab and
a battery not intended to be
pulling out the cover.
recharged
• Be sure to remove batteries when
observe the polarities (that is, +
storing the set for more than 30
and -) of the battery, then relate
days. Leaky batteries can badly
the polarities to the engraved
damage the system. Be sure to
diagram located on the battery
dispose of leaky, weak or dead
compartment door. Insert batteries
batteries properly according
in the battery compartment.
to federal, state, and local
regulations. To prevent injury or
CD player
This unit is compatible with
CD-R / RW
audio CD-R/RW discs.
Notes on CD-R/RW
• Do not affix any type of labels to either
side (recordable or labeled side) of a
CD-R/RW disc as this may result in the
unit malfunctioning.
• Playback capability for CD-RW discs may
vary due to variations in the quality of the
CD-RW disc and the recorder used to
create the disc.
Selecting CD mode
Slide the function selector to LINE-IN/CD
position.
Loading disc
1. Open the CD door.
2. Place the CD on the spindle with the label
side facing up and press gently to lock
the disc in place.
3. Close the CD door. The total number
of tracks on the disc can be read from
display.
Play and pause
1. In stop mode, press
to begin CD
playback.
2. During CD playback, press
pause playback. Press again to resume.
Skip and search
1. Press
/
to skip to the previous
or next track respectively.
2. Press and hold
/
quickly current track backward or forward
respectively.
Stop playback
Press
to stop playback.
Play mode
Press REPEAT to select among REPEAT
mode (repeat current track / repeat all).
Selection made is indicated by icons on
display.
Información FCC
Este dispositivo cumple con la parte 15 de
las reglas FCC. El funcionamiento está
sujeto a las siguientes dos condiciones:
(1) Este dispositivo puede que no cause
interferencia nociva y (2) puede aceptar
cualquier interferencia recibida, incluyendo
la que pueda originarse por una operación
no deseada.
Este equipo se ha probado y cumple con
los límites para los dispositivos digitales de
EN
Clase B de acuerdo con la Parte 15 de las
reglas FCC. Estos límites están diseñados
para brindar protección razonable contra
la interferencia nociva de las instalaciones
residenciales. Este equipo genera, usa
y puede emitir energía de frecuencias
de radio y, si no se instala y usa de
Printed in China
acuerdo con el manual de instrucciones
del fabricante, puede causar interferencia
nociva con las comunicaciones de radio.
Sin embargo, no hay garantía de que
la interferencia no se presenta en una
instalación particular.
Si este equipo no causa interferencia
nociva a la recepción de radio o televisión,
lo cual puede determinarse encendiendo
o apagando el equipo, se recomienda que
el usuario trate de corregir la interferencia
por medio de una o varias de las
siguientes medidas:
• Reoriente o reubique la antena
receptora.
• Aumente la separación entre el equipo y
el receptor.
• Conecte el equipo en una toma o circuito
diferente a donde está conectado el
receptor.
• Consulte al proveedor o a un experto en
F
radio/TV para obtener ayuda.
Controles y ubicaciones generales
1
2
3
4
1 Line In Jack (Jack de
entrada)
2 DBBS
E
3 Selector de funciones
4 Control de volumen
5 CD skip
6 Repeat (repetir)
7 Stop (Detener)
8 CD display (Pantalla del CD)
9 Play / Pause (Reproducir/
Pausar)
10 Prog.
PLEASE READ AND SAVE THIS FOR FUTURE REFERENCE

IMPORTANT SAFETY INSTRUCTIONS

your outlet, consult an electrician
has been exposed to rain or
for replacement of the obsolete
moisture, does not operate
outlet.
normally, or has been dropped.
• Protect the power cord from
• IF YOUR PRODUCT
OPERATES ON BATTERIES,
being walked on or pinched
particularly at plugs, convenience
adhere to the following
receptacles, and the point where
precautions:
they exit from the apparatus.
A. Any battery may leak
• Only use attachments/
electrolyte if mixed with a
different battery type, if inserted
accessories specified by the
incorrectly, or if all batteries are
manufacturer.
• Use only with the cart, stand,
not replaced at the same time.
tripod, bracket, or table
B. Any battery may leak
specified by the
electrolyte or explode if disposed
manufacturer,
of in fire or an attempt is made
to charge a battery not intended
or sold with the
apparatus. When
to be recharged.
a cart is used,
C. Discard leaky batteries
Portable Cart
use caution when
immediately. Leaking batteries
Warning
moving the cart/
can cause skin burns or other
personal injury. When discarding
apparatus combination to avoid
batteries, be sure to dispose
injury from tip-over.
• Unplug this apparatus during
of them in the proper manner,
lightning storms or when unused
according to provincial and local
for long periods of time.
regulations.
• Refer all servicing to qualified
service personnel. Servicing is
required when the apparatus has
been damaged in any way, such
as power-supply cord or plug
is damaged, liquid has been
spilled or objects have fallen into
the apparatus, the apparatus
General controls and locations
damage, do not reverse batteries
and do not mix battery type.
Don't infringe
This product should only be used for
the purposes for which it is sold, that
is, entertainment, violating no copyright
law. Any attempts to use this product
for unintended purposes are unlawful
and therefore not condoned by the
manufacturer.
The descriptions and characteristics in
this owner's manual are for the purpose
of general reference only and not as a
guarantee. In order to provide you with
the highest quality product, we may
make changes or modifications without
prior notice. The English version serves
as the final reference on all product
and operational details should any
discrepancies arise in other languages.
Notes
Programming
1. In stop mode, press PROG to enter
program setting mode.
The program location and program icon
flash on the display.
2. Press
/
to select the track you
want to program.
3. Press PROG again to confirm your
selection and access the next program
location.
4. Repeat steps 2 to 3 to program to a
maximum of 20 tracks.
5. Press
in program mode to start
program playback (PROG icon lights on
Important: Also keep your "Bill of Sale" as proof of purchase.
the display).
Important: Veuillez conserver votre "Facture D'achat" comme preuve d'achat.
Press
to return to stop mode.
Importante: Guarde su "Boleta de venta" como prueba de su compra.
Clearing program list
Your program will be erased:
Model no.
open the CD door or
N° du modèle
press
while the program playback is
stopped.
N° de modelo
Type of set
Connect an audio cable (not included) to the
Type d'appareil
Tipo de aparato
LINE-IN jack will switch the unit to LINE-IN
mode automatically
Serial no.
N° de série
to
N° de serie
Date purchased
Date d'achat
Fecha de compra
to search
FOR SERVICE AND REPAIR, PLEASE VISIT
POUR ENTRETIEN ET RÉPARATION, VEUILLEZ
VISITE
PARA SERVICIO Y REPARACIÓN, POR FAVOR
VISTITA
© 2008 AVC MULTIMEDIA
ADVERTENCIA: Los cambios o
modificaciones hechas a este equipo sin
que la parte responsable del cumplimiento
las apruebe expresamente, podría impedir
Parte de la siguiente información pude no aplicar
a su producto particular; sin embargo, como con
que el usuario use el equipo.
cualquier producto electrónico, deben tomarse las
precauciones durante el manejo y uso.
Este producto cumple con el subcapítulo
• Lea estas instrucciones.
CFR de las reglas 21 DHHS aplicables en
• Mantenga estas instrucciones.
la fecha de fabricación.
• Ponga atención a todas las advertencias.
• Siga todas las instrucciones.
Por su seguridad
• No use este aparato cerca del agua.
El enchufe eléctrico AC
• Limpie solamente con una paño seco.
está polarizado (una aleta
• No obstruya ninguna de las aberturas de
es más ancha que la otra)
ventilación. Instale de acuerdo con las
instrucciones del fabricante.
y solamente se adapta a
• No instale cerca de fuentes de calor como
tomas eléctricas AC de
calentadores, registradores de calor, estufas u
una vía. Si el enchufe no entra en la toma
otros aparatos (incluyendo amplificadores) que
produzcan calor.
completamente, voltéelo e intente por el
• No destruya el propósito de seguridad del
otro lado. Si aún no se adapta, contacte
enchufe polarizado o tipo conexión a tierra. Un
un electricista calificado para que cambie
enchufe polarizado tiene dos aletas, una más
ancha que la otra. Un enchufe tipo conexión
la toma o use otra. No intente pasar por
a tierra tiene dos aletas y una tercera para
alto esta norma de seguridad.
conexión a tierra. La aleta ancha o la tercera
se suministra por razones de seguridad. Si el
enchufe suministrado no coincide con su toma,
consulte a un electricista para que reemplace la
PRECAUCIÓN: PARA PREVENIR
toma obsoleta.
DESCARGAR ELÉCTRICAS, HAGA
• Proteja el cable eléctrico para que no sea
QUE LA ALETA ANCHA DEL ENCHUFE
pisado, pinchado, particularmente en los
enchufes, receptáculos y en el punto donde
COINCIDA CON LA RANURA ANCHA,
salen de los aparatos.
INSERTE COMPLETAMENTE.
• Solamente use anexos/accesorios especificados
por el fabricante.
ADVERTENCIA: EL ENCHUFE DE
• Use solamente el carro, stand, trípode, soporte o
LA RED ELÉCTRICA SE USA COMO
mesa especificada por el fabricante o vendida
DISPOSITIVO DE DESCONEXIÓN Y
con el aparato. Cuando use el carro, tenga
precaución al mover la combinación carro/
DEBE PERMANECER FÁCILMENTE
aparato para evitar lesiones al caerse.
OPERABLE DURANTE EL USO
• Desconecte este aparato durante tormentas
PRETENDIDO.USA COMO
eléctricas o cuando no lo use durante tiempo
prolongado.
DISPOSITIVO DE DESCONEXIÓN Y
• Deje el mantenimiento en manos de personal
DEBE PERMANECER FÁCILMENTE
calificado. El mantenimiento es necesario
OPERABLE DURANTE EL USO
cuando el aparato se daña de cualquier forma,
como el cable o enchufe de alimentación
PRETENDIDO. PARA DESCONECTAR
eléctrica, se ha derramado líquido, objetos han
COMPLETAMENTE EL ENCHUFE
caído en el aparato, el aparato se ha expuesto a
DE LA RED ELÉCTRICA, DEBE
la lluvia o humedad, no funciona normalmente o
se ha caído.
DESCONECTARSE DE LA TOMA
COMPLETAMENTE.
Function of controls
1. Toma LINE IN
Para conectar un cable de audio para
entrada de audio externa.
2. DBBS
16
Para encender o apagar el realce de
15
graves.
14
3. Selector de funciones
13
Para seleccionar entre LINE IN/CD, off
[apagado], radio.
12
4. Control de Volumen
Para ajustar el volumen.
5. Saltar CD
11
Para ir a la pista anterior o buscar hacia
5
10
6
7
8 9
atrás.
6. Repetir
Para seleccionar entre los modos de
11 CD skip
reproducción: repetir la pista actual,
12 Tuning control (Control de
repetir todas las pistas.
sintonización)
7. Detener
13 Band selector (Selector de
Para detener la reproducción.
banda)
8. Pantalla del CD
14 FM stereo indicator
La pantalla del CD muestra los diferentes
(Indicador FM estéreo)
modos de reproducción, números de
15 Dial pointer (Puntero del
pista.
dial)
9. Reproducción / Pausa
16 Antena
Para iniciar y pausar la reproducción.
Important Battery Precautions
• Any battery may present a risk
of fire, explosion, or chemical
burn if abused. Do not try to
charge a battery that is not
intended to be recharged, do not
incinerate, and do not puncture.
• Non-rechargeable batteries,
such as alkaline batteries, may
leak if left in your product for
a long period of time. Remove
the batteries from the product if
you are not going to use it for a
month or more.
• If your product uses more than
one battery, do not mix types
and make sure they are inserted
correctly. Mixing types or
inserting incorrectly may cause
them to leak.
• Discard any leaky or deformed
battery immediately. They may
cause skin burns or other
personal injury.
• Batteries shall not be exposed
to excessive heat such as
sunshine, fire or the like.
• Please help to protect the
environment by recycling or
disposing of batteries according
to federal, state, and local
regulations.
16
1
15
2
14
3
13
4
12
11
5
10
6
7
8 9
1
Line In Jack
11
CD skip
2
DBBS
12
Tuning control
3
Function selector
13
Band selector
4
Volume control
14
FM stereo indicator
5
CD skip
15
Dial pointer
6
Repeat
16
Antenna
7
Stop
8
CD display
9
Play / Pause
10
Prog.
Product name
Nom du produit
Nombre del producto
Invoice no.
N° de la facture
N° de recibo
Dealer name
Nom du marchand
Nombre del comerciante
www.1800customersupport.com/RCA
POR FAVOR LEA Y GUARDE ESTAS INSTRUCCIONES PARA REFERENCIA FUTURA
INSTRUCCIONES DE SEGURIDD IMPORTANTES
• SI SU PRODUCTO
FUNCIONA CON BATERÍAS,
agregue las siguientes
precauciones:
A. Cualquier batería puede
derramar electrolito si se mezcla
con diferentes tipos de baterías,
si se inserta incorrectamente
o si todas las baterías no se
reemplazan al mismo tiempo.
B. Cualquier batería puede
derramar electrolito o explotar
si se desecha en el fuego o se intenta cargar una
batería no-recargable.
C. Descarte inmediatamente las baterías que
tengan fugas. Las baterías con fugas pueden
causar quemaduras en la piel u otras lesiones
personales. Cuando deseche las baterías, verifique
de hacerlo de manera correcta, de acuerdo a las
regulaciones locales y provinciales.
Precauciones importantes con las baterías
• Cualquier batería que se maltrate puede
ocasionar incendios, explosiones o
quemaduras químicas. No trate de cargar una
batería no-recargable, no incinere ni perfore.
Las baterías no-recargables como las alcalinas,
pueden presentar fugas si se dejan en el
producto durante un tiempo prolongado. Retire
las baterías del producto si no lo va a usar
durante 1 mes o más.
• Si su producto usa más de una batería no
mezcla tipos y verifique que estén insertadas
correctamente. Mezclar diferentes tipos o
insertarlas incorrectamente puede hacer que
goteen.
• Descarte inmediatamente cualquier batería con
fugas o deforme. Las baterías con fugas pueden
causar quemaduras en la piel u otras lesiones
personales.
• Las baterías no deben exponerse al
calor excesivo como la luz solar, fuego o algo
similar.
• Por favor ayude a conservar el medio ambiente
reciclando o desechando las baterías de acuerdo
a las regulaciones locales, federales o estatales.
10. Prog.
Para entrar al modo de programa
y confirmar las configuraciones de
programa. Usted puede programar una
lista de reproducción de hasta 20 pistas.
11. Saltar CD
Para ir a la pista siguiente o buscar hacia
delante.
12. Control de sintonización
Para ajustar la frecuencia de
sintonización.
13. Selector de banda
Para seleccionar la banda FM, estéreo
o AM.
14. Indicador de FM estéreo
Se iluminará siempre que la transmisión
de FM estéreo se esté recibiendo.
15. Apuntador del dial
Indica la frecuencia que se está
sintonizando.
16. Antena
Extiende la antena para una mejor
recepción FM.

Advertisement

loading

  Related Manuals for RCA RCD330

  Summary of Contents for RCA RCD330

  • Page 1: Important Safety Instructions

    Untied States, you must first contact our Customer Support Center at www.1800customersupport.com/RCA, during the hours listed in the box below. The determination This warranty gives you specific legal rights and you may also have other rights, which may vary, from of service will be made by AVC Customer Support.
  • Page 2: Reproductor De Cd

    États-Unis, vous devez tout d’abord appeler notre Centre de support à la clientèle au www.1800customersupport.com/RCA, durant les heures indiquées dans la boîte ci-dessous. Le service de support à la clientèle AVC déterminera le service à effectuer. VEUILLEZ NE PAS RETOURNER VOTRE PRODUIT À...
