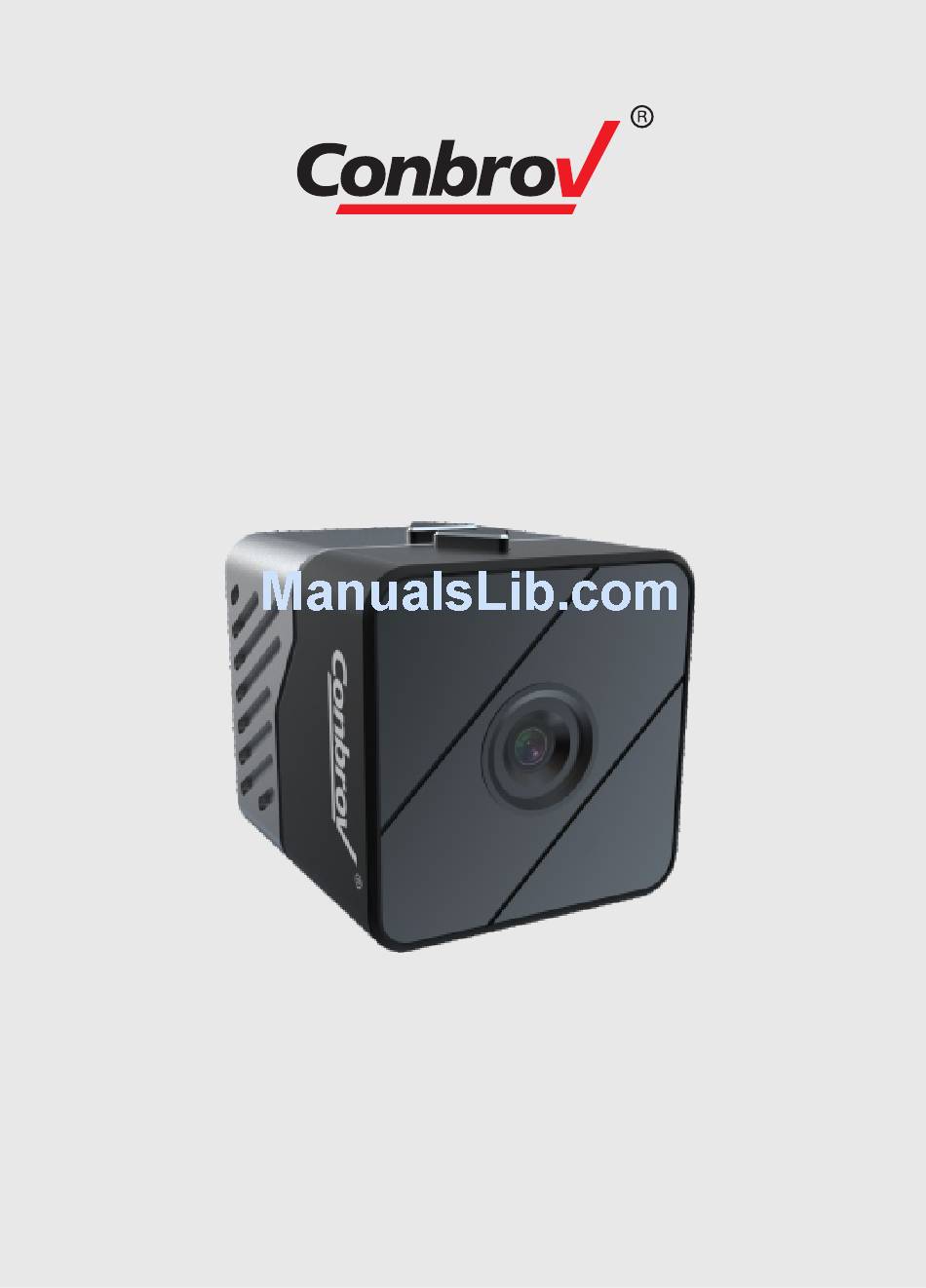

- Page 1 Conbrov T33 Mini Spy Camera User Manual Model No.: T33...
-
Page 2: Table Of Contents
What's Included ............6 T33 Diagram............... 7 Before Using Your Conbrov T33 Camera......How to Use Your Conbrov T33 Camera ....9-17 1. How to Turn On the Camera/Record a Video ... 12 2.How to Turn On/Off Motion Detection Recording..12 ..... -
Page 3: Part 1:Before First Use
Part1: Before First Use Charging the camera Before the first use, please charge the camera to full power.While charging, the LED light turns yellow and turns off when the camera is fully charged. Yellow indicator Yellow indicator Format the micro SD card Before the first use, please install SD card and format it to FAT32 format. -
Page 4: Part 1:Before First Use
Part1: Before First Use Reset the camera If the camera malfunctions for any reason, reset it with the included pin. A small paperclip can also be used. -
Page 5: Part 2:Quick Guide
Part2: Quick Guide A. Install the microSD card B.Turn on and record 2S power on Micro-SD ON lights flash blue 3 times, the Install the micro SD card with camera power on and enter into contacts facing up manual recording mode. D.Play the video C. -
Page 6: Part 3: Detailed User Manual
Safety Precautions • Read this instruction manual carefully before using the camera. It contains important information for your safety as well as operating and maintenance instructions. • Follow all safety precautions in order to prevent damage due to improper use of the camera. •... -
Page 7: Warning On Invasion Of Privacy
Warning on Invasion of Privacy The camera should be used for legal purpose only. Follow the laws of your country. Recording and circulating an image of an individual may constitute an infringement of their privacy for which you could be liable. -
Page 8: What's Included
What's Included Camera Magnetic Bracket USB Cable Conbrov T33 Mini Spy Camera Conbrov T33 Spy Camera User Manual User Manual Model No.: T33 Model No.: T33 User Manual Card Reader... -
Page 9: T33 Diagram
T33 Diagram Power Reset Micro SD Card Slot Power Motion /REC Detection Recording... -
Page 10: Before Using Your Conbrov T33 Camera
Before Using Your Conbrov T33 Camera 1. Charging your camera Yellow indicator Yellow indicator Micro-SD Micro-SD (1) Plug the USB cable both in the camera and in a 5V adaptor or a computer USB port.While charging, the LED light stays on yellow. - Page 11 Before Using Your Conbrov T33 Camera 3. Set Parameters (1)Connect the camera to PC with the included USB cable. (2)Press and hold the button for 2 seconds, the blue light stays on and the red light flashes, which indicates the camera enters into the reading tray mode and the disc icon will appear on your computer.
- Page 12 Before Using Your Conbrov T33 Camera A. Setting Language: Click drop-down box on the right side of Language, choose suitable language, then click SAVE. B. Setting Time Watermark: Click drop-down box on the right side of Time Watermark, choose Yes(shows the date and time) or No(no date and time) according to your need, then click SAVE.
- Page 13 Before Using Your Conbrov T33 Camera H. Setting Overwrite: Click drop-down box on the right side of Overwrite, choose On(loop recording on micro SD) or Off(no loop recording) according to your need, then click SAVE. I . Setting Audio: Click drop-down box on the right side of Audio, choose On(turn on audio) or Off(turn off audio) according to your need, then click SAVE.
-
Page 14: How To Use Your Conbrov T33 Camera
How to Use Your Conbrov T33 Camera 1.How to Turn On the Camera/Record a Video (1) Press and hold the button for 2 seconds to turn on the camera. The LED flashes blue 3 times and then goes off, the camera enters into recording mode. -
Page 15: How To Switch Into Night Vision Mode
How to Use Your Conbrov T33 Camera (2) Press and hold the button for 2 seconds, the LED flashes red and blue alternately and then goes off, and the device will save the video in the micro SD card and then turn off. -
Page 16: Technical Specifications
Technical Specifications Power supply DC 5V Infrared type Infrared light angle 45° Battery type Polymer lithium battery Battery capacity 1000 mAh Video format Video recording MJPEG Resolution 1080P/720P/VGA Lens angle 110° MicroSD card capacity Max 32GB Night vision 8 meters PIR detection 5 meters PIR detection angle... -
Page 17: Led Status
LED Status Charging Steady yellow Fully charged Yellow light goes off Blue and red light flash and Power off then goes off Blue LED flashes 3 times Manual recording and goes off Blue light flashes once and Motion detection goes off , then red light flashes recording 3 times and stays on Motion detection... -
Page 18: Faqs
FAQS 1. Q: What should I do if the camera happens to malfunctions? A: Please reset the camera. 2.Q:What should I do if the disk can't be read? A.Check if the USB cable can't contact well or be damaged. B. Check the computer's USB port and connect with other USB port. -
Page 19: Warranty
Warranty All products sold by the Conbrov Group are covered by a 12-month full replacement warranty. Happy with it? Share your experience with an Amazon review. Or any questions? Our friendly customer service team is ready to help: support@conbrov.com Contacting us via the above email address,which is the quickest way to reach our support team. - Page 20 All trademarks or registered trademarks are the property of their respective owners. About Us Conbrov Electron Co., Ltd. founded in 2003 is an innovative technology research company specialized in personal surveillance cameras and on-dash cameras. Conbrov products and technology are patent protected by PCT or U.S. Patent Office.
