QuickStartGuide
TH161 series
www.rcaaudiovideo.com
Congratulations on purchasing your new RCA Player.
Please read these instructions for quick tips on using the player.
Getting started
1. Install the battery into the player:
Apply thumb pressure to slide the battery
compartment cover in the direction of the arrow,
then remove the cover.
Insert the supplied AAA battery, following the
polarity marks in the battery compartment.
Replace the cover.
2. Rotate the USB plug out of the player body and connect the player to your PC as shown.
USB port
on your PC
v4.0 (EN/E)
3. The RCA EasyRip™ Media Software installer (stored in the player*) will launch automatically.
Click NEXT to begin the installation and follow the instructions to install the software on
your PC.
RCA EasyRip is currently not compatible with DRM fi les and Audiobooks.
If the installer does not auto-launch, go to MyComputer in the Start menu, fi nd and
open the drive letter associated with the player (i.e. PEARL) and then double-click the
rcaeasyrip_setup fi le to launch the installer.
4. Transfer audio fi les to your player using either of the two methods below:
a) RCA EasyRip: Helps to rip CD's, create playlists, load content and manage your library with
an intuitive and modular design. Click the EasyRip icon (
) on your PC desktop to launch
the software.
From the module dock on your desktop, click the PC Library icon (
) and then click
Import Media to load your media content into the EasyRip library.
Click the Player Loader icon (
) to open the
loader window. To transfer all the fi les in your music
library (up to the player's memory capacity), click
Load Player with All Music selected. To transfer only
selected fi les, click Select Individual Files, browse
your PC Library and select each fi le you want to
transfer, and when fi nished, click Load Player with
Selected Files.
Click the Help icon (
) on the module dock to learn more about using RCA EasyRip.
* The latest software can be downloaded from www.rcaaudiovideo.com.
b) Windows Explorer: Simply drag and drop media fi les onto
the drive letter associated with the player.
Your RCA Player is also compatible with most PC music management softwares.
For details on fi le transfer, refer to Managing fi les on your RCA player in the user manual
stored in the player.
5. Disconnect the player from your PC by clicking the Safely Remove Hardware icon (
) in
the system tray (located in the lower right corner of your screen) and selecting the player
from the list of devices, then unplug the player from the PC.
Learn more about the player
Read the user manual, stored in the User Manual folder located on the root level
of the player, for more information on the player's features, safety and warranty
information, and answers to Frequently Asked Questions (FAQ's).
If opted-in during installation, the user manual will also be available by clicking on the
Start menu (
in XP or
in Vista ), clicking on All Programs, clicking on the RCA
directory, and then clicking on the appropriate manual.
Need more help?
Do not return this product to the store.
Visit www.rcaaudiovideo.com/downloads for the latest fi rmware, RCA EasyRip Media
Software, user manual and FAQ's.
Windows is a registered trademark of Microsoft Corporation in the United States and other countries.

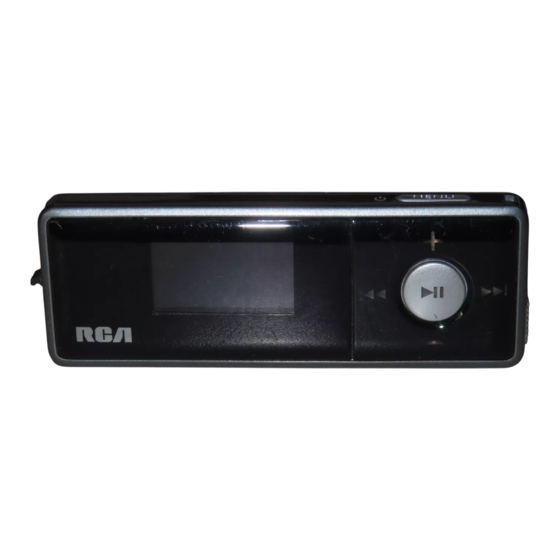

General controls
Microphone
Power on/off ( )/display player menu
Display
Scroll up/
increase volume
Earphone jack
Lock/unlock
USB plug
Skip back/reverse/
Skip forward/fast forward/
menu back
menu advance
Scroll down/
Play/pause (and show the Option menu)/
decrease volume
select menu option
Turn the player on/off
Press and hold
MENU.
Navigate to an audio fi le
In the Home menu, press
or
to go back or
advance in the player menu and press + or – to
scroll up or down to the desired fi le
/
Music
Artists
+/–
Albums
+/–
Title 1
Title 2
+/–
Titles
Title 3
/
Play an audio fi le
Press
Pause playback and show the Option menu
Press
, press again to resume
Adjust the volume
Press + or – during playback
Skip to the next fi le (or section of
Press
audiobooks*)
Skip to the previous fi le (or section of
Press
within the fi rst 4 seconds of the current
audiobooks*)
audio fi le
Reverse or fast forward an audio fi le
Press and hold
or
during playback
Go to the Home menu (to access Music,
Press MENU
Audiobooks, Radio, Voice Memo, Favorites
and Settings)
Lock the keys
Slide "Lock/unlock" towards the ( ) icon
Delete fi les from the player
Refer to page 16-21 of the user manual
Reset the player
Remove and replace the battery
* Refer to the user manual for information on section skipping for audiobooks.
For information on new and upcoming products and to register your new player,
visit www.rcaaudiovideo.com.
Audiovox Electronics Corp,
150 Marcus Blvd, Hauppauge, NY 11788
© 2008
Trademark Registered
Marca Registrada
Marque Deposée
www.rcaaudiovideo.com
