AKD5366 is an evaluation board for the digital audio 24bit 48kHz A/D converter, AK5366. The AKD5366
includes the input circuit and also has a digital interface transmitter. Further, the AKD5366 can achieve
the interface with digital audio systems via opt-connector.
Ordering guide
AKD5366
---
AK5366 Evaluation Board
• DIT with optical output
• BNC connector for an external clock input
• 10pin Header for serial control mode
AVDD,DVDD,TVDD
LIN1-5
RIN1-5
Control
Data
10pin Header
* Circuit diagram and PCB layout are attached at the end of this manual.
<KM073601>
GENERAL DESCRIPTION
(Cable for connecting with printer port of IBM-AT,
compatible PC and control software are packed with this.)
FUNCTION
AVSS,DVSS
AK5366
Clock
Generator

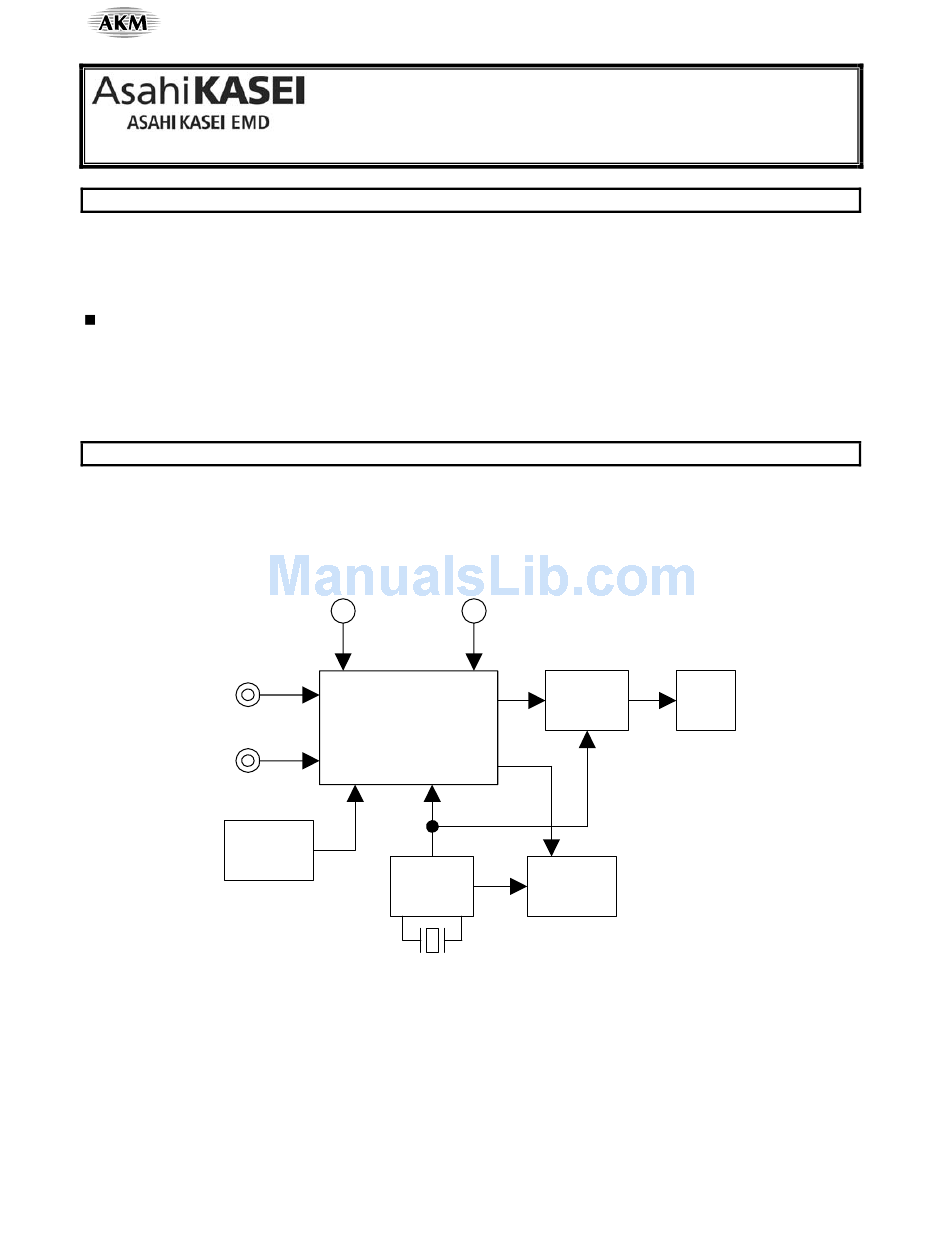

Figure 1. AKD5366 Block Diagram
AK5366 Evaluation Board Rev.A
AK4103
(DIT)
ROM Data
10pin Header
- 1 -
[AKD5366]
AKD5366
Opt
Out
2007/04
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for AKM AKD5366
Summary of Contents for AKM AKD5366
- Page 1 AK5366 Evaluation Board Rev.A GENERAL DESCRIPTION AKD5366 is an evaluation board for the digital audio 24bit 48kHz A/D converter, AK5366. The AKD5366 includes the input circuit and also has a digital interface transmitter. Further, the AKD5366 can achieve the interface with digital audio systems via opt-connector.
- Page 2 PORT1 (DIT) is used. DIT generates audio bi-phase signal from received data and which is output through optical connector (TOTX176). It is possible to connect AKM’s D/A converter evaluation boards on the digital-amplifier which equips DIR input. Nothing should be connected to PORT2 (ROM). In case of using external clock through a BNC connector (J13), select EXT on JP8 (CLK) and short JP6 (XTE) and open JP9 (EXT).
- Page 3 PORT1 (DIT) is used. DIT generates audio bi-phase signal from received data and which is output through optical connector (TOTX176). It is possible to connect AKM’s D/A converter evaluation boards on the digital-amplifier which equips DIR input. Nothing should be connected to PORT2 (ROM). In case of using external clock through a BNC connector (J13), select EXT on JP8 (CLK) and short JP6 (XTE) and open JP9 (EXT).
- Page 4 [AKD5366] DIP Switch set up [SW1] (MODE1): Setting the evaluation mode for AK5366 ON is “H”, OFF is “L”. Default is all “L”. Name OFF (“L”) ON (“H”) 3-wire Control I2C Control CAD0 Fixed to “L” CAD1 Fixed to “L”...
-
Page 5: Pin Header
The AK5366 can be controlled via the printer port (parallel port) of IBM-AT compatible PC. Connect PORT3 (CTRL) with PC by 10-line flat cable packed with the AKD5366. The control software packed with this evaluation board does not support I C control. - Page 6 Signal of LOUT and ROUT pins are output via J3 (LOUT) and J6 (ROUT). LOUT LOUT ROUT ROUT Figure 4. LOUT/ROUT Output circuits * AKM assumes no responsibility for the trouble when using the circuit examples. <KM073601> 2007/04 - 6 -...
- Page 7 1. Set up the AKD5366 according to the “Evaluation Board Manual”. 2. Connect IBM-AT compatible PC with AKD5366 by 10-line type flat cable (packed with AKD5366). Take care of the direction of 10pin header. (Please install the driver in the CD-ROM when this control software is used on Windows 2000/XP.
- Page 8 [AKD5366] Explanation of each dialog 1. [Write Dialog]: Dialog to write data by mouse operation There are dialogs corresponding to each register. Click the [Write] button corresponding to each register to set up the dialog. If you check the check box, data becomes “H”...
- Page 9 [AKD5366] 4. [Save] and [Open] 4-1. [Save] Save the current register setting data. The extension of file name is “akr”. (Operation flow) (1) Click [Save] Button. (2) Set the file name and push [Save] Button. The extension of file name is “akr”.
- Page 10 [AKD5366] 5. [Function3 Dialog] The sequence of register setting can be set and executed. (1) Click [F3] Button. (2) Set the control sequence. Set the address, Data and Interval time. Set “-1” to the address of the step where the sequence should be paused.
- Page 11 [AKD5366] 6. [Function4 Dialog] The sequence that is created on [Function3] can be assigned to buttons and executed. When [F4] button is clicked, window Figure as shown in opens. Figure 5. [F4] window <KM073601> 2007/04 - 11 -...
- Page 12 [AKD5366] 6-1. [OPEN] buttons on left side and [START] buttons (1) Click [OPEN] button and select the sequence file (*.aks). Figure The sequence file name is displayed as shown in Figure 6. [F4] window (2) (2) Click [START] button, then the sequence is executed.
- Page 13 [AKD5366] 7. [Function5 Dialog] The register setting that is created by [SAVE] function on main window can be assigned to buttons and executed. When Figure [F5] button is clicked, the following window as shown in opens. Figure 7. [F5] window 7-1.
- Page 14 [AKD5366] MEASUREMENT RESULTS [Measurement condition] • Measurement unit : Audio Precision, System Two Cascade • MCLK : 256fs • BICK : 64fs • fs : 48kHz • Bit : 24bit • Power Supply : AVDD = TVDD = 5.0V, DVDD = 3.3V •...
- Page 15 [AKD5366] [ADC Plot : fs=48kHz] AK5366 THD+N vs. Input Level AVDD=TVDD=5.0V, DVDD=3.3V, fs=48kHz, fin=1kHz -100 -105 -110 -115 -120 -120 -110 -100 Figure 1. THD+N vs. Input Level AK5366 THD+N vs. Input Frequency AVDD=TVDD=5.0V, DVDD=3.3V, fs=48kHz, Input=-0.5dBr -100 -105 -110...
- Page 16 [AKD5366] AK5366 Linearity AVDD=TVDD=5.0V, DVDD=3.3V, fs=48kHz, fin=1kHz -100 -110 -120 -130 -140 -140 -130 -120 -110 -100 Figure 3. Linearity AK5366 Frequency Response AVDD=TVDD=5.0V, DVDD=3.3V, fs=48kHz, Input=-0.5dBr -0.1 -0.2 -0.3 -0.4 -0.5 -0.6 -0.7 -0.8 -0.9 Figure 4. Frequency Response <KM073601>...
- Page 17 [AKD5366] AK5366 Crosstalk AVDD=TVDD=5.0V, DVDD=3.3V, fs=48kHz, Input=-0.5dBr -100 -105 -110 -115 -120 -125 -130 -135 -140 Figure 5. Crosstalk AK5366 FFT Plot AVDD=TVDD=5.0V, DVDD=3.3V, fs=48kHz, Input=-0.5dBr, fin=1kHz -100 -110 -120 -130 -140 -150 -160 -170 -180 Figure 6. FFT Plot <KM073601>...
- Page 18 [AKD5366] AK5366 FFT Plot AVDD=TVDD=5.0V, DVDD=3.3V, fs=48kHz, Input=-60dBr, fin=1kHz -100 -110 -120 -130 -140 -150 -160 -170 -180 Figure 7. FFT Plot AK5366 FFT Plot AVDD=TVDD=5.0V, DVDD=3.3V, fs=48kHz, fin=None -100 -110 -120 -130 -140 -150 -160 -170 -180 Figure 8. FFT Plot <KM073601>...
- Page 19 [AKD5366] Revision History Date Manual Board Reason Contents (yy/mm/dd) Revision Revision 04/05/25 KM073600 First Edition 07/04/23 KM073601 Circuit Change Condenser Capacitance Value Change: C32, C33: Open Change Control Software Manual Change IMPORTANT NOTICE These products and their specifications are subject to change without notice.
- Page 20 MCLK LOUT LRCK 4.7u 4.7u 0.1u 0.1u 4.7u 4.7u 0.1u 0.1u 0.1u 0.1u 2.2u 2.2u Title Title Title AKD5366-Rev.A-44LQFP AKD5366-Rev.A-44LQFP AKD5366-Rev.A-44LQFP Size Size Size Document Number Document Number Document Number AK5366 AK5366 AK5366 Date: Date: Date: Sheet Sheet Sheet Monday, December 18, 2006...
- Page 21 0.1u 0.1u 0.1u 0.1u TVDD TVDD TVDD TVDD (short) (short) (open) (open) Title Title Title AKD5366 Rev.A AKD5366 Rev.A AKD5366 Rev.A Size Size Size Document Number Document Number Document Number AK5366 AK5366 AK5366 Date: Date: Date: Monday, December 18, 2006...
- Page 22 FS3/CDTO AK4103 AK4103 CKS1 CKS0 MODE2 MODE2 DIT_DIF CKS1 CKS0 74HCT541 74HCT541 Title Title Title AKD5366 Rev.A AKD5366 Rev.A AKD5366 Rev.A Size Size Size Document Number Document Number Document Number DIT AK4103 DIT AK4103 DIT AK4103 Date: Date: Date: Sheet...
- Page 23 RIN3 LIN3 RIN4 RIN4 LIN4 LIN4 RIN4 LIN4 RIN5 RIN5 LIN5 LIN5 RIN5 LIN5 Title Title Title AKD5366 Rev.A AKD5366 Rev.A AKD5366 Rev.A Size Size Size Document Number Document Number Document Number Input/Output Input/Output Input/Output Date: Date: Date: Sheet Sheet...
- Page 24 74AC74, 74HCT157, 74LS07 0.1u 0.1u 0.1u 0.1u 0.1u 0.1u 0.1u 0.1u 0.1u 0.1u 0.1u 0.1u Title Title Title AKD5366 Rev.A AKD5366 Rev.A AKD5366 Rev.A Size Size Size Document Number Document Number Document Number LOGIC LOGIC LOGIC Date: Date: Date: Sheet...
