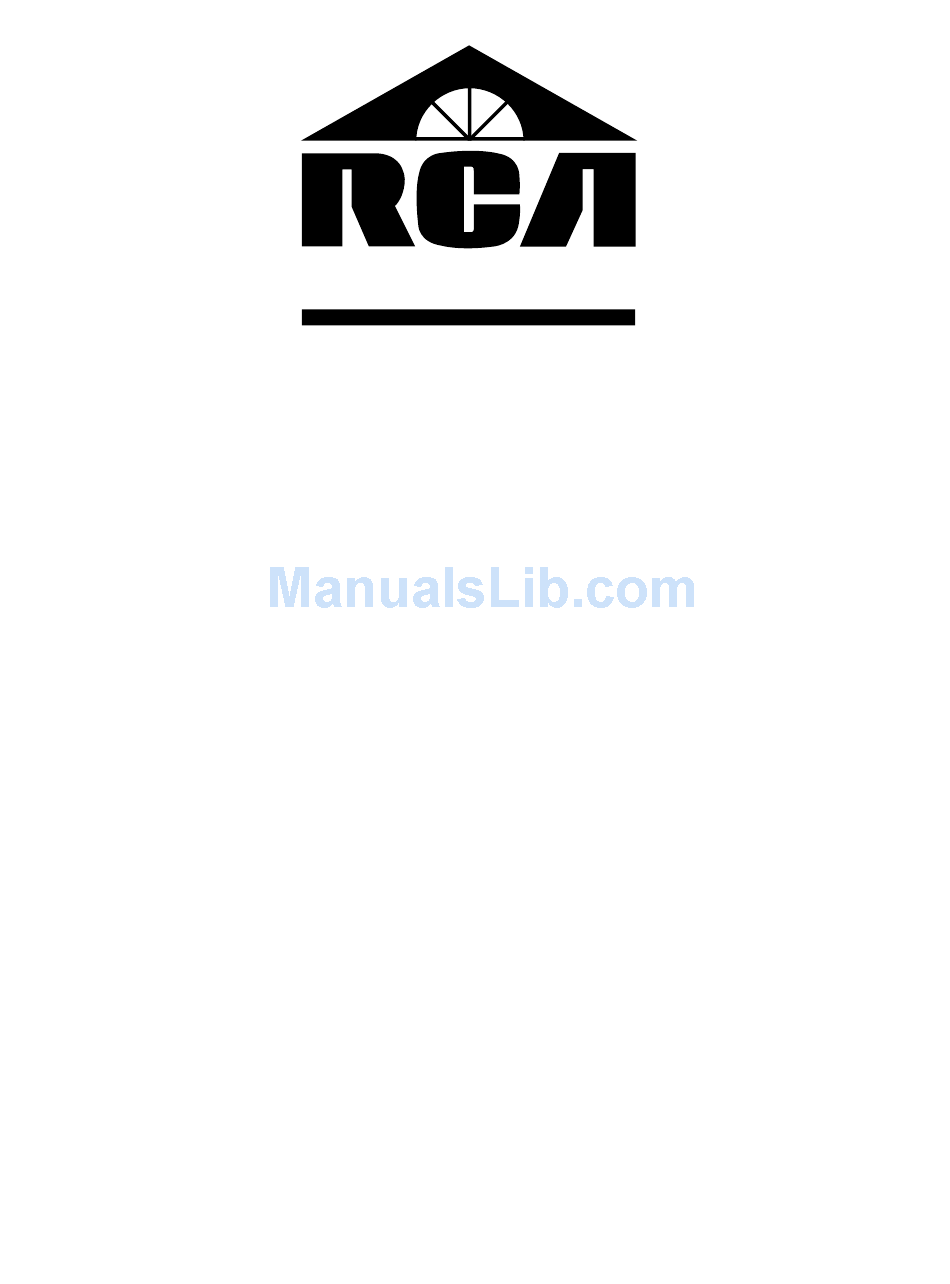

    USTOM HEATRE User’s Guide For Systems: HT35713BD, HT60903BD, 253 Series, 802 Series & 852 Series...

  • Page 2: Important Information

    Note: Each Custom Home Theatre component has a special one-year in-home warranty. Please disregard the timing of the warranty printed in the ownerÕs manual of each component. To identify your nearest Authorized RCA Servicenter, ask your dealer, look in the yellow pages, or call 1-800-721-4007.

  • Page 3: Table Of Contents

    VCR Plus+ Recording _____________________________________________________ 24 Checking or Clearing a Timer or VCR Plus+ Recording _________________________25 ¨ Using Your RCA DSS Receiver (Optional with Some Systems) To Watch a Program and Point and Select Menu System _______________________ 26 Channel Guide and Other Features Available Through the Menu System_________ 27...

  • Page 4: Setting Up Your Tv

    Setting Up Your TV Your TV must be programmed for the system to operate properly. If it was not programmed, complete these programming functions. For complete operating information on your TV, see the UserÕs Guide for your TV. To Autoprogram TV’s Channel Memory 1.

  • Page 5: To Set Up Channels For Vcr, Laserdisc Player, And Satellite Receiver

    Setting Up Your TV To Set Up TV Channels for VCR, Laserdisc Player, and Satellite Receiver To have your TV automatically turn on and tune to the proper channel for viewing the VCR, Laserdisc player, or satellite receiver when you press the corresponding button on the remote, set up the channels as explained below.

  • Page 6: Using Your Tv

    Using Your TV To Watch a TV Program 1. Press TV on the remote to turn on the TV and audio/video receiver and set the remote to operate the TV. 2. Press CHANNEL up or down on the remote to scan up or down for an active channel or press two number buttons to go directly to a channel.

  • Page 7: To Use Picture-in-picture (pip)

    Using Your TV (Continued) To Use Picture-In-Picture (PIP) 1. Press TV and select the TV channel you want to watch. 2. Press PIP on the remote. A small picture will appear on the TV screen. The small and large picture will be the same. 3.

  • Page 8: Using Your System Remote Control

    Using Your System Remote Control All of the basic features of each of the systemÕs components can be controlled with the system remote control (CRK67A1). Unless otherwise noted, all remote control references in this guide will be referring to the system remote control. Turning On Your System ¥...

  • Page 9: Component Buttons

    Using Your System Remote Control Universal Remote Control Your RCA Universal Remote Control is capable of operating most RCA audio and video equipment. To use the remote control effectively, always aim it directly at your receiver. The remote control operates on four batteries, included with your system.

  • Page 10

    Using Your System Remote Control Buttons TV Function Press the TV button to turn on the TV and audio/video receiver and set the remote to operate the TV. + and - Used with the MENU button to select or adjust a function. ANTENNA Changes the antenna input between ANT A and ANT B.

  • Page 11

    Using Your System Remote Control (Continued) Buttons Audio/Video Receiver Function Press the AM•FM button to turn on the receiver and set the remote to operate the receiver. + and – Used with REAR•CTR LEVEL button to adjust volume level of center and rear speakers.

  • Page 12

    Using Your System Remote Control (Continued) Buttons VCR Function Press VCR1 to turn on the VCR, audio/video receiver, and TV. The TV will tune to channel 91 (Input 1). This also sets the remote to operate the VCR. ANTENNA Turns the VCR indicator on and off in the VCRÕs display panel. This has no effect when using this system.

  • Page 13

    Using Your System Remote Control (Continued) Buttons Laserdisc Player Function Press VCR2•LD to turn on the laserdisc player, audio/video receiver, and TV. The TV will tune to channel 92 (Input 2). This also sets the remote to operate the laserdisc player. ANTENNA Toggles between analog and digital audio on laser discs.

  • Page 14

    System. Steps through one screen at a time when the program guide is on the screen. ¨ DISPLAY (Also used as the SELECT button) Displays the RCA DSS Channel Information header on the screen. While in the program guide, lets you select a program.

  • Page 15: Programming Your Remote

    You can program the universal remote to control most brands of remote controllable TVs, VCRs and cable boxes. If you have an RCA, GE or ProScan component, you may not need to program the remote at all. Other manufacturersÕ brands will need to be programmed.

  • Page 16

    CD ...050 TAPE ...051 Satellite Receivers Brand Code(s) Chaparral ...080,081 Cheyenne...081 Drake ...082,083 General Instruments ...092, ...093,094 RCA DSS ® ...000 Realistic ...084 Sierra I,II,III ...081 STS1 ...085 STS2 ...086 STS3 ...087 STS4 ...088 Toshiba ...089 Uniden...090 Video Cipher II ...091...

  • Page 17: Remote Control Codes

    Pioneer ...011,027,045,062,093 Portland ...011,019,027,037 (Continued) Televisions (cont.) Brand Code(s) ProScan ...000 Proton ...011,027,037,072 Quasar ...012,038,092 Radio Shack ...000,021,025,036, ...037,059,064,078 RCA ...000,006,011,019,027,034, ...038,044,046,088,100,101,109 Realistic ...021 Sampo ...011,027 Samsung ...006,011,014,015, ...019,027,036,037,077,110 Sanyo ...017,021,039,056,057,058 Scott ...028,037,064 Sears ...000,006,011,014,017, ...018,021,023,027,039,040,041, ...051,071,083,095 Sharp ...011,020,025,027, ...037,052,053,059,060,108 Signature ...005,094...

  • Page 18: Using Your Audio/video Receiver

    Using Your Audio/Video Receiver The audio/video receiver tunes in the signals for AM and FM radio stations in your area, and controls the sound output for the TV, VCR, laserdisc Player, CD changer, and satellite receiver (optional for some systems). To Listen to AM/FM Stations 1.

  • Page 19: To Set Surround Modes For Each Input

    Using Your Audio/Video Receiver To Set Surround Modes for Each Input 1. Press the Input you want to set the surround mode for. (TV, VCR1, VCR2•LD, DSS, etc.) 2. Set the surround mode by repeatedly pressing the SURROUND button on the remote or the SURROUND MODE button on the receiver until the surround mode you want is selected.

  • Page 20: Setting Up Your Vcr

    Setting Up Your VCR There are several setup feature options for your VCR. The VCR has an Interactive Guide that will take you step-by-step through the setup options for your VCR. For complete operating information about your VCR, see the VCR userÕs guide. Setting Up the VCR Using the Interactive Guide 1.

  • Page 21: To Add Or Remove Channels From VcrÕs Channel Memory

    Setting Up Your VCR To Add or Remove Channels from VCR’s Channel Memory You may want to add or remove channels if some of the channels are not active, have weak signals, or you do not want to watch them. 1.

  • Page 22: Using Your Vcr

    Using Your VCR To Play Back a Videotape 1. Press VCR1 on the remote to turn on the VCR, audio/video receiver, TV, and tune the TV to channel 91 (Input 1). This also sets the remote to control the VCR. Insert a pre-recorded tape in the VCR.

  • Page 23: To Record A Program

    Using Your VCR To Record a Program 1. Insert a blank tape with safety tab in place. 2. Press VCR1 on the remote to turn on the VCR, audio/video receiver, TV, and tune the TV to channel 91 (Input 1). This also sets the remote to control the VCR. 3.

  • Page 24: Express Recording And Stopping Express Recording In Progress

    Using Your VCR Express Recording (XPR) Express recording lets you record up to four hours without using the timer program feature. The VCR will turn off automatically at the end of the recording. 1. Press VCR1 on the remote to turn on the VCR, audio/video receiver, TV, and tune the TV to channel 91 (Input 1).

  • Page 25: Recording While YouÕre Away And Timer Recording

    Using Your VCR Recording While You’re Away Timer and VCR Plus+ recordings let you program the VCR to record up to eight different programs within a one-year period. Before recording, make sure that: ¥ The clock is set correctly. ¥ A tape with safety tab has been inserted with enough tape to record the program(s). Timer Recording 1.

  • Page 26: Vcr Plus+ Recording

    Using Your VCR VCR PLUS+* Recording Make sure the VCR has been set up for VCR Plus+ programming. See VCRÕs UserÕs Guide. 1. Press VCR1 on the remote to turn on the VCR, audio/video receiver, TV, and tune the TV to channel 91 (Input 1).

  • Page 27: Checking Or Clearing A Timer Or Vcr Plus+ Recording

    Using Your VCR Checking or Clearing a VCR Plus+ or Timer Recording 1. Press VCR1 on the remote to turn on the VCR, audio/video receiver, TV, and tune the TV to channel 91 (Input 1). This also sets the remote to control the VCR. 2.

  • Page 28: Using Your Rca Dss ¨ Receiver (optional With Some Systems)

    Using Your DSS If your system came with, or you have added, an RCA Digital Satellite System, you can press the DSS•CABLE on the remote and the DSS will turn on and the TV will tune to channel 90 (S-Video Input).

  • Page 29: Channel Guide And Other Features Available Through The Menu System

    ® Using Your DSS Receiver Channel Guide 1. Press DSS•CABLE on the remote to turn on the satellite receiver, audio/video receiver, TV, and tune the TV to channel 90 (S-Video Input). This also sets the remote to control the satellite receiver. 2.

  • Page 30: Using Your Laserdisc Player

    Using Your Laserdisc Player If your system came with a laserdisc player, follow the directions below to help you with the most common functions. For complete operating information about your laserdisc player, see the player userÕs guide. To Play a Disc 1.

  • Page 31: Using Your Cd Changer

    Using Your CD Changer For complete operating information about your CD changer, see the CD changerÕs UserÕs Guide. To Play a CD 1. Press CD on the remote to turn on the CD changer and audio/video receiver. This also sets the remote to operate the CD changer.

  • Page 32: Setting Up Your Speaker System

    Setting Up Your Speaker System Each of your speakers were designed to deliver unique audio characteristics to your Custom Home Theatre system. When combined, they reproduce a clear, crisp sound for such diverse audio sources as movie soundtracks and compact discs. In addition to the variety of speakers, there are other audio options provided with the system such as: ¥...

  • Page 33: Troubleshooting Checks

    Troubleshooting Checks Trouble No Power Remote locks up or doesnÕt work at all CD changer will not turn on with remote CD changer is always turned on with audio/video receiver Remote wonÕt control the audio/video receiver, laserdisc player, CD Changer, VCR, or satellite receiver Here’s What to Try ¥...

  • Page 34: Troubleshooting Checks

    Troubleshooting Checks Trouble No Video from VCR or laserdisc player CanÕt get TV channels CanÕt record from laserdisc player VCR or laserdisc player wonÕt turn on the first time you press the VCR1 or VCR2•LD buttons on the remote (continued) Here’s What to Try ¥...

  • Page 35: Index

    Product Information .....i RCA DSS ¨ Satellite System Channel Guide ..... .27 Point and Select Menu System .

  • Page 36
