RCA L19WD20 Quick Start Manual

L C D T E L E V I S I O N
START
GUIDE
www.rca.com/television
Jacks
HDMI
INPUT
L R
AUDIO
Y
P B
P
R
COMPONENT VIDEO INPUT
(1080i/720p/480p/480i)
COMPOSITE VIDEO INPUT
L
R
S-VIDEO
INPUT
COMPOSITE VIDEO INPUT
L
VIDEO
R
Cable
(wall outlet)
OR
ANTENNA/
CABLE INPUT
(DIGITAL AND ANALOG)
TV back panel
fi g.1 fi g.2
OR

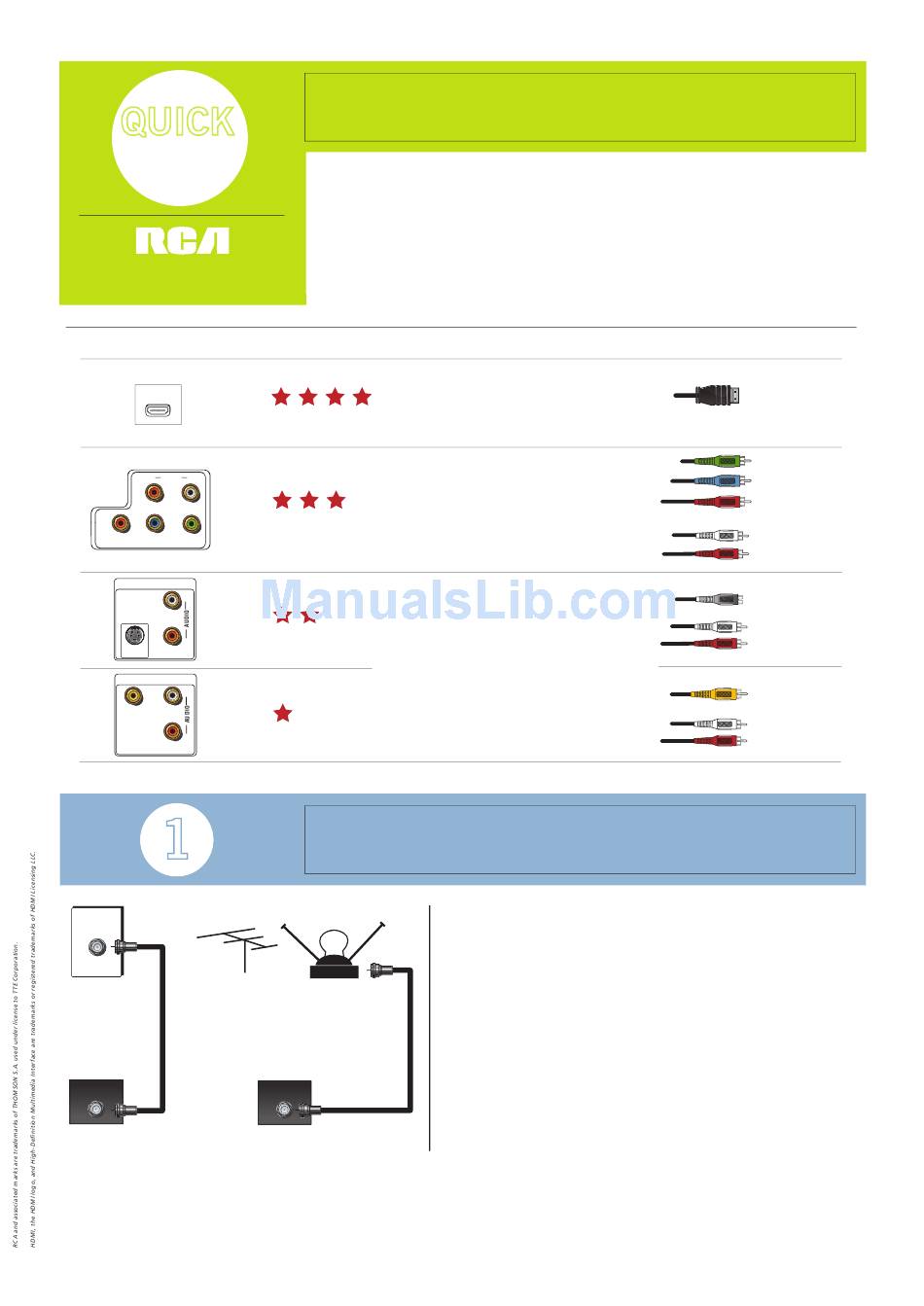

Choose Your Connections

Make your connection decision easier by taking a few minutes to review the jacks on your
new TV. Compare the jacks on the device you want to connect and see if the same jacks
are available on your TV. Then refer to the chart below to determine the best connection to
make.
For more information about connecting your TV to other devices, refer to Chapter 1 of the
User's Guide. Make sure you read the safety information provided at the beginning of the
User's Guide before you connect and operate your TV.
Quality Connects to...
Devices with an HDMI™
output, such as HD Receivers,
Satellite Receivers, and Cable
Boxes
Devices with Y Pb Pr
(component) outputs, such as
HD Receivers, Satellite
Receivers, Cable Boxes, DVD-
PVRs, and DVD Players
Devices with S-Video or Video
(composite) outputs, such as
DVD Players, VCRs, Satellite
Receivers, and Cable Boxes

Connect a Signal Source

or
Antenna
ANTENNA/
CABLE INPUT
(DIGITAL AND ANALOG)
TV back panel
Connect cable or an antenna to your TV's ANTENNA/CABLE INPUT in
order to receive TV channels. Connect the cables as shown in fi g.1 or
fi g.2.
Note: If you have regular cable, your TV is able to receive some digital channels
because it has a capability called QAM. QAM is a tuner that enables reception of
unscrambled digital cable content. Check with your cable provider for information
about content availability in your area. Refer to Step 3 Operate Your TV for
information on viewing digital channels.
If you're connecting a cable box or satellite receiver, use the chart above
to help determine which jacks to use for the best connection. Your cable
box or satellite receiver needs to be high defi nition if you want to receive
high defi nition programming. Check with your cable provider for more
information.
Continue to Step 2, Set Up Your TV, on the back page.
Cables needed
(not included)
HDMI
Component
Video
Audio
S-Video
Audio
Video
Audio
