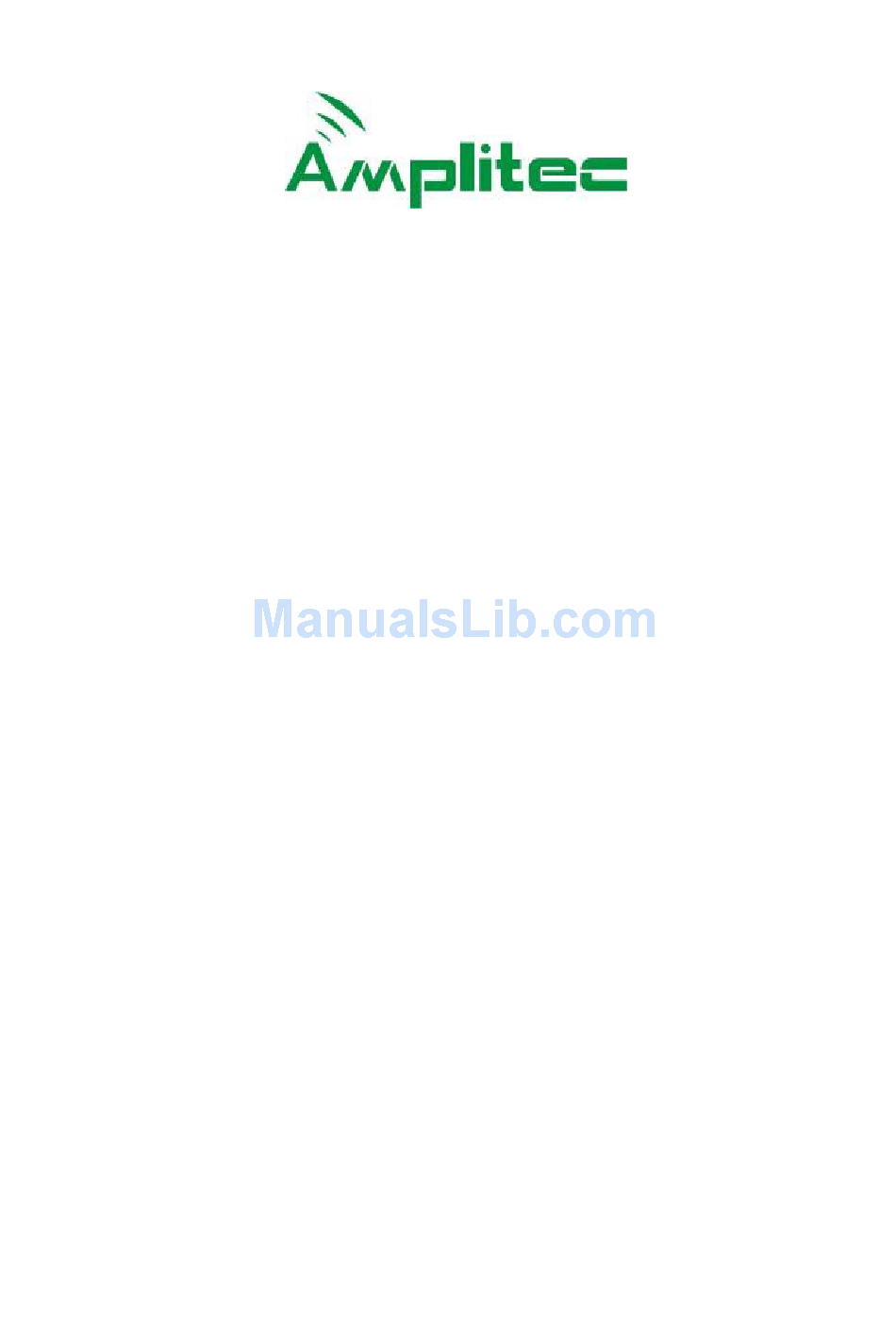

- Page 1 Amplify your world C10G-CP User’s Manual Foshan Amplitec Tech Development Co., Ltd.
-
Page 2: Table Of Contents
Amplify your world CONTENTS OVERVIEW ..........................3 FUNCTION AND FEATURES ....................3 PARTS LIST ..........................4 ......................... 4 ONFIGURATION ......................5 PTIONAL ANTENNA KITS APPEARANCE & INTERFACE DIAGRAM ................6 INSTALLATION GUIDE ......................7 ......................7 EFORE YOUR INSTALL ......................7 NSTALLATION OVERVIEW ...................... -
Page 3: Overview
Amplify your world Overview C10G-CP wide band mini Booster is designed with harmonious humanity conception, as a perfect combination of environmental protection and signal coverage. The C10G-CP products carried with many features like, low consumption, light weight, high gain, low output power and easy installation, etc, It provides a rapid and perfect solution to solve and optimize the weak signal of houses, offices, hotels, elevators, underground parking lots and other small weak signal area. -
Page 4: Parts List
mplify your w world Inside the d detection are ea of Booste ers, if the UL L does not o occur calls o r data excha ange in a long tim me (about 5 minutes), it t will judge th his area do not need Bo ooster. - Page 5 mplify your w world Indoo r Antenna nor Antenna N‐ma ale To N‐male e RF Cable tional ante enna kits e option 1 of A and optio n 2 of B are shipped wit th this boost ter. A: T The outdoor r Antenna k kitting. There e are 2 opti ions with di fferent type...
-
Page 6: Appearance & Interface Diagram
mplify your w world B: T The Indoor A Antenna kit. There are 3 3 options wit th different t type of ante nnas or var iable able length. ion1: 5dBi Outdoor Pa anel Antenn na with 10 meters 5D D-FB Coax Cable (N-M Male nnectors) -
Page 7: Installation Guide
Amplify your world 1. DC+5V Power supply voltage is +5V 2. BS Output port, to be connected with service antenna 3. Grounding, equipment can be grounded by screwing 4. MS Input port, to be connected with donor antenna 5. CDMA Alarm Indicator Green Means ALC doesn't work Orange Means ALC starts control in 5~10dB Red Means ALC starts control in 15~20dB。... -
Page 8: Installing The Booster
Amplify your world 1. Donor Antenna 2. C10G-CP Cellular signal booster 3.Indoor antenna Installing the Booster 1. Select a location close to a power outlet, normally a wall. 2. Mount the booster by supplied screws like the image shoes. Installing Donor antenna 1. -
Page 9: Installing Indoor Antenna
Amplify your world Installing Indoor antenna 1. Select a place on a wall projecting the area where you want reception. 2. Mount the bracket on the wall after drilling the screw to the wall. Connected antennas 1. Take one of cable Connect the Donor antenna to the BS port of the Booster. 2. -
Page 10: Troubleshooting
Amplify your world Troubleshooting 1.The AC/DC Power Adapter LED is OFF Cause Action Power cable of the power adapter unit has Check connection of adapter system not been connected or faulty 2. The AC/DC Power Adapter LED is ON( Green ) but no signal transmits Cause Action Signal cable from outdoor antenna has not... - Page 11 Amplify your world Items Uplink Downlink Conducted Output Power 19±2 dBm 0±2 dBm Gain 60±2 dB 60±2 dB ≤6 dB ≤6 dB Cellular Ripple ≤8 dB ≤8 dB Max. Input Power Without Damage -10 dBm -10 dBm ≤-36 dBm ≤-36 dBm 9KHz~1GHz Spurious Emission ≤-30 dBm...
-
Page 12: Fcc Statement
Amplify your world FCC Statement FCC RF Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instruction for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. - Page 13 Amplify your world Contact Information for providers A subscriber must have the consent of a wireless provider to operate a Consumer Signal Booster. Please register your booster with your wireless service provider, refer to contact information for providers Sprint: signalbooster@sprint.com T-Mobile: www.T-Mobile.com/BoosterRegistration https://support.t-mobile.com/docs/DOC-9827...
