Summary of Contents for Dong-Do IM-2DT

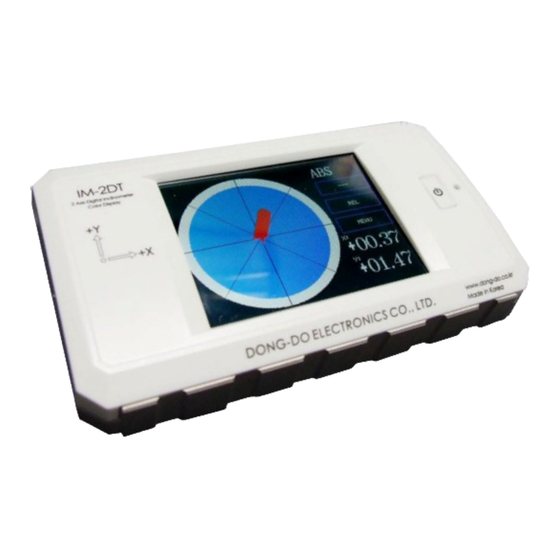

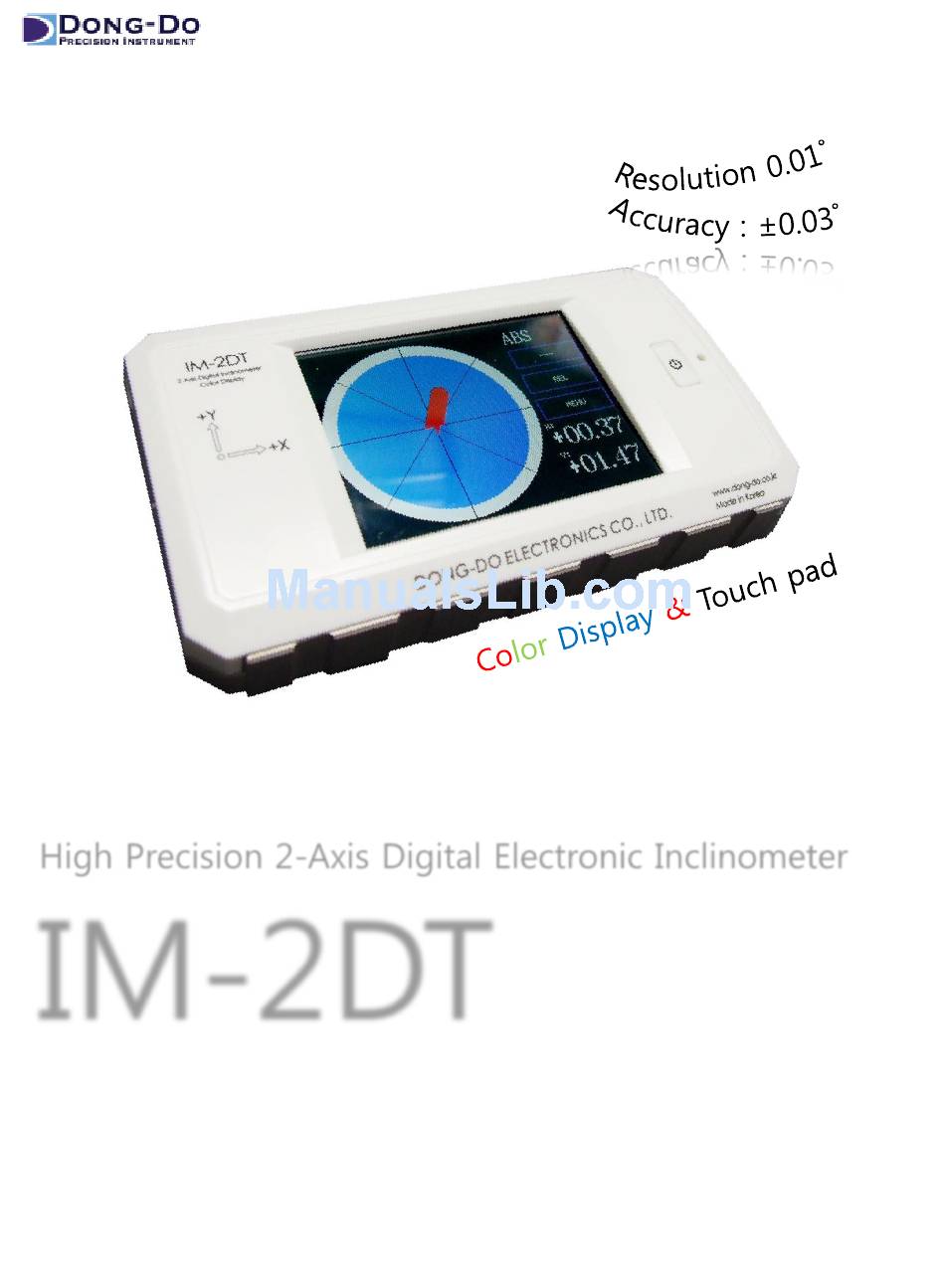

- Page 1 High Precision 2-Axis Digital Electronic Inclinometer IM-2DT User’s Guide The contents of this manual could be different according to the software version and it can be changed without notice. Please use this good after reading the manual thoroughly.
- Page 2 Introduction Thanks for buying our product. IM-2DT is a high precision dual axis inclinometer with a color TFT and touch panel. It is possible to do high speed horizontal plane setting for high precision machines or home appliance as like laundry machine.
-
Page 3: Product Features
Product features Master button Touch Pad Color TFT LCD ① Tilted direction ② Battery display area. ③ Absolute / Relative value change area. ④ Main menu entrance. Charge & Flash light RS232C port ⑤ X/Y angle [ ˚ ] • Master button - Master button has 4 functions below, 1. - Page 4 Functions • Main Menu -The main menu is composed as like the picture 1. -Each functions can be chosen by touching the letters. 1. Run : To exit the main menu and display the measuring screen. 2. Mode : To change the mode of display. 3.
- Page 5 User doesn’t have to do the Y calibration because the Y calibration is done automatically if the X calibration is done. * [Default] If the calibration is not done well, user can choose the ‘default’. Then IM-2DT will recall the zero setting values at the factory. Fig.4...
- Page 6 - Polling 1 sec. : X / Y data is outputted every 1 sec. - Polling 10 sec. : X / Y data is outputted every 10 sec. 2. ID : IM-2DT can have the id from 0 to 99 so that user can get the tilted data from the various IM-2DTs.
- Page 7 * The floated point should be taught by user. It could be P1, P2, P3, or P4 depend on situation. If user touches the area of the floated point on the screen, IM-2DT calculates and displays the heights of the other 3 points.
-
Page 8: Rs232C Serial Communication
RS232C serial communication * ISC-T : It is necessary to do RS232C serial communication with IM-2DT. Communication protocol(ASCII) -
Page 9: Specifications
Specifications System Model IM-2DT Measuring range ± 30˚ Resolution 0.01˚ Accuracy ±0.03˚ Non linearity < 1% FS Response time < 1.0 sec Input / Output port Charging / RS232C Mini type 5 pin USB connector Power & Other features Power Li-ion Battery 3.7V (Rechargeable) - Page 10 Gyeonggi-do Yongin-si Cheoin-gu Baegam-myeon Bakgok-ri 706-2 Tel: +82-31-339-6704 / Fax: +82-31-339-4577...
