Dynojet power commander v Installation Instructions And Owner's Manuals page 4

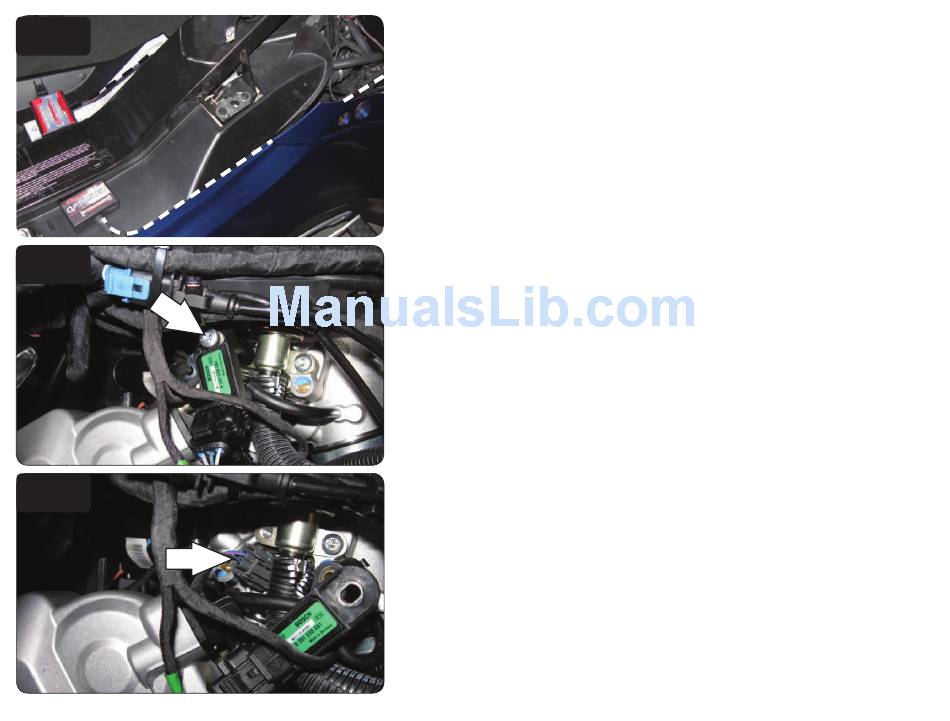

FIG.D
FIG.E
FIG.F
25-010 www.powercommander.com
8 Using the supplied velcro secure the PCV unit in place under the seat (Fig. D).
9 Route the PCV harness down the left side of the vehicle and go towards the
throttle bodies.
10 Using the supplied velcro secure the O2 Optimizer unit in place under the seat
(Fig. D).
11 Route the harness down the right side of the vehicle and go towards the air
box.
Make sure to keep the harness away from the seat latch.
12 Remove the mounting bolt for the MAP sensor on the left side of the throttle
bodies.
This allows access to the injector.
13 Unplug the stock wiring harness from the injector (Fig. F).
11-12 CanAm Spyder RT PCV - 4
