Viessmann Vitocom 100 LAN1 Update Manual

Update manual for Vitocom 100 LAN1 / Vitocom 200 LAN2 with USB stick

Important hints:

The update file is located at www.vitocom.info 
This must be copied on a USB stick. It's important, that this is the only file on the USB stick !
During the update the Vitocom must be connect to supply voltage.
During the update the USB stick must not be withdrawn !

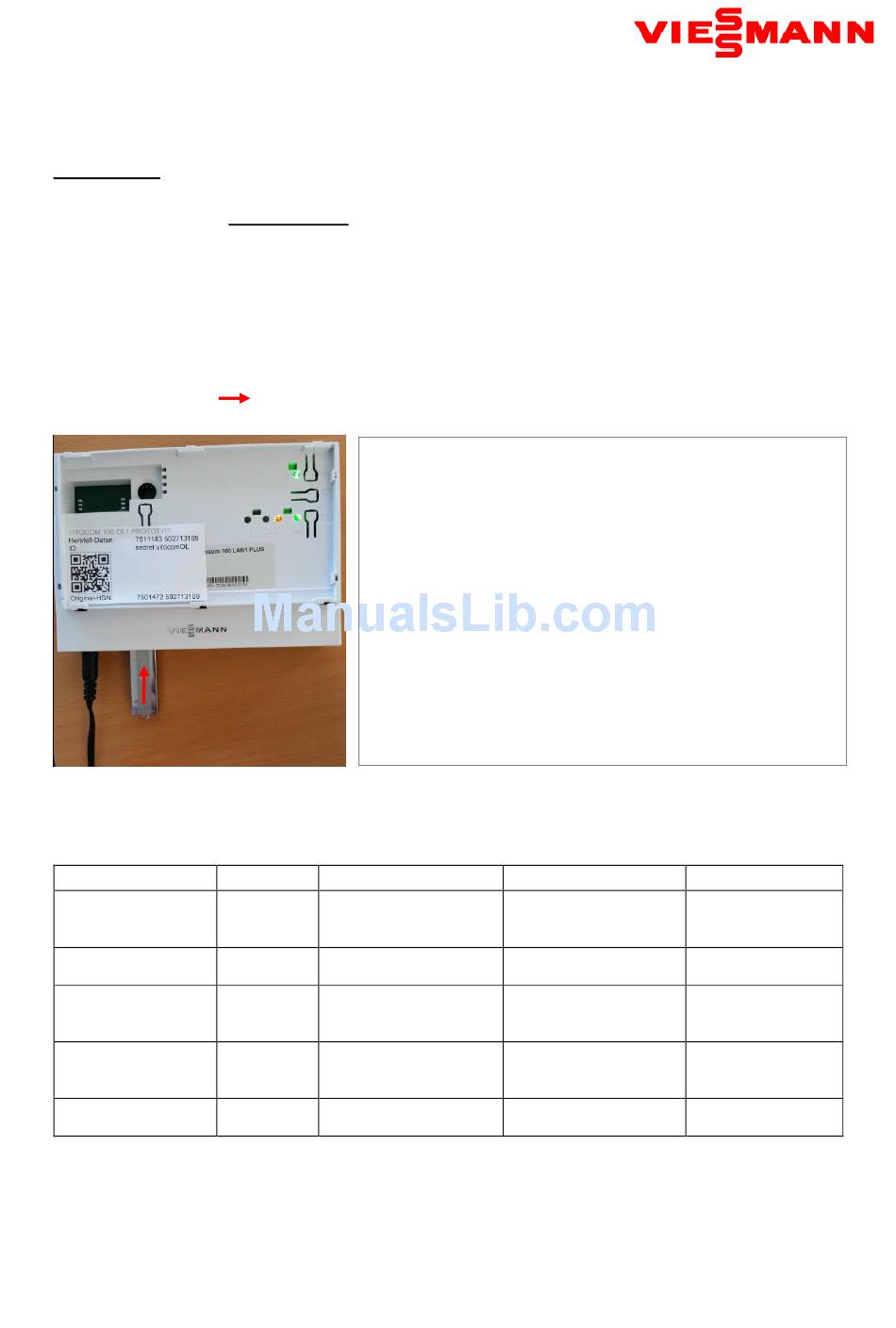

1. To start the update, insert the USB stick into the USB inlet of the
Vitocom , see also
To check the LED display, please remove the cover by shifting it to the right and then lifting it (See also the manual of the
Vitocom)
2. After inserting the USB stick, the update starts automatically.
Normal operation
(Before Update)
USB stick plugged
in.( Update starts)
During update
process
During restart after
update
Update done
(after approx. 5 min)
As soon as the update is done (after approx. 5 min), the USB stick can be removed again and may be reused for updates for
further Vitocoms . The success of the update can be checked with Vitodata100 or Vitodata 300. Therefore Vitotrol app users
just follow the menues "Settings  info Vitodata/Vitocom" .
If the manual update cannot be performed successfully, please contact your Viessmann service partner.
„
Software updates for Vitocom LAN devices"

display and operating elements

5

LED display (only visible when front cover removed)

1 2 3 4
„1"
„2"
„3"
„4"
„5"
LED1 LED3
Green Green
OFF Flashes shortly when
USB stick is inserted.
OFF OFF
OFF OFF
OFF Green
LON Service LED ( green light)
Without function
IP link status ( yellow or green light)
Operation mode (red or green light)
Display data transmission when
using service interface (green light)
LED4
Green
Fast blinking
Fast blinking green for
approx. 3 minutes.
Slowly blinking green for
approx. 3 minutes.
Green
LED5
OFF
Flashes shortly when
USB stick is inserted.
OFF
OFF
OFF
