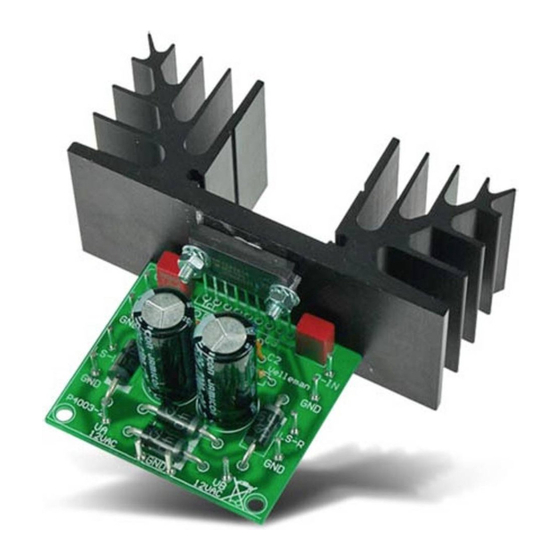

- Page 1 2 x 30W stereo amplifier VM113 UK : 2 x 30W stereo amplifier...
- Page 3 This product is guaranteed against defects in components and construction from the moment it is purchased and for a period of ONE YEAR starting from the date of sale. This guarantee is only valid if the unit is submitted together with the original purchase invoice. VELLEMAN Ltd limits its responsibility to the reparation of defects or, as VELLEMAN Ltd deems necessary, to the replacement or reparation of defective components.
- Page 4 Specifications & features Specifications and features This small amplifier is constructed with the TDA1521 IC, with a maximum supply capability of 2 x 15Wrms (4ohm) of 2 x 10Wrms (8ohm). The IC is thermally and short-circuit protected. Additional rectifier and smoothing filter are unnecessary, as alternating current can be directly connected to the unit. SPECIFICATIONS Music power output: 2 x 30W / 4ohm RMS output: 2 x 15Wrms / 4ohm or 2 x 10Wrms / 8ohm...
- Page 5 Connection Connection...
- Page 6 Facilitate the operation of the device by familiarising yourself with its adjustments and indications. Velleman modules are not suitable for use or as part of life support systems, or systems that might create hazardous situations of kind. Repair under warranty is only possible with date and proof of purchase.
- Page 8 +31(0)76 514 7563 Velleman Inc. +1(817)284-7785 Spain Velleman Components +32(0)9 384 36 11 Modifications and typographical errors reserved - © Velleman Components nv - HVM113G - 2004 - ED1 5 4 1 0 3 2 9 3 1 0 9 6 7...
