RCA RC10 User Manual

v3.0 (EN/F)
user manual
guide de l'utilisateur
AM
PM
SET
EN/F
It is important to read this user manual prior to using your new product for the fi rst time.
Nous vous recommandons de lire ce manuel d'instructions avant d'utiliser votre
nouveau produit pour la première fois.
For your records The descriptions and characteristics in
this owner's manual are for the purpose
In the event that service should be
of general reference only and not as a
required, you may need the model
guarantee. In order to provide you with
number and the serial number. In the
the highest quality product, we may
space below, record the date and place
make changes or modifi cations without
of purchase and the serial number:
prior notice.
Model No.:
Date of Purchase:
Place of Purchase:
Serial No.:
Technical information

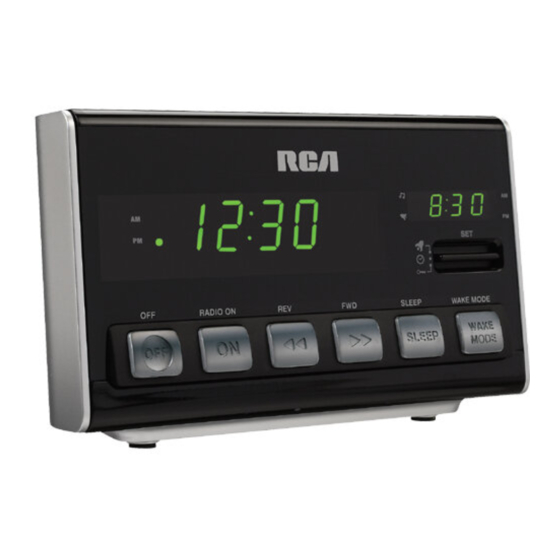

Product: Clock Radio
Brand: RCA
Model: RC10
Electrical consumption
Power Supply: 120V ~ 60Hz
Power Consumption: 5 Watts
Clock Radio
Selecting radio mode
Setting clock time
1. Slide the switch SET / / to Press ON (RADIO) to switch on radio.
position.
Switching band
2. Press REV or FWD to set the
Slide the BAND switch on the right of
clock time on the large display.
the unit to select FM or AM band.
• The time decrements or increments
will follow by a faster rate when
Tuning the radio
you press and hold the buttons.
• The ":" between hour and minute
Rotate the TUNING knob on the right of
time fl ashes when you are setting
the unit to adjust the radio frequency.
the time. AM or PM icon will also
show beside the time.
3. Slide the switch SET / / to
position.
Warranty information
computer peripherals, other media
12 Month Limited Warranty
Applies to RCA Audio/Video players, home networks or vehicle
electrical systems.
Products
This Warranty does not apply to any
AUDIOVOX ELECTRONICS CORP. (the
product or part thereof which, in the
Company) warrants to the original retail
opinion of the Company, has suffered
purchaser of this product that should
or been damaged through alteration,
this product or any part thereof, under
normal use and conditions, be proven improper installation, mishandling,
misuse, neglect, accident, or by removal
defective in material or workmanship
within 12 months from the date of or defacement of the factory serial
number/bar code label(s). THE EXTENT
original purchase, such defect(s) will be
repaired or replaced with reconditioned OF THE COMPANY'S LIABILITY UNDER
THIS WARRANTY IS LIMITED TO THE
product (at the Company's option)
REPAIR OR REPLACEMENT PROVIDED
without charge for parts and repair
ABOVE AND, IN NO EVENT, SHALL THE
labor.
COMPANY'S LIABILITY EXCEED THE
To obtain repair or replacement PURCHASE PRICE PAID BY PURCHASER
FOR THE PRODUCT.
within the terms of this Warranty, the
product is to be delivered with proof
This Warranty is in lieu of all other
of warranty coverage (e.g. dated bill
of sale), specifi cation of defect(s), express warranties or liabilities. ANY
IMPLIED WARRANTIES, INCLUDING
transportation prepaid, to the Company
ANY IMPLIED WARRANTY OF
at the address shown below.
MERCHANTABILITY, SHALL BE LIMITED
TO THE DURATION OF THIS WRITTEN
This Warranty does not extend to the
elimination of externally generated WARRANTY. ANY ACTION FOR BREACH
OF ANY WARRANTY HEREUNDER
static or noise, to correction of
antenna problems, loss/interruptions of INCLUDING ANY IMPLIED WARRANTY
OF MERCHANTABILITY MUST BE
broadcast or internet service, to costs
BROUGHT WITHIN A PERIOD OF 24
incurred for installation, removal or
MONTHS FROM DATE OF ORIGINAL
reinstallation of product, to corruptions
PURCHASE. IN NO CASE SHALL THE
caused by computer viruses, spyware or
other malware, to loss of media, fi les, COMPANY BE LIABLE FOR ANY
CONSEQUENTIAL OR INCIDENTAL
data or content, or to damage to tapes,
discs, removable memory devices or DAMAGES FOR BREACH OF THIS OR
ANY OTHER WARRANTY. No person or
cards, speakers, accessories, computers,
FCC information which the receiver is connected.
• Consult the dealer or an experienced
This equipment has been tested and
radio/TV technician for help.
found to comply with the limits for a Class
B digital device, pursuant to Part 15 of FCC
Modifications not expressly approved
Rules. These limits are designed to provide
by the party responsible for compliance
reasonable protection against harmful
could void the user's authority to operate
interference in a residential installation.
the equipment.
This equipment generates, uses, and can
radiate radio frequency energy and, if
This Class B digital apparatus complies
not installed and used in accordance
with Canadian ICES-003.
RC10 with the instructions, may cause harmful
Cet appareil numérique de la classe B
interference to radio communications.
est conforme à la norme NMB-003 du
Canada.
However, there is no guarantee that
interference will not occur in a particular
Maufacturer/Responsible Party
installation. If this equipment does cause
Audiovox Electronics Corp.
harmful interference to radio or television
150 Marcus Blvd., Hauppauge, NY 11788
reception, which can be determined
by turning the equipment off and on,
the user is encouraged to try to correct
the interference by one or more of the
following measures:
• Reorient or relocate the receiving
antenna.
• Increase the separation between the
equipment and receiver.
• Connect the equipment into an outlet
on a circuit different from that to
SEE MARKING ON BOTTOM OF PRODUCT
Before you begin
Plugging in for power
Install battery as follow:
1. Remove battery compartment door
AC OUTLET POWER SUPPLY:
(located at the bottom of the radio)
120V~60Hz
by applying thumb pressure to the
The AC power plug is polarized (one
tab on battery door and then lift
blade is wider than the other) and only
the door out and off the cabinet.
fi ts into AC power outlets one way.
If the plug will not go into the outlet
2. Connect a 9-volt battery (not
completely, turn the plug over and try
to insert it the other way. If it still does supplied) to the connector plug.
not fi t, contact a qualifi ed electrician
3. Replace the compartment door.
to change the outlet, or use a different
one. Do not attempt to bypass this
safety feature.
Power failure indicator
When AC power is interrupted
Battery back-up operation
(disconnected) for a short period of
time, both time and alarm settings
• The power failure protection circuit
will change (unless battery is
will not operate unless battery is
installed). After AC power is restored
installed.
(reconnected), the Digital Display
• When the battery backup functions,
will blink to indicate that power was
the digital display will not light,
however, the wake function interrupted and you should readjust the
time and alarm settings.
still occurs during the power
interruption if remaining battery
power is adequate.
• Normal operation will resume after
AC power is restored so you will not
have to reset the time or wake.
Wake function
Built-in AFC Setting wake time
The Built In Automatic Frequency 1. Slide the switch SET
Control (AFC) works only on FM. It helps
position.
reducing drift on FM reception and
keeping the radio locked in on the FM
2. Press
station to which it is tuned.
wake time on the small display.
• The time decrements or increments
When tuning in FM stations, you may
will follow by a faster rate when
notice that the station you are tuning you press and hold the buttons.
can be well-tuned on two or three
nearby points on the dial. Always tune
3. Slide the switch SET
carefully at the loudest and clearest
position.
point.
Selecting wake source
AM antenna
You may be woken up by radio or
A built-in ferrite rod antenna eliminates
alarm.
the need for an outside antenna for
1. Set a wake time (see above
AM reception. Rotating the unit slightly
instructions).
may improve reception of distant AM
stations.
2. Press WAKE MODE repeatedly to
select a waking mode.
• Corresponding indicator lights
against the wake icon on the small
display.
– Wake by alarm
– Wake by radio
• The unit equips with GRAD-U-
WAKE feature, the alarm tone
volume will increase gradually to
its maximum in about 30 to 45
seconds.
• Your last tuned radio station will be
the wake source if wake by radio is
selected.
representative is authorized to assume default settings, and without any
for the Company any liability other than pre-loaded content which may have
expressed herein in connection with the been installed in the originally
sale of this product. purchased products. Consumer will
be responsible for reloading data
Some states do not allow limitations on and content. Consumer will be
how long an implied warranty lasts or responsible to restore any personal
the exclusion or limitation of incidental preference settings.
or consequential damage so the above • Properly pack your unit. Include
limitations or exclusions may not apply any remotes, memory cards, cables,
to you. This Warranty gives you specifi c etc. which were originally provided
legal rights and you may also have with the product. However DO NOT
other rights which vary from state to return any removable batteries,
state. even if batteries were included
with the original purchase. We
How to make a warranty claim: recommend using the original
• If your product is capable of storing carton and packing materials.
content (such as an mp3 player, • Include evidence of purchase date
digital voice recorder, etc), it is such as the bill of sale. Also print
recommended to make periodic your name and address and a
backup copies of content stored description of the defect. Send via
on the product. If applicable, standard UPS or its equivalent to:
before shipping a product, make
a back up copy of content or data Audiovox Electronics Corp.
stored on the device. Also, it is Attn: Service Department.
advisable to remove any personal 150 Marcus Blvd., Hauppauge
content which you would not want N.Y. 11788
exposed to others. IT IS LIKELY 1-877-833-3491
THAT CONTENTS AND DATA ON
THE DEVICE WILL BE LOST DURING • Insure your shipment for loss or
SERVICE AND REFORMATTING. damage. Audiovox accepts no
AUDIOVOX ACCEPTS NO LIABILITY liability in case of damage or loss en
FOR LOST CONTENT OR DATA, route to Audiovox.
OR FOR THE SECURITY OF ANY • Pay any charges billed to you by
PERSONAL CONTENT OR DATA ON the Exchange Center for service not
THE RETURNED DEVICE. Product covered by the warranty.
will be returned with factory

IMPORTANT SAFETY INSTRUCTIONS

Some of the following information may
not apply to your particular product;
however, as with any electronic product,
precautions should be observed during
handling and use.
• Read these instructions.
• Keep these instructions.
• Heed all warnings.
• Follow all instructions.
• Do not use this apparatus near
water.
• Clean only with dry cloth.
• Do not block any ventilation
openings. Install in accordance with
the manufacturer's instructions.
• Do not install near any heat sources
such as radiators, heat registers,
stoves, or other apparatus (including
amplifi ers) that produce heat.
• Do not defeat the safety purpose
of the polarized or grounding-type
plug. A polarized plug has two
blades with one wider than the
other. A grounding type plug has
two blades and a third grounding
prong. The wide blade or the third
WARNING:
prong is provided for your safety. If
TO PREVENT FIRE
the provided plug does not fi t into
your outlet, consult an electrician
OR ELECTRICAL
for replacement of the obsolete
SHOCK HAZARD,
outlet.
DO NOT EXPOSE
• Protect the power cord from being
THIS PRODUCT
walked on or pinched particularly at
TO RAIN OR
plugs, convenience receptacles, and
MOISTURE.
the point where they exit from the
apparatus.
• Power is fed to the unit
even when it is not
functioning. To cut the
power supply off, the power
cable must be unplugged.
• Alkaline (NEDA 1604A/IEC
6LR61) battery is recommended.
Carbon-zinc battery may be
used but memory holding time
will be substantially reduced.
Memory holding time for a fresh
alkaline battery is approximately
8 hours (if radio or alarm are not
operated) which should take care
of short, nuisance-type AC power
failures. To preserve battery life,
the unit should remain plugged
into an AC outlet. As the battery
gets older, its voltage drops and
memory may be lost. Be sure to
replace the battery periodically.
Battery should be removed if the
unit will be stored for more than
one month. Leaky battery can
badly damage the clock radio.
Checking wake time
/ / to • The set wake time always shows on
the small display with a wake mode
selected.
• If wake function is not activated,
REV or FWD to set the
OFF shows on the small display.
Turning off the wake
alarm or radio
/ / to
• To silence the wake function
momentarily:
To turn off the wake function, press
SNOOZE on the top of the unit.
The wake alarm or radio will be
switched off temporarily. The alarm
or radio will be on again when the
snooze period (default: 9 minutes) is
over. (read "SmartSnooze TM ")
• To turn off the wake alarm or
radio:
Press OFF. The wake alarm or radio
will activate again the next day
unless you switch off the Wake
function.
• To disable the wake function
completely:
Press WAKE MODE repeatedly until
OFF shows on the small display.
• A new or refurbished unit will be
shipped to you freight prepaid.
What we will do:
Provide you with a new, or at our
option, a refurbished unit. The
exchange unit is under warranty for
the remainder of the original product's
warranty period.
For Canada Customers, please ship
to:
Audiovox Return Centre
c/o Genco
6685 Kennedy Road,
Unit#3, Door 16,
Mississuaga, Ontario
L5T 3A5
PLEASE READ AND SAVE THIS FOR FUTURE REFERENCE
• Only use attachments/accessories • Apparatus shall not be exposed to
dripping or splashing and no objects
specifi ed by the manufacturer.
• Use only with the cart, fi lled with liquids, such as vases,
shall be placed on the apparatus.
stand, tripod, bracket, ]
or table specifi ed by • Always leave suffi cient space around
the manufacturer, or the product for ventilation. Do
sold with the apparatus. not place product in or on a bed,
When a cart is used, use caution rug, in a bookcase or cabinet that
when moving the cart/apparatus may prevent air fl ow through vent
combination to avoid injury from openings.
• Do not place lighted candles,
tip-over.
• Unplug this apparatus during cigarettes, cigars, etc. on the
product.
lightning storms or when unused
for long periods of time. • Connect power cord only to AC
• Refer all servicing to qualifi ed power source as marked on the
service personnel. Servicing is product.
required when the apparatus has • Care should be taken so that objects
do not fall into the product.
been damaged in any way, such
as power-supply cord or plug is • Do not attempt to disassemble
the cabinet. This product does
damaged, liquid has been spilled
or objects have fallen into the not contain customer serviceable
apparatus, the apparatus has been components.
exposed to rain or moisture, does • The marking information is located
not operate normally, or has been at the bottom of apparatus.
dropped. • Caution marking is located at
bottom of apparatus.
ADDITIONAL SAFETY INFORMATION
• Main plug is used as disconnect
This is CLASS II apparatus with
device and it should remain readily
double insulation, and no
operable during intended use. In
protective earth provided.
order to disconnect the apparatus
from the mains completely, the
mains plug should be disconnected
form the mains socket outlet
completely.
General controls
Front view
Large display: Clock time
AM
PM
SET
Small display:
Wake time and
wake mode
Right view
Sleep function
SmartSnooze TM
In sleep mode, you can set the duration
This operation allows extra sleep time (up to 90 minutes) before the radio turn
after the wake function is on. The alarm off automatically.
will be off by pressing SNOOZE, ON,
REV, FWD or SLEEP until the snooze To set the sleep mode:
period is over. Snooze function can be • Press SLEEP repeatedly to cycle
used repeatedly up to 60 minutes. After among the sleep times available
this, the wake function will turn off (90min, 60min, 30min, 15min and
until the next day. OFF. 90min is the default setting) on
the large display.
To set the "quiet" period: • The radio will be switched on.
1. Press and hold SNOOZE. • The indicator lights against the
sleep icon on the large display
2. Press REV or FWD to set the when sleep mode is activated.
quiet period that shows on the
large display. To check the remaining time in
• The time decrements or increments sleep mode:
will follow by a faster rate when • Press and hold SLEEP to check the
you press and hold the buttons. remaining sleep time on the large
display.
• Snooze period can be set from 1 to
30 minutes (default: 9 minutes).
To cancel the sleep mode:
3. Release SNOOZE. • If you decide to turn off the unit
sooner, press SNOOZE or OFF.
SmartSnooze TM is only
available when the switch
SET / / is at the
position.
Important Battery Precautions
• Any battery may present a risk of
fi re, explosion, or chemical burn
if abused. Do not try to charge a
battery that is not intended to be
recharged, do not incinerate, and
do not puncture.
• Non-rechargeable batteries, such as
alkaline batteries, may leak if left in
your product for a long period of
time. Remove the batteries from the
product if you are not going to use
it for a month or more.
• If your product uses more than one
battery, do not mix types and make
sure they are inserted correctly.
Mixing types or inserting incorrectly
may cause them to leak.
• Discard any leaky or deformed
battery immediately. They may
cause skin burns or other personal
injury.
• Please help to protect the
environment by recycling or
disposing of batteries according to
federal, state, and local regulations.
• Do not expose batteries to excessive
heat (for example, by leaving them
in sunlight or close to fi re).
SNOOZE (on top of unit) – enter
snooze mode where the alarm will quiet
but sound again once the snooze period
is over.
OFF – turn off the unit.
ON (RADIO) – turn on the radio.
REV – set clock or wake time
(decrease value).
FWD – set clock or wake time
(increase value).
SLEEP – activate sleep function.
WAKE MODE – select wake mode.
SET / / – slide switch to set
wake or clock time.
–VOLUME+ – adjust volume.
BAND – select between AM and FM
bands.
TUNING – select radio frequencies.
Audiovox Electronics Corp.,
150 Marcus Blvd., Hauppauge, NY 11788
©2009 Audiovox Electronics Corp.
Trademark(s) ® Registered
Marque(s) ® Deposée(s)
Marca(s) ® Registrada(s)
www.rcaaudiovideo.com
Printed in China
