CONNECTIONS

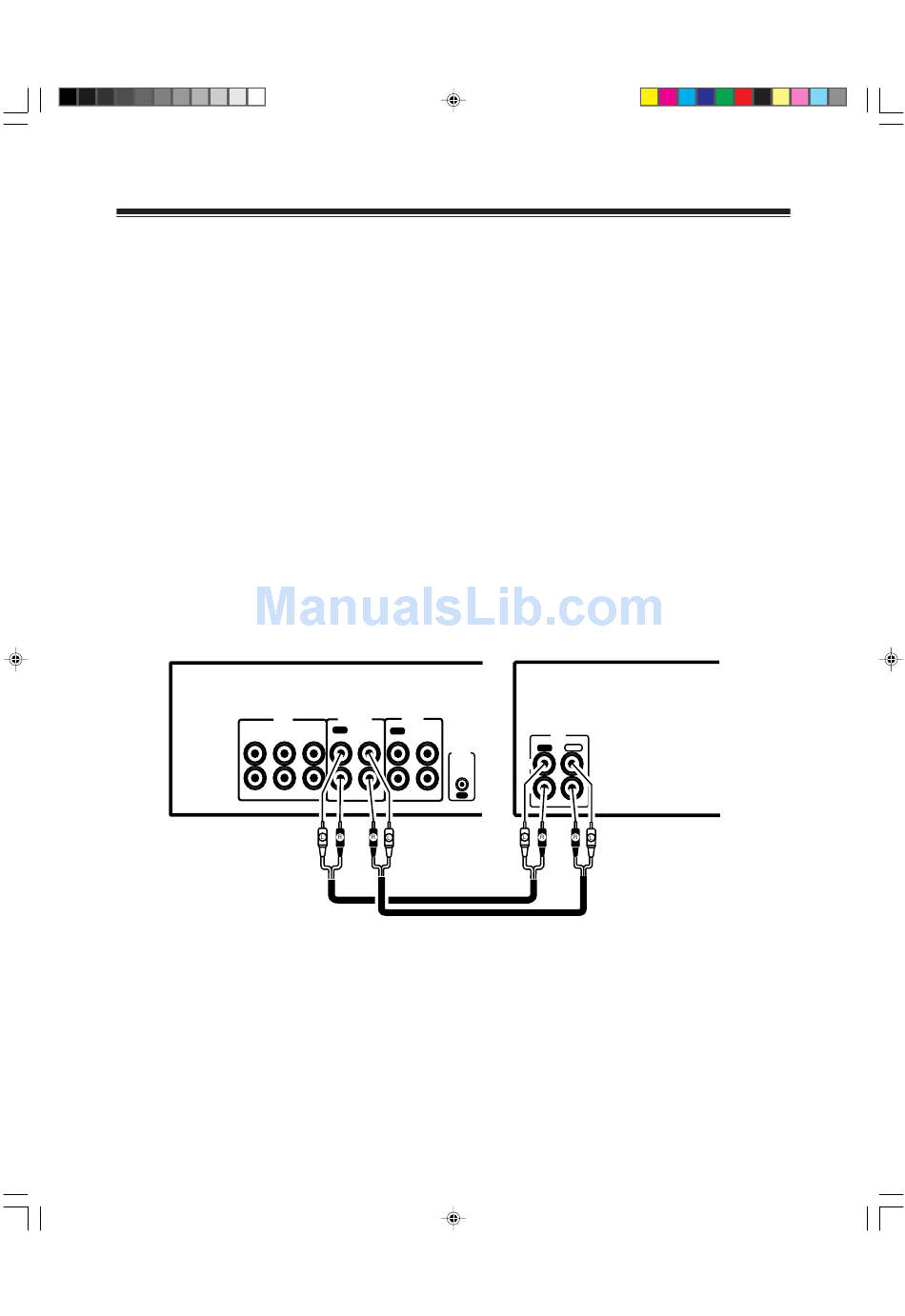

CONNECTING THE RECORDING AND
PLAYBACK CABLES
1. Using one of the supplied audio cables,
connect the cassette deck' s left and right
jacks to the receiver/amplifier' s left
OUTPUT
and right tape input jacks.
2. Using the other audio cable, connect the
cassette deck' s
receiver/amplifier' s tape output jacks.
Note: If you are not sure which receiver/amplifier jacks to
use, refer to your receiver/amplifier' s owner' s manual.

CONNECTING POWER

Carefully check all connections. Then plug the AC power
cord into a standard AC outlet. The power cord' s plug is
polarized and fits only one way.
Warning: To prevent electric shock, do not plug the
power cord into an extension cord or other receptacle
unless you can fully and easily insert the plug' s blades.
RECEIVER/AMPLIFIER
PRB1199A.En.01.09.DOC
5
LINE
jacks to the
LINE INPUT
TAPE/DCC
TAPE 2
INPUT
__
VCR/
REC
PLAY
PHONO
CD
REC
LD
L
L
L
L
R
R
R
R
PLAY
LINE
INPUT
OUTPUT
REC
PLAY
CONTROL
L
R
OUT
9/2/99, 9:22 PM
SCT-530
5
