FMS-12080 MOTION SENSOR INSTRUCTIONS
S UM M ARY

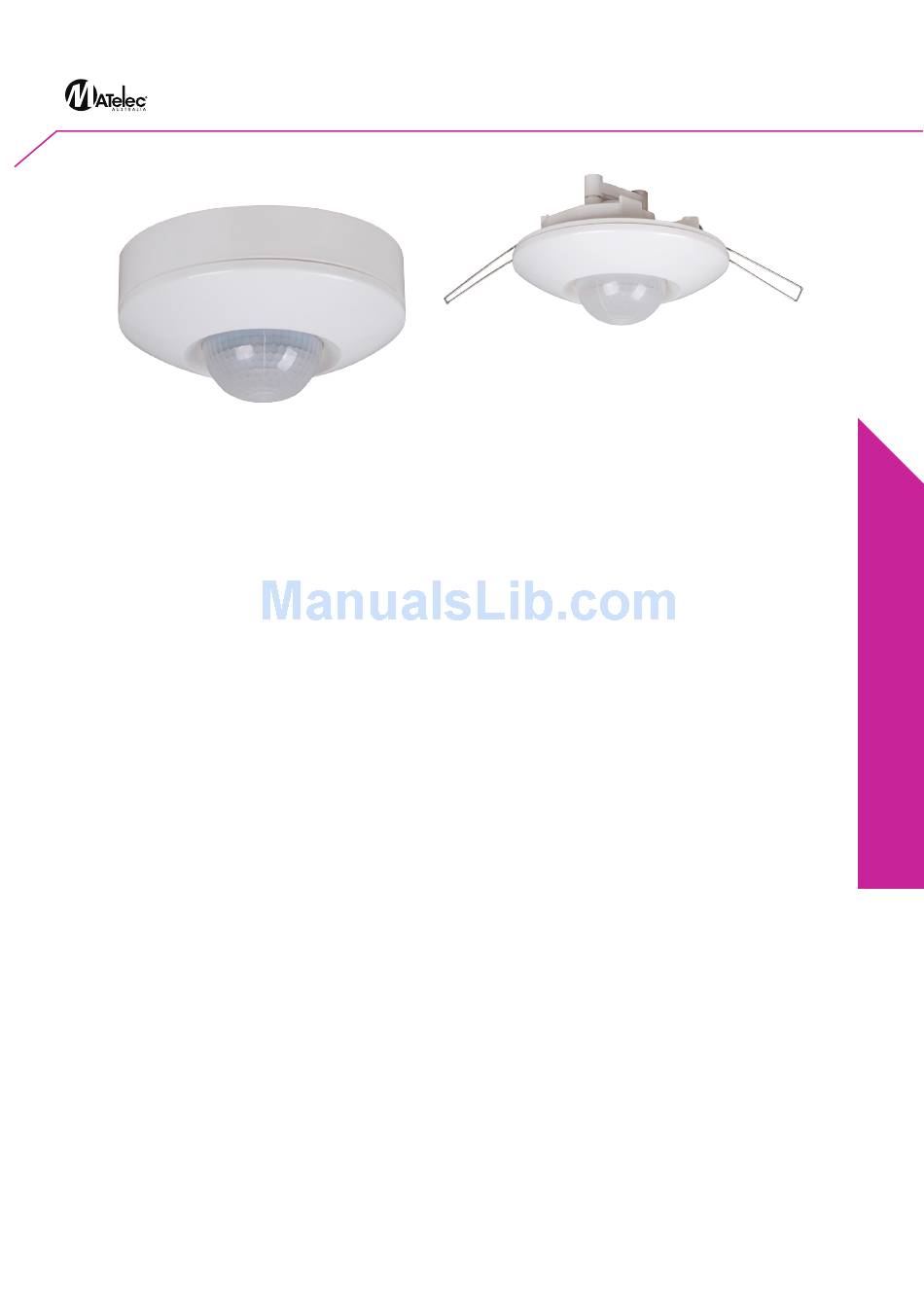

The FMS-12080 Motion sensor is a dual (surface or flush) mount sensor, and utilises passive infrared
technology to detect and identify motion, night and day.
Upon detection, the connected lighting load will illuminate for a user determined period of time.
An integral daylight sensor ensures day or night only operation.
SP EC I FI CAT I O N S
Power Source:
Power Frequency:
Time delay:
Rated Load:
Detection distance:
Detection range:
Cut out hole:
Manual Override:
Weatherproof Rating:
Warranty:
Dimensions:
No of wires:
I NFO@MATE LE CAUS TR A LI A . CO M .AU.
220V - 240VAC
50HZ
Min 5 seconds
Max 40 minutes
2000W (Incandescent)
600W (Fluro)
200W (LED)
22m (for normal detection)
360°
85mm (flush mount)
No
IP44 (Surface Mounted)
IP20 (Flush mount)
3 year
105mm x 105mm x 37mm
3 wire
M ATE LE C AU S TR A LI A. P 18 00 281 282. F 1 300 281 282
W WW.MATEL ECAUSTRAL I A.CO M.AU
