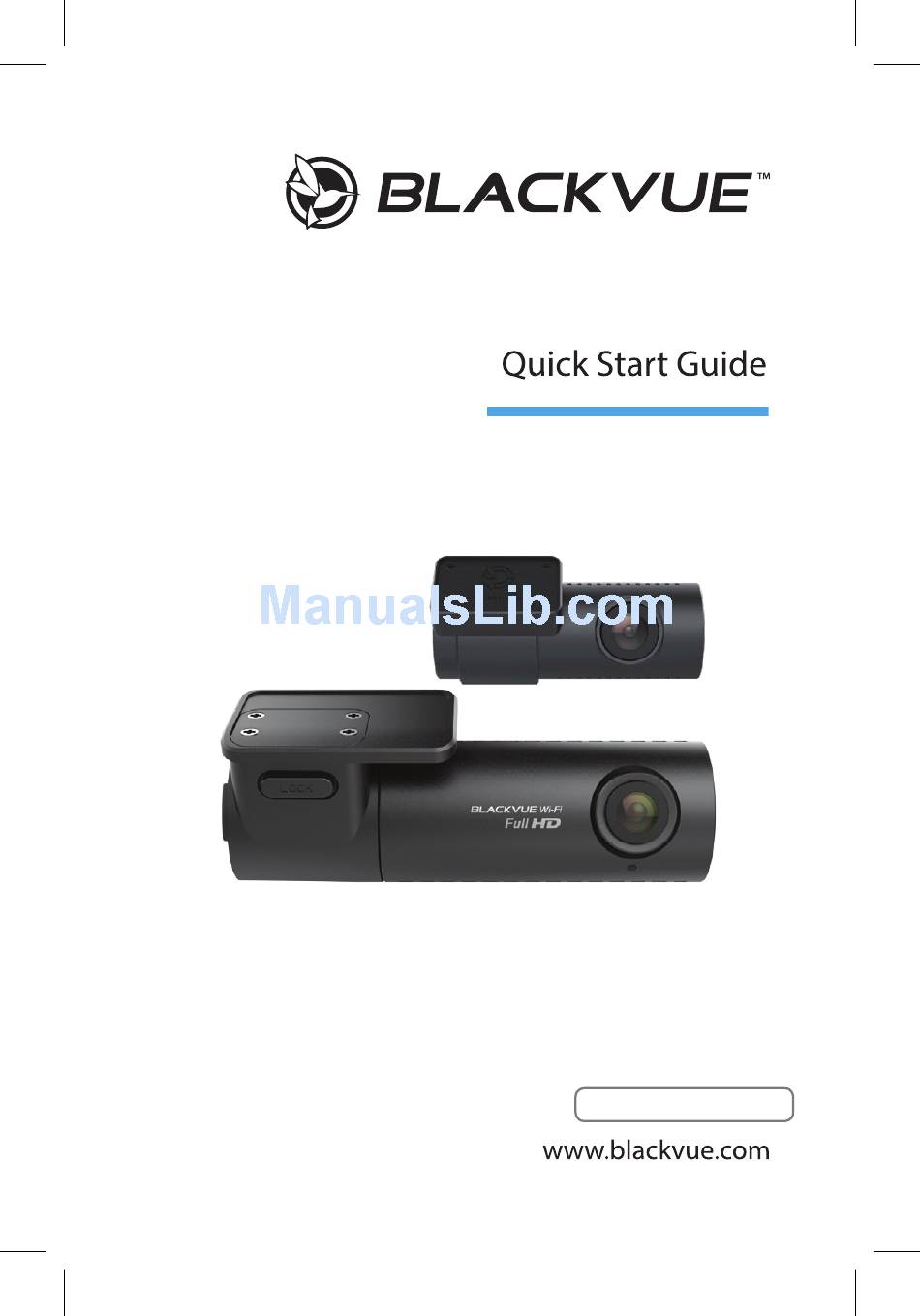

- Page 1 DR590W-2CH ENGLISH...
- Page 2 BLACKVUE DR590W-2CH For manuals, customer support and FAQs go to www.blackvue.com...
-
Page 3: Important Safety Information
If the product is damaged or the power supply is cut due to an accident, video may not be recorded. y Do not remove the microSD card while the microSD card is saving or reading data. The data can be damaged or malfunctions may occur. DR590W-2CH... -
Page 4: Fcc Compliance Information
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation of this device. FCC ID: YCK-DR590W-2CH BLACKVUE... - Page 5 2. The correct disposal of your BlackVue dashcam will help prevent potential negative consequences for the environment and human health. 3. For more detailed information about disposal of your BlackVue dashcam, please contact your city office, waste disposal service or the shop where you purchased the product.
- Page 6 L’exploitation est autoriséee aux deux conditions suivantes: (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, méme si le brouillage est susceptible d’encompromettre le fonctionnement. IC: 23402-DR590W2CH BLACKVUE...
-
Page 7: Need Help
In the box Check the box for each of the following items before installing the BlackVue dashcam. Front camera Rear camera Rear camera Power cord connection cable microSD card microSD Card adapter Quick start guide Cable clips (5 EA) External GPS... -
Page 8: Front Camera
At a glance The following diagrams explain each part of the BlackVue dashcam. Front camera Lock button Camera lens 111.8 mm Mounting bracket Front security LED : Blinks slowly in normal and parking mode. : Blinks quickly when an event is being recorded (Impact detected) or motion is detected in parking mode. - Page 9 GPS connection port Cover DC in (Power connector) microSD card slot Wi-Fi / Format Button - Press once to turn on/off Wi-Fi. - Self-format function: To format the microSD card press the button for 10 seconds until the dashcam beeps. DR590W-2CH...
- Page 10 Rear camera Mounting bracket Camera lens 67.4 mm Rear security LED V out (Front : Stays on in all camera recordings modes connection but can be turned port) off from firmware settings. 10 BLACKVUE...
- Page 11 Do not install the product in a location where it can obstruct the driver's field of vision. Turn off the engine. Open the cover of the microSD card slot, gently push the card into the slot until it locks into place and close the cover. DR590W-2CH 11...
- Page 12 Adjust the angle of the lens by rotating the body of the front camera. We recommend pointing the lens slightly downwards (≈10° below horizontal), so as to record video with a 6:4 road to background ratio. 12 BLACKVUE...
- Page 13 Use the pry tool to lift the edges of the rubber window sealing and molding and tuck in the rear camera connection cable. Rear camera connection cable Plug the power cord into the cigarette lighter socket and the front camera. DR590W-2CH 13...
- Page 14 Rear camera connection cable Power cord Turn on the engine. The BlackVue dashcam will power up and start recording. Video files are stored on the microSD card. When the microSD card fills up, the newest video files will start to replace the oldest video files (called loop recording) –...
- Page 15 Playing video files on your (Android/iOS) Search for the BlackVue app in the Google Play Store or Apple App Store and install it on your smartphone. “Pair” your smartphone with the BlackVue dashcam via direct Wi-Fi: (i) Unplug the power cable and remove the front dashcam from its mount.
- Page 16 (iii) Choose your BlackVue dashcam from the network list. The dashcam’s default SSID begins with its model number (e.g. BlackVue590W-******). (iv) Enter the password and tap join. * The default Wi-Fi SSID and password are printed on the dashcam’s Wi-Fi details label.
- Page 17 Remove the microSD card from the dashcam. Open side cover To remove Use the included microSD card adapter to connect the card to a computer. Download BlackVue Viewer from www.blackvue.com > Support > Downloads and install it on your computer. DR590W-2CH 17...
- Page 18 Run BlackVue Viewer. Windows Viewer Mac Viewer * All images shown are for illustration purposes only. Actual program may differ from images shown. 18 BLACKVUE...
- Page 19 The dashcam’s time zone is initially set to (GMT-11). To display the correct time please select your time zone. Using your smartphone (Android/iOS) “Pair” your smartphone with the BlackVue dashcam via direct Wi-Fi (for details see STEP 2 ‘Playing video files on your smartphone’) Open the BlackVue app and select BLACKVUE WI-FI.
- Page 20 Settings that can be changed include video resolution, image quality, video segment length, sensitivity settings, voice recording on/off, speed unit (km/h, MPH, off), LEDs on/off, voice guidance volume, Wi-Fi settings etc. Once settings are configured, tap and tap Save and close. 20 BLACKVUE...
- Page 21 Changing the dashcam’s time zone and other firmware settings on your computer (Windows/Mac) Download BlackVue Viewer from www.blackvue.com > Support > Downloads and install it on your computer. Run BlackVue Viewer program after connecting dashcam’s microSD card to your computer. Click on the...
-
Page 22: Tips For Optimal Performance
Tips for optimal performance Format the microSD card once a month, or when the BlackVue dashcam tells you the card needs maintenance. Formatting the card in the BlackVue: Press the Wi-Fi/Format button for 10 seconds until the dashcam beeps. Format using BlackVue Viewer (Windows): Insert the microSD card into the microSD card adapter and connect it to your computer. -
Page 23: Product Specifications
Full HD (1920x1080) @ 30 fps - HD (1280x720) @ Rate 30 fps HD (1280x720) @ 30 fps - HD (1280x720) @ 30 fps Highest/High/Normal Image Quality Video Compression Mode Wi-Fi Built-in (802.11n (2.4 − 2.4835 GHz)) External (Optional) * STARVIS is a trademark of Sony Corporation. DR590W-2CH 23... - Page 24 FCC, CE, RoHS, Telec, WEEE, IC BlackVue Viewer Software * Windows XP or higher and Mac Yosemite OS X (10.10) or higher BlackVue Application (Android 4.4.2 or higher, iOS Application 8.0 or higher) Other Features Adaptive Format Free File Management System...
- Page 25 Notes...
- Page 26 Notes...
-
Page 27: Product Warranty
Product Warranty The term of this product warranty is 1 year from the purchase date. (Accessories such as Battery/microSD Card : 6 Months) We, PittaSoft Co., Ltd., provide the product warranty according to Consumer Dispute Settlement Regulations (drawn up by the Fair Trade Commission). PittaSoft or designated partners will provide the service upon request. - Page 28 FCC ID : YCK-DR590W-2CH / HVIN : DR590W-2CH / IC : 23402-DR590W2CH DR590W-2CH...
