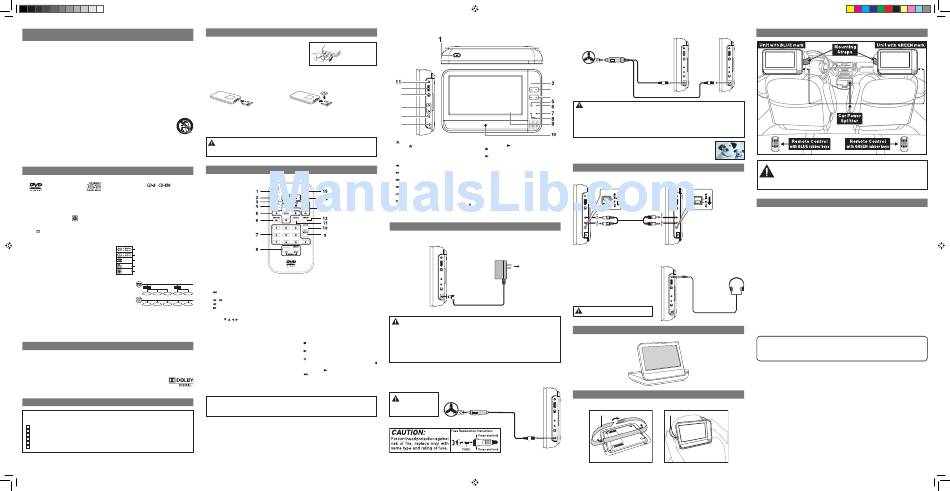

ImpOrTANT SAFETY INSTruCTIONS
1.
Read these instructions.
2.
Keep these instructions.
3.
Heed all warnings.
4.
Follow all instructions.
5.
Do not use this apparatus near water.
6.
Clean only with a dry cloth.
7.
Do not block the ventilation openings. Install in accordance with the manufacturer's instructions.
8.
Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9.
Do not defeat the safety purpose of the polarized or grounding - type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult
an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and
the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with
the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to
avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged
in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into
the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been
dropped.
DISC FOrmATS
This unit can play
DVDs
Audio CDs
[8cm/12cm disc]
[8cm/12cm disc]
Compatible
Region Management Information
Region Management Information: This unit is designed and manufactured to respond to the Region Management Information
that is encoded on DVDs. If the region number printed on the DVD does not correspond to the region number of this unit, it
cannot play that disc.
The region number of this unit is 1.
Disc Function or Operation that is Not Available
When the
symbol appears on the screen, it indicates that the function or operation attempted is not available at that time.
This occurs because the DVD manufacturer determines the specific functions of DVDs. Certain functions may not be available
on some DVDs. Be sure to read the documentation provided with the DVD.
Icons used on DVDs
Language selections for audio
Sample lcons
Language selections for subtitles
Note:
Screen aspect ratio
When playing back a CD-G (Graphics) or CD EXTRA disc, the
audio portion will be played, but the graphic images will not
Multiple camera angles
be shown.
Region code indicator
Title, Chapter and Tracks
• DVDs are divided into "titles" and "chapters". If the disc has more than
Title1
Title2
one movie on it, each movie would be a separate "title". "Chapters" are
sections of titles.
Chapter1
Chapter2
Chapter3
Chapter1
Chapter2
• Audio CDs are divided into "tracks". A "track" is usually one song on an
Audio CD.
Track1
Track2
Track3
Track4
Track5
Note: Numbers identify each title, chapter, and track on a disc. Most discs have these numbers recorded on them, but some do
not.
Notes on unauthorized Discs
You may not be able to play some DVDs on this unit, particularly if they were purchased from outside your geographic area or
made for business purposes.
SOuND SYSTEm
Dolby Digital
Dolby Digital is a technology developed by Dolby Laboratories. Soundtracks encoded in Dolby Digital can reproduce from one
to 5.1 discrete channels of excellent quality audio.
The unit automatically recognizes the Dolby Digital bitstream and provides a downmix suitable for two-channel listening. An
additional Dolby Digital decoder is required for reproduction of the discrete multi-channel soundtracks available on many
DVDs.
Manufactured under license from Dolby Laboratories.
"Dolby" and the double-D symbol are trademarks of Dolby Laboratories.
ACCESSOrIES
Please check and identify the supplied accessories.
• To order accessories visit website http://www.RCAav.com
Remote Control (with battery) ..........................................................................................................................................................................x 2
AC Power Adapter .................................................................................................................................................................................................x 2
Car Power Adapter ................................................................................................................................................................................................x 1
Car Power Splitter ..................................................................................................................................................................................................x 1
Mounting Strap ......................................................................................................................................................................................................x 2
Audio/Video Cable ................................................................................................................................................................................................x 1
E - 2
PVS72830 IB UL English RCA W011.indd 1
rEmOTE CONTrOl
using the Remote Control
• Point the remote control at the REMOTE SENSOR located on the
unit. The remote controls are color-coded. Use the remote control
Remove the PLASTIC
with the player that has the color mark corresponding to the
sheet before USING the
Remote Control.
button color of the remote control.
• When using this unit in very bright light, the infrared REMOTE
SENSOR may not work properly.
• The maximum effective distance for remote operation is about 16
feet (5 meters).
TO CHANGE rEmOTE BATTErY
1. Open the battery door.
2. Insert one CR2025 (3V) size battery.
BATTErY rEplACEmENT
When the battery becomes weak, the operating distance of the remote control will be greatly reduced and you will need to
replace the battery.
Note: If the remote control is not going to be used for a long time, remove the battery.
WArNING: Do not dispose of the battery in a fire or it may leak and/or explode.
WArNING: Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
CAuTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.
CONTrOl rEFErENCE GuIDE
Remote Control
1)
VIDEO mODE Button
9)
SuBTITlE Button
Adjusts Brigntness, Contrast, Color or View Mode of
Selects one of the subtitle languages programmed on
the LCD screen.
a DVD (if available).
2)
prEV Button
rETurN Button
Goes back to current or previous chapters/tracks.
Returns to normal operation after using the SETUP
3)
/
SEArCH Buttons
menu of a DVD.
SEArCH: Fast reverse playback.
10) AuDIO Button
SEArCH: Fast forward playback.
Selects one of the audio sound tracks programmed on
4)
GOTO Button
a DVD or select the audio output mode on an Audio
Skips directly to a location on a DVD or a CD.
CD.
5)
Cursor ( , , , ) Buttons
11) ANGlE Button
Use to move between selections on a menu screen
Switches between multiple camera angles when the
and adjust certain settings.
DVD you are playing has been programmed with
ENTEr Button
multiple camera angles.
Confirms selections on a menu screen.
12) DISplAY Button
6)
mEmOrY Button
Shows status information on the screen.
In STOP mode, sets titles/chapters in a favorite order.
13)
STOp Button
7)
Number (0 - 9) Buttons
Stops playing a disc.
Use when creating programs and locating a title/
plAY Button
chapter or specific time.
Starts or resumes playback of a disc.
8)
rEpEAT A-B Button
pAuSE Button
Performs point-to-point repeat playback on a DVD or
Pauses playback of a disc. Each time you press the
CD.
pAuSE button the picture advances one frame on a
rEpEAT DISC Button
DVD. Press the
plAY button to resume playback.
Repeats a DVD chapter or title.
14)
NEXT Button
Repeats a CD track or the entire disc.
Advances chapters/tracks.
SETup Button
15) mENu Button
Opens and closes the SETUP menu while in stop
Opens and closes the DVD menu.
mode.
ImpOrTANT NOTE:
The included remote controls have different color keys to identify which unit they operate.
The remote control with GrEEN keys operates the unit which has GrEEN mark on the front of the unit.
The remote control with BluE keys operates the unit which has BluE mark on the front of the unit.
E - 3
unit
12
3
13
4
14
15
16
1)
Button
pAuSE button the picture advances one frame on a
DVD. Press the
plAY button to resume playback.
Press the
button to open the front panel, press the
7)
STOp Button
inside disc switch to open the disc door.
Stops playing a disc.
2) STANDBY Indicator
8)
plAY Button
When the STANDBY / ON switch is slided to STANDBY
Starts or resumes playback of a disc.
position, the red light will illuminate.
9) lCD Screen
3)
SEArCH Button
10) remote Sensor
Performs fast reverse playback.
Receives the remote control signal.
SEArCH Button
11) Headphone Jack
Performs fast forward playback.
4)
prEV Button
12) VOlumE Control
Goes back to current or previous chapters/tracks.
Adjusts the volume.
NEXT Button
13) Standby/On Switch
Advances chapters/tracks.
14) AuDIO & VIDEO IN / OuT Jacks
5)
Flip Button
15) AV IN / DVD Switch
Flips the screen image.
16) DC IN 9V-12V Jack
6)
pAuSE Button
Pauses playback of a disc. Each time you press the
pOWEr SupplY
A. using the AC Power Adapter
The supplied AC power adapter operates on AC 100-120V ~50/60Hz.
AC power Adapter
1
To AC outlet
2
To DC IN 9V-
12V jack
Cautions:
• The AC power adapter included with this unit is for its use only. Do not use it with other equipment.
• When the unit is not going to be used for long time, disconnect the AC power adapter from the AC power outlet.
• When the AC power adapter is plugged in, the apparatus is not completely disconnected from the main power supply,
even when the power is turned off.
Warning:
The AC power adapter is used as disconnect device and it should remain readily operable during intended used. In order
to disconnect the apparatus from the mains completely, the AC power adapter should be disconnected from the mains
socket outlet completely.
B. using the Car Power Adapter
The 12V car power adapter allows the unit to be used with vehicles that have a 12V, negative ground electrical system.
WArNING:
Disconnect the car power
1
Car power Adapter
adapter when not in use. Not
for use in 24V vehicles.
To the cigarette lighter socket
2
To DC IN 9V-
12V jack
E - 4
C. using the Car Power Splitter
The 12V car power splitter allows the units to be used with vehicles that have a 12V, negative ground electrical system.
Car power Splitter
1
To the cigarette lighter socket
2
To DC IN 9V-
2
To DC IN 9V-
12V jack
12V jack
Cautions:
• Use the provided 12V car power adapter/splitter only. Use with other car power adapters/splitters could damage the unit.
• The 12V car power adapter/splitter included with this unit are for its use only. Do not use them with other equipment.
• In the interest of traffic safety, do not operate this unit or view videos while driving a vehicle.
• Make sure the unit is securely fastened to prevent it from falling or flying through the air in the event of an accident.
• If the inside of the cigarette lighter socket is dirty with ashes or dust, the plug section may become hot due to poor
contact. Be sure to clean the cigarette lighter socket before use.
• After use, disconnect the 12V car power adapter/splitter from both the unit and cigarette lighter socket.
Turning on the unit
1. Slide the STANDBY / ON switch on the top of the unit to the ON position.
2. The DVD logo (start-up picture) will appear on the screen.
3. After use, slide the STANDBY / ON switch to the STANDBY (power off ) position.
CONNECTIONS
A. Connecting both units to Watch one DVD
You can watch the same DVD on the both units at the same time.
Audio/Video Cable
(included)
Watching the same DVD on both units
1. Turn on the units. Slide the AV IN / DVD switch on the unit in which the DVD disc is loaded to DVD position. (Control DVD
playback with this unit and its remote control.)
2. Slide the AV IN / DVD switch on the other unit to AV IN position.
B. Using Headphones / Earphones
• Turn down the volume before connecting, and then
adjust the level.
• When headphones/earphones are connected, no sound
will be emitted from the unit's speaker.
Headphones / Earphones
Caution: Avoid listening to sound at levels
(3.5mm diameter plug)
which may be harmful to your ears.
FOr DESKTOp uSE
You can flip up the display for desk-top or table-top viewing.
INSTAllING IN A VEHIClE
Use the supplied mounting straps to install the units on the back of the vehicle's headrests. Tightly wrap the mounting straps
around the headrest.
mounting Strap
mounting Strap
E - 5
INSTAllATION GuIDE
SAFETY WArNING!
This unit should never be used by the vehicle's driver or left unsecured in the vehicle while driving.
If this unit is being used in your vehicle, be sure that it is secured or held safely, and does not
obstruct any safety device, including air bags or seat belts.
All passengers should wear seat belts when using this unit in a moving vehicle.
If in doubt, please contact your vehicle manufacturer for further advice.
lImITED WArrANTY
AVC mulTImEDIA ("AVC") makes the following limited warranty. This limited warranty extends to the original consumer
purchaser and is limited to non-commercial use of the product.
One Year parts & labor Warranty
AVC products purchased in the United States are warranted to be free from defects in materials or workmanship for a period of
one year from the date of their original retail purchase. If the unit fails to conform to this warranty, we will service the product
using new or refurbished parts and products, at AVC's sole discretion.
During a period of one year from the effective warranty date, AVC will provide, when needed, service labor to repair a
manufacturing defect at its designated Service Center. To obtain warranty service in the United States, you must first call
our Customer Support Center at 1-800-506-5746 or 1-877-252-6873, during the hours listed in the box below. The
determination of service will be made by AVC Customer Support. plEASE DO NOT rETurN YOur uNIT TO AVC WITHOuT
prIOr AuTHOrIZATION. New or remanufactured replacements for defective parts or products will be used for repairs by
AVC at its designated Service Center for one year from the effective warranty date. Such replacement parts or products are
warranted for an additional one year from the date of repair or replacement. The Customer will be required to ship the unit
to the Service Center indicated at the time Customer Support is contacted to make the necessary repairs. The customer is
responsible for all transportation charges to the service facility.
packaging and Shipping Instruction
When you send the product to the AVC service facility you must use the original carton box and packing material or an
equivalent as designated by AVC.
lImITED WArrANTY
Your responsibility
(1) You must retain the original sale receipt to provide proof of purchase.
(2) These warranties are effective only if the product is purchased and operated in the U.S.A. or Canada.
(3) Warranties extend only to defects in material or workmanship, and do not extend to any product or parts which have been
lost or discarded, or damage to product or parts caused by misuse, accident, improper operation or maintenance, or use in
violation of instructions provided with the product, or to product which has been altered or modified without authorization
of AVC, or to products or parts thereof which have had the serial number removed or changed.
Out of Warranty
In the event your product requires repair after the limited warranty period has expired, please contact our Customer
Support Center at 1-800-506-5746, 1-877-252-6873 or
www.rCAav.com
Hours: monday–Thursday: 9am–7pm, Friday: 9am–5pm, Saturday: 9am–NOON Eastern time.
Important: You are responsible for any transportation, shipping or insurance relative to the return of product to our
Product Returns Center.
All warranties implied by state law, including the implied warranties of merchantability and fitness for a particular purpose, are
expressly limited to the duration of the limited warranties set forth above. With the exception of any warranties implied by state
law as hereby limited, the foregoing warranty is exclusive and in lieu of all other warranties, guarantees, agreements and similar
obligations of manufacturer or seller with respect to the repair or replacement of any parts. In no event shall AVC be liable for
consequential or incidental damages.
No person, agent, distributor, dealer or company is authorized to change, modify or extend the terms of these warranties in any
manner whatsoever. The time within action must be commenced to enforce any obligation of AVC arising under the warranty
or under any statute, or law of the United States or any state thereof, is hereby limited to one year from the date of purchase.
This limitation does not apply to implied warranties arising under state law.
This warranty gives you specific legal rights and you may also have other rights, which may vary, from state to state. Some states
do not allow limitation on how long an implied warranty lasts, when an action may be brought, or the exclusion or limitation of
incidental or consequential damages, so the above provisions may not apply to you.
For more information on other products and services, please visit our web site at
www.rCAav.com
Important: Also keep your "Bill of Sale" as proof of purchase.
Model no. ........................................................................................................ Product name..................................................................................................
Type of set ......................................................................................................................................................................................................................................
Serial no. .......................................................................................................... Invoice no. ........................................................................................................
Date purchased ............................................................................................. Dealer name ....................................................................................................
www.rCAav.com
FOR SERVICE AND REPAIR, PLEASE VISIT
E - 6
2010-2-2 17:47:25

Advertisement

loading

  Related Manuals for RCA DRC97283

  Summary of Contents for RCA DRC97283

  • Page 1 Car Power Adapter ...x 1 Car Power Splitter ...x 1 Mounting Strap ...x 2 Audio/Video Cable ...x 1 E - 2 PVS72830 IB UL English RCA W011.indd 1 unit Remove the PLASTIC sheet before USING the Remote Control. 2. Insert one CR2025 (3V) size battery.
  • Page 2 • Some discs may not permit this operation. E - 7 PVS72830 IB UL English RCA W011.indd 2 plAY mODES FOr CD Or JpG DISC When play CD / JPG discs, you can modify the Play Modes through the Toolkit which appears on the right of below picture on the screen.
