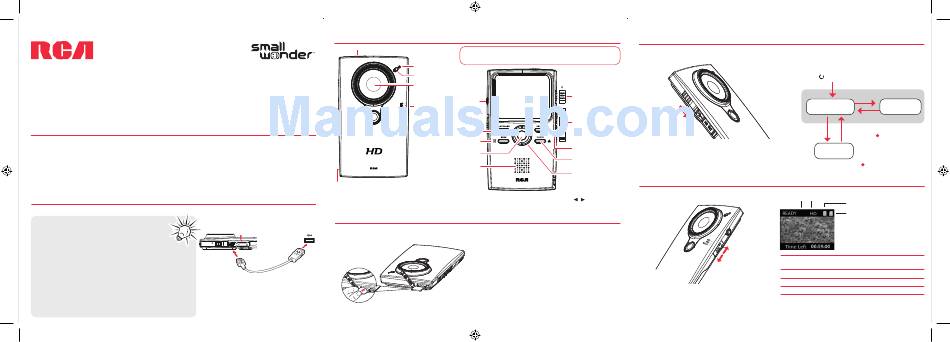

RCA SMALL WONDER EZ2110 Series Quick Start Manual

v2.0 (1.0.2.0) (EN)
QuickStartGuide
EZ2110 Series
Congratulations on purchasing your new RCA High Defi nition Small Wonder Camcorder.
Please read these instructions for quick tips on using the product.
The User Manual PDF fi le can also be found in the camcorder memory under the User Manuals folder.

1. Content of the box

• Small Wonder Camcorder • Software DVD
• USB cable • User Manual
• AV cable • Quick Start Guide
• Tripod mount bracket • Owner Registration card
• 2 GB micro SD card (Installed in device) • Warranty leafl et

2. Charging your camcorder

Please charge the battery for at least four hours before fi rst use.
NOTE:
The unit is properly charging when you
see the animated charging symbol on the
Camcorder display.
If you do not see this charging symbol, follow these
steps:
1. Make sure that you have the camcorder
connected to the computer USB port through
USB cable, and the computer is turned on.
2. Momentarily slide and hold the Camcorder power
switch to the ON position to initiate charging.

3. General controls

microSD card slot
English
RCA Small Wonder Camcorder
www.mysmallwonder.com
Camcorder strap hole

4. Inserting (or removing) memory card

USB port of your
Lift up the cover
computer A micro SD memory card (supplied) is recommended for recording.
USB cable
As the memory card is small in size, it is recommended to use a small coin to help insert or remove it.
* To reset the camcorder (in case it is not functioning properly):
Slide and hold the On/off switch for more than 10 seconds.
Recording indicator
Microphone
Lens
On/off switch*
LCD screen
AV output
Video
quality
selector
USB and HDMI
video output
Playback/pause
Setup menu
Delete recordings
Record
Take photo
Audio speaker
+/– – Adjust volume
during playback/
zoom during record
and preview
/ – Skip to
previous or next
recording; fast rewind
or forward
To insert card: Push the card in until a click is heard
To remove card: Push card in until a click is heard, then slowly release
the card. As card is under minimal tension when locked in memory
slot, please use care when removing.

5. Turning on the camcorder

The camcorder has two operation modes (Preview and
Playback). It is always in Preview mode after switched on.
Refer to the diagram below for switching between modes.
Preview mode
Slide and
hold until the
camcorder turns
on or off
Press PLAY/PAUSE
Playback mode
1 In Preview mode, press Record to record a video.

6. Selecting recording quality

Preview mode Selected recording quality
Settings Resolutions (pixel) &
Frame Rates (FPS)
HD 1280 x 720 @ 30fps
HQ 720 x 480 @ 30fps
WebQ 320 x 240 @ 30fps
2 Actual recording time and capacity will vary depending on type of video content being recorded, system requirements,
and other factors.
Switch on
Press PHOTO
1
Take a photo
Auto timeout
Press PHOTO /
Press Record
Battery indicator
Memory card indicator
Approx. recording durations
2
on a 2 GB memory card
Up to 1 hours
Up to 1.7 hours
Up to 5 hours
