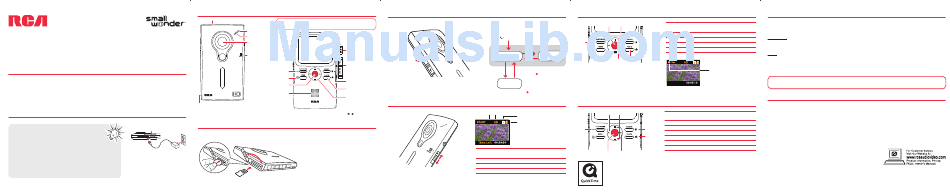

RCA Small Wonder EZ2000 Series Quick Start Manual

v2.0 (v1.0.2.0) (EN/F/E)
English
QuickStartGuide
EZ2000 Series RCA Small Wonder Camcorder
www.rcaaudiovideo.com
Congratulations on purchasing your new RCA High Defi nition Small Wonder Camcorder.
Please read these instructions for quick tips on using the product.
The User Manual PDF fi le can also be found in the camcorder memory under the User Manuals folder.
1. Content of the box
• Small Wonder Camcorder • Wrist strap
• AC/DC adapter • Quick Start Guide
• USB cable • Owner Registration card
• AV cable • Warranty leafl et
• Carrying case
2. Charging your camcorder
Please charge the battery for at least three hours before fi rst use.
Lift up the cover
NOTE:
The unit is properly charging when you see the
animated charging symbol on the Camcorder
display.
If you do not see this charging symbol, follow these steps:
•
1. Make sure that you have the camcorder connected to Use only the provided AC/DC adapter
the AC/DC power adapter.
2. Momentarily slide and hold the Camcorder power
switch to the ON position to initiate charging.
3. General controls
microSD card slot
* To reset the camcorder (in case it is not functioning properly):
Slide and hold the On/off switch for more than 10 seconds.
Recording indicator
Microphone
Lens
LCD screen On/off switch*
AV output
Video
quality
selector
USB and HDMI
video output
Playback/pause
Setup menu
Delete recordings
Record
Take photo
Audio speaker
+/– – Adjust volume
during playback/
Camcorder strap hole zoom during record
and preview
/ – Skip to
previous or next
recording; fast rewind
4. Inserting (or removing) memory card
or forward
The camcorder internal memory will only permit minutes of recording time. A microSD memory
card (not included) is recommended for recording.
To insert card: Push the card in until a click is heard
To remove card: Push card in until a click is heard,
then slowly release the card. As card is under minimal
tension when locked in memory slot, please use care
when removing.
As the memory card is small in size, it is recommended to use a small coin to help insert or remove it.
5. Turning on the camcorder
The camcorder has two operation modes (Preview and
Playback). It is always in Preview mode after switched on.
Refer to the diagram below for switching between modes.
Switch on
Press PHOTO
Preview mode 1 Take a photo
Slide and
hold until the
Auto timeout
camcorder turns
on or off Press PHOTO /
Press PLAY/PAUSE
Press Record
Playback mode
1 In Preview mode, press Record to record a video.
6. Selecting recording quality
Preview mode Selected recording quality
Battery indicator
Memory card indicator
Settings Resolutions (pixel) & Approx. recording durations
Frame Rates (FPS) on a 16 GB memory card 2
HD 1280 x 720 @ 30fps 8 hours
HQ 720 x 480 @ 30fps 14 hours
WebQ 320 x 240 @ 30fps 40 hours
2 Actual recording time and capacity will vary depending on type of video content being recorded, system requirements,
and other factors.
7. Video recording and photo taking
1 3
1 Start, stop, resume recording in Preview mode; enter
Preview mode from other modes
2 Pause recording
3 Zoom in during recording
2
4 Zoom out during recording
5 Take photos
4 5
Video recording indicator
8. Playing back or deleting recordings
3 2
1 Enter Playback mode to play the most recent recording;
start or pause playback
2 Adjust volume during playback
3 Cue to previous recording
1 6
4 Cue to next recording
7
5 Enter Preview mode from Playback mode
6 Press to select delete one or all recordings.
7 Enter Preview mode from playback mode; take photos
5 4
QuickTime and the QuickTime logo are trademarks or registered trademarks of
Apple Computer, Inc., used under license therefrom.
9. Installing RCA Memory Manager application
Connect the camcorder to your PC with the provided USB cable.
To install Memory Manager
Windows: Open My Computer and double-click the drive labeled SMALLWONDER. Double-
click MemoryMgr3_Windows_Installer.exe to start the installation.
Mac: Open the mounted drive labeled SMALLWONDER. Double-click the
RCA Mac Installers.dmg folder. Double-click the MemoryMgr3 Mac Installer to start the
installation. After the Memory Manager 3 installation has completed, double-click RCA
Detective Installer to install the RCA Detective application.
To ensure that videos can be managed and played on your PC:
• Make sure to install the included Memory Manager application.
10. Learning more about the camcorder
Read the user manual for more information on the followings:
• Using the MENU button to setup the camcorder (including date and time)
• Viewing videos on TV
• Recording videos to VHS tape or DVD
• Connecting the camcorder to your PC
• Tips and troubleshooting
• Safety and warranty information
Audiovox Electronics Corp.
150 Marcus Blvd., Hauppauge,
NY 11788
© 2010 Audiovox Electronics Corp.
Trademark Registered
Printed in China
