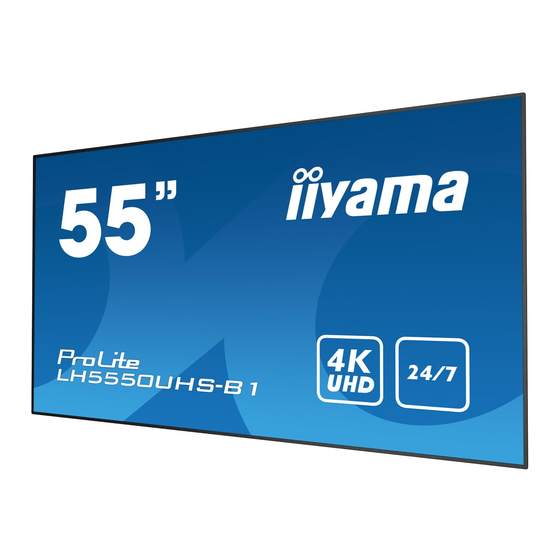

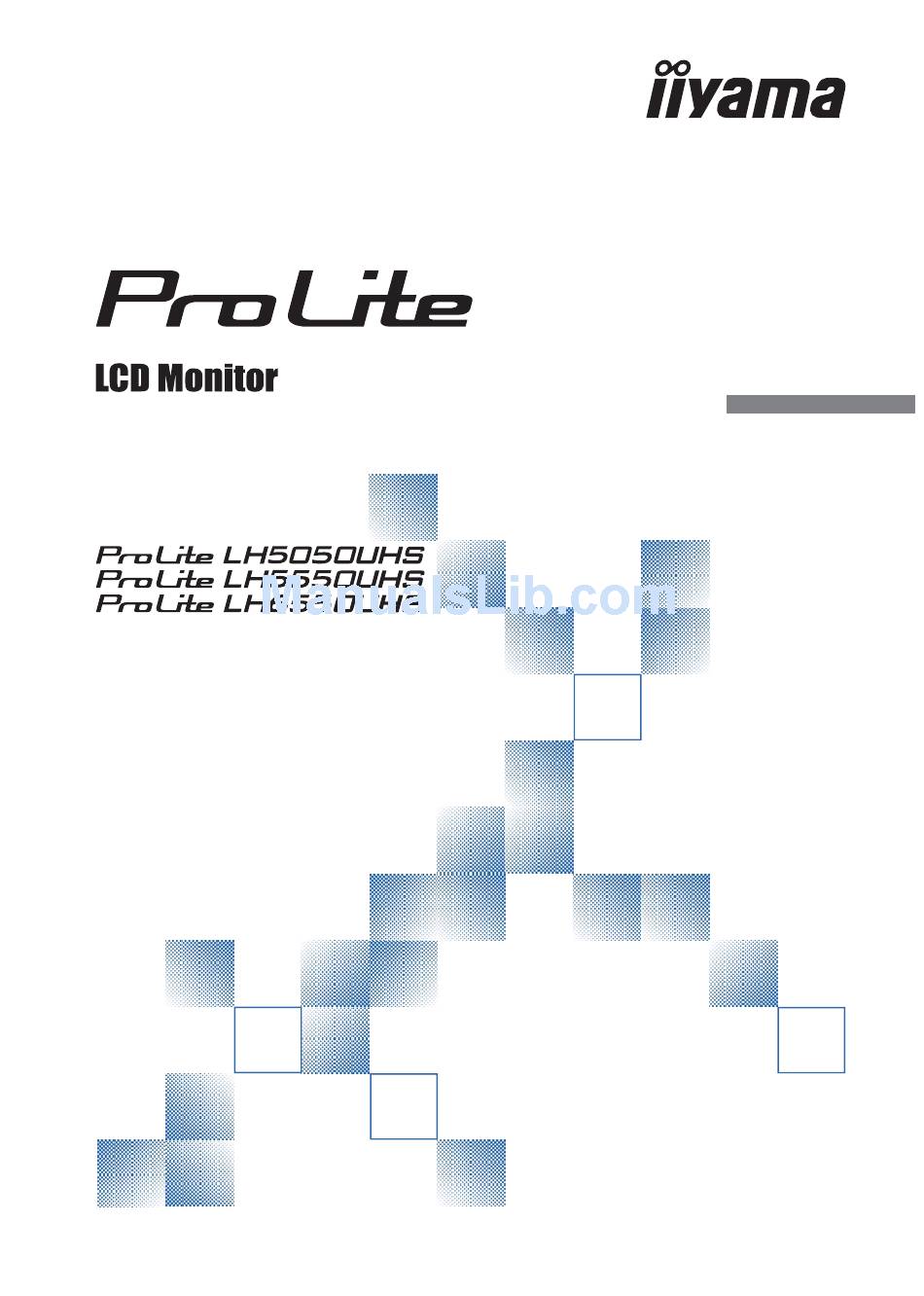

USER MANUAL

ENGLISH
Thank you very much for choosing the iiyama
LCD monitor.
We recommend that you take a few minutes
to read this comprehensive manual carefully
before installing and switching on the monitor.
Please keep this manual in a safe place for
your future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ProLite LH5050UHS and is the answer not in the manual?

Questions and answers

Related Manuals for Iiyama ProLite LH5050UHS

Summary of Contents for Iiyama ProLite LH5050UHS

  • Page 1: User Manual

    USER MANUAL ENGLISH Thank you very much for choosing the iiyama LCD monitor. We recommend that you take a few minutes to read this comprehensive manual carefully before installing and switching on the monitor. Please keep this manual in a safe place for...

  • Page 2: Ce Marking Declaration Of Conformity

    IIYAMA CORPORATION: Wijkermeerstraat 8, 2131 HA Hoofddorp, The Netherlands Model No. : PL5050, PL5550, PL6550 We recommend recycling of used product. Please contact your dealer or iiyama service center. Recycle information is obtained via the Internet, using the address: http://www.iiyama.com You can access the Web page of diff...

  • Page 3: Table Of Contents

    ADJUSTMENT MENU CONTENTS ..........24 POWER MANAGEMENT FEATURE ..........35 TROUBLE SHOOTING ..............36 RECYCLING INFORMATION .............37 APPENDIX ..................38 SPECIFICATIONS : ProLite LH5050UHS ........38 SPECIFICATIONS : ProLite LH5550UHS ........39 SPECIFICATIONS : ProLite LH6550UHS ........40 DIMENSIONS : ProLite LH5050UHS ..........41 DIMENSIONS : ProLite LH5550UHS ..........41 DIMENSIONS : ProLite LH6550UHS ..........42...

  • Page 4: For Your Safety

    Do not put any solid objects or liquids such as water into the monitor. In case of an accident, unplug your monitor immediately and contact your dealer or iiyama service center. Using the monitor with any object inside may cause fi re, electric shock or damage.
  • Page 5 CAUTION INSTALLATION LOCATION Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fi re, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor. DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION The monitor may topple and cause injury if not suitably located.

  • Page 6: Special Notes On Lcd Monitors

    SPECIAL NOTES ON LCD MONITORS  The following symptoms are normal with LCD monitors and do not indicate a problem. NOTE - When you fi rst turn on the LCD monitor, the picture may not fi t in the display area because of the type of computer that is used.
  • Page 7 1 hour in order to clear the residual image. For all LFD products, iiyama recommends displaying moving images and utilising a moving screen saver at regular intervals whenever the screen is idle. You could also turn off the monitor when not in use to assist the prevention.

  • Page 8: Customer Service

     If you drop any materials or liquids such as water into the monitor when cleaning, WARNING unplug the power cable immediately and contact your dealer or iiyama service center.  For safety reasons, turn off the power switch and unplug the monitor before you CAUTION clean it.

  • Page 9: Before You Operate The Monitor

    CHECKING THE CONTENTS OF THE PACKAGE The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama offi ce.

  • Page 10: Unpacking

    UNPACKING Before unpacking your monitor, prepare a stable, level, and clean surface near a wall outlet. Set the LCD Monitor box in an upright position and open from the top of the box before removing the top cushions. Remove the carton holders. Remove the top cushion and take the accessories box and the Monitor out.

  • Page 11: Controls And Connectors : Monitor

    CONTROLS AND CONNECTORS : MONITOR <Controller> MENU Menu Button SOURCE Input Select Button, + Button - Button Up Button Down Button Power Button <Front> <Back> Green Normal Operation Flash : Power Management Power Indicator Lighting : If turn off the Power Button on the Remote Control and the Controller.
  • Page 12 <Back> AC SWITCH MAIN Main Power Switch (ON) / (OFF) POWER AC IN AC-INLET AC Connector( : Alternating current) (AC-IN) HDMI1 HDMI2 HDMI HDMI Connector HDMI3 DP IN DisplayPort DisplayPort Connector DP OUT DisplayPort DisplayPort Connector COMPONENT VIDEO RCA G/B/R Component Video Connector (VIDEO IN) AUDIO IN...

  • Page 13: Installation

    INSTALLATION CAUTION  Follow the manual instructions for the type of mount you have selected. Refer all servicing to qualifi ed service personnel.  Moving the monitor requires at least two people.  Before installing, please make sure the wall is strong enough to hold the necessary weight of the display and the mount.
  • Page 14 [ROTATING THE DISPLAY] It is designed to be compatible in both landscape and portrait modes. Available Not Available Landscape Portrait [ANGLE] The display needs to be installed at an angle between 0 and 15 degrees for both portrait and landscape operation. 0~15°...

  • Page 15: Controls And Connectors : Remote Control

    CONTROLS AND CONNECTORS : REMOTE CONTROL ON/OFF Turns the monitor ON and OFF. INPUT Selects the source. Number (1-9) / Serve as input source buttons when Input source the Menu is not displayed. Returns to a previous menu or closes EXIT the OSD Menu.

  • Page 16: Preparing The Remote Control

    PREPARING THE REMOTE CONTROL To use the remote control, insert the two dry batteries. CAUTION Do not use any other batteries other than those specifi ed in this manual for the Remote Control. Do not insert old and new batteries together in the Remote Control. Make sure that the terminals match the "+"...

  • Page 17: Basic Operation

    BASIC OPERATION  Turning the monitor ON The monitor is turned On and the Power Indicator turns to Green when you press the POWER Button on the monitor or the Remote Control. The monitor is turned Off and the Power Indicator turns to Red when you press the POWER Button on the monitor or the Remote Control.
  • Page 18  Move the cursor vertically Select adjustment by pressing the Button while the menu page is displayed on the screen. [Remote Control] [Monitor] QUICK  Move the cursor horizontally Select menu or setting, or perform the adjustment by pressing the + / - Button on the monitor or Button on the Remote Control while the menu page is displayed on the screen.
  • Page 19  Adjust the volume of sound Press the + / - Button on the monitor or the Button on the Remote Control to adjust the volume of sound when the menu page is not displayed on the screen. [Monitor] [Remote Control] QUICK ...

  • Page 20: Connecting Your Monitor

    An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard connector. If a special cable is required please contact your local iiyama dealer or regional iiyama offi ce.
  • Page 21 [ Connection example with the peripheral device ] CAUTION Turn off the power switch and unplug the monitor and peripherals before connection to avoid electric shock or damage. NOTE  Refer to the user manual of peripherals at the same time. ...
  • Page 22 [ About the daisy chain ]  Monitor control connection RS-232C MONITOR1 MONITOR2 [RS-232C] [RS-232C IN] [RS-232C OUT] [RS-232C IN]  Digital video connection DisplayPort MONITOR1 MONITOR2 [DP] [DP IN] [DP OUT] [DP IN] BEFORE YOU OPERATE THE MONITOR 19...

  • Page 23: Network Connection

    [ Network Connection ]  Connecting to a LAN To set the monitor to connect to a local area network. 1. Connect a RJ45 cable to the corresponding ports on the monitor and your LAN switch or router. 2. Select the LAN in the Control Setting of the OSD menu. 3.

  • Page 24: Computer Setting

    COMPUTER SETTING  Signal Timing Change to the desired signal timing listed on page 43: COMPLIANT TIMING. BEFORE YOU OPERATE THE MONITOR 21...

  • Page 25: Operating The Monitor

    OPERATING THE MONITOR To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 43. You are also able to adjust the picture by following the button operation shown below.
  • Page 26 [LOCK MODE]  Side Controller Button: * Available Remote control only. Pressing and holding the button for about 5 seconds and then press OK Button when Menu is not displayed, will lock/unlock the Side Controller Button Lock function. * Available for Remote Control only. Direct ...

  • Page 27: Adjustment Menu Contents

    ADJUSTMENT MENU CONTENTS Picture Picture Picture Settings Advanced Colour Settings Base Colour Adjustment Adaptive Contrast Ambient Light Sensor Adjustment Item Problem / Option Button to Press For displaying outdoor scenery images. Vivid For general windows environment and monitor Standard default setting. Picture Mode Cinema For movie and video environment.
  • Page 28 Picture Picture Picture Settings Advanced Colour Settings Base Colour Adjustment Adaptive Contrast Ambient Light Sensor Adjustment Item Problem / Option Button to Press The function reduces (grained) noise of a compressed or converted MPEG signal. It may Auto also improve the quality of blurry pictures. Clean Off...
  • Page 29 Picture Picture Picture Settings Advanced Colour Settings Base Colour Adjustment Adaptive Contrast Ambient Light Sensor Adjustment Item Problem / Option Button to Press Automatically adjust image brightness to changing ambient lighting conditions. Ambient Light Sensor Ambient Light Sensor is turned off . Off...
  • Page 30 Applications Applications Media Player Schedule Display Wall Adjustment Item Problem / Option Button to Press Photos Displays a list of Photos in USB memory. Displays a list of Music in USB memory. Music Media Player Displays a list of Videos in USB memory. Videos Playlist Displays all support list in USB memory.
  • Page 31 Setting Setting i l g Network Settings Control Setting RS-232C Energy Saving Settings Aspect Full Freeze Anti Image Retention Adjustment Item Problem / Option Button to Press English English Russian Français French Czech Czech Language Deutsch German Italiano Italian Nederlands Dutch Japanese Polski...
  • Page 32 DP1.2 is turned off . Off The power indicator is turned on. The power indicator is turned off . Off iiyama Logo displayed when the monitor is turned on. Opening Logo iiyama Logo does not display when the monitor is Off turned on.
  • Page 33 Setting Setting OSD Rotation Landscape OSD Info Box DP1.2 Opening Logo Information All Reset Adjustment Item Problem / Option Button to Press Date/Model Name/Serial Number/Operation Time/Software Version/ LAN Version/IP Address* Information NOTE See your graphic card user guide for more information about changing the resolution and refresh.

  • Page 34: Play Multimedia Files

    [Play Multimedia Files] You can play photos, music and videos on your monitor from: · Your computer connected through your network. · A USB device connected to this monitor.  Play multimedia fi les from USB device To play fi les on an external USB storage device, simply plug the device into the USB A jack on the monitor.
  • Page 35  Viewing photo fi les <Remote control button functions in thumbnail view> • OK / ENTER : Opens the selected photo fi le. • MENU / ESC : Returns to the Media Player menu. • : Directional arrows for selecting a desired photo. •...
  • Page 36  Playing music fi les <Remote control button functions in thumbnail view> • OK / ENTER : Plays the selected music fi le. • MENU / ESC : Returns to the Media Player menu. • : Directional arrows for selecting a desired music. •...
  • Page 37  Playing video fi les <Remote control button functions in thumbnail view> • OK / ENTER : Plays the selected video fi le. • MENU / ESC : Returns to the Media Player menu. • : Directional arrows for selecting a desired video. •...

  • Page 38: Power Management Feature

    POWER MANAGEMENT FEATURE The power management feature of this product complies with power saving requirement of VESA DPMS. When activated, it automatically reduces unnecessary power consumption of the monitor when your computer is not in use. To use the feature, the monitor needs to be connected to a VESA DPMS compliant computer. There is a power management step the monitor takes as described below.

  • Page 39: Trouble Shooting

    MONITOR or if the problem persists. 3. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance. Problem...

  • Page 40: Recycling Information

    RECYCLING INFORMATION For better environment protection please don't dispose your monitor. Please visit our web site: www.iiyama.com/recycle for monitor recycling. Recycling information 37...

  • Page 41: Appendix

    APPENDIX Design and specifi cations are subject to change without prior notice. SPECIFICATIONS : ProLite LH5050UHS Size Category 50" Panel technology D-LED Size Diagonal: 50" (126.0cm) Pixel pitch 0.2854mm H × 0.2854mm V Brightness 450cd/m (Typical) Panel Contrast ratio 4000 : 1 (Typical)

  • Page 42: Specifications : Prolite Lh5550Uhs

    SPECIFICATIONS : ProLite LH5550UHS Size Category 55" Panel technology D-LED Size Diagonal: 55" (139.0cm) Pixel pitch 0.315mm H × 0.315mm V Brightness 450cd/m (Typical) Panel Contrast ratio 4000 : 1 (Typical) Viewable angle Horizontal : 178 degrees, Vertical: 178 degrees (Typical) Response time 8ms (Gray to Gray) Display Colors...

  • Page 43: Specifications : Prolite Lh6550Uhs

    SPECIFICATIONS : ProLite LH6550UHS Size Category 65" Panel technology D-LED Size Diagonal: 65" (164.0cm) Pixel pitch 0.372mm H × 0.372mm V Brightness 450cd/m (Typical) Panel Contrast ratio 4000 : 1 (Typical) Viewable angle Horizontal : 178 degrees, Vertical: 178 degrees (Typical) Response time 8ms (Gray to Gray) Display Colors...

  • Page 44: Dimensions : Prolite Lh5050Uhs

    DIMENSIONS : ProLite LH5050UHS 4xM6 SCREW HOLE 1132.5mm/44.6” 70.0mm/2.7” (VESA MOUNT) 1099.0mm/43.3” 400.0mm/15.7” 336.5mm/13.2” DIMENSIONS : ProLite LH5550UHS 4xM6 SCREW HOLE 1245.0mm/49.0” 69.0mm/2.7” 1212.0mm/47.7” (VESA MOUNT) 400.0mm/15.7” 397.5mm/15.6” APPENDIX 41...

  • Page 45: Dimensions : Prolite Lh6550Uhs

    DIMENSIONS : ProLite LH6550UHS 4xM6 SCREW HOLE 1462.5mm/57.6” 70.0mm/2.7” 1430.5mm/56.3” (VESA MOUNT) 400.0mm/15.7” 454.5mm/17.9” 42 APPENDIX...

  • Page 46: Compliant Timing

    COMPLIANT TIMING Timing VGA 640x480 31.5 60.0 25.175 SVGA 800x600 37.9 60.0 40.000 XGA 1024x768 60.0 75.0 78.750 SXGA 1280x1024 64.0 60.0 108.000 CVT 1400x900 55.9 60.0 106.500 VESA WSXGA 1680x1050 65.3 60.0 146.250 FHD 1920x1080 67.5 60.0 148.500 54.0 24.0 297.000 67.5...
