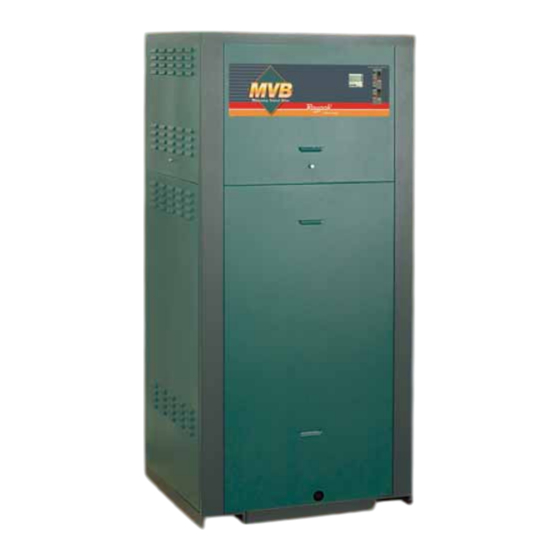

- Page 1 Models 504 thru 2004 Category I with vertical vent Models 503 thru 2003 Category IV Venting Up to thermal efficiency!
-
Page 2: Key Features
Our compact design fits through a 30” door open- ing making it the perfect choice for those hard to reach retrofit proj- ects. Now is the perfect time to take a closer look at Raypak. Flexibility Small diameter vents and industry-leading vent length allowances afford greater vent location options, thus reducing wasted space. -
Page 3: Optional Equipment
Building Management Systems (BMS) (See Cat. #5100.22) TempTracker Mod+ – Controls up to 16 Raypak MVBs with P or PID logic. Automatic or manually selectable lead-lag boiler operation. TempTracker Mod+ monitors and displays sup- ply water temperatures on all applications including outdoor temperature when outdoor reset mode is selected. - Page 4 *Category I with vertical vent, category III with horizontal venting and no extractor. † NPT is for Natural Gas. For Propane, NPT= 1” for all water heater/boiler sizes. ‡ Current draw is for heater only. (Supply breaker must have a delayed trip.)
- Page 5 TOP VIEW P/N 901889 FRONT VIEW All components are contained inside the cabinet (except PRV) , no external fans or valves to deal with. PROUDLY MADE IN AMERICA FRONT VIEW Heater From Combustible Side Surfaces (min.) Floor* Rear 12” Right Side Left Side Indoor Outdoor...
-
Page 6: Ignition Control
Simple Serviceability Raypak’s easy-to-understand user interface, including on-board diagnostics and LED operating status lights, tells the technician all he needs to know. All service/repair components are readily accessible from the front or side for maximum installation flexibility. To enhance serviceability, the control box is completely removable allowing total access. - Page 7 7,027 TempTracker Mod Raypak’s MVB comes standard with TempTracker Mod. This control can be used for space heating and hot water supply with six application-specific modes to meet various applica- tions, including outdoor reset for heating systems. The control monitors and displays inlet and outlet temperatures on all applications as well as monitor outdoor temperature when an outdoor reset mode is selected.
- Page 8 Cold Water Start Cold Water Run = Standard = Optional Raypak, Inc. • 2151 Eastman Avenue, Oxnard, CA 93030 • phone: (805) 278-5300 • fax: (800) 872-8725 • www.raypak.com • HLW Stamp • H Stamp • Copper • Cupro Nickel •...
