Job:
Engineer:
Contractor:
Prepared By:
Versatile
Suitable for use with hydronic heating
boilers and hot water heaters
Permits sidewall venting
Allows use of smaller diameter vent pipe
Efficient
Maintains thermal efficiency of 82%
on all appliance sizes
Features
Induced draft
Plenum sized for appliance capacity
Pre-wired and shipped loose for field mounting
Air flow proving switch, mounted and wired
Fan motor relay, mounted and wired
Heavy-duty galvanized steel cabinet
Polytuf powder coat finish
Indoor construction
Easy installation
Limited one-year warranty
Shipped loose for field mounting
Catalog No.: 1000.96B
Date:
Effective: 11-15-07
Replaces: 10-15-01

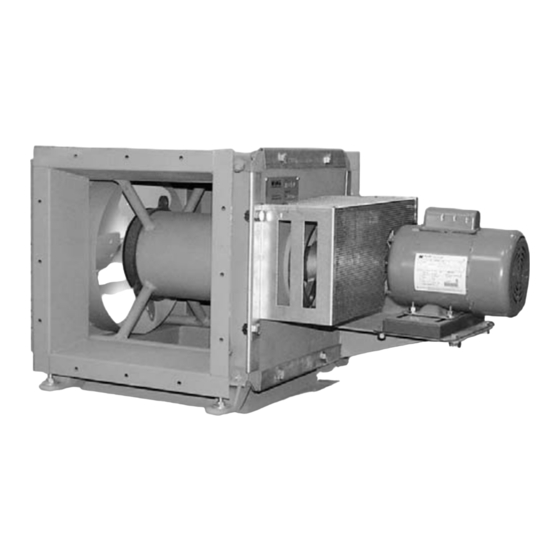

Power Vent
For Raytherm
Models 2100-4001
®
Advertisement
Table of Contents
Related Manuals for Raypak Power Vent Raytherm 2100
Summary of Contents for Raypak Power Vent Raytherm 2100
- Page 1 Job: Engineer: Contractor: Prepared By: Versatile Suitable for use with hydronic heating boilers and hot water heaters Permits sidewall venting Allows use of smaller diameter vent pipe Efficient Maintains thermal efficiency of 82% on all appliance sizes Features Induced draft Plenum sized for appliance capacity Pre-wired and shipped loose for field mounting Air flow proving switch, mounted and wired...
- Page 2 90° elbow.) For installation under other conditions, please consult the factory. 2. Left discharge is standard. 3. Vent pipe must meet Category III appliance venting requirements. 4. Follow installation instructions provided by power vent manufacturer. Raypak, Inc. 2151 Eastman Avenue, Oxnard, CA 93030 Catalog No.: 1000.96B Effective: 11-15-07...
