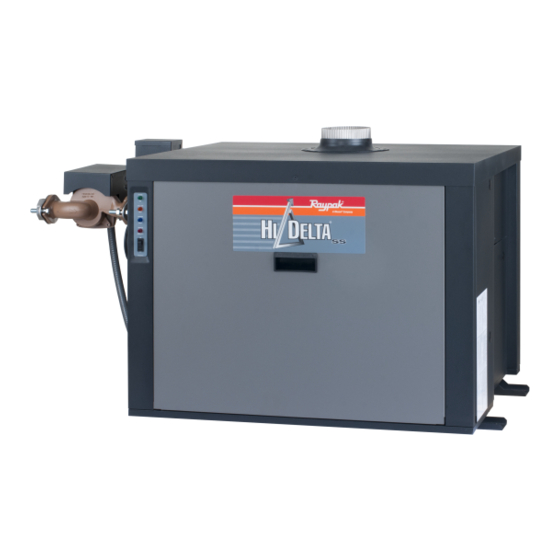

Raypak HI DELTA SS HD101 User Manual
  1. Manuals
  2. Brands
  3. Raypak Manuals
  4. Water Heater
  5. HI DELTA SS HD101
  6. User manual

Raypak HI DELTA SS HD101 User Manual

Raypak water heater user manual
Hide thumbs
1
2
3
4
Table of Contents

Advertisement

Quick Links

Download this manual
PART 1 - GENERAL
1.1

SUMMARY

A. Section includes gas-fired, copper finned-tube water heaters for use with a storage tank.
B. Related Sections
Specifier Note: Use as needed
1. Building Services Piping – Division 23 21 00
2. Breeching, Chimneys, and Stacks (Venting) – Division 23 51 00
3. HVAC Instrumentation and Controls – Division 23 09 00
4. Electrical – Division 23 09 33
1.2

REFERENCES

A. ANSI Z21.10.3/CSA 4.3
B. ASME, Section IV
C. 2006 UMC, Section 1107.6
D. ANSI/ASHRAE 15-1994, Section 8.13.6
E. National Fuel Gas Code, ANSI Z223.1/NFPA 54
F. NEC
1.3

SUBMITTALS

A. Product data sheet (including dimensions, rated capacities, shipping weights, accessories)
B. Wiring diagram
C. Warranty information
D. Installation and operating instructions
1.4

QUALITY ASSURANCE

A. Regulatory Requirements
1. ANSI Z21.10.3/CSA 4.3
2. Local and national air quality regulations for low NOx (<20 PPM NOx emissions) water heaters
B. Certifications
1. CSA
2. ASME HLW Stamp and National Board Listed
1.5

WARRANTY

A. Limited five-year warranty from date of installation
B. Limited twenty-year thermal shock warranty from date of installation
C. Limited ten-year warranty for cupro-nickel heat exchangers only
PART 2 - PRODUCTS
2.1

MANUFACTURER

A. Raypak, Inc.
1. Contact: 2151 Eastman Ave., Oxnard, CA 93030; Telephone: (805) 278-5300;
Fax: (800) 872-9725; Web site: www.raypak.com
2. Product: HD™ copper finned-tube water heater(s)
2.2
Project Name / Date
Hi Delta SS™, TYPE WH - MODELS HD101 – HD401
SUGGESTED SPECIFICATIONS
DIVISION 23 52 33.13
FINNED WATER-TUBE WATER HEATERS
Catalog No.: 3500.961A
Effective:
12-29-09
Replaces:
6-25-09
Division 23 52 33.13 - 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HI DELTA SS HD101 and is the answer not in the manual?

Questions and answers

Related Manuals for Raypak HI DELTA SS HD101

Summary of Contents for Raypak HI DELTA SS HD101

  • Page 1 PART 2 - PRODUCTS MANUFACTURER A. Raypak, Inc. 1. Contact: 2151 Eastman Ave., Oxnard, CA 93030; Telephone: (805) 278-5300; Fax: (800) 872-9725; Web site: www.raypak.com 2. Product: HD™ copper finned-tube water heater(s) WATER HEATERS Project Name / Date SUGGESTED SPECIFICATIONS DIVISION 23 52 33.13...
  • Page 2 (adjustable for two settings of five or ten minutes) to avoid standby losses associated with constant pump operation. G. Firing Mode 1. For models HD101 – HD401, provide on/off control of the gas input to the water heater (two- stage fire optional). Project Name / Date gas at a rated input of BTU/hr.
  • Page 3 J. Venting 1. When routed vertically, the water heater’s flue material and size shall be in accordance with the National Fuel Gas Code, ANSI Z223.1/NFPA 54 latest edition (Category I). 2. When routed horizontally, the water heater(s) flue material and size shall meet or exceed the requirements as specified for Category III in the National Fuel Gas Code, ANSI Z223.1/NFPA...
  • Page 4 5. Manufacturer’s installation instructions, including required service clearances and venting guidelines B. Manufacturer’s representative to verify proper and complete installation. START-UP A. Shall be performed by Raypak factory-trained personnel. B. Test during operation and adjust if necessary: 1. Safeties (2.2 - F) 2. Operating Controls (2.3) 3.
