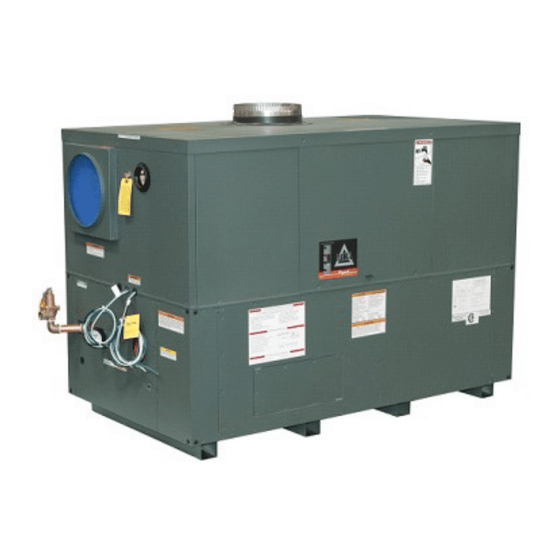

Raypak DELTA LIMITED 2339B Specifications
Finned water-tube water heaters
Hide thumbs
Also See for DELTA LIMITED 2339B:
- Installation & operating instructions manual (52 pages)
Advertisement
Quick Links
PART 1 - GENERAL
1.1
SUMMARY
A. Section includes gas-fired, copper finned-tube water heaters for us with a storage tank.
B. Related Sections
Specifier Note: Use as needed
1. Building Services Piping – Division 23 21 00
2. Breeching, Chimneys, and Stacks (Venting) – Division 23 51 00
3. HVAC Instrumentation and Controls – Division 23 09 00
4. Electrical – Division 23 09 33
1.2
REFERENCES
A. ANSI Z21.10.3/CSA 4.3
B. ASME, Section IV
C. National Fuel Gas Code, ANSI Z223.1/NFPA 54
D. NEC
E. ASME CSD-1, 2006
1.3
SUBMITTALS
A. Product data sheet (including dimensions, rated capacities, shipping weights, accessories)
B. Wiring diagram
C. Warranty information
D. Installation and operating instructions
1.4
QUALITY ASSURANCE
A. Regulatory Requirements
1. ANSI Z21.10.3/CSA 4.3
2. Local and national air quality regulations for low NOx (0-30 PPM NOx emissions) water
heaters
B. Certifications
1. CSA
2. ASME HLW Stamp and National Board Listed
3. ISO 9001
1.5
WARRANTY
A. Limited five-year warranty from date of installation
B. Limited twenty-year thermal shock warranty from date of installation
C. Limited ten-year warranty for cupro-nickel heat exchangers only
PART 2 - PRODUCTS
2.1
MANUFACTURER
A. Raypak, Inc.
1. Contact: 2151 Eastman Ave., Oxnard, CA 93030; Telephone: (805) 278-5300;
Fax: (800) 872-9725; Web site: www.raypak.com
2. Product: Delta Limited
Project Name / Date
®
DELTA LIMITED
, TYPE WH - MODELS 989B-2339B
SUGGESTED SPECIFICATIONS
DIVISION 23 52 33.13
FINNED WATER-TUBE WATER HEATERS
®
copper finned-tube water heater(s)
Catalog No.:
3500.98A
Effective:
10-15-08
Replaces:
9-15-02
Division 23 52 33.13 - 1
Advertisement
Related Manuals for Raypak DELTA LIMITED 2339B
Summary of Contents for Raypak DELTA LIMITED 2339B
- Page 1 PART 2 - PRODUCTS MANUFACTURER A. Raypak, Inc. 1. Contact: 2151 Eastman Ave., Oxnard, CA 93030; Telephone: (805) 278-5300; Fax: (800) 872-9725; Web site: www.raypak.com 2. Product: Delta Limited Project Name / Date ® , TYPE WH - MODELS 989B-2339B SUGGESTED SPECIFICATIONS DIVISION 23 52 33.13...
-
Page 2: Water Heaters
A. General 1. The water heater(s) shall be fired with 2. The water heater(s) shall be CSA tested and certified with a minimum thermal efficiency of 85 percent at full fire. 3. The water heater(s) shall be ASME inspected and stamped and National Board registered for 160 PSIG working pressure, complete with a Manufacturer's Data Report. - Page 3 2. The water heater(s), if located on a combustible floor, shall not require a separate combustible floor base. 3. The water heater(s) shall have the option of venting the flue products either through the top or the back of the unit.
- Page 4 1. The water heater(s) shall be configured with a cold water start automatic proportional bypass system that ensures the water heater will experience inlet temperatures in excess of 105ºF in less than 7 minutes to avoid damaging condensation. The unit will automatically shut down if the inlet temperature is not achieved within the 7 minute time frame.
- Page 5 B. Manufacturer’s representative to verify proper and complete installation. START-UP A. Shall be performed by Raypak factory-trained personnel. B. Test during operation and adjust if necessary: 1. Safeties (2.2 - F) 2. Operating Controls (2.3) 3. Static and full load gas supply pressure 4.
