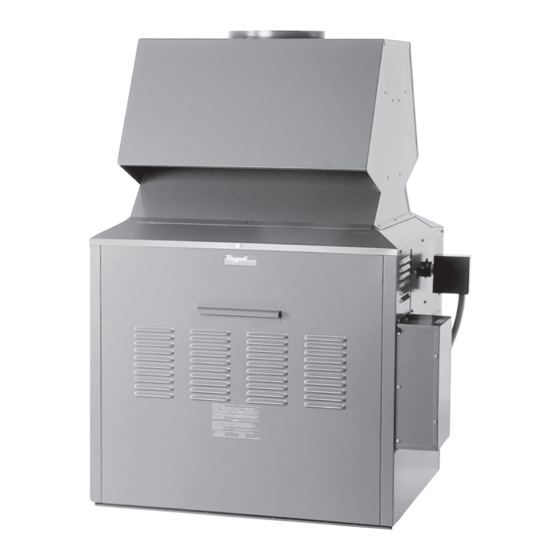

Raypak 334 Illustrate Parts List

COMMERCIAL
MODELS: 334 THROUGH 824
RAYPAK ILLUSTRATED PARTS LIST
MODEL SIZES:
MODEL TYPES:
DATES OF MANUFACTURE: 10-1-82 THRU CURRENT EXCEPT AS NOTED
THE PARTS LISTED ARE FOR
RESERVES THE RIGHT TO SUBSTITUTE, DELETE OR CHANGE ANY PART WITHOUT
NOTIFICATION. THE ADDITION OF OPTIONS MAY ALSO CHANGE SOME OF THE PARTS.
ORDER REPLACEMENT PARTS FROM ACTUAL HEATER COMPONENTS.
NEW
H1
H2
H3
H4
H5
Prefixes used to distinguish between old model and new model types only.
For additional information on the new model type designations see, Catalog No. 9001.10
FOR DETAILED INSTRUCTIONS ON "HOW TO USE YOUR RAYPAK ILLUSTRATED PARTS LIST"
SEE 9001.10 INSTRUCTION SHEET.
334, 404, 514, 624, 724 & 824
H, W, WH, N, NH, R, RH
H6 - 11-1-84 THRU CURRENT
H1, H2, H3, H5 & H6 BUILT FOR MODELS 514 THRU 824
H4 - 3-1-87 THRU CURRENT
MODELS 334 & 404 - 10-1-82 THRU 12-31-90
W3 - 1-1-99 THRU CURRENT
WH1, WH2 - 1-1-01 THRU CURRENT
NH, RH - 1-1-01 THRU 1-1-05
N, R - 10-1-82 THRU 12-31-01
STANDARD EQUIPMENT FOR THIS MODEL. RAYPAK
MODEL TYPE DESIGNATIONS
OLD
T
Ta
Tb
Tc (Released 3-1-87)
Td
Raypak, Inc., 2151 Eastman Ave, Oxnard, CA 93030
CATALOG NO. 9300.35
Effective:
Replaces:
NEW OLD
H6 Tx
W1 WT
W2 THWS
W3
N TIP
R TIPR
(805) 278-5300 Fax (800) 872-9725
06-30-08
09-21-07
Litho In U.S.A.
