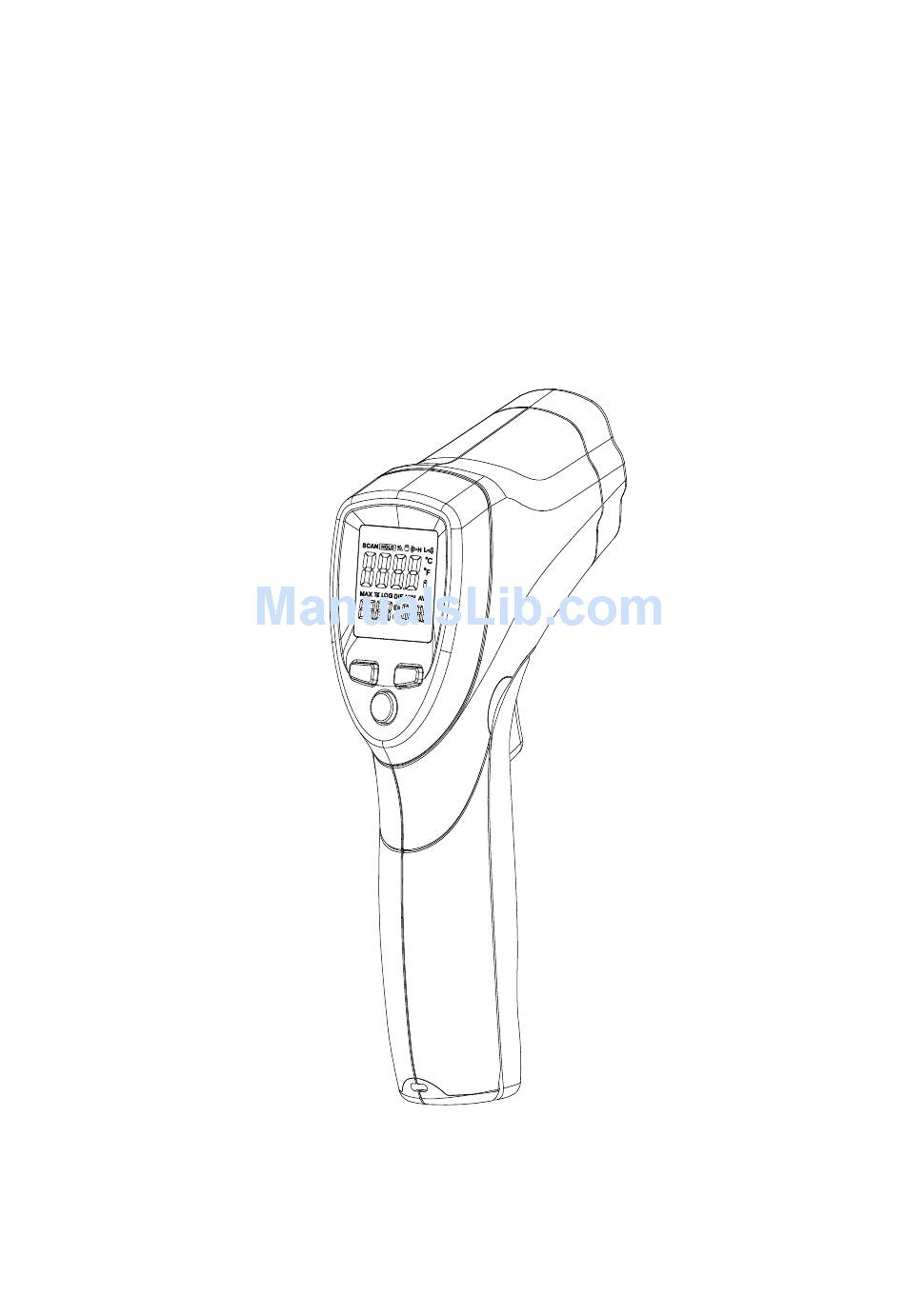

- Page 1 Non-Contact Infrared Thermometers ST485 Operating Manual...
-
Page 2: Table Of Contents
TABLE OF CONTENTS ………………………………………3 INTRODUCTION ……………………………………………3 FEATURES ………………………… 4 WIDERANGEAPPLICATION ……………………………………………… 4 SAFETY ……………………………… 5 DISTANCE&SPOTSIZE …………………………………… 6 SPECIFICATIONS ……………………… 8 FRONTPANELDESCRIPTION ……………………………………………8 INDICATOR ………………………………………………9 BUTTONS ………………………… 12 MEASURMENTOPERATION …………………………… 13 BATTERYREPLACEMENT ……………………………………………… 13 NOTES …………………………………… 17 MAINTENANCE... -
Page 3: Introduction
INTRODUCTION Thank you for purchase of the IR Thermometer. This is capable non-contact (infrared) temperature measurements at the touch of a button. The built-in laser pointer increases target accuracy while the backlight LCD and handy push-buttons combine for convenient, ergonomic operation. -
Page 4: Widerangeapplication
Emissivity Digitally adjustable from 0.10 to 1.0 MAX temperature displays Backlight LCD display Automatic selection range and Display Resolution 0.1º C(0.1ºF) Trigger lock Set high and low alarms WIDE RANGE APPLICATION: Food preparation, Safety and Fire inspectors, Plastic molding, Asphalt, Marine and Screen printing, measure ink Dryer temperature,... -
Page 5: Distance&Spotsize
Distance & Spot Size As the distance (D) from the object increases, the spot size (S) of the area measured by the unit becomes larger. The relationship between distance and spot size for each unit is listed below. The focal point for each unit is 914mm (36”). The spot sizes indicate 90% encircled energy. -
Page 6: Specifications
ST485 D:S= 20:1 25.4mm @ 254mm 50.8mm @508mm 1.0in @ 10in. 2.0in @ 20in. SPECIFICATIONS MODEL Temperature range D: S -50 to 800 o C(-58℉ ~ 1472℉) ST485 20:1 0.1 o C(0.1℉) Display resolution <1000 1℉ >1000 Accuracy for targets: Assumes ambient operating temperature of 23 to 25 o C (73 to 77℉) - Page 7 -35~20℃(-31~68℉) : ±1.3℃(2.3℉) 20~800℃(68~1472℉): ±0.5% or ±0.5℃(0.9℉) Response time 150ms Spectral response 8~14um Emissivity Digitally adjustable from 0.10 to 1.0 LCD will show “----” Over range indication Polarity Automatic (no indication for positive polarity); Minus (-) sign for negative polarity Diode laser output <1mW,Wavelength 630~670nm, Class II laser product...
-
Page 8: Frontpaneldescription
sure the target is at least twice as large as the spot size. FRONT PANEL DESCRIPTION ① IR sensor ② LCD Display Laser pointer beam ③ up button ④ down button ⑤ mode button ⑥ Measurement Trigger ⑦ Battery Cover ⑧... -
Page 9: Buttons
⑩ Current temperature value Buttons ① button (for EMS,HAL,LAL) ② Down button (for EMS,HAL,LAL) ③ MODE button (for cycling through the mode loop) Functional Design the switches of C/F sat in a cell switching In the measuring time up, down keys to adjust the Emissivity. - Page 10 Press the up button or down button to turn on or off . Press the Measurement Trigger to confirm the lock measurement mode. The ST485 will continuously display the temperaure until press again...
-
Page 11: Measurmentoperation
Press the Measurement Trigger to confirm the High(Low)alarm mode.Hal(LOW) adjustment. The high(Low) alarm adjustable form -50 to 800 o C(-58℉ ~ 1472℉) ST485 Switching C/F Select the temperature units ( C or F switch ( ① ) - Page 12 begin testing. The display will light if the battery is good. Replace the battery if the display does not light. ③ Release the Trigger and the HOLD display icon will appear on the LCD indicating that the reading is being held. In HOLD status, press the UP button to turn on or off the laser.
-
Page 13: Batteryreplacement
This is a result of the cooling process, which must take place for the IR sensor. BATTERY REPLACEMENT ① As battery power is not sufficient, LCD will display “ ” replacement with one new battery type 9V is required. ② Open battery cover, then take out the battery from instrument and replace with a new 9-Volt battery and place the battery cover... - Page 14 laser, the laser is used for aiming purposes only. Field of View Make sure that the target is larger than the unit’s spot size. The smaller the target, the closer you should be to it. When accuracy is critical, make sure the target is at least twice as large as the spot size.
- Page 15 measurement by obstructing the unit’s optics. Emissivity Emissivity term used describe energy-emitting characteristics of materials. Most (90% of typical applications) organic materials and painted or oxidized surfaces have an emissivity of 0.95 (pre-set in the unit). Inaccurate readings will result from measuring shiny or polished metal surfaces.
-
Page 16: Maintenance
Cement 0.96 Lather 0.75 to 0.80 Sand 0.90 Charcoal 0.96 (powder) Earth 0.92 to 0.96 Lacquer 0.80 to 0.95 Water 0.92 to 0.96 Lacquer 0.97 (matt) 0.96 to 0.98 Rubber 0.94 (black) Snow 0.83 Plastic 0.85 to 0.95 Glass 0.90 to 0.95 Timber 0.90 Ceramic... - Page 17 Periodically, wipe the body with a dry cloth. Do not use abrasives or solvents on this instrument. For service, use only manufacturer’s specified parts.
