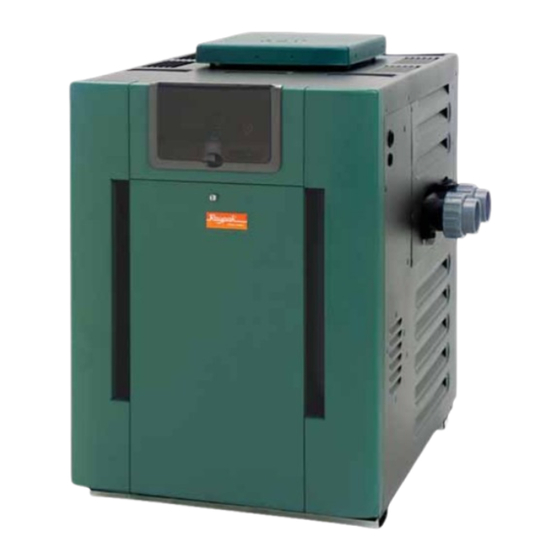

Raypak 207 Brochure & Specs

Cabinet
• Outdoor top - (standard)
• Wind-resistant design
• Channels rainwater out
• Textured powder-coat finish
• Optional indoor top
Digital Controls
• Microprocessor-controlled
• Built-in diagnostics
• Backlit LCD display
• Pool and spa settings
• Lexan cover
• Remote-compatible
Burner Tray
• Easily removable
• Stainless steel burners
• Brass orifices
• Aluminized metals
• Stainless steel heat shield
• Spark-to-pilot ignition
• 120/240V Combustion fan motor
Optional D-2 Power Vent
D-2 Power Vent
Sometimes, equipment rooms or unusual venting configurations require the use of a power
vent. Being the heater experts, we have this option for you when the need may arise.
Through-the-Wall Capable
The D-2 Power Vent assembly is a Category III mechanical draft venting system that operates
under a positive static pressure and prevents excessive condensate production in the vent. All
sizes are capable of relieving flue gases up to a maximum of 100 equivalent feet of vent
length. All models have a standard 4"-diameter exhaust connection.
Multi-Position
Using the Raypak-supplied adjustable 90° elbow, the flue gases may be discharged in any
direction (see D-2 Power Vent manual for details). The D-2 Power Vent is also dual-voltage
capable (120/240 volt) and engineered for long life and smooth operation.
For dimensions and technical specifications, see catalog number 6000.36.
In keeping with its policy of continuous progress and product improvement, Raypak reserves the right to make changes without notice
Raypak, Inc.
www.raypak.com
Anything But Basic
Model
207
267
337
407
2151 Eastman Avenue, Oxnard, CA 93030, (805) 278-5300. Fax (800) 872-9725
Litho in U.S.A. ©2004-2008 Raypak, Inc. Catalog No. 6000.23D Effective: 10/01/08
BTUH Input
199,500
266,000
332,500
399,000
Heat Exchanger
• Integral copper fin tube -
• (standard)
• Automatic bypass
• Unitherm governor
• Polymer headers
• Stainless steel tube sheet
• Reversible for left-side
• water connections.
• ASME - (optional)
• Cupro-nickel - (optional)
2" CPVC Connections
High Limits and Controls
• Mounted on the in/out header
Ceramic Fiber
Combustion Chamber
Non-Combustible Base
• Heater can be installed on a
• combustible surface
120/240V
• Incoming power can be
• connected to the right or
• left side.
D-2 Power Vent
.
