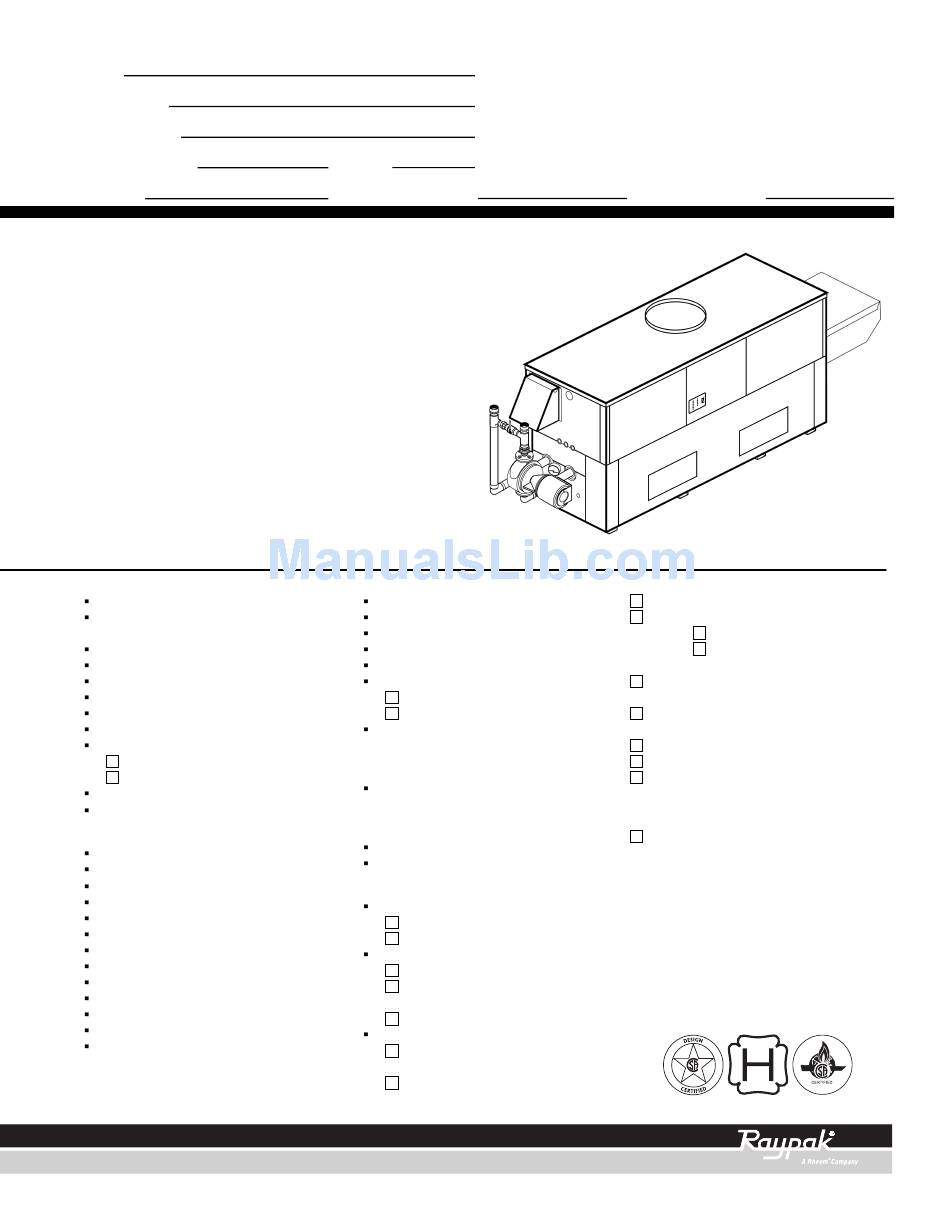

Raypak 1802B-2342B Specification Sheet

Job:
Engineer:
Contractor:
Prepared By:
Model:
Sealed Combustion Chamber
100% Factory Fire Tested
Efficiency: 85%
Minimum Non-condensing Inlet Temperature: 105°F
Thermal Shock Proof Heat Exchanger
Limited Twenty-year Thermal Shock Warranty
Limited Five-year Heat Exchanger Warranty
Diagnostic Center with Fault History
PolyTuf Powder Coated Cabinet
No Combustible Floor Shield Required
Fan-assisted
Non-ferrous Bypass
Patented Burner Security Blanket
Heat Exchanger
Bronze Headers
ASME Inspected and Stamped
160 PSIG Working Pressure
National Board Approved
Cupro Nickel Finned Tubing
ASME Steel Tube Sheet
Silicone High Temp O-Rings
125 PSIG ASME Pressure Relief Valve
Temperature and Pressure Gauge
Water Connections
Left – Standard
Right – Option A-6
Bronze Pump, 120V, 60Hz
Non-ferrous Pool Bypass
Controls
120V, 60Hz, 1∅ Power Supply
120/24V 60Hz Transformer
100% Shut-off/Lockout
Hot Surface Ignition Systems (2)
Remote Flame Sensors (2)
High Limit Control, Auto Reset
On/Off Power Switch
Manual Shut-off, Front-mounted
Flow Switch
Blocked Vent Pressure Switch
Combustion Air Proving Switches
Economaster Pump Time Delay
Poolstat
Catalog No.: 6000.342B
Date:
Indoor/Outdoor:
Gas Train
Gas Pressure Regulators
Safety Shut-off Valves
Firing Control Valves
On/Off Firing
Low Gas Pressure Switch, Manual
Fuel
Natural Gas
Propane Gas
Design Certified ANSI Z21.56/
CSA 4.7
Burner
Ultra-low NOx:
Less than 30 PPM
Construction
Indoor/Outdoor Construction
Enclosed Front Controls
Venting
Vent Location
Top – Standard
Rear – Option D-14
Vent Termination Cap
Outdoor – Option D-11
Indoor, Horizontal –
Option D-15
Indoor, Vertical (by others)
Combustion Air
In-Line Filter Kit (TruSeal
only) – Option D-17
Air Intake Elbow –
Option D-16
Effective: 8-15-08 Replaces: 3-1-07
®
Hi Delta - Type P
Commercial Pool Heaters
Models 1802B-2342B
MBTUH Input:
Options
C-6 Ignition Module, Manual Reset
D-21 TruSeal™ Direct Vent
Right Side
Left Side (Model 1802B
Only)
F-10 Low Water Cut-off, Remote
Probe
S-2 Dual High Gas Pressure
Switches, Manual Reset
X-1 SureRack Kit, Zone III and IV
X-2 SureRack Add-on, Zone IV
Y-241 Temperature Controller,
1-4 Stages
Regulatory Agency Requirements
G-1 CSD-1
L
W
