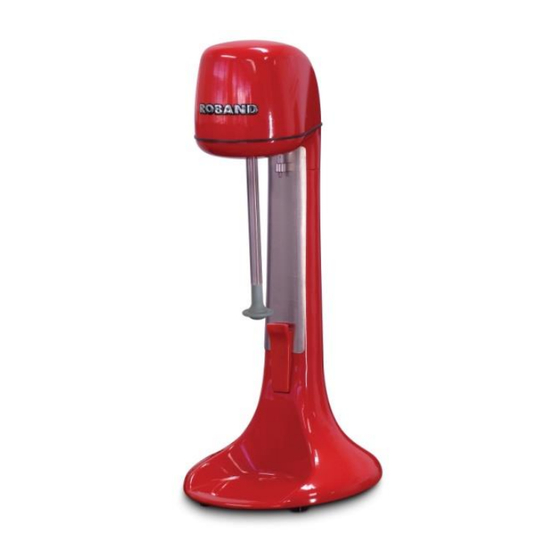

ROBAND DM21B series Operating Instructions Manual
Drink mixer
Hide thumbs
Also See for DM21B series:
- Operating instructions manual (16 pages) ,
- Instruction manual (8 pages) ,
- Operating instructions manual (12 pages)
Table of Contents
Advertisement
Quick Links
OPERATING INSTRUCTIONS
These instructions cover the models of ROBAND
are slight variances between models, the installation, operation, care and maintenance procedure
is the same for all.
Manufactured By
ROBAND AUSTRALIA PTY LTD
DRINK MIXERS
DM21 - Version 4
Models:
Includes
Colours: B, G, M, R, S, W,
International models: ...-Bxx, ...-Fxx, ...-Gxx and ...-Mxx
Special Features:
Cup activated switch
Stainless steel mixing shaft and beaters
Two-speed 18,000 / 22,000 RPM motor
®
Drink Mixers Assemblies only. Although there
6/12/2017
Advertisement
Table of Contents
Related Manuals for ROBAND DM21B series
Summary of Contents for ROBAND DM21B series
-

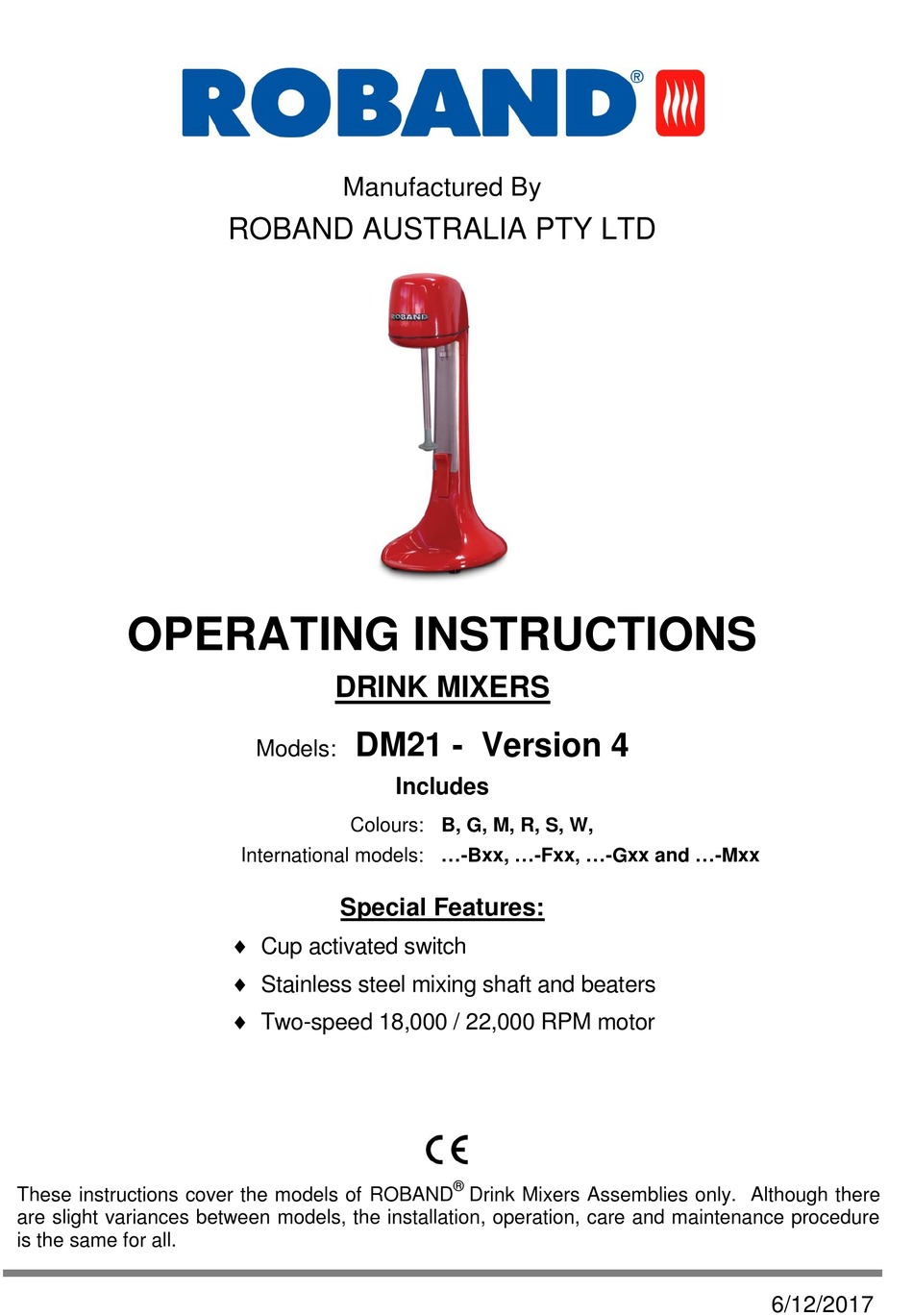

Page 1: Operating Instructions
Stainless steel mixing shaft and beaters Two-speed 18,000 / 22,000 RPM motor ® These instructions cover the models of ROBAND Drink Mixers Assemblies only. Although there are slight variances between models, the installation, operation, care and maintenance procedure is the same for all. - Page 2 Soup/Rice Warmers, Robatherm Urns, ö ® Austheat Fryers, Dipo Induction & Autofry Machines. Roband also has its own line of ® commercial cookware and cutlery under the Robinox brand name. For a complete set of brochures please contact your nearest authorised dealer or contact Roband directly at our head office.
-
Page 3: Table Of Contents
CONTENTS INTRODUCTION ..................... 1 GENERAL PRECAUTIONS ..................1 PACKAGING ......................2 COMPLIANCE ......................2 INSTALLATION ....................... 3 OPERATION ......................4 OPERATIONAL TIPS ....................5 GENERAL SAFETY ....................6 CLEANING, CARE & MAINTENANCE ..............6 TROUBLESHOOTING ..................... 7 SPECIFICATIONS ....................7 CIRCUIT DIAGRAM .................... -
Page 4: Introduction
INTRODUCTION ® Congratulations on your purchase of this quality ROBAND product. With proper care and management your new purchase will give you years of trouble free service. By reading these instructions carefully you can ensure that this machine is used and maintained properly, helping your new investment to perform well for you now, and to continue performing in the many years to come. -
Page 5: Packaging
PACKAGING All care is taken when packing and Roband ensures that every unit is functional and undamaged at the time of packaging. The Package of this Drink Mixer should include: 1. One Drink Mixer (appropriate model) 2. One Stainless Steel Mixing Cup 3. -
Page 6: Installation
INSTALLATION Remove all the packaging materials and tape, as well as any protective plastic from the machine. Clean off any glue residue left over from the protective plastic or tape using methylated spirit. Place the mixer on a firm, level surface in the required position. The DM21B, DM21G, DM21M, DM21R, DM21S, DM21W models plug into a standard, single phase, 10A Australian (Type I) power point. -
Page 7: Operation
OPERATION The mixer plugs into a standard, single phase power point. On the top of the mixer is an ON OFF / Speed control switch. The unit is operated by a combination of two mechanisms; the control switch and the activating “switch rod”. Select the desired setting on the Control Switch by pressing the switch to either the “I”... -
Page 8: Operational Tips
OPERATIONAL TIPS MAKING A THICK, FROTHY SHAKE , set the Control switch to “I” (Low For best results with the new Saturn Beater speed). On low speed, the specially designed Saturn Beater will pull even more air into the milk and create a smoother, creamier drink using smaller volumes of ingredients. -
Page 9: General Safety
SAFETY GENERAL SAFETY This machine contains no user-serviceable parts. Roband Australia, one of our agents, or a similarly qualified person(s) should carry out any and all repairs. Steel cutting processes such as those used in the construction of this machine result in sharp edges. -
Page 10: Troubleshooting
TROUBLESHOOTING If the Drink Mixer does not function, please check the following points before calling for service. The machine is plugged in correctly and the power switched on. The IEC plug is pushed firmly into its socket – relocating the unit or cumulative vibrations may cause the socket to become loose –... -
Page 11: Circuit Diagram
CIRCUIT DIAGRAM MODEL: DM21B, DM21G, DM21M, DM21R, DM21S, DM21W NOTE: This circuit diagram has been provided for reference and to assist qualified service and repair agents only. Under no circumstances should persons not suitably qualified attempt repairs to any electrical equipment. Page: 8... -
Page 12: Spare Parts
SPARE PARTS COMMON DM21 PARTS PART NO DESCRIPTION PART NO DESCRIPTION EC0253 Micro Switch MS0001 SS Beaters, Spacer & Nut Nylon Bush - ½” EC0267 Plug & Cord 7.5A to IEC PC0139 EC0268 Mains Filter & IEC Socket PC0291 Top Gasket ES0214 Rocker Switch &... -
Page 13: Notes
NOTES This page is intentionally left blank. Please note your favourite settings here. Page: 10... -
Page 14: Declaration Of Conformity
DECLARATION OF CONFORMITY We the undersigned, Manufacturer Roband Australia Pty Ltd 1 Inman Road Address Cromer NSW 2099 Country Australia Authorised Representative in Metcalfe Catering Haygarth Park, Blaenau Ffestiniog Address Gwynedd North Wales Country United Kingdom Certify and declare under our sole responsibility the following equipment, DM21, DM21B, DM21G, DM21M, DM21R, DM21S, DM21W;... -
Page 15: Warranty
Any repairs or replacement of defective goods or materials pursuant to this warranty, must be authorized by Roband Australia prior to any action being taken. The company reserves the right to reject a claim for warranty if it is not completely satisfied with the circumstances under which it occurred and any other costs incurred for false claims or faults due to incorrect usage etc. - Page 16 OTHER LEADING PRODUCTS AVAILABLE: Sycloid Toaster DRINK MIXERS HIGH PERFORMANCE DEEP FRYERS VITAMIX BLENDERS NOAW Slicers GRILLMAX TOASTERS Manufactured/Imported in Australia by: Authorised Distributor/Agent...
