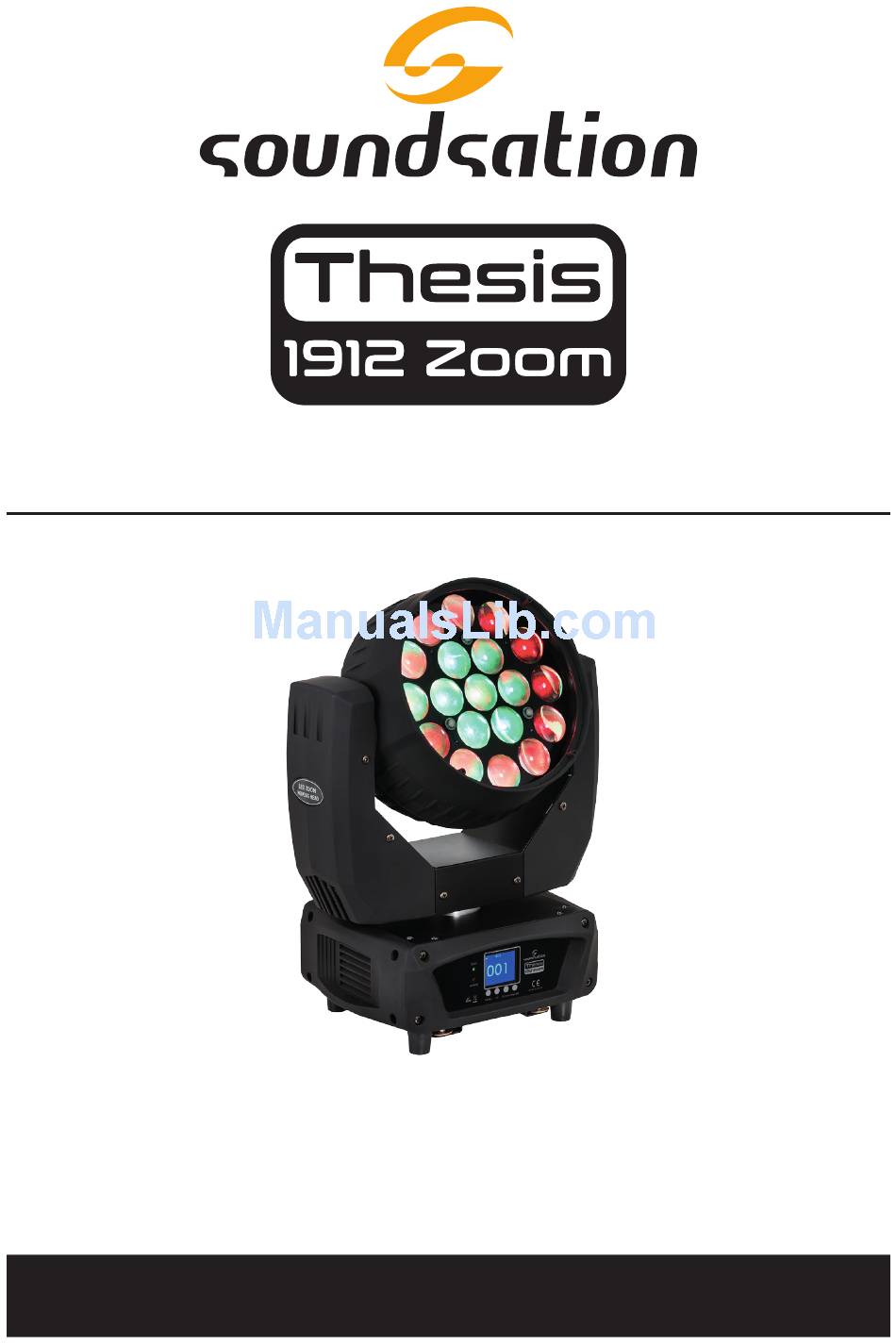

Page 1: User Manual

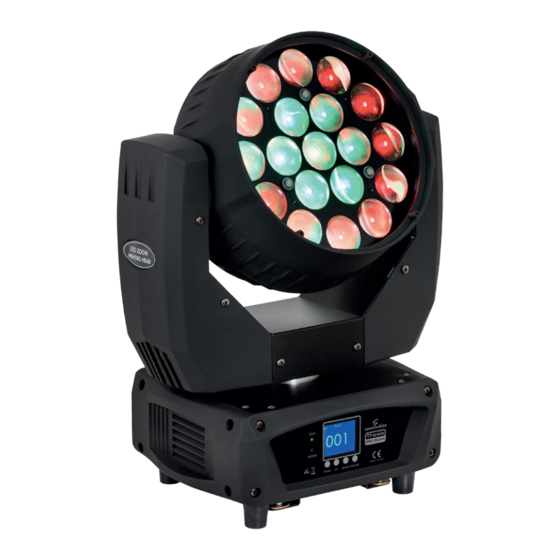

19 x 12W 4IN1 LED MOVING HEAD WITH ZOOM USER MANUAL Please read this manual carefully and take proper care of it. - Page 2 ENGLISH Dear customer, First of all thanks for purchasing a SOUNDSATION® product. Our mission is to satisfy all possible needs of musical instrument, professional audio and lighting users offering a wide range of products using the latest technologies. We hope you will be satisfied with this item and, if you want to collaborate, we are looking for a feedback from you about the operation of the product and possible im- provements to introduce in the next future.
-
Page 3: Table Of Contents
ENGLISH TABLE OF CONTENTS 1. INTRODUCTION ......................5 2. OVERVIEW ........................6 3. MAIN FEATURES ......................6 4. MAINS CONNECTIONS .....................7 5. DMX CONNECTION ....................7 6. FRONT & REAR PANELS ...................9 7. TFT COLOR DISPLAY ....................9 8. DMX CHANNEL MODES..................13 9. TECHNICAL SPECIFICATIONS .................15 10. - Page 4 ENGLISH THESIS 1912 ZOOM User manual IMPORTANT SAFETY SYMBOLS The symbol is used to indicate that some hazardous live terminals are involved within this apparatus, even under the normal operating con- ditions, which may be sufficient to constitute the risk of electric shock or death.
-
Page 5: Power Supply
ENGLISH THESIS 1912 ZOOM User manual f Follow all instructions Water / Moisture The apparatus should be protected from moisture and rain and can not be used near water; for example near a bathtub, a kitchen sink, a swimming pool, etc. -
Page 6: Introduction
INTRODUCTION Thank you for purchasing our THESIS 1912 ZOOM moving head. Enjoy your new equip- ment and make sure to read this manual carefully before operation! This user manual is made to provide both an overview of controls, as well as informa- tion on how to use them. -
Page 7: Overview
2. OVERVIEW THESIS 1912 ZOOM LED moving head is part of a wider range of SOUNDSATION DMX intelligent LED Moving Head Lights. This lighting is compact, lightweight and very easy to use. -
Page 8: Mains Connections
ENGLISH THESIS 1912 ZOOM User manual 3.1. Brightness Table (15° Beam) Distance Full: 42400 Full: 8490 Full: 3200 Full: 1120 11450 2200 19800 3540 1270 21800 4310 1560 4. MAINS CONNECTIONS Connect the device to the mains with the supplied power cable. Please note that power voltage and frequency are the same as the marked voltage and frequency of device when connecting power. -
Page 9: Dmx Terminator
ENGLISH THESIS 1912 ZOOM User manual DMX Termonator Unit 1 Unit 2 Last Unit DMX 512 Connect fixtures using shielded 2-conductor twisted pair cable with 3-pin XLR male to female connectors. The shield connection is pin 1, while pin 2 is Data Negative (S-), and pin 3 is Data positive (S+). -
Page 10: Front & Rear Panels
However, two are the most common standards: 5-Pin XLR and 3-Pin XLR system. If you wish to connect THESIS 1912 ZOOM to a 5-Pin XLR input fixture, you need to use an adapter-cable or make it by yourself. -
Page 11: Tft Color Display
Fuse Holder: (10A - 250V) 7. TFT COLOR DISPLA Y At power on, the THESIS 1912 ZOOM shows for about 40s a welcome screen during which the fixture performs the auto-run test of all motors and sensors. Once completed this self-test routine, the TFT LCD shows Main Menu page, and the fixture enters the operating mode chosen before last power-off (DMX, Auto or Sound). - Page 12 ENGLISH THESIS 1912 ZOOM User manual 22CH or 16CH DMX control mode Auto Auto1 – Auto8 mode Sound Sound control mode To change run mode, select the desired function with UP and DOWN buttons (the name is highlighted in pink). Press ENTER and change value with UP and DOWN again. Once reached the desired value, press ENTER to confirm.
- Page 13 ENGLISH THESIS 1912 ZOOM User manual WARNING: Please note that after factory default language is Chinese Setup Here it is possible to change a lot of parameters to better adjust fixture operation to your needs. SetUp PanReverse TILTReverse XCalibration YCalibration...
-
Page 14: System Information
ENGLISH THESIS 1912 ZOOM User manual f Screen Rotation (ON/OFF) – When ON, LCD display is upside down. f LOGO (ON/OFF) – When ON it shows LOGO at startup f Reset (ON/OFF) – When ON it resets motors and restart fixture (without changing settings like DMX channel, operation mode, etc.). -
Page 15: Dmx Channel Modes
ENGLISH THESIS 1912 ZOOM User manual 8. DMX CHANNEL MODES 14-CH Mode Function 0-255 X axis motor 0-255 Y axis motor 0-255 Zoom motor 0-255 X axis fine adjustment (16Bit) 0-255 Y axis fine adjustment (16Bit) 0-255 X/Y Motor speed by fast to slow... -
Page 16: Technical Specifications
ENGLISH THESIS 1912 ZOOM User manual 0-255 Green1, dark to bright 0-255 Blue1, dark to bright 0-255 White1, dark to bright 0-255 Red2, dark to bright 0-255 Green2, dark to bright 0-255 Blue2, dark to bright 0-255 White2, dark to bright... - Page 17 ENGLISH THESIS 1912 ZOOM User manual Fixture Weight 7.6 kg IP Rate IP20 Packing Size (LxHxD) 400 x 450 x 400 mm Packing Weight 9.0 kg Our products are subject to change. Modifications to technical features remain subject to change without notice.
-
Page 18: Warranty And Service
SOUNDSATION shall satisfy the warranty obligations by remedying any material or manufacturing faults free of charge at SOUNDSATION’s discretion either by repair or by exchanging individual parts or the entire appliance. Any defective parts removed from a product during the course of a warranty claim shall become the property of SOUNDSATION. - Page 19 Questo prodotto viene importato nella UE da FRENEXPORT SPA – Via Enzo Ferrari, 10 - 62017 Porto Recanati - Italy www.soundsa tionmusic.com Soundsation® is a registered trademark of FRENEXPORT SPA - Italy Soundsation® è un marchio di fabbrica registrato della FRENEXPORT SPA - Italy...
- Page 20 www.soundsa tionmusic.com Ver 1.0 - Dec. 2017...
