Versatile
•
For use with pool and spa heaters
•
Permits sidewall venting
•
Allows use of vent pipe as small as 4 in.
diameter
Efficient
•
Maintains thermal efficiency of 82% on all
heater sizes
Multi-Position Capability
•
90° elbow can be rotated to align fan
discharge with vent pipe and reduce the
number of fittings required
Features
Induced draft
Vent (Category III) runs up to 100 ft. equivalent length
Plenum sized for appliance capacity
Air flow proving switch, mounted and wired
Fan motor relay, mounted and wired
240/120 Volt, 60 Hz, 1.95/1.0 Amp, 130 CFM Max.,
3200 RPM motor; Factory-wired for 240 Volt
90° elbow is used as a termination cap for
horizontal venting
Heavy-duty galvanized steel cabinet
PolyTuf textured powder coat finish
Indoor/Outdoor construction
Easy installation
Limited one-year warranty
Shipped loose for field mounting
Catalog No.: 1000.70A
Date:
Effective: 10-15-07
Replaces: 5-1-05

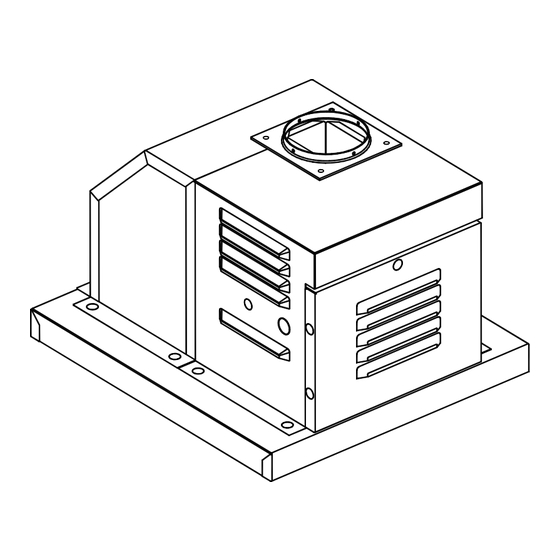

D-2 Power Vent
For Pool & Spa Heaters
Models 206-407
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Raypak Power Vent 206-407
Summary of Contents for Raypak Power Vent 206-407

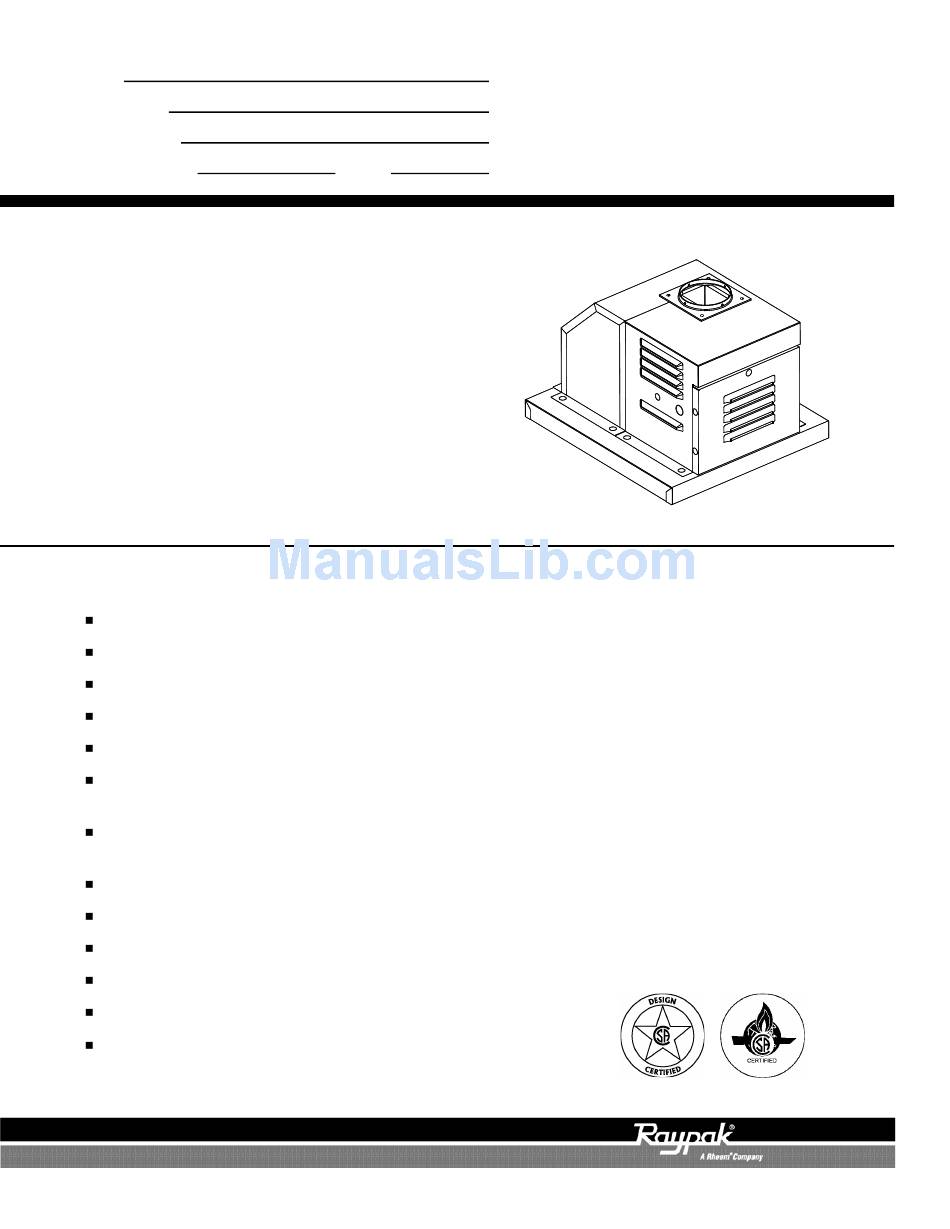

- Page 1 Job: Engineer: Contractor: Prepared By: Versatile • For use with pool and spa heaters • Permits sidewall venting • Allows use of vent pipe as small as 4 in. diameter Efficient • Maintains thermal efficiency of 82% on all heater sizes Multi-Position Capability •...
