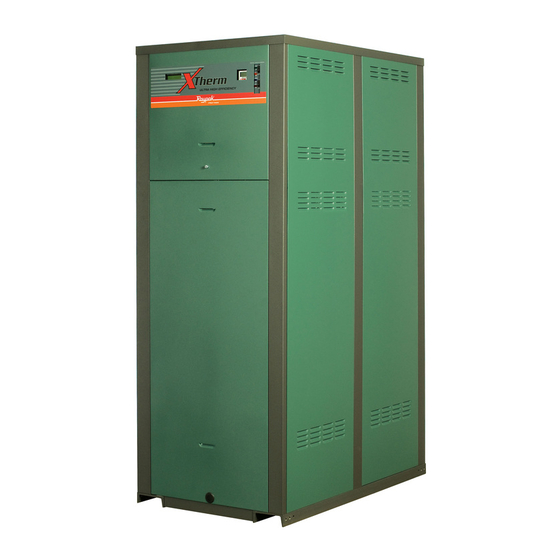

Raypak Xtherm 1005 Illustrated Parts List

COMMERCIAL
MODELS: XTHERM 1005 THROUGH 2005
RAYPAK ILLUSTRATED PARTS LIST
MODEL SIZES: 1005, 1505 & 2005
MODEL TYPES: MODULATING VERTICAL BOILER H, WH, & WHP CAT IV
DATES OF MANUFACTURE: 09-01-08 THROUGH CURRENT
THE PARTS LISTED ARE FOR STANDARD EQUIPMENT FOR THIS MODEL TYPE. RAYPAK RESERVES THE
RIGHT TO SUBSTITUTE, DELETE OR CHANGE ANY PART WITHOUT NOTIFICATION. THE ADDITION OF
OPTIONS MAY ALSO CHANGE SOME OF THE PARTS. ORDER REPLACEMENT PARTS FROM ACTUAL
HEATER COMPONENTS.
FOR DETAILED INSTRUCTIONS, SEE "HOW TO USE YOUR RAYPAK ILLUSTRATED PARTS LIST",
CATALOG NO. 9001.10
Raypak, Inc., 2151 Eastman Avenue, Oxnard, CA 93030
(805) 278-5300 FAX (805) 278-5489
CATALOG NO. 9300.742
Effective: 09-01-08
Replaces: NEW
Litho In U.S.A.
P/N 241345
