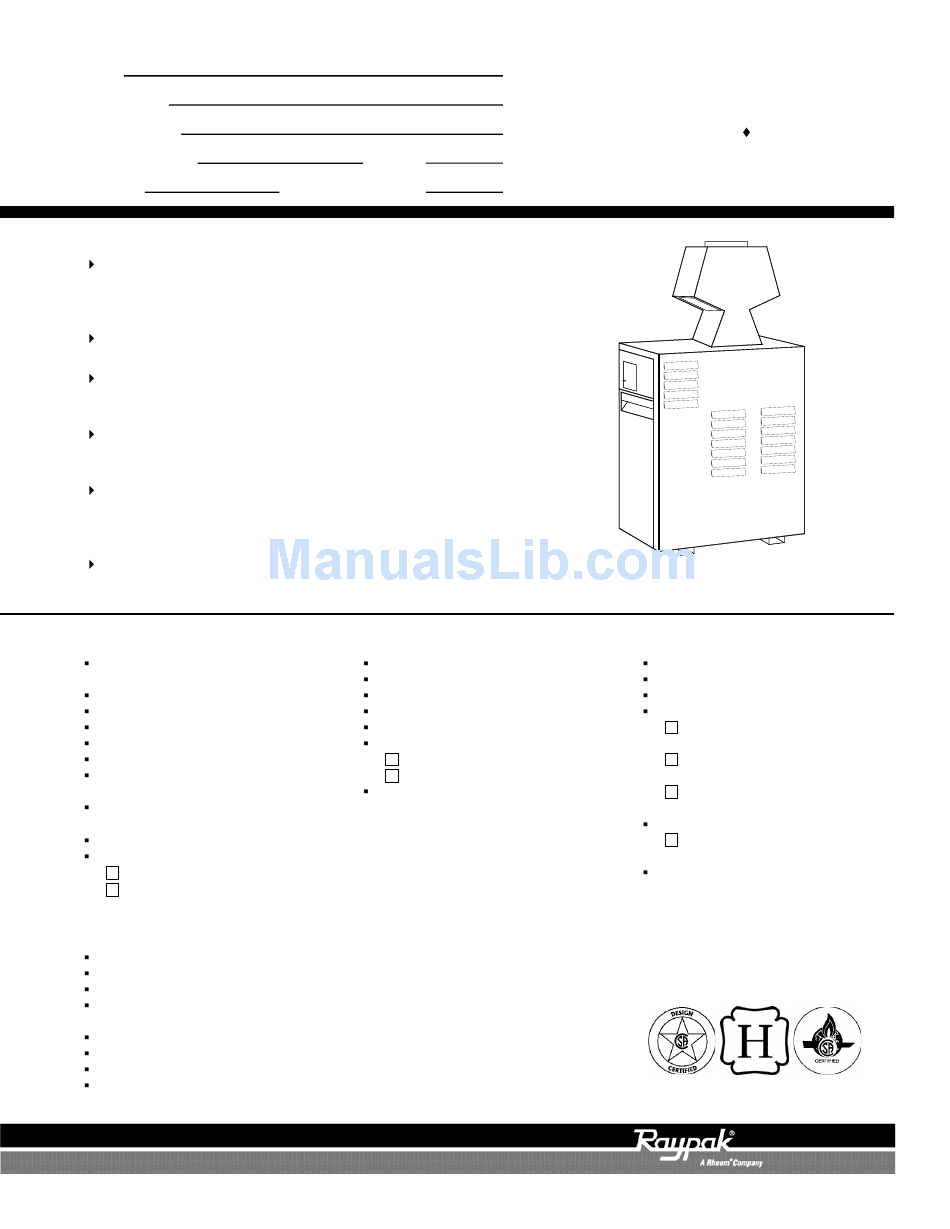

Raypak 133 Specification

Job:
Engineer:
Contractor:
Prepared By:
Model:
EFFICIENT
82% thermal efficiency – highest of any atmospheric
boiler available today
THERMAL SHOCK PROOF
Twenty-year warranty against thermal shock damage
up to 150°F differential
Maximum operating temperature: 230°F
LIGHTWEIGHT
A floor load of 70 lbs./sq. ft. or less
HIGH RECOVERY
Cuts fuel costs substantially because the standby and
radiation losses normal to other boilers are eliminated
LOW WATER OPERATING TEMPERATURE
Operates with water temperature as low as 105°F
without condensing
Heat Exchanger
ASME Inspected and Stamped
160 PSIG
National Board Approved
Glass-lined Cast Iron Headers
Copper Finned Tubing
ASME Steel Tube Sheet
Silicone O-Rings
45 PSIG ASME Pressure Relief
Valve
Temperature and Pressure Gauge,
Shipped Loose
Rear Water Connection
Pump – Optional
Bronze, 1/8 HP, 120 Volt, 1∅, 60 Hz
Cast Iron, 1/8 HP, 120 Volt, 1∅,
60 Hz
Controls
120V, 60Hz, 1 Ph Power Supply
120/24V Transformer
100% Pilot Shut-off/Lockout
Electronic, Intermittent Ignition (IID)
Pilot
High Limit Control - Automatic
On/Off Switch
Operating Limit Control
Economaster II Pump Time Delay
Catalog No.: 2000.20P
Date:
Indoor/Outdoor:
Gas Train
Manual Main Gas Shut-off Cock
Main Gas Pressure Regulator
Redundant Safety Shut-off Valve
Control Valve
Mechanical Modulation (H1)
Fuel
Natural Gas
Propane Gas
Design Certified ANSI Z21.13/
CSA 4.9
Effective: 12-1-07 Replaces: 4-1-05
®
Raytherm
Hydronic Heating Boilers
Residential Commercial
INDOOR MODEL
Construction
Front Controls
Stainless Steel Burners
Polytuf Powder Coat Finish
Vent Selection
Draft Diverter (Indoor) –
Option D-10
Stackless Top (Outdoor) –
Option D-11
High-Wind Top (Outdoor) –
Option D-13
Base – Optional
Combustible Floor Shield –
Option J-1
Vent Damper – Indoor Residential
models only
NOTE: Unit cannot be installed
outdoors in residential applications.
- Type H
Model 133
