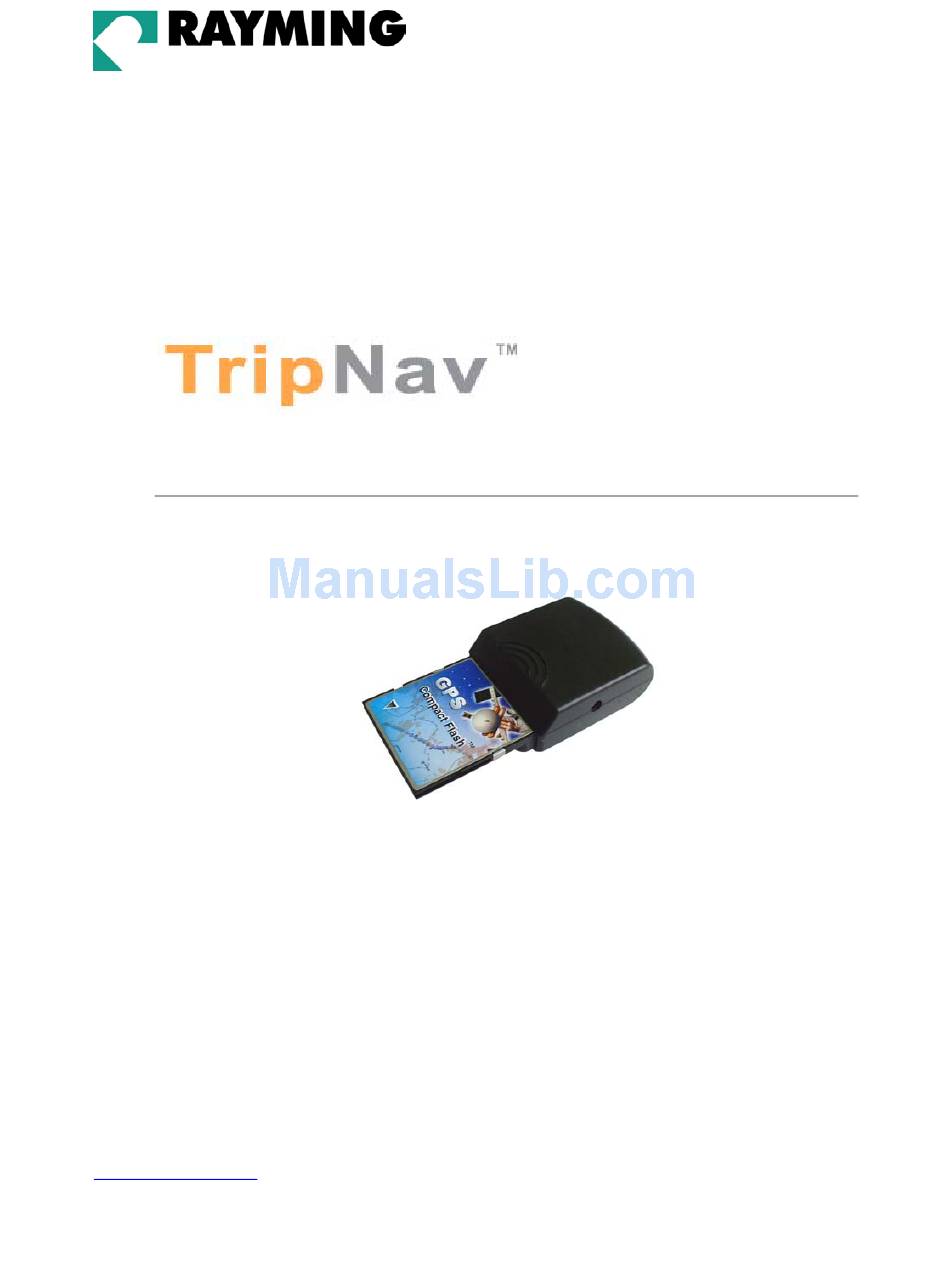

TN-202 User's Guide v1.2
Compact Flash GPS Receiver
©
2003 Rayming Corporation. All rights reserved. The Rayming logo and TripNav are trademarks of Rayming
Corporation. All other trademarks or registered trademarks are acknowledged as the exclusive property of
their respective owners.
All rights reserved. No part of this manual may be reproduced, transmitted, copied, or stored in any storage
medium, for any purpose, without prior written consent from Rayming Corporation. Rayming Corporation hereby
grants the right to download ONE copy of this manual onto a hard drive for personal use. This manual is
copyrighted and contains proprietary information that is subject to change without notice. For more information visit
http://www.rayming.com.
Advertisement
Table of Contents
Related Manuals for Rayming TripNav TN-202
Summary of Contents for Rayming TripNav TN-202
- Page 1 TN-202 User’s Guide v1.2 Compact Flash GPS Receiver © 2003 Rayming Corporation. All rights reserved. The Rayming logo and TripNav are trademarks of Rayming Corporation. All other trademarks or registered trademarks are acknowledged as the exclusive property of their respective owners.
-
Page 2: Table Of Contents
SYSTEM REQUIREMENTS ...3 WELCOME...3 SAFETY AND LEGAL NOTICES...4 1. GETTING STARTED WITH TRIPNAV ...5 2. INSTALLING THE TRIPNAV TN-202 GPS RECEIVER...5 2.1 External Antenna Connector...7 2.2 LED Fix Indicator ...8 3. TESTING YOUR GPS USING YOUR PDA ...9 4. TESTING YOUR GPS WITH YOUR LAPTOP AND THE PCMCIA ADAPTOR ...10 5. -
Page 3: Package Contents
Thank you for purchasing TripNav TN-202 Compact Flash GPS Receiver! TripNav allows real-time street navigation by using your PDA/laptop for graphical plotting and positioning of your route. Simply insert the TN-202 into your PDA, or load the TN-202’s PCMCIA driver into your laptop (if not equipped with a Compact Flash slot). -
Page 4: Safety And Legal Notices
SAFETY AND LEGAL NOTICES Please read this section carefully before using TripNav Rayming Corporation will not accept any responsibility whatsoever for accidents resulting from failure to observe common sense precautions. Your personal judgement, traffic regulations, and common sense must always take precedence over any directions produced by TripNav or... -
Page 5: Getting Started With Tripnav
Compact Flash port as the source of the GPS data). • Your PDA should have a fully charged battery when using the TN-202, in addition to using an 12V PDA charging cable (optional) while in a vehicle to keep the battery voltage constant. - Page 6 NOTE: When using the PCMCIA adapter, please take care to insert the TN-202 GPS receiver into the adapter with the GPS image label on the TN-202 facing upward, as well as the product ID label on the PCMCIA adapter facing upward.
-
Page 7: External Antenna Connector
The TN-202 Compact Flash GPS includes an external port for connecting an active external GPS antenna for maximum reception of GPS signals. Although the TN-202 has a built-in GPS antenna and should perform well as is, you may encounter situations where an external antenna would produce much more favorable results such as when driving downtown among tall buildings, or when the placement of the PDA unit within the vehicle has a limited or obstructed view to the sky. -
Page 8: Led Fix Indicator
2.2 LED Fix Indicator On the left-side of the TN-202 is a small LED, which indicates when the device is initializing a GPS fix and when enough satellites have been received to produce a GPS fix either in 2D or 3D. From your GPS software you should be able to see the signal status of whether you are receiving either 2-D (Latitude and Longitude) or a 3D (Latitude, Longitude and Altitude) fix. -
Page 9: Testing Your Gps Using Your Pda
Run the GPS test program from “Start → Program files” of the PDA. You can then see the results for detecting the COM port that the TN-202 is using and to check the GPS output data. DESCRIPTION OF “GPS INFORMATION” TEST PROGRAM:... -
Page 10: Testing Your Gps With Your Laptop And The Pcmcia Adaptor
Assuming that no mistakes have been made in the configuration process there should be data being displayed in the window, which is confirmation that the communication between the GPS device and the “Hyper Terminal” software is working properly. Image7: GPS satellite info screen PAGE 10 OF 15 TN-202 TN202-UG V1.2... -
Page 11: Initializing Your Gps
GPS to become complete. This may take a few minutes depending on various factors such as the distance of the current coordinates from the last time the GPS receiver was activated, GPS signal strength and surrounding terrain (tall trees and buildings can block the satellite signals). The LED indicator will switch from solid ON to a Flashing mode one a GPS fix has been obtained. - Page 12 Also verify if the COM port was entered in the mapping software correctly. Another possibility is that you may be in an area where there are no GPS signals available. The GPS receiver must have a view to the sky and will not work indoors, or in areas of dense foliage. Move to an open area and place the TripNav receiver in a location that will have a full exposure to the sky.
-
Page 13: Contact Information
Which model GPS receiver you have? • Which model PDA you are using? • Which mapping software are you using and what version? Rayming Corporation 1305 John Reed Court City of Industry, CA 91745 T: 800.278.5179 T: 626.961.6613 F: 626.961.8493 http://www.rayming.com... -
Page 14: Limited Warranty
Corporation, and whether or not Rayming Corporation has notice of the possibility of such damages, and whether or not to circumstances giving rise to such damages may have been within the control of Rayming Corporation. Some states do not allow the exclusion of certain warranties, so some of the above exclusions may not apply to you. -
Page 15: Technical Specifications For Tn-202 Gps Receiver
10. TECHNICAL SPECIFICATIONS FOR TN-202 GPS RECEIVER Electrical Characteristics Interface Frequency Channels Accuracy Position Accuracy Datum Datum Acquisition Rate Hot start Warm start Cold start Reacquisition Protocol GPS output data GPS transfer rate Max. update rate Dynamic Condition Altitude Limit...
