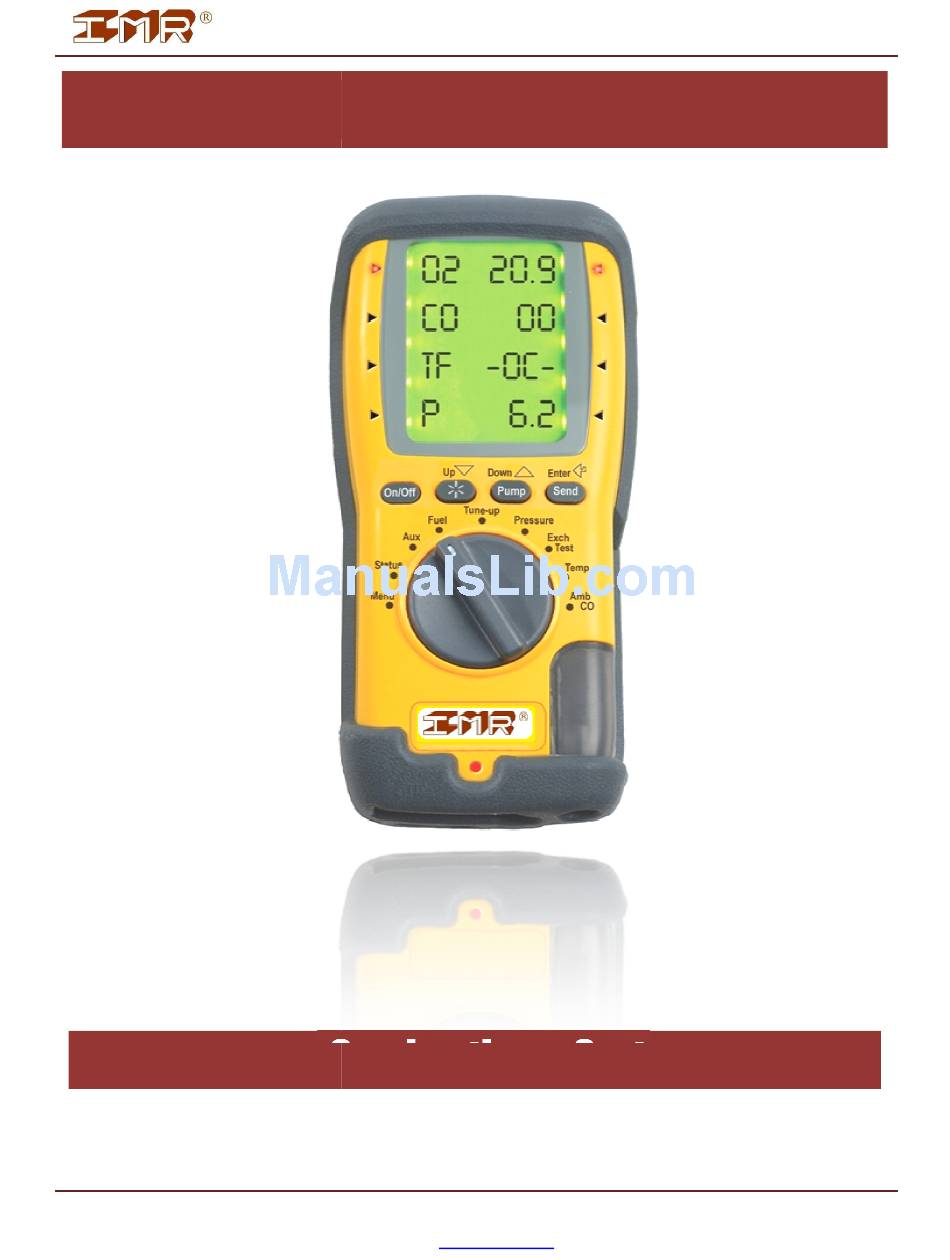

  • Page 1 Extended Life Combustion & System Analyzer System Analyzer www.imrusa.com 3634 Central Ave. St. Petersburg, Fl 33711 * Phone 727 3634 Central Ave. St. Petersburg, Fl 33711 * Phone 727-328-2818 * 800-RING-IMR * Fax 727 IMR * Fax 727-328-2826 Page 1 of 21 Email:...
  • Page 2 IMR 1050X IMR 1050X Overview www.imrusa.com 3634 Central Ave. St. Petersburg, Fl 33711 * Phone 727 3634 Central Ave. St. Petersburg, Fl 33711 * Phone 727-328-2818 * 800-RING-IMR * Fax 727 IMR * Fax 727-328-2826 Page 2 of 21 Email:...

  • Page 3: Getting Started

    30 to switch off. If you pressed “On/Off“ by mistake, pressing “Send“ will return you to normal operation. www.imrusa.com 3634 Central Ave. St. Petersburg, Fl 33711 * Phone 727-328-2818 * 800-RING-IMR * Fax 727-328-2826 Page 3 of 21 Email:...

  • Page 4: Post Flight

    (4) Drain water trap by unplugging the drain plug and shake to get excess water out. (5) Check particle filter for dirt and any other sediment and replace if necessary. www.imrusa.com 3634 Central Ave. St. Petersburg, Fl 33711 * Phone 727-328-2818 * 800-RING-IMR * Fax 727-328-2826 Page 4 of 21 Email:...
  • Page 5 Make sure Analyzer is in fresh air and press ENTER. Analyzer will then Zero. This takes 90 seconds BASIC CO/COMBUSTION ANALYSIS www.imrusa.com 3634 Central Ave. St. Petersburg, Fl 33711 * Phone 727-328-2818 * 800-RING-IMR * Fax 727-328-2826 Page 5 of 21 Email: info@imrusa.com...

  • Page 6: Differential Temperature Test

    4. Place true draft hose and probe tip in flue to measure draft. You can also use the combustion draft probe for measuring pressure. Press “SEND” to print results or hold “SEND” to Log. www.imrusa.com 3634 Central Ave. St. Petersburg, Fl 33711 * Phone 727-328-2818 * 800-RING-IMR * Fax 727-328-2826 Page 6 of 21 Email: info@imrusa.com...

  • Page 7: Printing And Storing Results

    A breach in the heat exchanger may allow fresh air to be forced into the flue after the blower www.imrusa.com 3634 Central Ave. St. Petersburg, Fl 33711 * Phone 727-328-2818 * 800-RING-IMR * Fax 727-328-2826 Page 7 of 21 Email: info@imrusa.com...
  • Page 8 Rotate selector to “AUX” to view. Pressure is now shown in line 1 along with T1, T2 and Differential/ delta www.imrusa.com 3634 Central Ave. St. Petersburg, Fl 33711 * Phone 727-328-2818 * 800-RING-IMR * Fax 727-328-2826 Page 8 of 21 Email: info@imrusa.com...
  • Page 9 Environmental Equipment, Inc. IMR 1050X Main Menu Navigation www.imrusa.com 3634 Central Ave. St. Petersburg, Fl 33711 * Phone 727-328-2818 * 800-RING-IMR * Fax 727-328-2826 Page 9 of 21 Email: info@imrusa.com...
  • Page 10 NOTE: Follow manufacturer guidelines for the specific equipment being serviced. Typical Excess Air Level O2% (measured) Excess Air % Natural gas 16.7% Light Oil Coal www.imrusa.com 3634 Central Ave. St. Petersburg, Fl 33711 * Phone 727-328-2818 * 800-RING-IMR * Fax 727-328-2826 Page 10 of 21 Email: info@imrusa.com...
  • Page 11 Boiler & Water Heaters & High Efficiency Modulating Hot Water Systems Furnaces: 80% Furnaces: 90% Furnaces (Continued): Atmospheric , Gas & Oil www.imrusa.com 3634 Central Ave. St. Petersburg, Fl 33711 * Phone 727-328-2818 * 800-RING-IMR * Fax 727-328-2826 Page 11 of 21 Email: info@imrusa.com...
  • Page 12 Environmental Equipment, Inc. IMR 1050X www.imrusa.com 3634 Central Ave. St. Petersburg, Fl 33711 * Phone 727-328-2818 * 800-RING-IMR * Fax 727-328-2826 Page 12 of 21 Email: info@imrusa.com...

  • Page 13: Other Important Factors Related To Combustion

    As an example you would measure the CO2 level and the stack temperature and then reference a slide scale that would give you the relative efficiency number. IMR’s electronic combustion analyzers perform the measurements on a continuous basis, and can calculate the efficiency as adjustments are being made. Combine this with a printout and you are able to provide a before and after comparison of the combustion equipment in relatively little time as part of normal servicing.
  • Page 14 Losses due to combustible matter in ashes, riddling, dust and grit, radiation, convection and conduction are not included. www.imrusa.com 3634 Central Ave. St. Petersburg, Fl 33711 * Phone 727-328-2818 * 800-RING-IMR * Fax 727-328-2826 Page 14 of 21 Email:...
  • Page 15 Environmental Equipment, Inc. IMR 1050X Combustion Efficiency Calculations (Cont’d) www.imrusa.com 3634 Central Ave. St. Petersburg, Fl 33711 * Phone 727-328-2818 * 800-RING-IMR * Fax 727-328-2826 Page 15 of 21 Email: info@imrusa.com...

  • Page 16: General Maintenance

    Ensure plug is replaced before performing combustion tests. Note: O2 reading will be high if the Water Trap Plug is not in place. www.imrusa.com 3634 Central Ave. St. Petersburg, Fl 33711 * Phone 727-328-2818 * 800-RING-IMR * Fax 727-328-2826 Page 16 of 21 Email: info@imrusa.com...

  • Page 17: Battery Replacement

    Under NO circumstance should you expose batteries to extreme heat or fire as they may explode and cause injury. Always dispose of old batteries promptly in a manner consistent with local disposal regulations. www.imrusa.com 3634 Central Ave. St. Petersburg, Fl 33711 * Phone 727-328-2818 * 800-RING-IMR * Fax 727-328-2826 Page 17 of 21 Email: info@imrusa.com...

  • Page 18: Electromagnetic Compatibility (Emc)

    At the time of writing this manual (July 2009) IMR is not aware of any field based situation where such interference has ever occurred and this advice is only given to satisfy the requirements of the Directive.
  • Page 19 Environmental Equipment, Inc. IMR 1050X IMR 1050X Specifications www.imrusa.com 3634 Central Ave. St. Petersburg, Fl 33711 * Phone 727-328-2818 * 800-RING-IMR * Fax 727-328-2826 Page 19 of 21 Email: info@imrusa.com...

  • Page 20: Warranty

    3. The IMR® warranty shall refer to absence of faults with respect to the state of the art nature of the sold unit in terms of material and finish. The warranty for all parts fitted during the twelve-month warranty period shall end with the unit warranty.
