OPERATION, MAINTENANCE AND INSTALLATION INSTRUCTIONS
THE FOLLOWING ARE CAUTIONARY STATEMENTS THAT MUST BE READ AND
FOLLOWED DURING BOTH INSTALLATION AND OPERATION.
WARNING:
Raritan Engineering Company, Inc. recommends that a qualified person or electrician install this
product. Equipment damage, injury to personnel or death could result from improper installation.
Raritan Engineering Company, Inc. accepts no responsibility or liability for damage to equipment,
injury or death to personnel that may result from improper installation or operation of this product.
WARNING:
HAZARD OF SHOCK OR FIRE
Always use recommended fuse, circuit breaker and wire size.
Motors used with this product are "Ignition Protected". They are not however, explosion-
proof as defined in 46CFR 110.15-65(e), Subchapter J-Electrical Engineering.
DO NOT run continuously for more than 30 seconds.
WARNING:
HAZARD OF FLOODING - Always shut off seacock(s) before leaving the boat unattended.
Double clamp all below waterline hose fittings and check frequently for integrity.
Pressurized
Freshwater Model
The SeaEra toilet is a powerful centrifugal macerating toilet that thoroughly breaks down waste.
1-800-352-5630
www.raritaneng. com

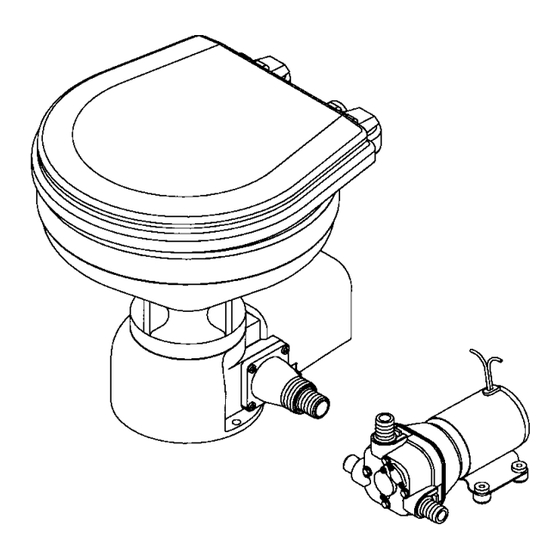

SeaEra Toilet
Sea Water Model
(Remote Pump)
Sea Water Model
(Integral Pump)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Raritan SeaEra Toilets
Summary of Contents for Raritan SeaEra Toilets
- Page 1 FOLLOWED DURING BOTH INSTALLATION AND OPERATION. WARNING: Raritan Engineering Company, Inc. recommends that a qualified person or electrician install this product. Equipment damage, injury to personnel or death could result from improper installation. Raritan Engineering Company, Inc. accepts no responsibility or liability for damage to equipment, injury or death to personnel that may result from improper installation or operation of this product.
- Page 2 Press push-button switch and hold until all waste is cleared from the toilet bowl. • No special toilet paper is required. • Water should appear in the bowl within ten seconds. If not, see troubleshooting section. • Hard objects or stringy substances (paper towels, feminine hygiene products, filter cigarettes, etc.) must not be thrown into the toilet as they will cause damage.
- Page 3 These may cause damage to the toilet. Using C.P. a bio-enzymatic toilet bowl cleaner (available from Raritan Engineering) will keep the bowl clean and fresh smelling. Recommend Visual Inspection For leaks at toilet and hose connections...
- Page 4 IMPORTANT • Improper winter lay up is a major cause of marine toilet failure. • Use only nontoxic antifreeze. • Flush toilet several times to clear waste from system. • Dispose of all antifreeze in accordance with local and federal regulations. •...
-
Page 5: System Start-Up
Integral and Remote Intake Pump Models Parts Required 3/4" (19mm) I.D. intake hose approximately 3 feet (1m) long. 1" (25mm) or 1 1/2" (38mm) I.D. discharge hose approximately 3 feet (1m) long. Two buckets Nontoxic antifreeze approximately 1 quart (1 liter) Steps 1. - Page 6 Pressurized Freshwater or Remote Sea Water Model 19 3/4" (52.1cm) Household 17 1/2" (44.5cm) Marine 14 7/8" (37.8cm) Household 14 1/2" (36.8cm) Marine Plumbing n i l NOTES: for Wiring i n i s t i Sea Water Model - Recommended Wire and Fuse/Circuit Breaker Size Pressurized Freshwater Model - Recommended Wire and Fuse/Circuit Breaker Size Integral Sea Water Model 14 3/8"...
- Page 7 Parts Included All Complete Toilets Toilet Bowl Seat and Cover Lower Base Assembly Motor Cover Push Button Switch Sea Water Model 3/4" Hose Barb - straight fitting (2) 3/4" Hose Barb - 90° fitting Plug Fitting In-Line Strainer with fittings 3/4"...
- Page 8 90° Rotation of Toilet Bowl Toilet bowl can be rotated 90° on the base, for installing in confined locations. NOTE: SeaEra Models with Integral Pump: Replace existing hose from the intake pump to the toilet bowl with a longer hose. 1.
- Page 9 Mounting Water Solenoid Valve (Pressurized Freshwater Models Only) 1. Locate valve on a solid flat surface in an area that is dry and well ventilated. 2. Mark and drill holes for water solenoid mounting bracket. NOTE: Hole size will depend on type of bolts/screws used (1/4"...
- Page 10 PLUMBING WARNING: Hazard of Flooding Toilets mounted at or below the waterline must have a vented loop installed in the discharge line. The top of the vented loop must be a minimum of 4" (10cm) above the waterline at the boats greatest angle of heel (see vented loop manufacturer’s instructions).
- Page 11 Intake Lines Pressurized Freshwater Models Install a shut off valve in intake line before water solenoid valve. 1. Connect hose from shut off valve to inlet port of water solenoid valve. NOTE: To avoid malfunction of water solenoid due to debris in water, installation of Freshwater Strainer (190601) is recommended.
- Page 12 WIRING WARNING: Hazard of Shock and Fire • Always use proper wire, wire connectors and fuse/circuit breaker. See Specification Chart. • Secure wire properly. • Do not connect appliances to toilet circuit. • Make sure power is off before proceeding. •...
-
Page 13: Troubleshooting
WARNING: HAZARD OF ELECTRIC SHOCK - Before beginning any work on the SeaEra, be sure that all power to the unit has been turned off. WARNING: HAZARD OF FLOODING - Make sure seacocks are in the CLOSED or OFF position before working on toilet. - Page 14 Part No. Description 1108A Macerator Nut 1222AW 90° Discharge Fitting 1226 Mounting Screw (4) 1226B 1/4-20 Hex Nut (4) 1234 Bowl Gasket 1236AW Bowl Spud Assembly 1236E Bowl Elbow 1237 Marine-size Bowl 1244 Household-style Bowl 1610* Motor 161105 Base 161107 Seal Plate O-Ring 161110 Seal Plate...
- Page 15 1244 or 1237 VCAP 1226B 1234 CH38 161105 C254 161130 161125 F164 F005 162325A F020 162305 162320 162310 162300W 162315 190601 - Recommended for use with Freshwater Solenoid (Not Included) SeaEra Exploded Parts View 1236AW 1236E 161135 or 161140 161107 1108A 161123 M23A...
- Page 16 Raritan Engineering Company warrants to the original purchaser that this product is free of defects in materials or workmanship for a period of one year from the product’s date of purchase. Should this product prove defective by reason of improper workmanship and/or materials within the warranty period, Raritan shall, at its sole option, repair or replace the product.
