Raritan SW2-USB Quick Installation And Setup Manual

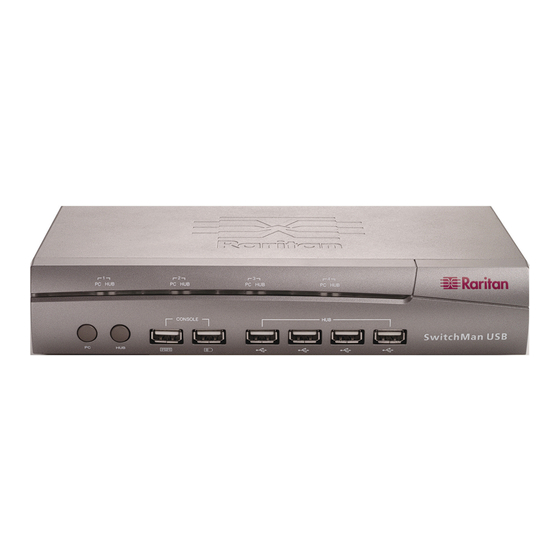

SwitchMan USB (SW2-USB, SW4-USB)
Your SwitchMan USB shipment includes: (1) SwitchMan USB unit (either the SW2-USB 2-switch unit or the SW4-USB
4-switch unit), (1) SwitchMan Stand, (1) Power Adapter, (2) CSWUSB18 USB cables, (1) printed Quick Installation and
Setup Guide, and Registration and Warranty papers. Please contact Raritan right away at (732) 764-8886 between
8:00 a.m. and 8:00 p.m. Eastern (or call your local Raritan office) and ask for Customer Service if you do not receive all
of these items.
I. SwitchMan Features and Benefits
Features: - Control two or four USB computers, depending on
model, and multiple USB peripheral devices from one
- Compliant with USB 2.0 specifications - delivers up to
USB console
480Mbps and supports USB hot Plug and Play
- Switch from port to port easily using Hot keys or easy-
- Supports Microsoft Intellimouse 3 ~ 5 Key Mouse and
to-use push buttons
Microsoft Natural Keyboard Pro series
- Asynchronously switch between USB computers and
- LED display for easy status monitoring
multiple USB peripheral devices using Hot Keys and
- Supports high resolution video up to 1920X1440@75Hz
Push Buttons
- Supports VGA, SVGA and Multisync monitors
- AutoScan for fast monitoring of computers
- Easy installation - no software
- Firmware Flash Updates via the Internet
- Works with Windows 2000, XP, Vista and MAC
- Audio buzzer with lock-on / off function
- Supports audio (speaker/microphone) for multi-media
applications
Benefits:
II. Overview and Specifications
Hot Keys: Hot Key combinations Audio port selection.
allow you to use designated key
commands to switch computers,
LED Display: Front panel PC and
connected USB devices, and micro-
HUB LEDs allow for easy status
phone/speaker. Control multiple
monitoring.
computers using a simple Hot Key
sequence on your keyboard.
Flash Upgrades: The upgrade abil-
ity allows you to obtain the latest
AutoScan: The AutoScan function
firmware upgrades for your KVM
allows you to automatically scan and
Switch. These upgrades allow con-
monitor all computers that are con-
stant compatibility with the latest
nected to your KVM Switch.
devices and computers. Please con-
tact your dealer or Raritan Technical
F r o n t - P a n e l P C a n d H u b Support for the upgrade procedure
Selectors: Push buttons conve- and cable.
niently located on the front face of
the KVM Switch, which allow for
Specifications
simple, manual PC, USB Hub, and
Dimensions:
III. Installation
Important: Before beginning installation, power OFF all devices and ensure that all devices are properly grounded. Failure to do so may result in dam-
age to computers and/or to the SwitchMan unit. Note: Avoid placing cables near machines such as fluorescent lighting, air conditioning equipment, etc,
that create electrical noise. For USB computers: USB signals are the strongest when transmitted up to 15 feet (4.5m) between the KVM and the CPU.
Beyond 15 feet (4.5m), probability of signal degradation can occur, causing the device to fail.

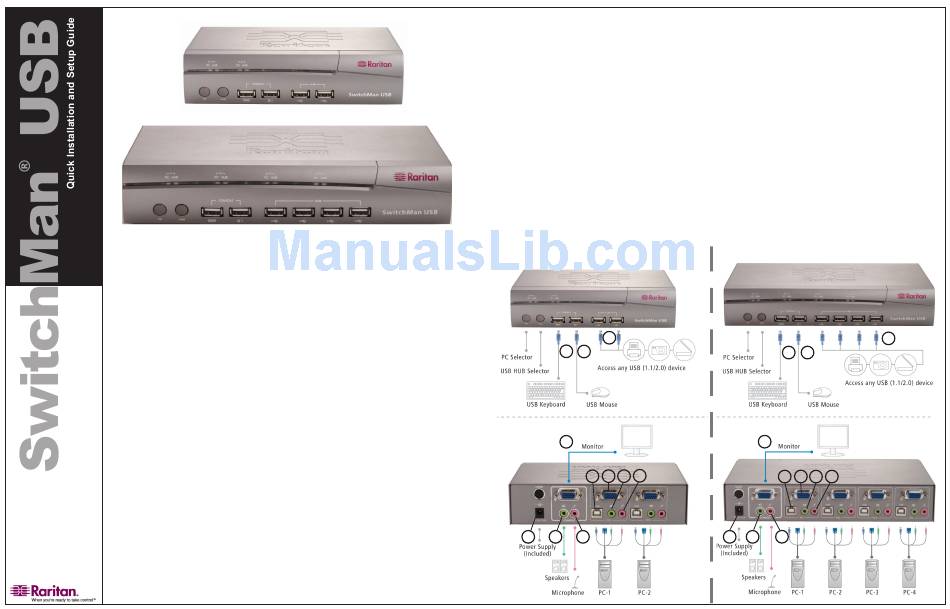

Connecting the Console
These step numbers correspond with the dia-
gram numbers, below.
Please power OFF all computers before you
start.
1. Connect your USB keyboard and mouse
SW2-USB
directly to the USB keyboard and mouse con-
sole ports on the front panel of the SwitchMan
unit.
2. Connect the male VGA connector (HDDB-15
pin) from your monitor to the console VGA port
on the rear panel of the SwitchMan unit.
3. If using speakers, connect the male 3.5mm
plug to the SPEAKER (green) port on the rear
panel of the SwitchMan unit.
4. If using a microphone, connect the male
3.5mm plug to the MIC (pink) port on the rear
panel of the SwitchMan unit.
Connecting the Computers
SW4-USB 5. Connect the B-type USB connector plug
of one of the provided cables to the PC1 USB
SW2-USB Installation
SW2-USB unit
7.24" (W) x 4.84" (D) x 1.73" (H)
184mm (W) x 123mm (D) x 45mm (H)
SW4-USB unit
9.25" (W) x 5.54" (D) x 1.73" (H)
235mm (W) x 142mm (D) x 45mm (H)
Weight:
SW2-USB: 1.58 lbs (0.72 kg)
SW4-USB: 2.33 lbs (1.05 kg)
10
Operating Temp:
32° to 104° F (0° to 40° C)
Storage Temp:
-4° to 140° F (-20° to 60° C)
Humidity:
0-80% RH, non-condensing
To view this guide in other languages, please visit www.raritan.com and select your nearest international Raritan site
port on the rear panel of the SwitchMan unit.
Connect the other end of the cable (the USB
A-type connector plug) to an available port on
your USB computer or to a USB hub that is
attached to your computer.
6. Connect the VGA plug of the provided
cable to the monitor port in the PC1 area on
the rear panel of the SwitchMan unit. Plug the
other end into the video port on your computer.
7. Connect the speaker plug of the same
cable to the speaker port in the PC1 area panel
on the rear panel of the SwitchMan unit. Plug
the speaker plug at the other end of the cable
into the speaker port on your computer.
8. Connect the MIC plug of the same cable
to the microphone port in the PC1 area on the
rear panel of the SwitchMan unit. Plug the MIC
plug at the other end of the cable into the MIC
port on your computer.
9. Repeat steps 6-9, connecting the remaining
ports of on the rear panel of the SwitchMan unit
to the ports of your computers.
10. Plug the included power adapter into an AC
12
1 1
2
6 7 8
5
3 4 10
power source, and then plug the power adapter
cable into DC port on the rear panel of the
SwitchMan unit.
11. Power ON your computers. Your operating
system should recognize the SwitchMan KVM
switch and automatically install the HID USB
driver if it is not already installed on your com-
puter.
Connecting USB Peripheral Devices
12. Connect USB devices such as printers,
cameras, etc., to the HUB ports on the front
panel of the SwitchMan unit.
Notes:
> SwitchMan's default link is to the first
computer powered ON in the installation.
> You may have to enable USB support on
your system BIOS for full support. Please
refer to your computer's user guide or your
motherboard user guide for further details
on how to enable USB support.
SW4-USB Installation
12
1 1
2
5 6 7 8
3 4
Rev. D December 2007 255-00-2010-00
