Hospira Sapphire Quick Start Manual

Multi-therapy pump for homecare patients
Hide thumbs Also See for Sapphire:
Table of Contents

Advertisement

Quick Links

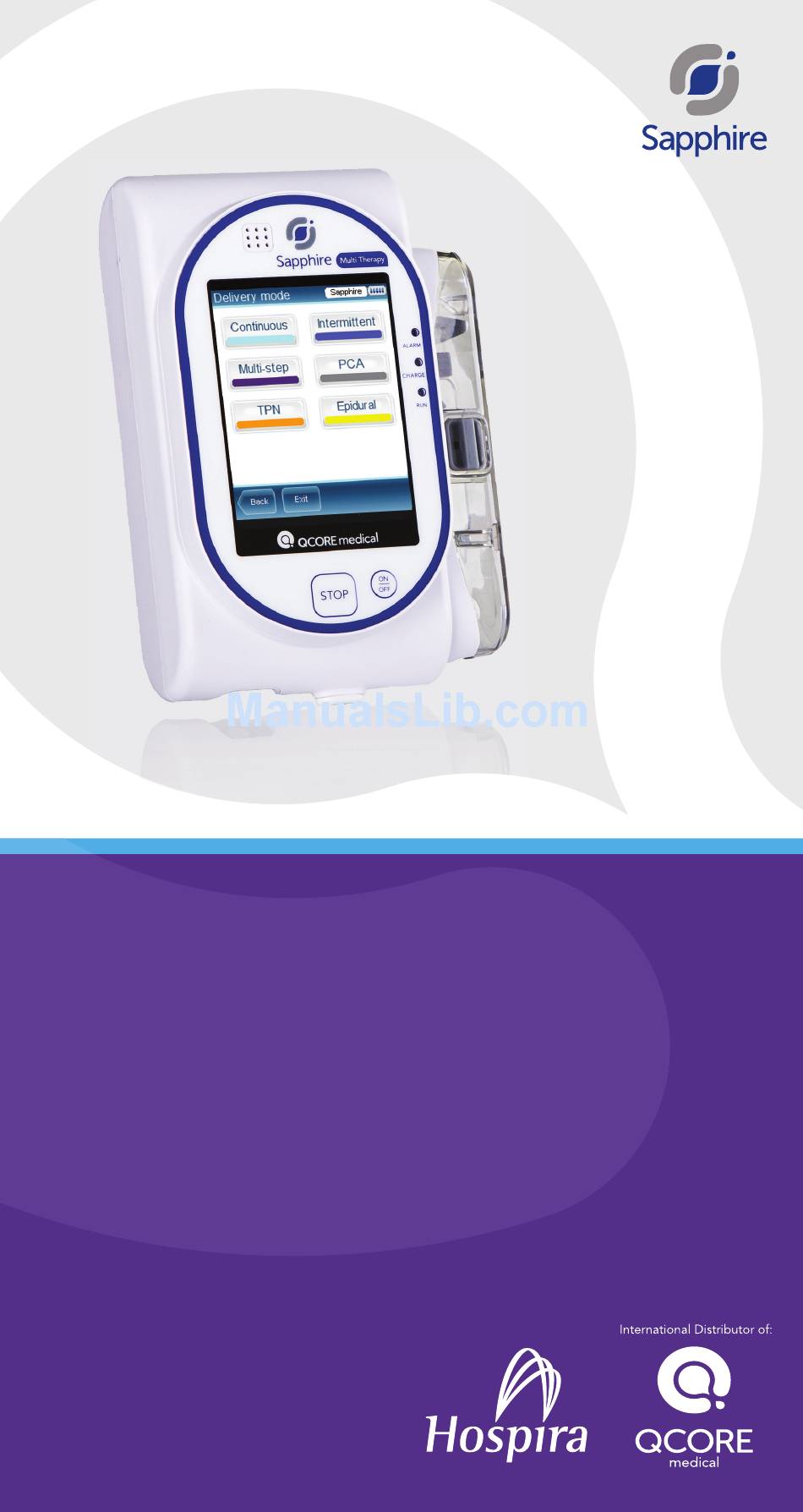

SAPPHIRE
MULTI-THERAPY
PUMP
QUICK START GUIDE
FOR HOMECARE PATIENTS
Please refer to the Sapphire User
Manual for additional information.
This advisory document does not replace the
offi cial instruction for use.
Read the User Manual and any instructions
accompanying disposables or accessories
before operating the Sapphire pump

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sapphire and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hospira Sapphire

Summary of Contents for Hospira Sapphire

  • Page 1 SAPPHIRE MULTI-THERAPY PUMP QUICK START GUIDE FOR HOMECARE PATIENTS Please refer to the Sapphire User Manual for additional information. This advisory document does not replace the offi cial instruction for use. Read the User Manual and any instructions accompanying disposables or accessories...

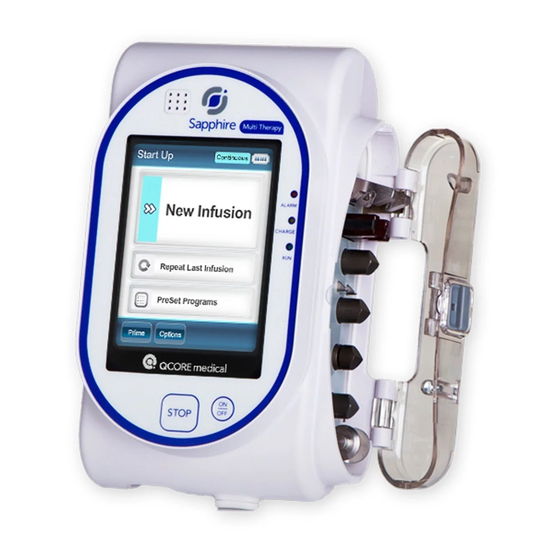

  • Page 2 SAPPHIRE LAYOUT Color Touch Safety Speaker Screen Door Flashing Light Alarm is Activated. Flashing Yellow Light Charging battery. Full Yellow Light Battery is fully charged. Flashing Green Light Pump is running. ON/OFF Button Power STOP Socket/ Button Bolus Cord Socket...
  • Page 3 TURN ON PUMP Turn on the pump by pressing the ON/OFF hard key, in the lower right corner of the pump. If auditory and/or visual signals do not perform according to settings, or if the hard keys do not perform as expected, do not use the pump and contact your infusion provider.
  • Page 4 Close the safety door and ensure that the safety door clicks upon closure. Sets are single use. Use Aseptic technique. Only use administration sets designated (or designed) for the Sapphire pump.
  • Page 5 PRIME THE CASSETTE USING THE PUMP Before priming, verify that the Administration set is disconnected from the patient. Verify that the administration set is disconnected from the patient. From the toolbar of the Start Up screen, press PRIME. From the Attention screen displayed next, press OK.
  • Page 6 STARTING AN INFUSION WITH PRESET PROGRAMS From the Start Up screen select PreSet Programs. Select the row of the desired program. Review the parameters that are displayed, then press OK. From the Start screen, press Start. If no PreSet infusion parameters have been programmed for the current infusion mode, a blank screen appears.
  • Page 7 TO PAUSE/RESUME AN INFUSION To pause an infusion using the PAUSE function key: From the toolbar, press PAUSE, then select OK. After 30 seconds an attention screen will appear and an auditory alarm will sound. Select OK. To resume an infusion: From the toolbar, select CONTINUE.
  • Page 8 TO REMOVE CASSETTE When the infusion is complete, disconnect the administration set from the patient, close the clamps and disconnect the administration cassette by raising the metal lock that secures it to the pump. TURN OFF PUMP To turn pump off, press and hold the ON/OFF key for fi ve seconds.

  • Page 9: Charging The Battery

    To charge the battery: With the white arrows facing up, plug the plastic end of the power supply cord into the Sapphire pump power socket. Plug the other end of the power supply cord into a wall outlet.
  • Page 10 Make sure there is no leakage from the container, and that the spike is firmly attached to the container. International Distributor of: Some content redacted by HomeMed 2850 S. Industrial Hwy Suite 50 Ann Arbor, MI 48104 800-862-2731 15025-050-0032-TRG Hospira Worldwide, Inc., 275 North Field Drive, Lake Forest, IL 60045 CS04-0004-0314...
