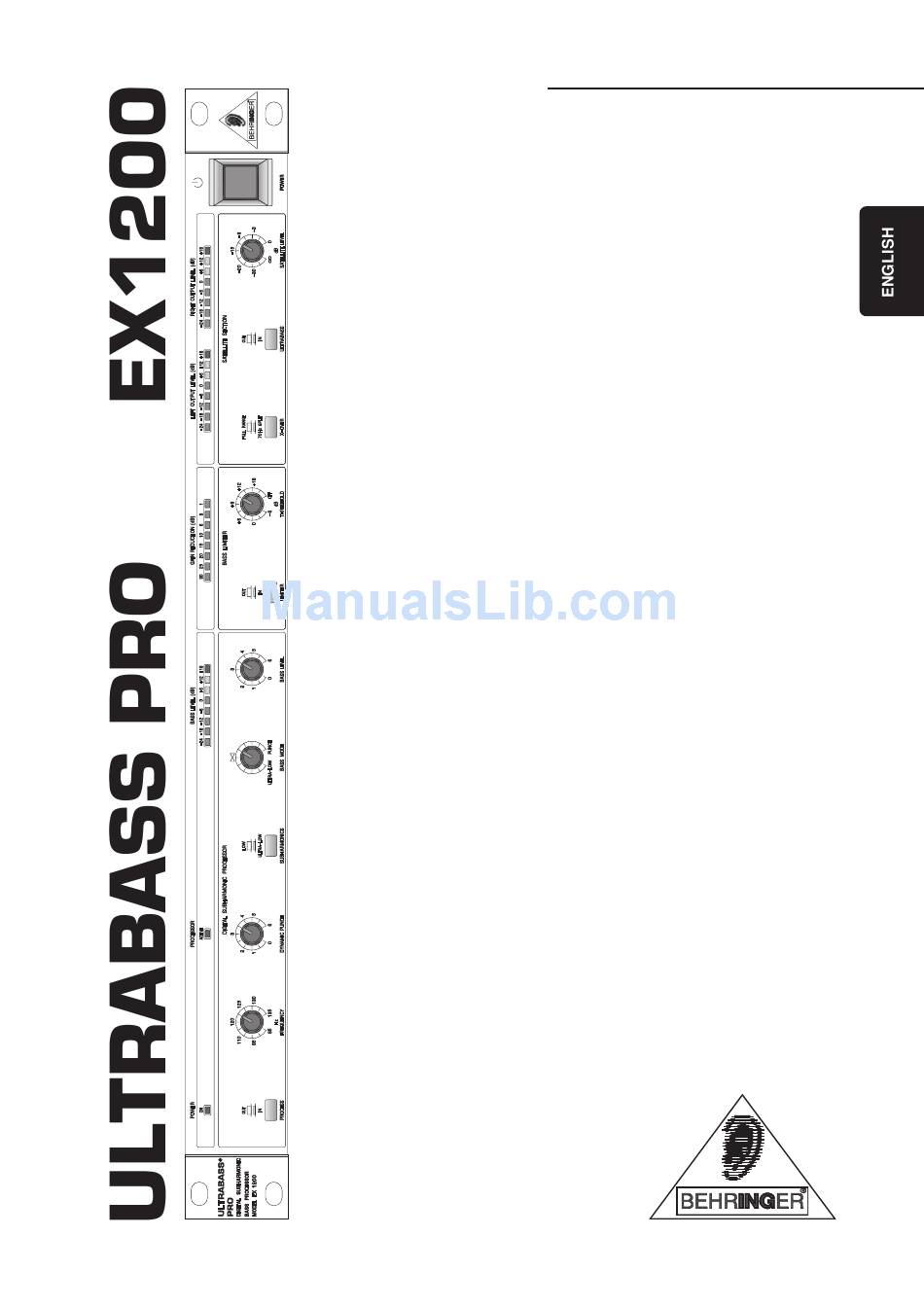

- Page 1 User’s Manual Version 1.1 April 2001 www.behringer.com...
-
Page 2: Safety Instructions
The user should not attempt to service the appliance beyond that which is described in the operating instruc- tions. All other servicing should be referred to qualified service personnel. ULTRABASS PRO EX1200 This symbol, wherever it appears, alerts you to important operating and mainte- nance instructions in the accompanying literature. - Page 3 Welcome to the team of ULTRABASS PRO users and thank you very much for expressing your confidence in BEHRINGER products by purchasing the EX1200. It is one of my most pleasant tasks to write this letter to you, because it is the culmination of many months of hard work delivered by our engineering team to reach a very ambitious goal: making an outstanding device that will become a standard tool used by studios and PA companies.
- Page 4 ULTRABASS PRO EX1200 s Digital subharmonic synthesizer adds unbelievable bass power to your sound system s Perfect for discotheques, dance clubs, cinemas, theatres, sport & aerobic studios and your Hi-Fi system s Digital synthesis based on waveform analysis generates ultra-low frequencies for driving subwoofers...
-
Page 5: Table Of Contents
2.4 The ULTRABASS PRO in a Hi-Fi System ... 12 3. TECHNICAL BACKGROUND ... 13 3.1 The Integrated Frequency Crossover ... 13 3.2 The Integrated Limiter... 13 4. INSTALLATION ... 14 4.1 Audio Connections ... 14 5. SPECIFICATIONS ... 15 6. WARRANTY ... 16 ULTRABASS PRO EX1200... -
Page 6: Introduction
You can perfectly limit the levels of bass generated by the EX1200 and the resulting maximum displacement of the loudspeaker diaphragm, to fit the size and power rating of the system. -
Page 7: Control Elements
The ULTRABASS PRO is designed as a stereo processor and is therefore not suited to process two different signals. The front of the ULTRABASS PRO is divided in three sections, each with its own function. ULTRABASS PRO EX1200 Fig. 1.1: The ULTRABASS PRO... -
Page 8: Front Panel
The normal signal is not limited! To prevent damage to your speakers the same safety margin with respect to the output level should be observed as with normal operation without the ULTRABASS PRO. ULTRABASS PRO EX1200 Fig. 1.2: ULTRABASS PRO front panel 1. INTRODUCTION... -
Page 9: Rear Panel
14 days after the date of purchase, so as to be entitled to benefit from our extended warranty. AUDIO IN. These are the audio inputs of the ULTRABASS PRO. Available on either balanced or unbalanced TRS jacks or XLRs. ULTRABASS PRO EX1200 1. INTRODUCTION... -
Page 10: Applications
It thereby also governs the highest frequency reproduced by the subwoofer if one is attached. Generally speaking, the setting of the FREQUENCY and DYNAMIC PUNCH controls is ULTRABASS PRO EX1200 Control Position... -
Page 11: Systems With Subwoofer
The crossover is used to split up the remaining frequency bands even further, and can be omitted in less complex systems using passive crossovers. ULTRABASS PRO EX1200 2. APPLICATIONS... -
Page 12: The Ultrabass Pro In A Hi-Fi System
ULTRABASS PRO EX1200 Fig. 2.3: The ULTRABASS PRO in a satellite system 2.4 The ULTRABASS PRO in a Hi-Fi System The following illustration shows how the ULTRABASS PRO is connected to your hi-fi stereo system. If possible, insert the unit into the “tape monitor” path, which allows for controlling the sound of all signal sources connected to the inputs of the amplifier. -
Page 13: The Integrated Limiter
Please ensure that only qualified persons install and operate the ULTRABASS PRO. During installation and operation the user must have sufficient electrical contact to earth. Electro- static charges might affect the operation of the ULTRABASS PRO! You will find further information in chapter 1.2 “Before you begin”. ULTRABASS PRO EX1200 4. INSTALLATION... - Page 14 1/4" jack plugs Tip = Signal Sleeve = Ground / Shield Sleeve Strain relief clamp Input ULTRABASS PRO EX1200 Balanced use of stereo 1/4" jack plugs Tip = hot (+ve) Ring = cold (-ve) Sleeve = Ground / Shield...
-
Page 15: Specifications
BEHRINGER is constantly striving to maintain the highest professional standards. As a result of these efforts, modifications may be made from time to time to existing products without prior notice. Specifications and appearance may differ from those listed or shown. ULTRABASS PRO EX1200 XLR and 1/4" TRS RF filtered, servo balanced input... -
Page 16: Warranty
BEHRINGER Spezielle Studiotechnik GmbH, Hanns-Martin-Schleyer-Str. 36-38, 47877 Willich-Münchheide II, Germany Tel. +49 (0) 21 54 / 92 06-0, Fax +49 (0) 21 54 / 92 06-30 ULTRABASS PRO EX1200 3. Free inspections and maintenance/repair work are expressly excluded from this warranty, in particular, if caused by improper handling of the product by the user.
