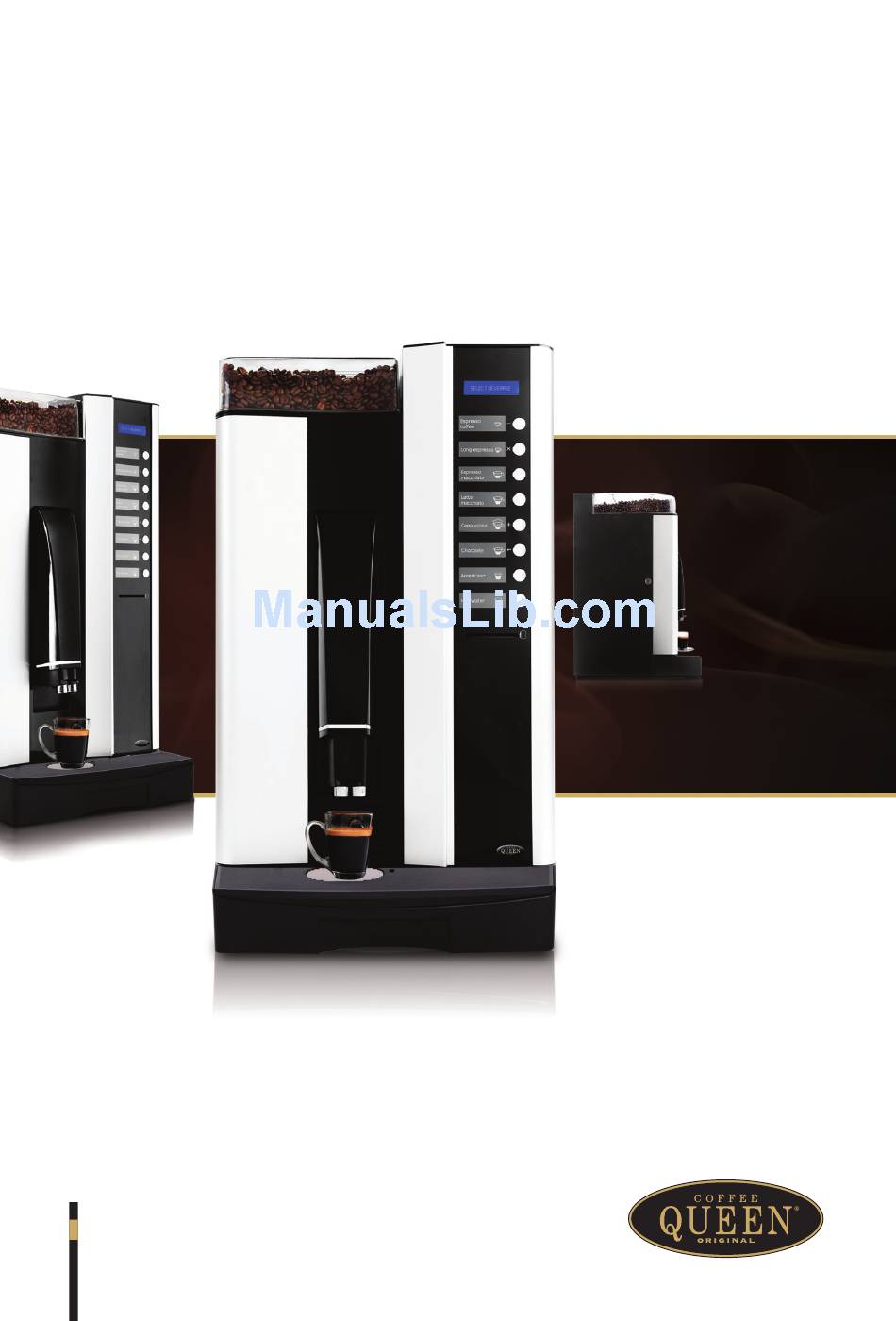

- Page 1 BRILLIANCE 3.0 USER MANUAL UM_EN Part No.: 1704041_06...
-
Page 2: Table Of Contents
Removing the coffee waste tray .............................23 Removing the drip tray ..............................23 Cleaning outside and inside of the machine ........................23 MESSAGE SHOWN ON DISPLAY .......................24 Temporary warnings messages ............................24 Alarms ....................................25 What to do if ..................................26 DIMENSION SKETCH ............................27 Brilliance 3.0 ..................................27... -
Page 3: Symbol Description
SYMBOL DESCRIPTION BRILLIANCE 3.0 Hazard intensity levels There are three different levels of hazard intensity, identified by signal words DANGER, WARNING and IMPORTANT. The level of hazard is determined by the following definitions. Observe the statements to ensure safety, performance, prevent injury and machine damage. -
Page 4: General
GENERAL BRILLIANCE 3.0 Introduction Thank you for choosing a BRILLIANCE 3.0 vending machine. We hope you enjoy it ! Read the user guide before using the machine. Always keep this guide close at hand for future This guide contains important instructions for reference. -
Page 5: Facts & Weight
GENERAL BRILLIANCE 3.0 Facts & weight FACTS VIBRATION PUMP 2.0 ROTARY PUMP (RP) Built-in grinder Function for selecting jug None None Drink options Ingredient canister Bean hopper Brewing mechanism Cleaning function by smart card Electronic temperature control Adjustable coffee strength... -
Page 6: Overview Of Components
OVERVIEW OF COMPONENTS BRILLIANCE 3.0 Front exterior Eight buttons are available to select 8 different beverages. Some of these buttons have additional functions as below (while in settings menu, which is not covered in this user manual but refer to the technical manual. -
Page 7: Front Interior
OVERVIEW OF COMPONENTS BRILLIANCE 3.0 Front interior Bean hopper Ingredient canisters Mixing bowl Espresso group Height-adjustable spouts Grounds container Drip tray Ingredient canisters CUPS/ DETAIL INGREDIENTS WIDTH DEPTH HEIGHT CAPACITY UNIT Bean Hopper Beans ---- ---- ---- ~2kg ~250 cups... -
Page 8: Cleaning Card
OVERVIEW OF COMPONENTS BRILLIANCE 3.0 Cleaning card Cleaning card Face Back Is used for cleaning of the machine. Cleaning card is supplied by your dealer. Insert cleaning card with the chip in, according to the figure. -
Page 9: Installation And Start-Up
INSTALLATION AND START-UP BRILLIANCE 3.0 Suitable locations This vending machine is not suitable for operating outdoors. It should be installed in dry locations, since excessive humidity will affect the dispensing. When installing the machine near a wall, the fan in the back of the machine should have enough space of at least 10cm to ensure proper airflow. -
Page 10: Electrical Connection
INSTALLATION AND START-UP BRILLIANCE 3.0 Electrical connection Connect the machine to a grounded connection of 230VAC 50Hz/60Hz or 110VAC 50/60Hz (depending on the model); check the adequate voltage and frequency at the back of the machine. Initialization When the machine is delivered from the factory, neither the boiler nor the air-break tank (a small deposit inside the machine) is full of water. -
Page 11: Fill Ingredient Canisters
INSTALLATION AND START-UP BRILLIANCE 3.0 Fill ingredient canisters Open the door Open the top lid Remove the ingredient canisters to avoid Reassembly canisters. spilling in the machine and fill with ingredients. When placing the ingredient canisters, When filling the ingredients, keep the opening Ensure that the openings of the canister of the canister chute upwards (A). -
Page 12: Filling Bean Hopper
INSTALLATION AND START-UP BRILLIANCE 3.0 Filling bean hopper Open the door Open the top lid Open the lid of the bean hopper Fill the bean hopper with freshly roasted coffee beans without additives. Note: Always use high quality beans in order to produce good quality espresso coffee. -
Page 13: Operation
OPERATION BRILLIANCE 3.0 Brewing a cup of espresso Place a cup under the outlet for hot drinks.(A) Select The display shows: Beverage Select espresso by pressing the button for Brewing The display shows: and the brew process starts. in Progress... -
Page 14: Grinder Adjustment
OPERATION BRILLIANCE 3.0 Grinder adjustment The grinder adjustment can be easily reached through the space left between bean hopper and the chassis. CW for Coarser Grinding CCW for Finer Grinding To adjust the coarseness, please rotate the adjuster counterclockwise for finer grinding, or clockwise for coarser. -
Page 15: Cleaning Program
CLEANING PROGRAM BRILLIANCE 3.0 Rinsing This rinsing function allows for an easy cleaning of the outlets of the machine. Rinsing is recommended at least once a week, but preferable every day, Rinsing especially if used in high consumption environments. This software routine flushes the different outlets of the machine, Starting with the mixing system and finishing with the espresso group. -
Page 16: Cleaning With Tablets
CLEANING PROGRAM BRILLIANCE 3.0 Weekly Cleaning Cleaning with tablets Canc Enter Insert the cleaning card in the card reader with the chip downwards, toggle Cleaning with tablet through the menus using “-” or “+” until “Cleaning with tablet” is shown on the display, press “Enter”... -
Page 17: Launching The Rinsing Without Cleaning Card
CLEANING PROGRAM BRILLIANCE 3.0 Launching the rinsing without cleaning card Canc Enter Switch The execution of the rinsing can be launched without having to open the door of the machine. As to do that : Turn off power to the machine from its main switch. -
Page 18: Cleaning And Care
CLEANING AND CARE BRILLIANCE 3.0 Weekly Cleaning Disassemble mixing system Rotate the canister chutes so they point upwards and pull out the outlet hose. Turn the mounting plate lever anticlockwise. Loosen the mixing bowl by pulling it straight out. Loosen the whipper by pulling it straight out. -
Page 19: Wash These Parts
CLEANING AND CARE BRILLIANCE 3.0 Weekly Cleaning Wash these parts Clean with a moist Mixing bowl Condensation trap Mounting plate Whipper cloth and wipe dry. Note: All parts must be dry before reassembly. Reassemble mixing system Important: The flat side of the whipper shaft must correspond with the Check all seals (red) before marked arrow on the whipper. -
Page 20: Disassemble The Espresso Group
CLEANING AND CARE BRILLIANCE 3.0 Disassemble the espresso group To remove the espresso group follow the following steps: Open the door and push down the Press down the safty ring on the connector simultaneously outlet beam. pull the teflon tube straight up. -
Page 21: Reassemble The Espresso Group
CLEANING AND CARE BRILLIANCE 3.0 Reassemble the espresso group To reassemble the espresso group follow the following steps: “Click” Replace the brewer in front of the gearbox. Attach top part at the back of the brewer to the hooks on the gearbox. push in the bottom part untill a click is felt. -
Page 22: Cleaning The Espresso Group
CLEANING AND CARE BRILLIANCE 3.0 Cleaning the espresso group First, remove the espresso group from the machine as explained earlier in this manual. Then proceed to clean it with neutral detergents (avoid solvents that could damage paint or plastics). Disinfectant products as Chlorine-detergents are preferred. -
Page 23: Removing The Coffee Waste Tray
CLEANING AND CARE BRILLIANCE 3.0 Removing the drip tray Open the door. Pull the drip-tray slightly upwards to take it out of position. Remove the drip-tray Removing the coffee waste tray Open the door. Lift the outlet if necessary in order to remove the coffee waste tray. -
Page 24: Message Shown On Display
MESSAGE SHOWN ON DISPLAY BRILLIANCE 3.0 Temporary warnings messages Important: There are two levels of alarms, warnings and fixed alarms. In this type of warnings, once the issue is solved, the message will disappear from the display and the machine will operate as normal. -
Page 25: Alarms
MESSAGE SHOWN ON DISPLAY BRILLIANCE 3.0 Alarms This type of alarms requires the user to turn off and on the machine, in order to remove the message on the display. If the problem persist, the next time the machine is powered the alarm will show again. -
Page 26: What To Do If
MESSAGE SHOWN ON DISPLAY BRILLIANCE 3.0 Coffee Doser Error If the control board detects a problem when opening the doser to empty the ground coffee into the espresso group chamber before the extraction starts, the Doser Error display will show “Doser Error”. This alarm can be caused by a bad connection in the wire of the doser to the control board, or by a defective doser unit. -
Page 27: Dimension Sketch
DIMENSION SKETCH BRILLIANCE 3.0 Brilliance 3.0 Model D (Min~ Max) Brilliance 3.0 664mm 474mm 394mm 75mm ~ 133mm... - Page 28 For the warranty to be valid the conditions for maintenance must have been followed according to our instructions, proper precaution has been made and warranty claim been issued without delay. The affected equipment may not be used during awaiting service if there is any risk that the damage or defect would worsen.
