Radio Shack 43-3261 User Manual

13-Number Memory
Big Button Phone
43-3261
Introduction

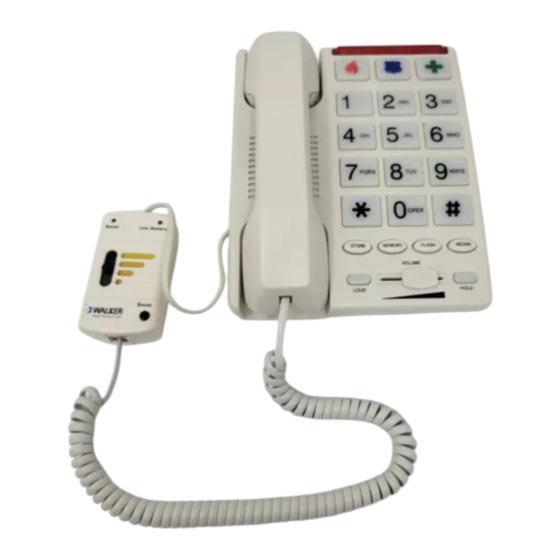

Thank you for purchasing the RadioShack
13-Number Memory Big Button Phone. The
ringer volume and listening volume can be
adjusted using the included AC adapter and the
sliding VOLUME control. Up to 10 standard
phone numbers can be stored in memory, as well
as three emergency numbers (fire, police,
ambulance).
Your telephone connects directly to a modular
telephone line jack. If your telephone wiring does
not have a modular jack, you can update the
wiring yourself using jacks and adapters
(available at your local RadioShack store), or
have the telephone company update the wiring
for you. You must use compatible modular jacks
that are compliant with Part 68 of FCC Rules and
the requirements adopted by the ACTA. The
telephone cord and modular plug provided is Part
68 compliant for connecting to the telephone
company network.
What's Included
• Telephone Base • Coiled Handset Cord
• Telephone Handset • Long Line Cord
• Mounting Bracket • Short Line Cord
• AC Adapter • Memory/Index Card
WARNING:
To reduce the risk of fire or shock hazard, do not expose this product to rain or
moisture.
.. ..
CAUTION:
CAUTION TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT REMOVE
!
COVER OR BACK. NO USER-SERVICEABLE
RISK OF ELECTRIC SHOCK PARTS INSIDE. REFER SERVICING TO
DO NOT OPEN
QUALIFIED PERSONNEL.
The lightning symbol is intended The exclamation symbol is
to alert you to the presence of ! intended to inform you that
uninsulated dangerous voltage important operating and
within this product's enclosure that might
maintenance instructions are
be of sufficient magnitude to constitute a
included in the literature
risk of electric shock. Do not open the
accompanying this product.
product's case.
Handset
Coiled Handset Cord —
Connects handset to base.
AC Adapter — For
amplified ringer volume,
connect the adapter's
barrel plug to the phone's
DC 9V jack. Connect the
other end to a standard
AC outlet. When the
adapter is connected, the
keypad lights when you lift
the handset.
FLASH — Press to answer an incoming call while
MEMORY — Press MEMORY, then
you are talking (if you have Call Waiting service).
press the memory location number
to automatically dial from memory. Press again to return to the previous call. If you do not
Or, press after entering a phone have Call Waiting, pressing FLASH can disconnect
the current call.
number to store.
STORE — Press
STORE, then enter a
number to store in
memory. Press again
after you enter the phone
number to confirm.
LOUD — To adjust listening level,
press LOUD, and then slide VOLUME
to the desired listening level setting
during a call. When you hang up and
make or receive another call, you must
press LOUD again before adjusting
VOLUME.
TONE PULSE — Slide to TONE or
PULSE to select the desired dialing
mode (depends on you phone service).
Press * during a call to switch from
pulse to tone dialing.
DC 9V Jack — Connect
adapter here for amplified
ringer volume, and to
activate the lighted keypad.
Base
Memory/Index Card —
Write down important
numbers for quick
reference. You can also
write in the names and/or
numbers stored in
memory.
Mounting
Bracket
Long Line Cord
Short Line Cord
REDIAL — Press to
automatically dial the last
phone number you
called.
HOLD — Press to place a call
on hold. HOLD lights. To
resume the call, press the
switchhook or lift the handset.
Ring Indicator — Flashes when
an incoming call is received.
LINE Jack — Connect
line cord here.
HI LO OFF RINGER —
Slide to the desired
setting to set the ringer
volume.
Step One
Attach the Mounting Bracket
1. Position the mounting
bracket as shown.
2. Align the bracket tabs with
the slots on the phone's
base.
3. Snap the bracket into
place.
Step Two
Mount and Connect the Phone
On a Wall
15
1. Drill two vertical holes 3 / inches apart .
16
Base
2. Thread a screw (not supplied) into each hole,
3
letting the heads extend about / inch from the
16
wall.
3. Fit the keyhole slots over the screw heads and
slide the phone downward to secure it.
On a Wall Plate
Fit the keyhole slots over the wall plate studs. Slide
the phone downward to secure it.
Connections
1. Connect the coiled handset cord to the jacks on
the base and the handset.
2. If your phone is mounted on the wall, connect
the long line cord to the phone's LINE jack.
Connect the other end to a wall jack.
3. If your phone is mounted on a wall plate,
connect the short line cord to the phone's LINE
jack. Connect the other end to a wall jack.
Wall or
Wall Plate
