Radio Shack 61-2433 Owner's Manual

33/1WVNGV"*QOG"6JGCVGT15CVGNNKVG"5WTIG"2TQVGEVQT
61-2433
%106'065
The FCC Wants You to Know ..................... 1
Safety Precautions ...................................... 2
Mounting the Surge Protector ..................... 2
Using the Cable Management Rack ........ 2
Connections ................................................ 2
Connecting a Telephone Line .................. 2
Connecting Cable TV ............................... 3
Connecting Satellite TV ........................... 3
Connecting the Device's AC
Power Cord(s) .......................................... 3
Connecting AC Power .............................. 3
Using the Safety Slide Cover ................... 3
Using the Indication Tags ......................... 3
Operation .................................................... 3
Troubleshooting .......................................... 3
Care ............................................................ 3
Service and Repair ...................................... 3
Specifications .............................................. 4
#
"+/2146#06"
If an icon appears at the end of a paragraph,
go to the box on that page with the
corresponding icon for pertinent information.
Rý
#
— Warning
. . . .
±
— Caution
.
"%#76+10"
• This product is intended for indoor use only.
• This surge protector is not a lightning
arrestor and might not protect against
lightning-induced voltage surges.
• Be sure the total wattage of all connected
devices does not exceed 1,875 watts.
• Use the surge protector only with a three-
prong standard AC plug. The surge protector
cannot provide protection without a
grounded AC source.

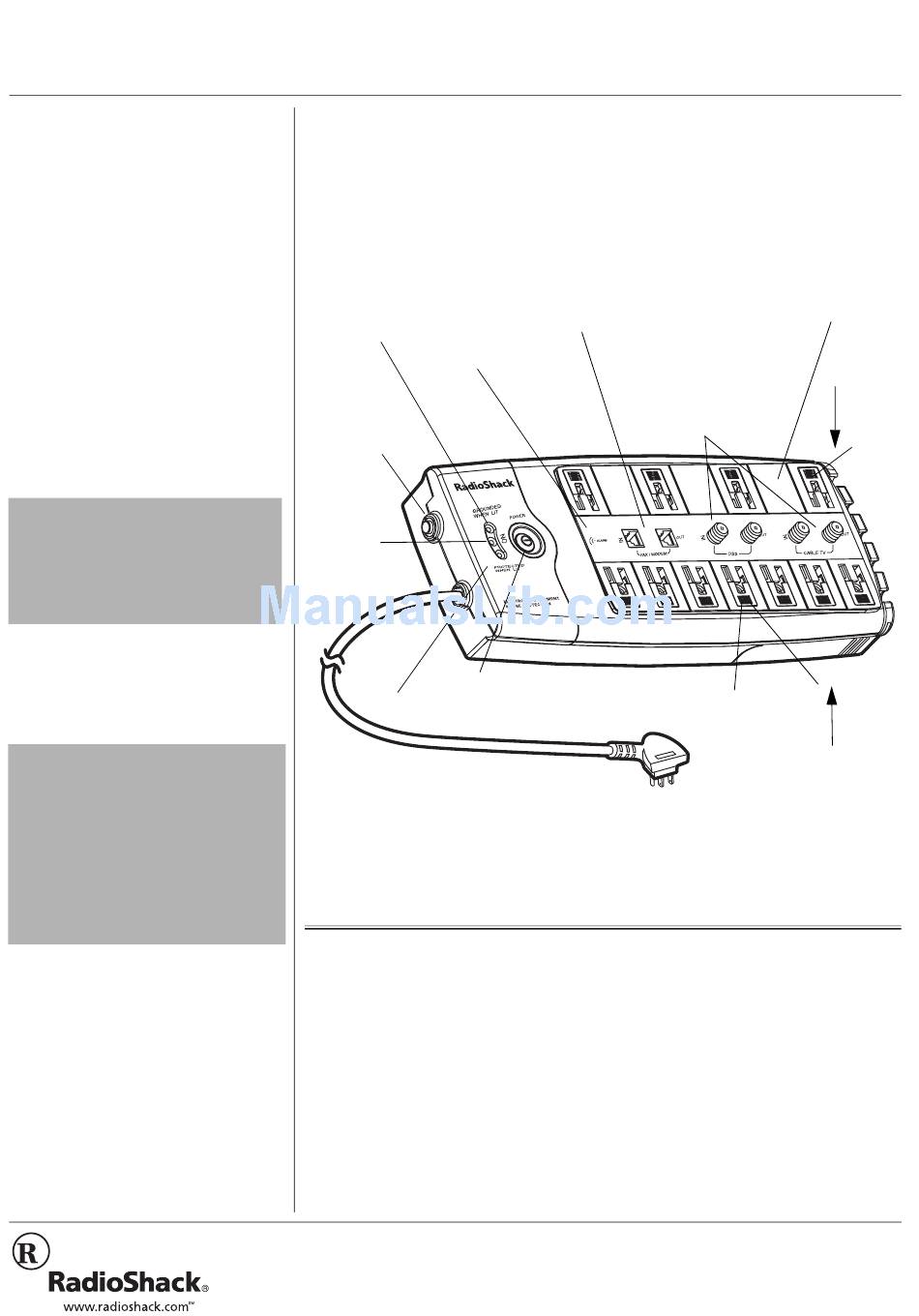

Thank you for purchasing the RadioShack 11-Outlet Home Theater/Satellite Surge Protector.
This surge protector guards your valuable A/V equipment from damage caused by sudden
electrical spikes and surges. Your surge protector also absorbs electrical spikes and power
surges and ensures steady performance of connected devices by filtering electromagnetic
and radio frequency interference.
Swift Detection and Protection — Detects and protects against a power surge of up to 6,000 volts
and 135,000 amps within 1 nanosecond (1 billionth of a second).
GROUNDED
WHEN LIT
Indicator —
Lights when the
connected
devices are
properly
grounded.
RESET — See
"Troubleshooting"
on Page 3.
Power ON
#
Indicator —
Lights when
the surge
protector's
power is
— Important
turned on.
— Note
.
Power Shutdown Protection — Protects the
connected appliances from being damaged by shutting
down power when surge protection is depleted (see
"Troubleshooting" on Page 3).
Cable Management Rack — lets you easily route the connected cables (see "Using the Cable
Management Rack" on Page 2.
6*'"(%%"9#065";17"
61"-019
Your surge protector complies with Part 68
of FCC Rules . You must, upon request,
provide the FCC registration number and the
REN to your telephone company.
You must not connect your surge protector
to:
• coin-operated systems
• party-line systems
• most electronic key telephone systems
OWNER'S MANUAL — Please read before using this equipment.
. . . .
Safety Alarm —
Alerts you when the
AC line is no longer
protected (surge
protector stops
conducting power).
POWER — Press to turn on the surge protector
PROTECTED WHEN LIT Indicator — Lights
when the connected devices are protected.
©
2002 RadioShack Corporation.
All Rights Reserved.
RadioShack and RadioShack.com are trademarks
used by RadioShack Corporation.
Surge Protected Modular Phone
Jacks — RJ-11 connections provide
protection against surges from a
connected fax / modem.
DSS (Digital Satellite
System), Cable TV F
Connectors — provide
protection against surges from
the connected DSS, antenna
TV or cable TV.
Safety Slide Covers
— Prevent children
from inserting metal
objects into the
unused AC socket(s).
Indication Tags — Identify which device's
power cord is connected to which AC
socket, so you can avoid disconnecting the
wrong device.
We have designed your surge protector to
conform to federal regulations, and you can
connect it to most telephone lines. However,
each surge protector that you connect to the
telephone line draws power from the
telephone line. We refer to this power draw
as the device's ringer equivalence number,
or REN.
If you use more than one phone or other
device on the line, add up all of the RENs. If
the total is more than five (three in rural
areas), your telephones might not ring. If
4 AC Adapter
Spacing — Lets you
plug in up to four AC
adapters into your
surge protector.
Safety
ON
Safety
ON
