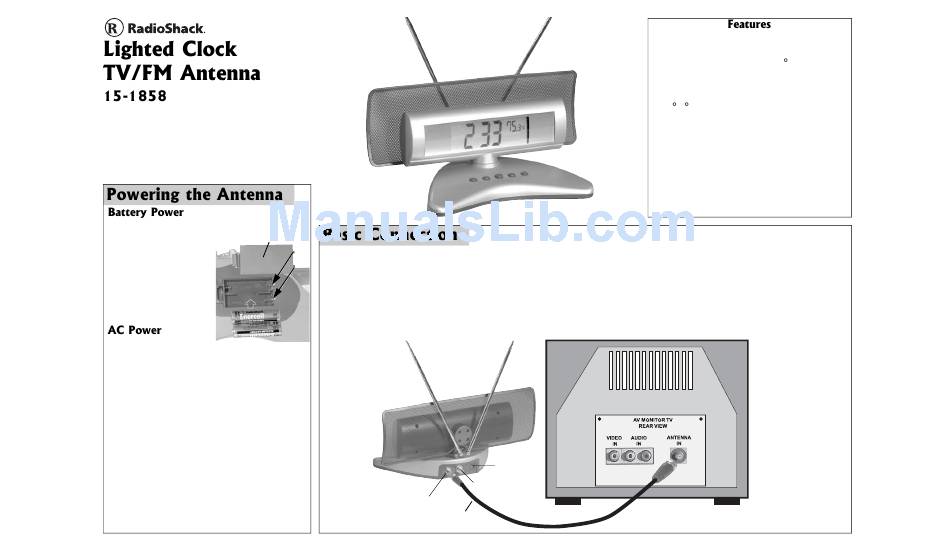

Radio Shack 15-1858 User Manual

Thank you for buying the RadioShack Lighted Clock
TV/FM Antenna. It is perfect for receiving HD (High
Definition) signals, and improving your TV or stereo
receiver's FM reception. You also can switch between
the antenna and an external signal, such as cable,
satellite or a video game. And, the large-digit display lets
you see the time and temperature at a glance.
1. Lift the battery cover off the battery compartment on
the bottom of the antenna
Battery Cover
base.
2. Insert two AA alkaline
batteries (not supplied),
as indicated by the
polarity symbols (+ and -)
marked inside.
3. Replace the cover.
You can power your antenna
with AC power using a 9V 100mA adapter and a size
M Adaptaplug (neither supplied).
1. Attach a size M Adaptaplug to a 9V AC adapter,
with its tip set to positive (+).
2. Insert the Adaptaplug into the antenna's DC 9V
jack. Then, plug the other end into a standard AC
outlet.
Notes:
• If you need to use the backlight function, we
recommend using the AC adapter to power the
antenna.
• Internal batteries (if installed) automatically disconnect
when you plug an AC adapter into the antenna.
• If the LCD display is abnormal, replace the batteries or
disconnect all power and reconnect after 10 minutes.
1. Place the antenna on or near your TV or FM receiver.
2. If your TV has an F-connector, connect the supplied coaxial cable to the antenna's TO TV jack and your TV's ANTENNA IN jack.
If your TV has a 300-ohm twin-lead connector, attach a 2-way splitter (not supplied) to the TV's VHF and UHF terminal screws. Then,
connect the coaxial cable to the splitter's F-connector and the antenna's TO TV jack.
3. Connect a second video source, such as a cable TV or video game, to the antenna's AUX IN terminal using a 75-ohm coaxial
cable/connector (not supplied).
Note: Visit your local RadioShack store for additional accessories you may need.
9V DC
JACK
AUX IN
AUX IN
TO TV JACK
TO TV JACK
COAXIAL
CABLE
• 38" Telescoping Antennas - Extend fully and
rotate for the best VHF and FM reception.
• UHF Antenna - Rotate up to 160 for best UHF
reception.
• Backlight - Press to easily view the time and
temperature in the dark.
• F /C - Press to switch the temperature between
Fahrenheit and Celsius.
• ANT/AUX - Press to switch between the antenna
and an external signal (such as cable, satellite, or
video game system).
• AUX IN - Provide the connection for external
antenna, video game or cable.
• Gold Plated Connector - Ensures best connection
for external input port.
DC 9V
