dbdrums

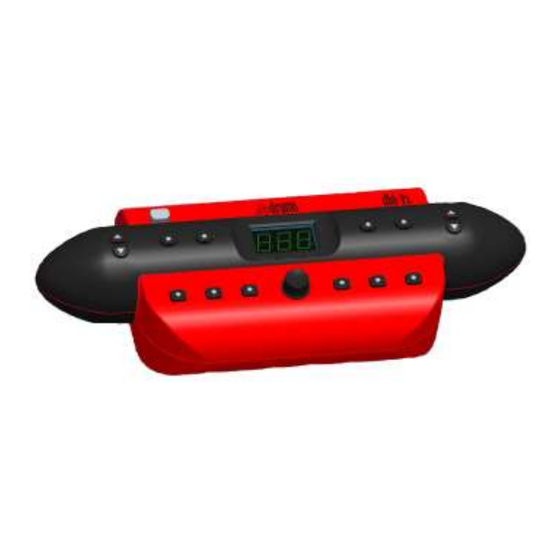

Digital Drum dbdrums
Model db6 V2
Owner´s Manual-English

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the db6 V2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DBDrums db6 V2

Summary of Contents for DBDrums db6 V2

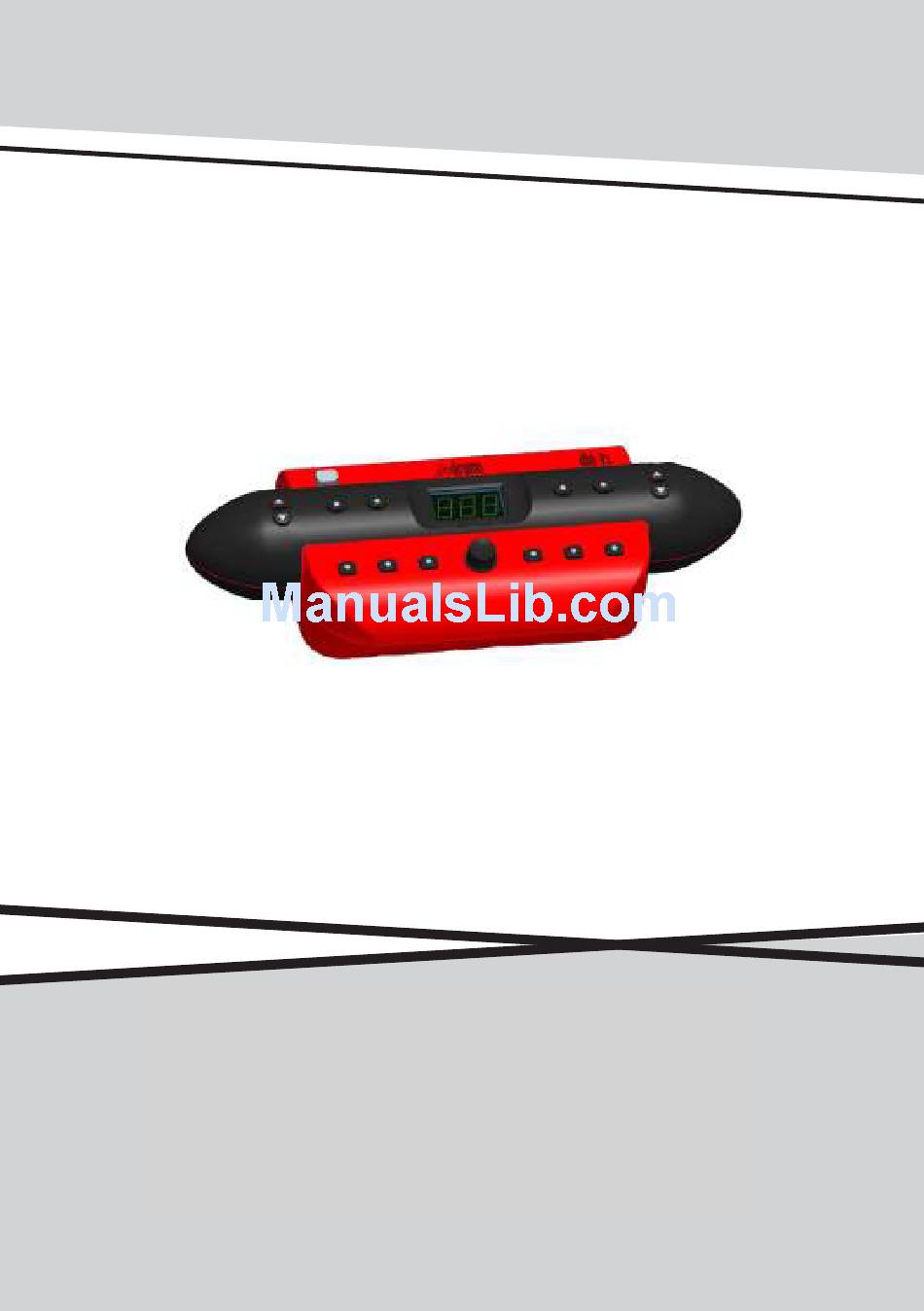

  • Page 1 Digital Drum dbdrums Model db6 V2 Owner´s Manual-English...
  • Page 2 Congratulations! Thank you for purchasing this digital drum set. The drum set has been Developed to act and play like a drum set but with greater ease. Before you use the instrument, we recommend you to read through this manual. Taking care of Your Digital Drum Set Handling and Transport Location...

  • Page 3: Table Of Contents

    Contents Pad pan............ 11 1. Module function......4 Pad tuning..........11 Front panel........5 Establish user drum kit......11 Rear panel........5 Song setting..........12 display display........ 6 Select song..........12 2. Connect with external devices..6 Song playing.

  • Page 4: Module Function

    2. Module function Front panel 5 15 DRUM OFF -MASTER VOLUME+ Turns on/off the drum sound of DEMO SONG. Adjusts the volume of earphone and VOLUME line output. Adjusts the accompaniment volume and percussion LED Display volume. Displays the menu parameters. CLICK -TEMPO+ Turns on/off the metronome.

  • Page 5: Rear Panel

    Rear panel 21 22 USB interface Connects with PC to deliver MIDI signal. MIDI in/out port Connects with external MIDI devices (The drum MIDI signal outputs via MIDI OUT to external audio source. The external MIDI signal inputs to the drum via MIDI IN.) Trigger in connector Pad signal input connector.

  • Page 6: Display Display

    LED Display Drum kit LED lights up: the number means the drum kit number Tone LED lights up: the number means the voice number. the preset song LED lights up: the number means the preset song number. 4. Connect with external devices Connecting with audio system or drum speaker cabinet Connect one end with L/mono R, and the other end with audio system or drum amplifier.

  • Page 7: Connect With Phone

    Connect with Headphones Connect the phone with 1/4" stereo connector on the module (if 1/8" phone is used, use an adaptor). The volume is controlled by the volume knob on the module. Connect with MP3 or CD player Connect the output of MP3 or CD player with AUX IN connector of the module. The input signal an be mixed with the drum signal.

  • Page 8: Connect With Pc

    Connect with PC 1). Connect PC via USB Receives and delivers MIDI signal. 2). Connect PC via MIDI port MIDI IN: receives external MIDI signal. MIDI OUT: delivers pad signal to external MIDI device or PC. Connect with MIDI keyboard MIDI port: connect with the MIDI OUT connector of MIDI keyboard or external pads as the external audio source to control this digital drum.

  • Page 9: Operation

    turn off the power switch before connecting with other devices. 5. Operation Power switch 1). Confirm all the cables are connected well, then set the module volume to minimum, then turn on the power switch. POWER - MASTER VOLUME+ 2). When the display lights up, enter into the module menu operation (enter into the drum kit menu when on.

  • Page 10: Select Drum Kit And Reverb

    Select drum kit and reverb 1). Press [KIT REV ON/OFF] key to enter into drum kit setting or to switch drum kit and reverb effect. 2). Press [KIT REV ON/OFF] key to enter into drum selection. The display shows drum kit number and the KIT LED lights up.

  • Page 11: Adjust Pad Volume

    VOICE 2). Strike the pad of which voice to be changed. Use [-DATA+] button to select the voice (voice Number:001-250 non-recycle) Adjust pad volume 1). When adjusting the pad volume, press once again [VOICE VOL/PAN/TUN] button to enter Into pad volume setting. The first LED shows L , and the other two LED shows the volume Value.

  • Page 12: Song Setting

    1). In the drum kit menu, press [SAVE] button to enter into user drum kit setting. Use [-DATA+] button to select the user drum kit U01-U10 non-cycle . During this process, the drum kit number flashes. 2). Press the pad parameter setting to change the pad tone/volume/pan/tune. 3).

  • Page 13: Drum Sound Of The Song

    VOLUME Drum sound voume of the song 1). Press [ACCOMP VOLUME] button continuously to enter into the drum sound setting. The display shows letter d first, and the drum sound volume next. SONG LED lights up. 2). Use [-DATA+] button to adjust the drum sound volume of the song 0-32 non-recycle . VOLUME Song tempo During playing DEMO SONG use [-TEMPO+] button to adjust the song tempo.

  • Page 14: Record And Replay

    3)Use the master volume knob to change the metronome volume. CLICK Note: during playing the songs, the metronome is closed. Press [CLICK] button to start metronome function. 6. Record and replay Record quickly 1). Press [RECORD] button, and [RECORD] LED lights up and flashes. It shows REC .

  • Page 15: Crosstalk Rejection

    3). Use [-DATA+] button to adjust the trigger sensitivity 01-08,non-recycle . The higher the value means higher sensitivity. UTILITY Crosstalk rejection Strike a pad (trigger) and the vibration may cause crosstalk. 1). Press [SET UP] button continuously to enter into trigger sensitivity setting. The display shows letter first and the crosstalk rejection level next.

  • Page 16: Save The Set-Up

    CURVE4 CURVE5 CURVE6 Save the set-up Press [SAVE] button to save the 3 setting mentioned above: sensitivity/crosstalk rejection/striking force. Local control 1). Press [SET UP] button to enter into the local setting. It shows the local control status: Lon for ON or for OFF.

  • Page 17: Reset Setting

    8. Reset setting Hold [TEMPO+] and [SET UP] button at the same time. It reset back to the factory setting: All user drum kits: voice/volume/pan/tuning Practical setting: sensitivity/crosstalk rejection/striking force curve 9. MIDI setting This equipment is compatible with various MIDI devices and can be used as trigger device or audio source.

  • Page 18: Midi List

    MIDI LIST MIDI IMPLEMENTATION CHART FUNCTION TRANSMITTED RECOGNIZED REMARKS Basic Default 10 Ch 1~16 Channel Changed Default Mode Massages Altered Note ********** 0~127 Number: True Voice ********** 0~127 Velocity Note On 99H,V=1~127 Note Off after Key's Touch Ch's Pitch Bend Control Bank Select Change...

  • Page 19: Trouble Shooting

    10. Trouble shooting Problem Reason No sound Please confirm the volume knob is not turned off Pad has no sound 1.confirm the pad connection is correct. 2.confirm the pad volume is not set to 0 Confirm the metronome volume is not set to 0 Metronome has no sound DEMO SONG has no sound Confirm the DEMO SONG volume is not set to 0...

  • Page 20: Drum Kit List

    12. DRUM KIT LIST PRESET DRUM KIT USER DRUM KIT POP1 POP1 POP2 POP2 POP3 POP3 ROCK1 ROCK1 ROCK2 ROCK2 ROCK3 ROCK3 FUNK1 FUNK1 FUNK2 FUNK2 FUNK3 FUNK3 LATIN1 LATIN1 LATIN2 JAZZ1 JAZZ2 BRUSH ORCH DANCE1 DANCE2 EAST1 EAST2 PERCUSSION...

  • Page 21: Voice List

    13. VOICE LIST NAME KICK1 KICK KICK2 KICK3 JAZZBD2 LTBD1 POPKICK1 POPKICK2 POPKICK3 POPKICK4 POPKICK5 POPKICK6 POPKICK7 ACKICK SYNBD02 EKICK05 NOISEBD EKICK01 EKICK02 BRSHSN1 ACOUSTIC SNARE FNKSN1 FNKSN2 POPSN1 HRDBT1 JZSLP1 JZSLP2 ORCHSN3 SDSTK3 SNRIM HVSN TITESN1 TITESN2 TITESN3 POPSN2 TITESN4 TITESN5 TRDSN1...
  • Page 22 SRSTD SRIMC4 POPSN1 POPSN2 POPSN3 POPSN4 POPSN5 POPSN5 SYNSN01 ELECTRIC SNARE ESN11 ESN1 ESN2 ESN3 ESN4 ESN5 ESN6 ESN7 CHH1 HI-HAT CHH2 CHH3 CHH4 CHH5 CHH6 CHH7 CHH8 LOOSHH1 LOOSHH2 LOOSHH3 LOOSHH4 OHHSTD OHIHAT1 OHIHAT2 OHIHAT3 OHIHAT4 OHIHAT5 PHHJZ PHH2 PHH3 CHHPOP1 CHHPOP2...
  • Page 23 EHH01 EHH02 EHH03 EHH04 EHH05 EHH06 EHH07 BRSHT1 BRSHT2 BRSHT3 TOM1 TOM2 TOM3 TOM4 TOM5 TOM6 TOM7 TOM8 TOM9 TOMHSTD TOMMSTD TOMPOP1 TOMPOP2 TOMPOP3 TOMPOP4 TOMPOP5 TOMPOP6 808T1 808T2 808T3 ETOM05 CYMBAL CRASH1 CRASH9 CRSHJS1 CRSHJS2 CRSHSTD1 CRSHSTD2 LTCRSH1 LTCRSH2 LTCRSH3 ORCCYM1 ORCCYM2...
  • Page 24 ORCCYM3 ORCCYM4 RBLLSTD RIDEBELL REVCYM1 REVCYM2 REVCYM3 REVCYM4 RIDEJZ1 RIDEJZ2 RIDESTD RIDE1 RIDE2 REVCYMBAL SPLSH1 SPLSH2 CRASHC1 CNCYMBAL CRASHPOP1 CRASHPOP2 CRASHPOP3 CRASHPOP4 SPLASHC RIDELC2 RIDEH1 RIDEH2 ECRASH1 ECRASH2 ECRASH3 ECRASH4 SPLASH PERCUSSION EMRCA1 EMTRI ETRNGL1 ETRNGL2 EBELL1 ECBSA2 ETMBRIN1 ETMBRIN2 CABASA1 CABASA2 CHKR01...
  • Page 25 CHKR03 CLAP1 CLAP2 CLAP3 CLAP4 COWBLL1 COWBLL2 COWBLL13 COWBLL14 COWBLL15 HAGOGO1 HAGOGO2 HAGOGO3 HIBNGO01 HIBNGO02 HTMBL1 HTMBL2 HTMBL3 LOBNGO LOCNGA01 LOCNGA02 MHCNGA03 MTRNGL OHCNGA01 OHCNGA02 OHCNGA03 OHCNGA04 OPNTRNGL TMBRN1 TMBRN2 TMBRN3 TMBRN4 TMBRN5 VSLP03 CNBGONG CNLCYMBL CNLDRM1 CNLDRM2 CNSCYMBL CNSDRM CNSGONG SUPRGNG TAIKO1...
  • Page 26 TAIKO3 TAIKO4 TAIKOSD1 TAIKOSD3 CHIM1 CHIM2 STICK2 TIM1 TIM2 TIM3 TIM4 TIM5 TMPNS3 BELLTREE High Q SLAP SCRATCH PUSH SCRATCH PULL STICKS CLIP METRONOME CLICK METRONOME BELL SHAKER JINGLEBELL CASTANETS MUTESURDO OPNSURDO L0TMBL1 LAGOGO1 MRCAS1 SWHSL1 LWHSL1 SGUIRO LGUIRO HWBLK LWBLK MCUICA OCUICA...

  • Page 27: Gm Percussion List

    GM PERCUSSION LIST GM Percussion Note No. Standard name Voice No. Voice Name 27 D#1 High Q High Q 28 E1 Slap SLAP 29 F1 SCRATCH PUSH Scratch Push 30 F#1 SCRATCH PULL Scratch Pull 31 G1 STICKS Sticks 32 G#1 Square Click CLIP 33 A1...
  • Page 28 65 F4 High Timbale HTMBL1 66 F#4 Low Timbale L0TMBL1 67 G4 High Agogo HAGOGO1 68 G#4 Low Agogo LAGOGO1 69 A4 CABASA1 Cabasa 70 A#4 Maracas MRCAS1 71 B4 Short Whistle SWHSL1 72 C5 Long Whistle LWHSL1 73 C#5 Short Guiro SGUIRO 74 D5...

  • Page 29: Demo Song List

    15. DEMO SONG LIST SONG TYPE SONG01 SHUFFLE SONG02 FUNK SONG03 FUNK SONG04 SONG05 BOSSA NOVA SONG06 WALTZ FOLK SONG07 SONG08 ROCK BLUES SONG09 COUNTRY SONG10 JAZZ SONG11 HARD ROCK SONG12 HAVEY METAL BLUE GRASS SONG13 SONG14 POP ROCK COUNTRY ROCK SONG15 SONG16 FOLK ROCK...
