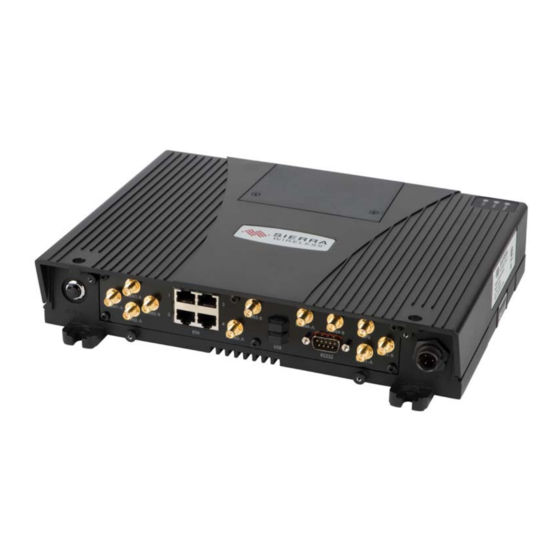

Sierra Wireless oMG series Operation And Configuration Manual

Mobile gateway
Hide thumbs
Table of Contents

Advertisement

Quick Links

oMG
Operation and Configuration
Guide 3.14
4118618
Rev 4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the oMG series and is the answer not in the manual?

Questions and answers

Related Manuals for Sierra Wireless oMG series

Summary of Contents for Sierra Wireless oMG series

  • Page 1 Operation and Configuration Guide 3.14 4118618 Rev 4...
  • Page 2 The Sierra Wireless modem can transmit signals that could interfere with this equipment. Do not operate the Sierra Wireless modem in any aircraft, whether the aircraft is on the ground or in flight. In aircraft, the Sierra Wireless modem MUST BE POWERED OFF.

  • Page 3: Contact Information

    ® product includes technology licensed from QUALCOMM . This product is manufactured or sold by Sierra Wireless Inc. or its affiliates under one or more patents licensed from InterDigital Group and MMP Portfolio Licensing. Copyright © 2017 Sierra Wireless. All rights reserved.

  • Page 4: Table Of Contents

    Contents 1: Overview ........... . .8 1.1 Who Should Read This Guide .
  • Page 5 Contents 5.5 Setting up Firewall Rules ........31 5.5.1 Configuring the WAN Rule Firewall Settings .
  • Page 6 Operation and Configuration Guide 3.14 11.3 Configuring User Access ........53 11.4 Changing the Root Password .
  • Page 7 Contents A.3 WAN Link Configuration Settings ......68 A.3.1 Cellular WAN Link Configuration Settings ....68 A.3.2 WiFi Link Configuration Settings .

  • Page 8: 1: Overview

    The gateway extends the utility and convenience of LAN networking to devices and applications in vehicles. The oMG interfaces with the AMM, Sierra Wireless’ mobile network management system. Figure 1-1: The back panel of an oMG Key Features of the oMG: •...

  • Page 9: Pre-Installation Requirements

    Overview • supports DHCP and static IPs • provides high security through technologies like ESP, authentication, encryption, firewall etc. • supports VLANs and VPNs 1.3 Pre-Installation Requirements This manual assumes that the appropriate cellular modem card is already installed in the oMG base unit and that the cellular network provider has activated the card.

  • Page 10: 2: Powering The Omg On And Off

    2: Powering the oMG On and Off 2.1 Powering On The oMG has a factory default configuration that enables it to establish a WAN connection if a cellular modem is installed along with an appropriate SIM card, and the APN is configured correctly. Note that additional configuration is always recommended.

  • Page 11: 3: Accessing The Configuration Settings

    Note: Configuration of the unit is best performed using a web browser running on a Windows 7 or Windows XP PC. As of version 3.8, the oMG supports Internet Explorer 9. Other devices and other browsers may work but have not been certified by Sierra Wireless. Log in using the following default credentials: •...

  • Page 12: Viewing The Configuration Settings

    Operation and Configuration Guide 3.14 To log out of the LCI, click on the Logout tab which will log out the current user and return to the login screen: Figure 3-2: Using the Logout tab to log out of the system 3.1 Viewing the Configuration Settings The oMG includes an Easy Access page, which allows users on all devices connected to the unit to view the unit’s operational status without having to log...

  • Page 13: 4: Preparing The Network Interfaces

    4: Preparing the Network Interfaces By default the oMG comes pre configured with devices which can provide both WAN and LAN connectivity. It's recommended that the settings for each device be verified before using the oMG. This will help to ensure that each device has been recognized by the system and is properly configured to provide LAN or WAN data communications.

  • Page 14: 5: Setting Up The Wan

    5: Setting up the WAN The oMG can access a WAN through cellular, WiFi, and wired Ethernet connection(s). Cellular WAN access is the most common method while the oMG is travelling in a vehicle and WiFi WAN access is often used when a vehicle returns to a depot where an AP is available for the oMG to connect to as a client.

  • Page 15: Cellular Wan Link Configuration

    Additional information on common cellular settings is available in Cellular WAN Link Configuration Settings on page 68. For more information on specific settings for your card contact your Mobile Network Operator or Sierra Wireless Technical Support (see Contact Information on page 3).

  • Page 16: Wifi Wan Link Configuration

    Operation and Configuration Guide 3.14 5.1.2 WiFi WAN Link Configuration A WiFi link provides WAN access to the oMG via a WiFi AP which is often available in locations such as vehicle depots. Since it's usually preferable to utilize an AP when available, WiFi links are usually configured as the primary WAN access method on the oMG.

  • Page 17: Serial Wan Link Configuration

    Setting up the WAN The following screenshot shows the settings for an Ethernet WAN link: Figure 5-4: Ethernet WAN Configuration Settings For information about Ethernet WAN configuration settings see Ethernet Link Configuration Settings on page 72. 5.1.4 Serial WAN Link Configuration A serial modem can be connected to the serial port and will have a Device Type of TTY Serial Port on the Serial Modem device listing screen.

  • Page 18: Defining An Access Point Profile For Wifi Links

    Operation and Configuration Guide 3.14 The following screenshot shows the settings for a serial modem WAN link: Figure 5-5: Serial WAN Link Configuration For more information see TTY Serial Port Link Configuration Settings on page 74. 5.2 Defining an Access Point Profile for WiFi Links An AP profile must be created for each WiFi AP that an oMG will use to access the WAN.

  • Page 19: Maintaining Communications With Services Of A Wan

    Setting up the WAN b. Click Configure, select the AP profile from the list next to WiFi Networks, and click Save: Figure 5-6: Selecting a WiFi AP profile for a WiFi WAN Link Note: If multiple WiFi access points have been defined, each access point will be listed and available for selection in the WiFi link's configuration settings.
  • Page 20 Operation and Configuration Guide 3.14 Note: A monitor cannot be used for detecting "low level" communication problems such as the loss of WAN connectivity (e.g. loss of cellular reception). These types of problems must be dealt with using the oMG's WAN recovery feature as described in Recovering from Dead WAN Connections on page 31.
  • Page 21 Setting up the WAN Figure 5-7: Identifying the assigned access point profile ii. Navigate to WAN > WiFi Networks, locate the AP and click Configure. iii. Select the monitor under network settings: Figure 5-8: Assigning the Monitor to the WiFi Access Point Profile iv.

  • Page 22: Setting Up A Link Policy

    Operation and Configuration Guide 3.14 To delete a monitor: 1. Navigate to WAN > Monitors. 2. Locate the desired monitor to delete and click Delete in the Actions column. 3. Click OK when prompted to confirm the deletion. 5.4 Setting up a Link Policy After configuring WAN link(s), it's recommended that one or more policies be defined for each link.

  • Page 23: Special Considerations For Wifi Links

    Setting up the WAN To define a policy for a link: 1. Navigate to WAN > Links and click on Policies in the Actions column. 2. Locate the desired policy in the list and click Configure in the Actions column. 3.
  • Page 24 Operation and Configuration Guide 3.14 There are actually two sets of settings on the Dynamic Priority Policy configuration screen: Figure 5-9: Settings on the Dynamic Priority Screen The first set allows for the enabling and setting of a Priority Score on a link. The priority score is added to a base score of 1000 which is assigned by the system.
  • Page 25 Setting up the WAN When C1's connection is re-established, its recovery period of 120 seconds begins, during which C2 remains as the current WAN link, and C1's score gradually increases. When C1's score finally becomes greater than C2 again, C1 is restored as the active link, even if its recovery period has not yet completed.

  • Page 26: Geographical Regions Policy Overview

    Operation and Configuration Guide 3.14 5.4.3 Geographical Regions Policy Overview The Geographic Region Policy increments a link's score to make it the preferable WAN link for a defined geographic bounding region. Up to three regions can be defined per link. This policy is often used when the quality and/or cost of coverage for a particular area is known ahead of time and selection of the best WAN link can be decided in advance (i.e.

  • Page 27: Time Period Policy Overview

    Setting up the WAN Note that the scores match in the overlapping region, so a switch between cellular links will not occur when entering the overlapping zone in order to prevent an unnecessary switch as illustrated in Figure 5-11: Figure 5-11: Geographic Region Example with overlapping Regions Tip: Configuring the bounding boxes for each region requires knowledge about the latitude and longitude coordinates for the upper and lower points which make up each...

  • Page 28: Velocity Policy Overview

    Operation and Configuration Guide 3.14 5.4.5 Velocity Policy Overview The Velocity Policy penalizes one link so that others become preferable based on velocity. It accomplishes this by applying a penalty on a WAN link when the oMG detects that the vehicle is exceeding a specified speed threshold. This is done to proactively switch off a link in a managed way prior to the link actually failing, which would require both the connection and VPN to be re-established.

  • Page 29: Signal Strength Policy Overview

    Setting up the WAN 5.4.6 Signal Strength Policy Overview The Signal Strength Policy is typically used for the selection of WiFi and cellular connections based on signal strengths (e.g. when located in an area with good cellular coverage). In other words, it penalizes a link so that other links become preferable and thus proactively selected based on signal strengths.
  • Page 30 Operation and Configuration Guide 3.14 should be superior to that of the cellular link, when WiFi is available. The WiFi link has been assigned a penalty of 600 which will cause its score to fall below that of the cellular link when the WiFi connection is lost. The Velocity Policy has also been applied to the WiFi link with a speed threshold of 25mph and a penalty of 600.

  • Page 31: Setting Up Firewall Rules

    Setting up the WAN 5.5 Setting up Firewall Rules 5.5.1 Configuring the WAN Rule Firewall Settings WAN firewall settings are configured through the creation of WAN networking rules under the WAN > Networking Rules tab. The oMG's WAN firewall can deny/allow access to both incoming and outgoing traffic based on a source/destination IP address combination and on TCP, UDP, or both protocols.
  • Page 32 Operation and Configuration Guide 3.14 To enable WAN recovery: 1. Navigate to WAN > Recovery. 2. Set the WAN Link Recovery field to enabled. 3. Configure each of the recovery settings as required. See WAN Recovery Settings on page 85 for detailed information on these settings. Enabling WAN Link Recovery will restart the entire unit and force the oMG to boot up again if WAN connectivity is lost.

  • Page 33: 6: Setting Up The Lan

    6: Setting up the LAN One of the main features of the oMG is its ability to provide a mobile LAN via both wired (Ethernet) ports and wireless (WiFi). Note: The oMG does not support USB-to-Ethernet adapters for LAN operation. 6.1 Configuring LAN Access By default, an oMG is usually preconfigured to provide LAN access via multiple Ethernet ports and through at least one unsecured WiFi AP.

  • Page 34: Configuring Lan Segments

    Operation and Configuration Guide 3.14 c. Configure the 802.1x settings and click Save to save the changes. For information on each setting see LAN Ethernet 802.1x Settings page 84. 3. Configure the LAN APs: navigate to LAN > Access Points and click on Configure under the Actions column for each access point listed: Figure 6-3: Defining a LAN WiFi Access Point Modify the AP settings if required and click Save.
  • Page 35 Setting up the LAN 3. Configure the segment's settings and click Save. See LAN Segment Settings on page 83 for information on each specific setting. Figure 6-5: LAN segment configuration screen Note that each LAN segment must have a different scope (i.e. IP address range) from the other segments.

  • Page 36: Configuring Dhcp And Static Ip Addresses

    Operation and Configuration Guide 3.14 3. Click the Apply Changes button. After a brief period, the screen will refresh and the device listing will move down to the new LAN segment. To delete a LAN segment: 1. Navigate to LAN > LAN Segments. 2.

  • Page 37: Deleting A Lan Network Rules

    Setting up the LAN 3. Enter a descriptive name for the rule in the Rule Name field. 4. Set the desired traffic direction in the Direction field to allow or deny access 5. Configure the remaining fields and click Save. See Networking Rules page 65 for more information about the specific configuration fields for each rule type.

  • Page 38: Setting Up Virtual Lans

    Operation and Configuration Guide 3.14 printer’s IP address (as determined above) when asked for the Printer Name or IP Address. 6.6 Setting up Virtual LANs A VLAN can be used when devices inside the vehicle require VLAN tagging for their operation, or the vehicle LAN has a switch with VLAN tagging enabled. If a vehicle has VLANs configured, or four Ethernet ports are not enough, they can be multiplied by using a switch and VLAN tagging.

  • Page 39: 7: How To Configure A Vpn

    7: How to Configure a VPN The oMG can be configured to provide access to one or more Virtual Private Networks (VPNs). A VPN allows LAN devices connected the oMG to access an enterprise network and vice versa. The oMG supports the following VPNs and VPN related technologies: •...

  • Page 40: Detecting Dead Vpn Connections

    For IKEv2, it is recommended that MOBIKE be enabled if multiple WAN links are available which will automatically switch links when one goes down. MOBIKE has been tested by Sierra Wireless against Sierra Wireless’ ACM VPN server. For more information on compatibility with VPN servers contact Sierra Wireless...

  • Page 41: Multi-Vpn Support

    How to Configure a VPN 7.2 Multi-VPN Support oMG 3.14 and above support the creation of multiple VPN tunnels per WAN link. With this feature, one or more VPN policies can be applied to one or more WAN links in the LCI: Figure 7-2: Selecting Multiple WAN Links The VPNs assigned to a WAN link can also be viewed by navigating to Status >...
  • Page 42 Operation and Configuration Guide 3.14 Figure 7-3: Viewing the VPNs assigned to a WAN Link The multi-VPN feature has the following attributes and restrictions: • Each WAN link / WiFi Network can have up to 10 VPNs. • If a WAN link / WiFi Network has two or more VPNs, any of these VPNs cannot be in HOST2LAN mode.

  • Page 43: Configuring Dns Zones For Private Dns Server Use

    In AMM, select Config > Deploy > Upload to copy the file to the AMM. b. Select Config > Deploy > Deploy to store the file on selected oMGs. Note: Refer to the AMM Operation and Configuration Guide for details or contact Sierra Wireless Support for assistance. Rev 4 May.17...

  • Page 44: 8: Setting Up Gps Connectivity

    8: Setting up GPS Connectivity An important feature of the oMG is its ability to determine and report its GPS location to an AMM and to the customer’s mapping system. The oMG is equipped with an internal GPS receiver but can also be configured to use an external GPS device connected to the unit via a serial or USB (e.g.
  • Page 45 Setting up GPS Connectivity Figure 8-1: GPS Configuration Screen The following steps can be used to configure or change GPS settings. See Configuration Settings on page 89 for detailed information on each field. 1. Navigate to the GPS tab. 2. Select Enable. 3.
  • Page 46 Operation and Configuration Guide 3.14 4. Configure the NMEA Messaging and TAIP Messaging if required. If using TAIP Messaging, ensure the Enable checkbox under Additional Options is selected. 5. Configure the Local Forwarding options as required: · TCP/UDP—Allows data to be sent to the LAN using the respective protocol ·...

  • Page 47: 9: Performance Tuning

    9: Performance Tuning 9.1 Configuring Load balancing When multiple cellular devices are configured as active WAN links, load balancing can be used to control the amount of traffic transmitted over each link. This is useful for example, when an alternative link has more bandwidth or lower costs are associated with it than another link.

  • Page 48: Configuring Lan Throughput Reporting Frequency

    Operation and Configuration Guide 3.14 To define a QoS policy for WAN: 1. Navigate to WAN > Networking Rules. 2. Select QoS Prioritizing in the rule dropdown and click Add New Networking Rule. 3. Enter a descriptive name for the rule in the Rule Name field. 4.
  • Page 49 Performance Tuning Figure 9-1: LAN Throughput Configuration Data transmission occurs when the amount of data to report meets or exceeds the data size specified in the Threshold field, but only if the Minimum Report Interval time has elapsed. If the threshold hold has not been reached, it will be sent when the Maximum Report Interval elapses.

  • Page 50: 10: Configuring The Omg's Startup And Shutdown Behavior

    10: Configuring the oMG's startup and shutdown Behavior Startup Behavior The oMG can be configured to turn on automatically once power has been detected as follows: 1. Navigate to General > Startup: Figure 10-1: Startup Configuration Screen 2. Set the AutoPower field to enabled. 3.
  • Page 51 Configuring the oMG's startup and shutdown Behavior Figure 10-2: Shutdown Configuration Screen 2. Configure the voltage and temperature fields. See Shutdown on page 91 for detailed information on each field. Note that voltage readings are subject to cable length and will always be slightly lower than the voltage measured at the source.

  • Page 52: 11: Administration

    11: Administration 11.1 Obtaining General Information General information about the unit such as the ESN, version number, etc. can be obtained by navigating to the General > General tab which displays the following: Figure 11-1: General Status Information 11.2 Obtaining Network Status Network status information such as the unit's IP address, data transmissions etc.

  • Page 53: Configuring User Access

    Administration Figure 11-2: Enabling Extended Status 11.3 Configuring User Access Access to the oMG's LCI for administration purposes can be configured from the Security > Users tab. Figure 11-3: User Configuration Screen To Add a New Administrator 1. Navigate to Security > Users. 2.

  • Page 54: Changing The Root Password

    If another password is used, password entry may be required when accessing the unit through an AMM. Consult with Sierra Wireless Technical Support before changing the password to ensure that Sierra Wireless can continue to provide remote administration support. The root password for the oMG can be changed by navigating to Security >...

  • Page 55: Configuring Services

    Events generated on the oMG are reported to the AMM's DNS record set. The configuration for this reporting can be accessed by navigating to General > Services. These settings should only be modified under advisement of Sierra Wireless Technical Support. Rev 4 May.17...

  • Page 56: Using The Diagnostic Tools

    LCI. Since incorrect use of this feature may disable the unit, it's recommended that such configuration be done in consultation with Sierra Wireless Technical Support. For information about each option see Advanced Routing Rules on page 93.

  • Page 57: Accessing The Console

    Administration 11.9 Accessing the Console Additional administration of the oMG can be performed by connecting the gateway to a laptop that is running a terminal emulator such as PuTTY. The connection requires a straight-through (i.e. non-null modem) DB-9 serial cable between the oMG and laptop, and the following settings must be configured on the oMG via the LCI: 1.

  • Page 58: 12: Applications

    Note: While configurations for all applications are listed under the Applications tab in the oMG's LCI, only those applications which have been purchased and configured on the AMM side can be used. Contact your Sierra Wireless Account Manager or Channel Partner to inquire about Application Licensing options.

  • Page 59: 13: Updating The System

    13: Updating the System The oMG can be updated by downloading software and BIOS updates over the WAN either automatically or by having a Sierra Wireless Technical Support person manually "push" the update to the unit. After an update has been downloaded, the software will be installed on the next reboot.
  • Page 60 When switching Mobile Network Operators after the images have been purged, first contact Sierra Wireless Technical Support who will assist in pushing a new Mobile Network Operator image package to the oMG. Once obtained, the SIM card can then be...

  • Page 61: Over The Air Updates

    93. 13.2 Over the Air Updates Sierra Wireless Technical Support can publish upgrades "over the air" based on the terms of a service contract agreement. Note that a customer must request upgrades from Sierra Wireless Technical Support before they are automatically published.

  • Page 62: 14: Troubleshooting

    Information While operational, the oMG continuously generates diagnostic logs which provide important information for troubleshooting by Sierra Wireless Technical Support. The oMG transmits these logs to the AMM over “low cost” links. The format and content of these logs are not documented because of their complexity and because they are subject to change every release.
  • Page 63 Logs are stored in a compressed file format to optimize memory usage • The log file naming convention describes its function (e.g. yyyy-mm-ddfirewall.log records firewall activity) • Log files should only be used as requested by Sierra Wireless Technical Support Rev 4 May.17...

  • Page 64: A: Configuration Settings

    A: Configuration Settings A.1 Policies A.1.1 Dynamic Priority Policy Assigns a score which dynamically changes based on the solidity of the connection. Fields: • Priority Score: defines the initial score of the link. The link with the highest score will be the active link when multiple links are available. •...

  • Page 65: Velocity Policy

    Configuration Settings Fields: • Start and End time: defines the time period (specified in 24 hour notation). • Score: the value that will be added for determining the network selection. A.1.4 Velocity Policy Switches networks based on the velocity of the vehicle. This allows for proactive network switching instead of relying only on network outage switching.

  • Page 66: Access Granting

    Operation and Configuration Guide 3.14 • Destination IP port range defined by the first and last port, inclusively, of the range • Action specifies what action to take for the rule, Reject (default) or Drop. · When the rule is set to Drop, the packets that match the specification are dropped.

  • Page 67: Qos Priority

    Configuration Settings A.2.4 QoS Priority QoS policies provide different priorities to various applications and guarantee a certain level of performance to data flow. QoS policies are egress based. For example, applying a QoS policy to a WAN interface is recommended to limit the bandwidth being consumed by video traffic being viewed remotely.

  • Page 68: Wan Link Configuration Settings

    • Change Default MTU Size: May be required to accommodate some network configurations. Only change if advised by Sierra Wireless. Default is disabled. • Auto Local IP: Enables DHCP for this interface. The IP address will be assigned by a DHCP server connected to the access point network.
  • Page 69 Use Management Tunnel: allows remote access to the oMG when private addresses are in use. This option should only be enabled on the advice of Sierra Wireless Technical Support. • Pilot Ping: enables or disables Pilot Ping. Disabled by default.
  • Page 70 WAN interface. This helps to prevent packets from being dropped on slower WAN connections. This field should not be changed without assistance from Sierra Wireless. • Signal Strength Change Threshold (dBm): the threshold for sending DELS events to the AMM based on a change in signal strength.

  • Page 71: Wifi Link Configuration Settings

    Configuration Settings · Preferred Radio Access Mode: the card mode through which the oMG will try to connect to the network. The supported modes vary by card type based on which networks they can connect to and which settings are available.

  • Page 72: Ethernet Link Configuration Settings

    Operation and Configuration Guide 3.14 depot environment and aggressively (e.g. every 2 seconds) when operating in metropolitan networks. • Signal Strength Average Length: this value specifies the number of background scan samples that are integrated in order to evaluate alternative APs.
  • Page 73 Configuration Settings • DHCP Assumes Same Network: specifies whether to try to reconnect to the same DHCP assignment when the DCHP lease expires. • Local IP Address: specifies the static IP address if Auto Local IP is disabled. • Network Mask: specifies the network mask of the static IP address. •...

  • Page 74: Tty Serial Port Link Configuration Settings

    Operation and Configuration Guide 3.14 • Split Access: This allows an incoming session to initiate on a link even when the link is not the active (i.e. default route) link but is connected to the network. A.3.4 TTY Serial Port Link Configuration Settings •...
  • Page 75 Enable Custom txqueuelen: when enabled, the specified number of packets will be held in the transmit buffer of the WAN interface. This helps to prevent packets from being dropped on slower WAN connections. This field should not be changed without assistance from Sierra Wireless. Rev 4 May.17...

  • Page 76: Wan Monitor Settings

    Operation and Configuration Guide 3.14 A.4 WAN Monitor Settings • Friendly Name: monitor label that appears on the WAN Link configuration page. • Use Automatic Ping Host: specifies that the pings will be sent to $ESN.ping.omgservice.com, where $ESN is the ESN of the oMG. •...
  • Page 77 Use Management Tunnel: allows remote access to the oMG when private addresses are in use. This option should only be enabled on the advice of Sierra Wireless Technical Support. • Pilot Ping: enables or disables Pilot Ping. Disabled by default.
  • Page 78 Operation and Configuration Guide 3.14 • Monitors: selects a defined monitor for detecting the availability of the link. The factory-defined monitor is DefaultMonitor and is commonly blocked within enterprise networks. Use an enterprise specific monitor. • Monitor Mode: defines the action that will occur on the link if the monitor fails or succeeds: ·...
  • Page 79 Configuration Settings • Identity: if applicable, specifies the identity needed to log on to this WiFi network • Password: if applicable, specifies the password which the user Identity will need to log on to this WiFi network. Note that the value is obfuscated for security reasons.

  • Page 80: Lan Settings

    Operation and Configuration Guide 3.14 Table 1-2: Summary of required security options for each authentication method Authentication PEAP Certificate Private Key Version Label Inner Key Pre- Identity Password CA Client Key Password Authent Size Shared ication Open WEP-Shared-Key EAP-TLS EAP-PEAP WPA-PSK Radio Frequency •...
  • Page 81 The whitelist/black list file is created using a text editor and then emailed to Sierra Wireless Technical Support who will push the file to the oMG. The for- mat of the file must abide by the following: ·...
  • Page 82 Operation and Configuration Guide 3.14 WEP Re-key Interval: specifies how often to re-negotiate keys to be used for WEP security. · WPA/TKIP or WPA2/CCMP: WPA Key Management: can be set to WPA-PSK or WPA-EAP to select the respective key management protocol, making the following options available: ·...

  • Page 83: Lan Segment Settings

    Configuration Settings value in order to delay the need for users to re authenticate when a WAN connection is interrupted. · 802.1x Authentication Servers: two authentication and two authentication servers can be set by typing in the host’s address and port. ·...

  • Page 84: Vlan Settings

    Operation and Configuration Guide 3.14 SSH, command line) while at the same time, allows access to required resources such as DNS and proxy. • Isolated: when checked, the LAN segment is isolated and no other segments can see it. However, the isolated LAN segment can see the others. A.6.3 VLAN Settings •...

  • Page 85: Wan Recovery Settings

    Remote Subnets: set to the destination IP network and destination IP network mask in CIDR notation. · Allow Management Tunnel Bypass: set to enabled. Sierra Wireless strongly recommends this field be enabled. Although it necessitates planning for the management tunnel UDP connection through to the AMM, the benefit is that it allows for an independent means of access to the oMG from the AMM for remote configuration and troubleshooting.
  • Page 86 VPN server doesn't support compression. · Force UDP Encapsulation: Set to enabled (default). Sierra Wireless recommends this field be enabled. When the VPN server is behind a firewall, firewall configuration is simplified as the firewall only has to allow ports 500 (IKE) and 4500 (UDP-encapsulated ESP) when UDP encapsu- lation is employed.
  • Page 87 CA Certificate File: Click Browse and select the CA server certificate (.pem) file. · Server Certificate File: Leave Blank. This field is used when a CA certif- icate server is not available. For more information contact Sierra Wireless Technical Support. Rev 4 May.17...

  • Page 88: Bluetooth Support

    VPN monitor is selected. A.10 Bluetooth Support A.10.1 Supported Adaptors The following adaptors are rated for industrial applications and have been tested with the oMG. Sierra Wireless cannot support issues that may arise from using unqualified Bluetooth adaptors. Ezurio BRBLU03-010-0A SENA UD100...

  • Page 89: Configuration

    Configuration Settings A.10.2 Configuration • Adaptor Name: appears when the connecting device discovers the oMG in the pairing process. It is useful to use a name that refers to the vehicle to which the oMG is attached (e.g. Truck25). Whenever the device pairs with the oMG, it will discover Truck25 which can then be selected for the transmission.
  • Page 90 Operation and Configuration Guide 3.14 · Group Sentences in a Single UDP Packet: enable (select) or disable (de-select) sending of all NMEA sentences in a single packet. • TAIP Messaging: allows for the following response messages: · AL: Altitude/Up Velocity ·...

  • Page 91: General Configuration Settings

    Configuration Settings must cross a Critical threshold in order for the GPS information to be sent to the AMM. · Accuracy Unit: specifies the units to be used for the Critical Accuracy Threshold field (see below). Selectable values are yard and meter. The default is meter.

  • Page 92: Tools

    Operation and Configuration Guide 3.14 voltage reaches 11.9V. This ensures that the oMG does not continually shutdown and restart when voltage is fluctuating around the low voltage value. • High Temperature: the upper temperature limit (internal oMG temperature), above which the oMG will not operate. •...

  • Page 93: Advanced Routing Rules

    Configuration Settings • download-new-software-updates: provides a way to manually download new software updates. • verify-local-software-repository: can be used to check for possible software repository problems prior to applying downloaded software updates. • reboot-omg: reboots the oMG. • novatel-e362-tool: a debugging tool which can reset the unit's E362 module and also force a firmware upgrade over the air.
  • Page 94 Operation and Configuration Guide 3.14 · Download and Apply Updates on Next Boot: When the oMG boots, it automatically applies any updates that have been downloaded. This is the default option. · Download and Apply Updates during Scheduled Time (UTC time without DST): If any updates have been downloaded, the oMG will apply them during the ‘scheduled time’: ·...
  • Page 95 (e.g. when switching from high cost to low cost connection and resuming the download). This field should only be modified in consultation with Sierra Wireless Technical Support. Module Firmware Options The following options control Mobile Network Operator-specific firmware image updates for the oMG’s on board MC7354 cellular WAN module:...

  • Page 96: B: Technical Information

    B: Technical Information B.1 Technical Specifications These specifications apply only to the Four Port oMG, even though the Release 3.7 software will operate on both one port and four port models. Table 2-1: Technical Specifications Feature Description • IEEE 802.11 b/g (built-in vehicle AP).
  • Page 97 Technical Information Table 2-1: Technical Specifications Feature Description WLAN Security and Authentication • WEP, WPA, WPA2 • Key management WPA-PSK and WPA-EAP Firewall • Port forwarding • Port blocking Encryption • IPSec including LAN to LAN, Secure all data IKEV2, Mobike transmitted to and from •...
  • Page 98 Operation and Configuration Guide 3.14 Table 2-1: Technical Specifications Feature Description Power Supply • Nominal 8-34v (for H01 through H08 series) • Nominal 6-34v (for H10 series and above) • Minimum to voltage needed to boot: 9.5v • Limited duration operate from 34 to 48v •...

  • Page 99: Led Blink Patterns

    Technical Information Table 2-1: Technical Specifications Feature Description Temperature/Humidity • Operating Temperature: -20ºC to +60ºC • Optional: -30ºC to +60ºC • Storage Temperature: -40ºC to +80ºC • Operating Humidity: 5-95% relative humidity; non-condensing • Storage Humidity: 5-95% relative humidity; non-condensing Purpose-built for mobile Platform Environmental...
  • Page 100 Operation and Configuration Guide 3.14 Table 2-2: LED Blink Patterns (Continued) oMG is not on or is initializing Rapid flashing (Four per second) Searching for network connection Three rapid flashes, then off for Software update is in progress. one second (repeating) (DO NOT REBOOT OR POWER Status Green...

  • Page 101: C: Supported Usb-To-Serial Adaptors

    C: Supported USB-To-Serial Adaptors Table 3-1: Supported USB Adaptors Supported USB-Ethernet Adaptors IO Gear IOGear-GU232A Star-Tech ICUUSB232 Rev 4 May.17...
